Low consumption and low loss, high fidelity signal transmission
High quality polypropylene film medium with seamless winding design, extremely low electrical loss, no attenuation transmission of various AC signals, no signal distortion or delay, perfectly retaining the original characteristics of the signal, and adapting to the coupling requirements of small signals to medium power signals.
Accurate DC isolation to eliminate DC crosstalk
Exclusive DC isolation structure design can completely isolate the DC component in the circuit, prevent DC from entering the signal circuit and causing device damage and signal distortion, ensure that the coupling circuit only transmits AC signals, and improve the stability of the circuit operation.
High insulation and anti-interference to enhance circuit reliability
High insulation resistance characteristics effectively resist clutter interference in the circuit, while preventing signal reverse leakage, reducing cross circuit interference problems, protecting core components such as precision chips and amplification devices in the circuit, and reducing the probability of equipment failure.
Broadband adaptation, multi scene signal transmission
Covering the transmission requirements of low-frequency to high-frequency multi band signals, it can adapt to audio signals, industrial control analog signals, and high-frequency communication signals without the need for separate customization. It can meet the coupling and isolation needs of multiple types of devices.
High temperature resistance and aging resistance, long life and stable operation
The entire component is made of industrial grade temperature resistant materials, which can withstand high temperature conditions inside the equipment. There are no problems such as medium aging or electrode detachment, and the long-term continuous working performance is not degraded. It does not require frequent maintenance and saves equipment maintenance costs.
Explosion proof and flame retardant, with better safety protection in place
Built in explosion-proof pressure relief structure, combined with UL94 V-0 flame retardant packaging, eliminates the risk of capacitor explosion and fire caused by overvoltage and overcurrent from the source, and is suitable for various use environments such as industrial equipment and civil electronics, making electricity safer.
Standardized design, ultra convenient installation and adaptation
Covering multiple voltage and capacity specifications, supporting various installation methods such as direct insertion, soldering, and lead wires, with standardized size and compact layout that fits various circuit boards. New machine assembly and old machine maintenance and replacement are both worry free and efficient.
All solid structure, strong environmental adaptability
No liquid filling, no leakage hazard, moisture-proof, anti slight vibration, anti dust characteristics, non-polar design suitable for various circuit layouts, stable operation in indoor and outdoor environments.
| Reference | GB/T17702, IEC61071 |
| Capacitance | 1 ~ 20 µF |
| Capacitance Tol. | ±5% (J), ±10% (K) |
| Voltage | 200V.AC ~ 1000V.AC |
| UT-T | 1.5Un / 60s |
| Over Voltage | 1.1Un (8h/24h) |
| 1.15Un (30min/24h) | |
| 1.2Un (5min/24h) | |
| 1.3Un (1min/24h) | |
| tg δ | tg δ ≤ 0.0020 (100Hz) |
| Ri × Cn | ≥ 30,000 s (25°C±5°C, 100V DC, 60s) |
| dv/dt | > 50 V/µs |
| Climatic Category | 40/85/21 |
| Operating Temp. | -40°C ~ +85°C (θ h.s ≤ 85°C) |
| Lead Methods | Insert, copper nut, copper bolt |
| Max. Altitude | < 4000 m |
| Lifetime Expectancy | 30,000 h (θ h.s ≤ 70°C) |
| Encapsulation | Mylar tape/plastic shell, epoxy resin encapsulation |
Suitable for AC signal coupling and DC component isolation circuits of various electronic devices
communication equipment:Signal coupling and DC isolation of switches, routers, optical transceivers, and communication modules
Audio equipment:Audio signal transmission for amplifiers, mixing consoles, speakers, and microphones, isolating DC to avoid speaker damage
Industrial Control Electronics:PLC、 Analog/digital signal coupling of frequency converters, servo drives, and sensors to prevent DC crosstalk
Security equipment:Video/control signal transmission and isolation for cameras, video recorders, and access control systems
Civil electronics:Signal processing circuits for televisions, monitors, set-top boxes, and smart homes
Power Electronics:Auxiliary signal coupling and DC isolation for high-frequency power supply, inverter equipment, and charging piles
Integrated production and sales:Focused on the production, research and development, sales and service of thin film capacitors, with a complete product line

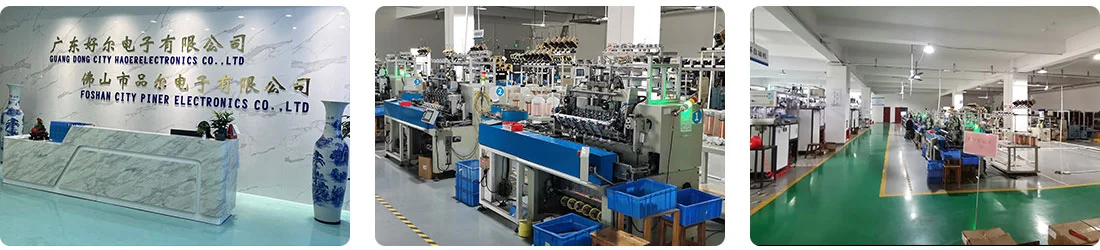

Hardware strength:Fully automated production equipment, industry-leading technology
Value-added service:Application engineers assist in selection and provide free technical support
Cost performance:High cost-effectiveness, flexible transactions, and short delivery cycles
Custom-made:Develop, design, and produce products that meet special requirements based on customer needs
Success cases:Widely used in nearly 300 industries, serving over 10000 customers
Service:Patient and timely communication before sales, regular follow-up visits to customers after sales
The shipping methods include DHL, UPS, TNT, FedEx and other courier services, and you can also choose air or sea freight according to your requirements
Xiaoxiong, Deerma, Meishile, Dongling Weili, Yasile, Lianrui, Jeweisi, Yingke, Yuelong, Tuohao
Q:Are you a manufacturer or a trading company?
A: We are a professional manufacturer with in-house R&D, production lines, and quality control systems. OEM/ODM services are available.
Q:Are your products compliant with international certifications?
A: Yes, our capacitors comply with RoHS and REACH regulations, and test reports are available. Some series are certified to UL and IEC standards.
Q: What is the minimum order quantity (MOQ)?
A: MOQ for standard products is 50-100pcs, depending on the model. Sample orders are welcome.
Q: What is the lead time?
A: Standard lead time is 3-4 weeks. Expedited delivery is available for urgent orders.
Q: What payment terms do you accept?
A: We accept T/T, L/C, and flexible terms based on mutual agreement.
