Common-mode Inductor - Full Spec PCB Mount EMI Filter Inductive Device

Haoer Electronics' Common-mode inductor is a core component for suppressing common-mode electromagnetic interference. Its design of two wires wound together on a high magnetic permeability magnetic ring presents a high impedance to common-mode noise (interference between the line and ground), while having an extremely low impedance to differential-mode signals (useful working current). It can effectively prevent external interference from invading the equipment, and at the same time prevent the equipment's noise from polluting the power grid, thereby enhancing the safety and reliability of the system. Our Common-mode inductor series includes products such as Iron Oxide Common-mode Inductor, Magnetic Ring Coil Amorphous Magnetic Ring Common-mode Inductor, and others.

Core features

· Common-mode noise destroyer: Effectively suppresses electromagnetic interference between the lines and the ground, reduces radiation and conducted emissions.

· Symmetrical balanced design: Ensures that the two windings are highly symmetrical, avoids mode conversion, and enhances filtering effect.

· Safe and reliable: Uses enameled wires and insulating materials that comply with safety regulations to ensure long-term stable operation.

Choose Haoer: Our common-mode inductors cover a wide range of requirements from consumer electronics to industrial drives, and are the essential choice for your products to achieve excellent EMC performance and comply with international standards.

View as

Iron Oxide Common-mode Inductor

Haoer Electronics is a professional manufacturer of Iron oxide common-mode inductor. This product is a key component for suppressing electromagnetic interference (EMI). The core feature is its high high-frequency impedance and excellent suppression effect. The ferrite material performs exceptionally well in the high-frequency range, effectively filtering out radiation and conducted noise generated by high-speed switches. It is widely used in various switching power supplies, frequency converters, charging stations, and electronic devices with communication ports (such as USB, network ports).

View More >> Send Inquiry >>

Magnetic Ring Coil Amorphous Magnetic Ring Common-mode Inductor

The magnetic ring coil amorphous magnetic ring common-mode inductor supplied by Haoer Electronics Factory is also known as a common-mode choke coil, amorphous common-mode filter, ring-shaped common-mode inductor, wound inductor, oscillating coil, common-mode noise suppression inductor, and has excellent anti-interference performance. It comes in various shapes and is widely used to suppress the electromagnetic wave radiation and emission generated by high-speed signal lines.

View More >> Send Inquiry >>

Iron-silicon-aluminum Magnetic Ring Coil Differential Inductor

Haoer Electronics' high-quality China Iron-silicon-aluminum magnetic ring coil differential inductor is an inductive component without active power source, with its core magnetic path carrier being a magnetic ring made of iron, silicon and aluminum. It adopts a symmetrical winding design and is specifically developed to suppress differential-mode interference in circuits. The closed magnetic ring structure combined with the excellent performance of the iron-silicon-aluminum magnetic core exhibits low loss and high stability characteristics in scenarios with high current and wide frequency band, making it a core component for electromagnetic compatibility (EMC) design in power systems and new energy equipment.

View More >> Send Inquiry >>

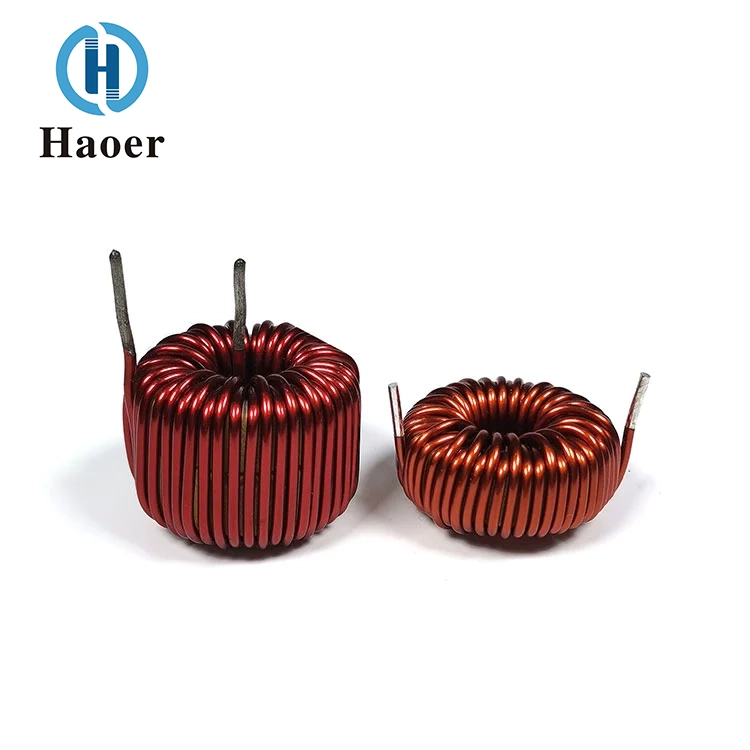

Choke Coil Iron Powder Core Differential Inductor

The China Choke coil iron powder core differential inductor produced by the supplier of Haoer Electronics features high current capacity, excellent filtering effect, easy manufacturing, simple installation, and high reliability. The cost of the iron powder core is lower, with good high-performance and temperature stability. It is a durable and practical choice, and is widely used in various types of induction cookers, car chargers, electromagnetic heaters, etc.

View More >> Send Inquiry >>

As a reliable Common-mode Inductor manufacturer and supplier in China, we have custom options and volume discount pricing. Please just send us a quotation!
