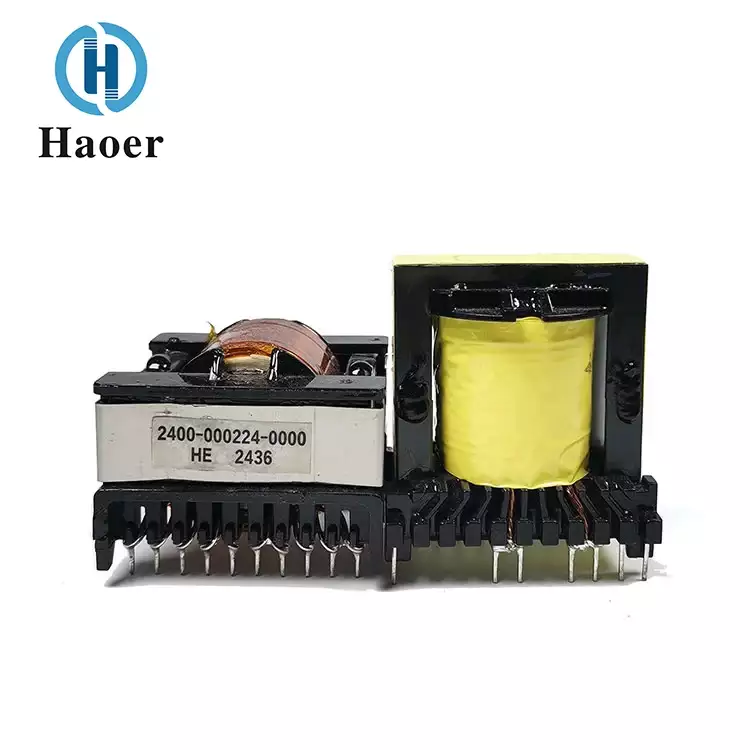

The ETD Ferrite Core High-Frequency Transformer plays a vital role in modern switching power supplies (SMPS), renewable energy systems, LED drivers, telecom power modules, and industrial automation equipment. Thanks to its optimized core geometry, low core loss at high frequency, and excellent power density, ETD transformers have become a preferred magnetic solution across industries.
In this comprehensive guide, we explore what makes ETD ferrite core transformers superior, how to select the right ETD core model (ETD29, ETD34, ETD39, etc.), design considerations, performance comparisons, material selection, winding structure, and why working with an experienced manufacturer like Haoer ensures stable and reliable transformer performance.
An ETD ferrite core high-frequency transformer is a magnetic component designed for operation in high-frequency switching environments, typically ranging from 20kHz to several hundred kHz. The “ETD” designation refers to a specific ferrite core geometry optimized for:
ETD cores are commonly used in:
Compared to traditional EI cores, ETD cores provide improved magnetic symmetry and higher power density, making them especially suitable for compact electronic systems.
The ETD ferrite core design features a round center leg and optimized cross-sectional area, which reduces flux concentration and improves winding efficiency.
In high-frequency applications, minimizing core loss and copper loss is critical. ETD cores are designed specifically to reduce these losses under fast switching conditions.
Soft ferrite materials used in ETD transformers offer low hysteresis loss and eddy current loss at high frequencies.
The high operating frequency enables smaller core size while maintaining power output.
Balanced magnetic flux reduces heat concentration and improves reliability.
Optimized winding arrangement and symmetrical flux path reduce electromagnetic interference.
| Model | Power Range | Typical Application | Advantages |
|---|---|---|---|
| ETD29 | 30W – 80W | LED Drivers, Small SMPS | Compact & Cost-Effective |
| ETD34 | 80W – 150W | Industrial Control Power | Balanced Performance |
| ETD39 | 150W – 300W | Inverters, Telecom Power | Higher Power Density |
Choosing the right ETD model depends on switching frequency, output power, thermal requirements, and PCB space limitations.
ETD transformers typically use Mn-Zn soft ferrite materials, optimized for high permeability and low core loss.
Selecting the correct ferrite material directly impacts transformer efficiency, EMI behavior, and long-term reliability.
Higher frequency allows smaller core size but increases switching loss. A balanced frequency (typically 50kHz–150kHz) is common.
Proper copper fill factor and ventilation design prevent overheating and core saturation.
As a professional magnetic component manufacturer, Haoer provides custom ETD ferrite core high-frequency transformers tailored to specific application requirements.
Haoer focuses on delivering stable performance, low defect rate, and long service life magnetic solutions for global customers.
Typically between 20kHz and 300kHz depending on material and design.
Base your selection on output power, thermal margin, and PCB space. ETD34 supports higher power handling.
Yes. ETD39 and above are widely used in inverter and high-power SMPS systems.
Absolutely. Turns ratio, insulation grade, output configuration, and mounting style can be customized.
The ETD ferrite core high-frequency transformer offers superior magnetic performance, compact structure, thermal stability, and high efficiency—making it indispensable in modern electronic power systems.
Whether you are designing LED drivers, industrial control systems, renewable energy inverters, or telecom power modules, selecting the right ETD transformer is crucial for efficiency and reliability.
If you are looking for a reliable manufacturer with strong customization capabilities and strict quality control, Haoer is ready to support your project. For detailed specifications, design consultation, or bulk inquiries, please contact us today to get professional magnetic solutions tailored to your needs.
