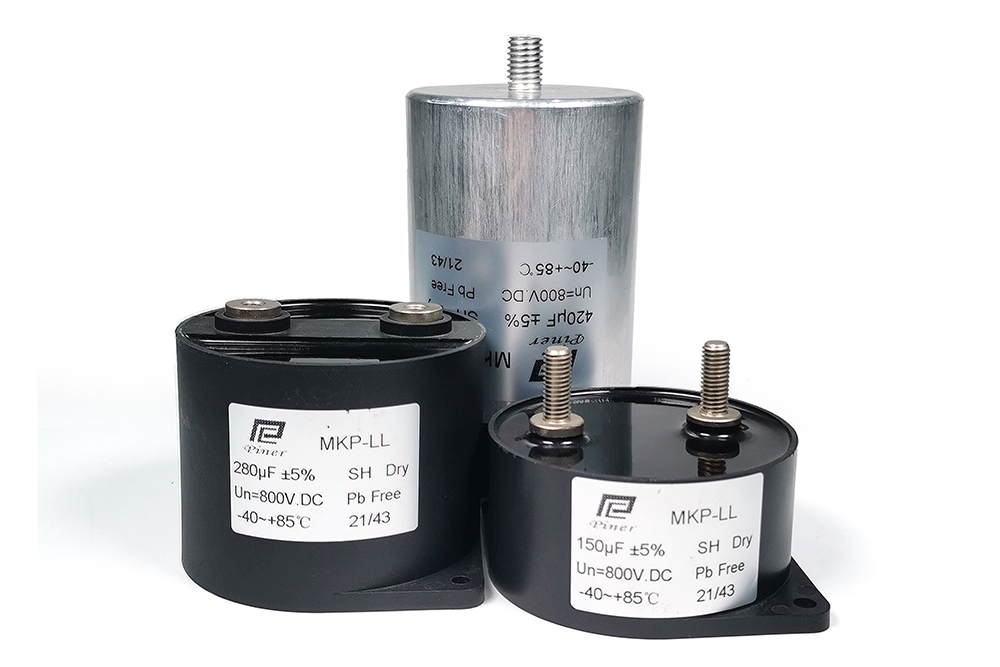

DC-Link Capacitors: Technical Analysis and Applications

DC-link capacitors are critical energy storage components in power electronics systems, playing an irreplaceable role in modern industrial applications. These capacitors are primarily used for DC-side filtering and energy buffering, with core functions including stabilizing DC bus voltage, suppressing ripple interference, and improving system power density.

In terms of technical characteristics, DC-link capacitors must offer the following performance advantages:

• High-voltage withstand capability — typically handling DC voltages from hundreds to thousands of volts
• Low equivalent series resistance (ESR) — effectively reducing power losses
• Excellent high-frequency characteristics — accommodating fast switching frequencies
• Long operational life — maintaining stable performance at elevated temperatures
• Compact structural design — meeting high power density requirements

Application scenarios include:

• DC-side filtering for photovoltaic/wind power converters
• Power modules for electric vehicle charging stations
• DC bus support for industrial frequency converters
• UPS systems (uninterruptible power supply)
• Traction converter units for rail transit

Technical development trends include three distinctive features:

• The widespread adoption of metallized film technology has reduced product volume by over \(30\%\).
• R&D on new electrolyte materials has raised the maximum operating temperature to \(125^{\circ}C\).
• The integration of intelligent monitoring functions enables real-time diagnosis of capacitor conditions.
