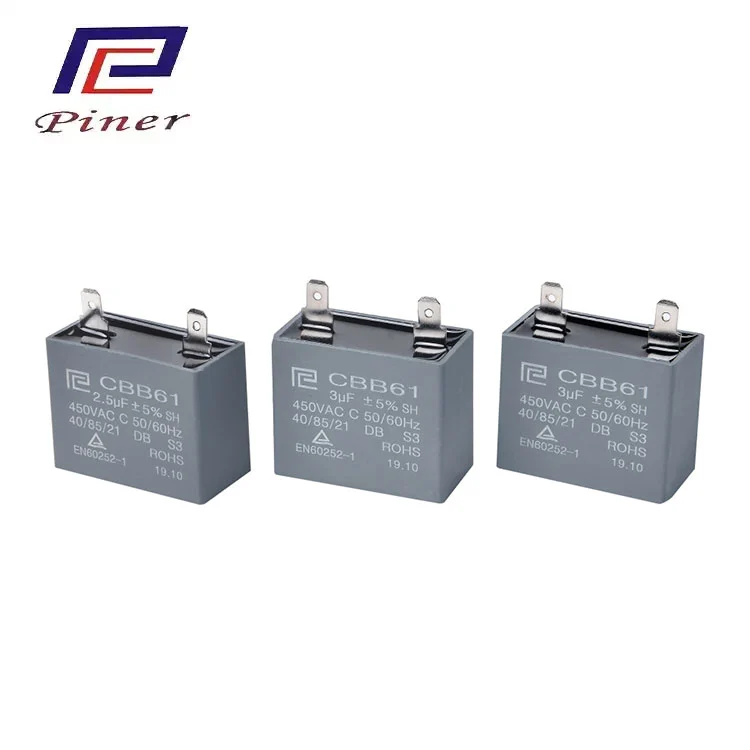

P2 level explosion-proof safety capacitor, specially designed for medium and high-power single-phase motors such as air conditioners and water pumps, integrating high safety, strong load capacity, and operational stability.
P2 level safety explosion-proof: directional pressure relief and forced open circuit in case of malfunction, no open flames or explosions, ensuring absolute safety in enclosed or near human environments such as compressors.
Strong current carrying capacity: using thickened electrodes, it can withstand the instantaneous high current and continuous operating current when the motor starts, stable and reliable.
Efficient and energy-saving: Polypropylene film has extremely low dielectric loss and generates less heat during operation, which helps improve motor energy efficiency and reduce overall equipment power consumption.
Double protection is more reliable: it has the ability to self heal minor faults, triggering P2 level explosion-proof open circuit in case of serious faults. The dual mechanism ensures long service life and maintenance free.
Strong adaptability to wide temperature range: operating temperature range of -40 ℃~+85 ℃, stable performance, sealed structure moisture-proof, dustproof and oil proof, suitable for various complex industrial environments.
Fault safety design: After a fault occurs, it will be in an open circuit state, avoiding secondary damage such as motor burnout caused by capacitor short circuit, and reducing maintenance costs.
Easy to install and universal: cylindrical aluminum shell packaging, standard solder spacing, can be directly connected to common motor terminals, easy to install, strong adaptability.
| Reference standard | GB/T3667、UL810、IEC60252 |
| Climatic category | 27/70/21、25/85/21、40/70/21、40/85/21 |
| Rated voltage | 250VAC、450VAC (50/60HZ) |
| Capacitance range | 1μF ~ 8μF |
| Capacitance tolerance | ±5%(J)、±10%(K)、+10/-5% (U) |
| Testing voltage | |
| between terminals | 2UN(VAC)/60s |
| between terminals and case | 2UN+1000(VAC)/60s(≥ 2000VAC) |
| Insulation resistance (20°C) | |
| between terminals and case | ≥ 2000MΩ（500VDC，60s） |
| Dissipation factor | ≤ 0.0020(100Hz) |
| Class of safety protection | S3(P2) |
Dimension Unit: mm
The metallization electrode adopting micro fuse mesh structure(pictured), and in the capacitance operation is at fault, through the micro fuse disconnect, which cut off power supply, prevent fault expand to self protection safely purposes.
Our thin film capacitors, from the source to after-sales, build a solid quality defense line for you throughout the entire process:
High quality film material performance guarantee:using silver zinc aluminum edge thickened metalized film, the effective gold spraying area on the side is increased by 20%, which can easily cope with high surge and high temperature working conditions, making the product stable and reliable in complex environments.
Brand direct sales, factory direct supply:Our own factory has first-hand sources of goods, cutting all intermediate links without layer by layer markup, and providing you with tangible discounts, reducing procurement costs to the bottom.
Quality assurance:High purity tin zinc alloy, with a gold spray thickness of over 0. 35mm, combined with high-quality raw materials and strict quality control throughout the entire process, creates excellent electrical performance and low loss performance of the product, with a longer lifespan and guaranteed quality and safety.
After sales guarantee:Not only does it have a professional R&D team to support product iteration, but it is also equipped with senior engineers who are proficient in PCB design to form an after-sales technical team. We provide free solutions to various problems in product design and application, and offer thoughtful pre-sales and after-sales services throughout the entire process, ensuring worry free service.
CQC, UL, IS09000, TS16949 and other safety certification and quality system certification, IS09001-2015 quality management system certification, MKPX2 safety capacitor series has passed UL certification in the United States, CUL certification in Canada, VDE certification in Germany and CQC certification in China. The company's products comply with the latest environmental requirements of the European Union and meet RoHS and REACH directive standards.
