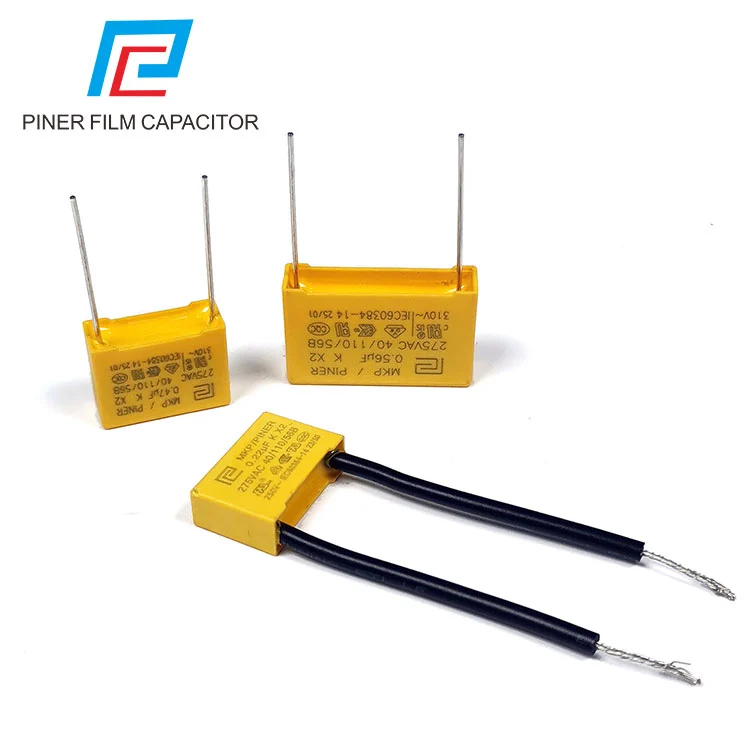

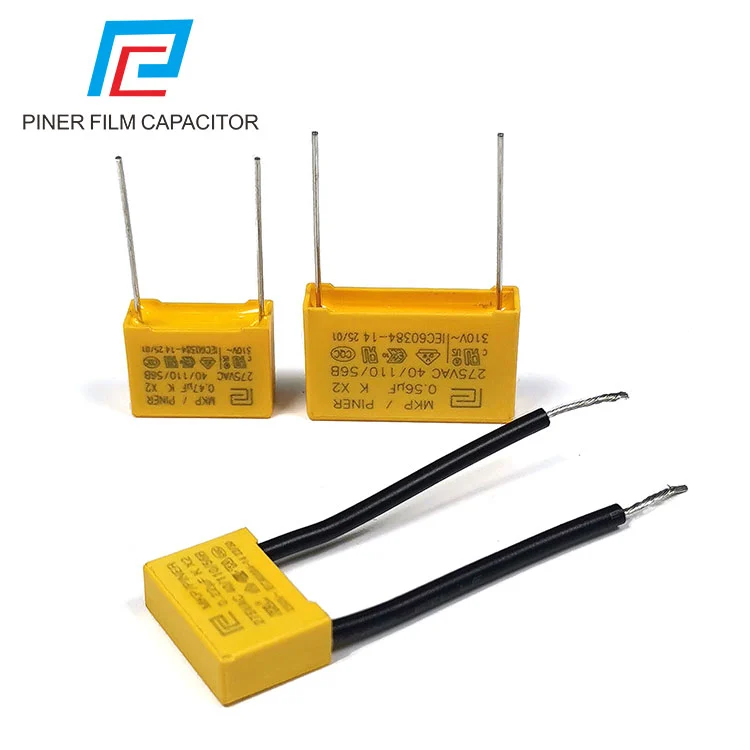

1. The Non-flame Enclosure Capacitor supplied by Piner Manufacturer adopts a non-inductive design, with a metallized polypropylene film used as the dielectric and electrode wound together. The pins are made of tin-plated copper-clad steel wire. The entire capacitor is encapsulated in a flame-retardant epoxy resin within a plastic housing, ensuring good appearance consistency. This capacitor features low high-frequency loss, high insulation resistance, excellent self-healing performance, and long lifespan. It is suitable for large current applications and can withstand 2.5kV pulse voltage.
2. It suppresses power supply electromagnetic interference and has passed CQC, UL, ENEC, etc. safety certifications.
2. It can withstand overvoltage shocks and has good flame-retardant properties.
4. The electrodes are made of thickened zinc-aluminum composite metal evaporation coating.

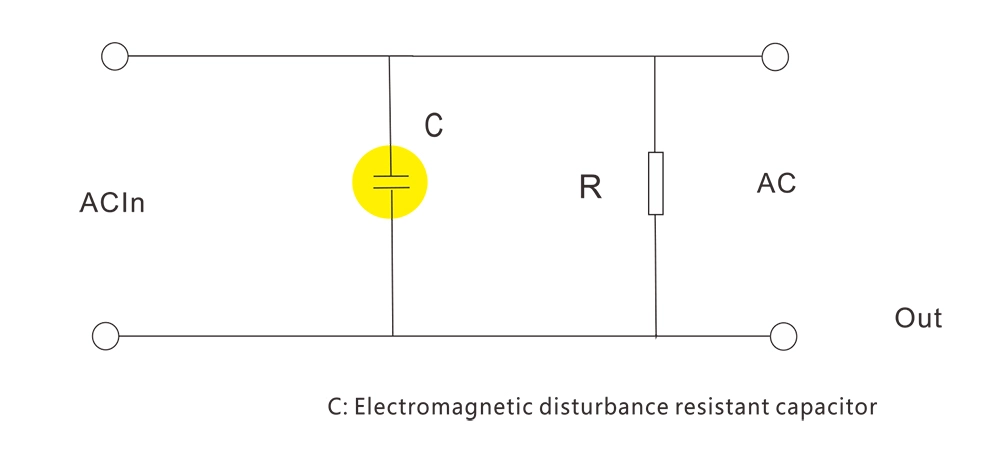

5. It is suitable for power cross-line noise reduction circuits and other AC applications; widely used in anti-interference scenarios with high requirements for power cross-connection lines and other anti-interference occasions.
6. Customization can be processed according to customer requirements.
| Reference standard | GB/T14472 IEC60384-14 |
| Climatic category | 40/110/56 B |
| Rated voltage | 275VAC ~ 310VAC |
| Capacitance range | 0.01uF ~ 10uF |
| Capacitance tolerance | ±5%(J) ±10%(K) |
| Between terminals Voltage proof | 4.3Un DC (60s) |
| Between terminals and case | 2*Ur+1500VAC (60s) |
| Dissipation factor | DF≤0.0010 (1KHz) |

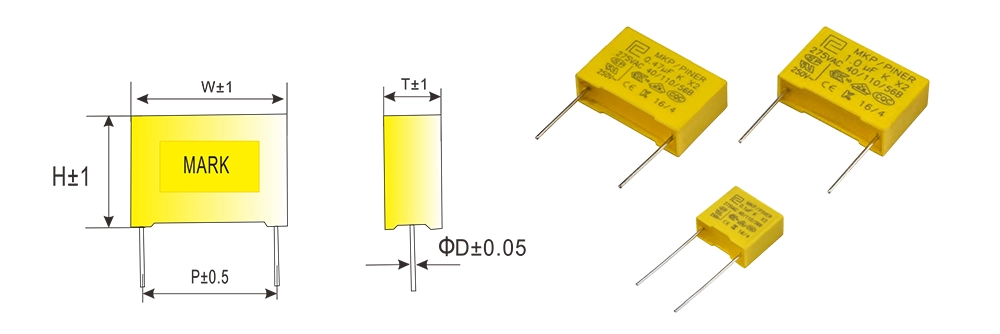

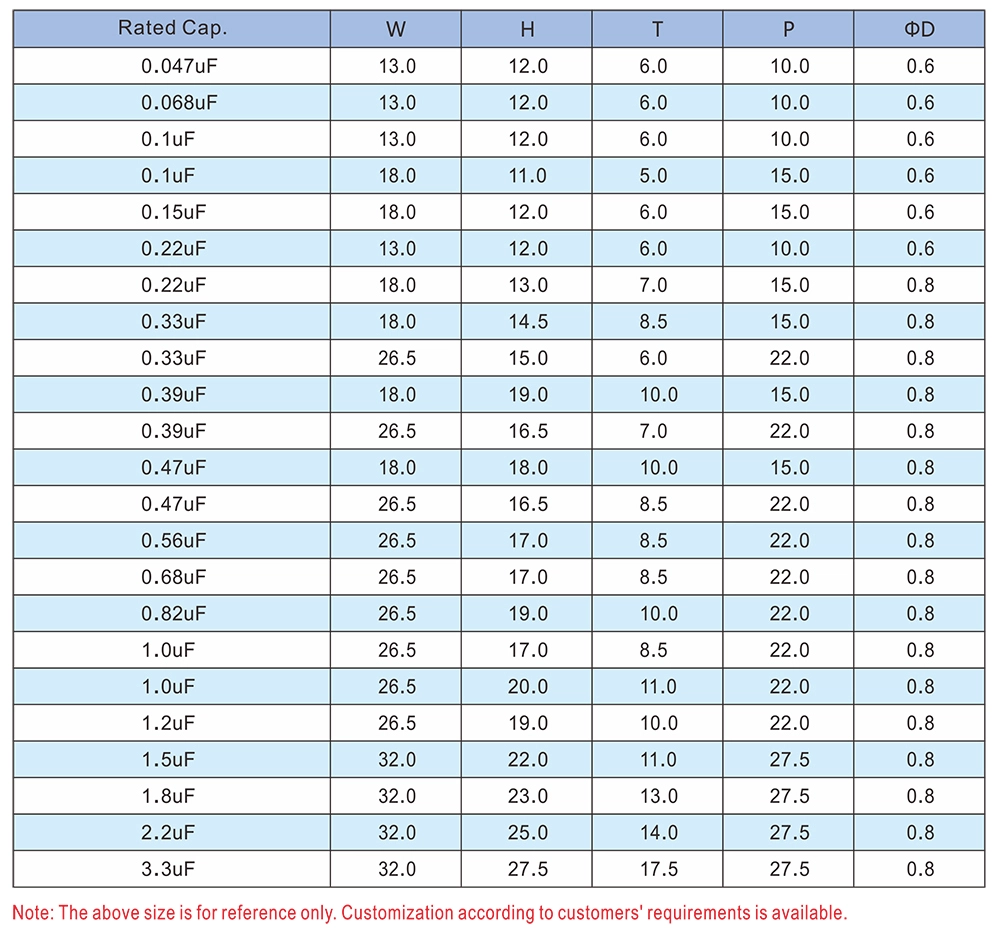

Dimension Unit:mm
Note: The above size is for reference only.Customization according to customers’ requirements is available.
I. Non-flame Enclosure Capacitor is made of high-quality metal film
It uses high-quality silver-zinc-aluminum edge thickened metallized film. The effective gold spraying area on the side is increased by 20%, capable of withstanding 200 times the surge current and high temperatures.
II. Direct brand operation, factory direct sales
True brand direct operation, factory direct sales, one-source supply
III. Longer lifespan, quality assured
It uses high-purity tin-zinc alloy, and the gold spraying thickness can reach over 0.35MM. The product has excellent electrical performance and low loss, long lifespan, and safe quality.
IV. The after-sales team provides technical support
Pier not only has a product research and development technical team, but also specially established an after-sales technical service team. It has many engineers proficient in PCB design and with rich experience, who can solve product design and application problems for customers for free.

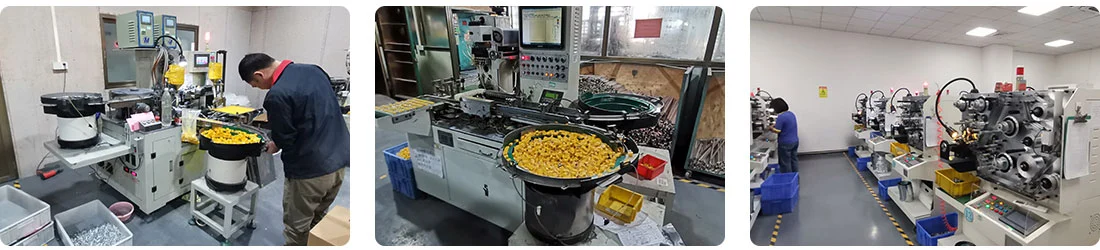

Foshan Pin'er Electronics Co., Ltd. was established in 2014. It is a professional manufacturer of Non-flame Enclosure Capacitor that integrates R&D, design, production, sales, and after-sales service. The company has built a high-standard factory with an area of 10, 000 square meters. Currently, it has 1, 000 employees, including 200 engineering technicians, and has an enterprise engineering technology research and development center. It possesses strong technical strength and continuous innovation capabilities, and has obtained multiple patents in the capacitor field. Over the years, the company's product production and sales have ranked among the top in the same industry in Guangdong Province.
The company's product line is extensive, mainly divided into the following three categories:
Household Appliance Category
The main products are MKP-X2 and MKPH series electromagnetic stove-specific capacitors. With excellent product performance and reliable after-sales service, they have established a good reputation in the household IH industry.
Commercial and Industrial Category
It includes DC-link capacitors, IGBT absorption protection capacitors, MKPH high-voltage resonant and coupling capacitors, input and output filter capacitors, etc., and is widely used in commercial electromagnetic stoves, induction heating equipment, UPS, inverters, switching power supplies, welding machine power supplies, electroplating power supplies, high-power frequency inverters, electric vehicles, as well as new energy fields such as wind power/solar power generation, conversion/frequency conversion equipment.
Consumer Electronics Category
It covers CBB61 and CBB60 series AC motor capacitors, as well as safety standards capacitors, frequency division capacitors, ignition filter capacitors, filters, etc., and is widely used in range hoods, microwave ovens, washing machines, office equipment, and other industries.
The company has always been driven by technology and based on quality, dedicated to providing customers with reliable and high-performance capacitor solutions.
It has obtained certifications such as CQC, UL, ISO9000, TS16949, etc. for safety standards and quality systems, and has also obtained ISO9001-2015 quality management system certification. The MKPX2 series of safety standard capacitors have passed certifications from UL in the United States, CUL in Canada, VDE in Germany, and CQC in China. The company's products all comply with the latest environmental protection requirements of the European Union and meet the standards of RoHS and REACH directives.
