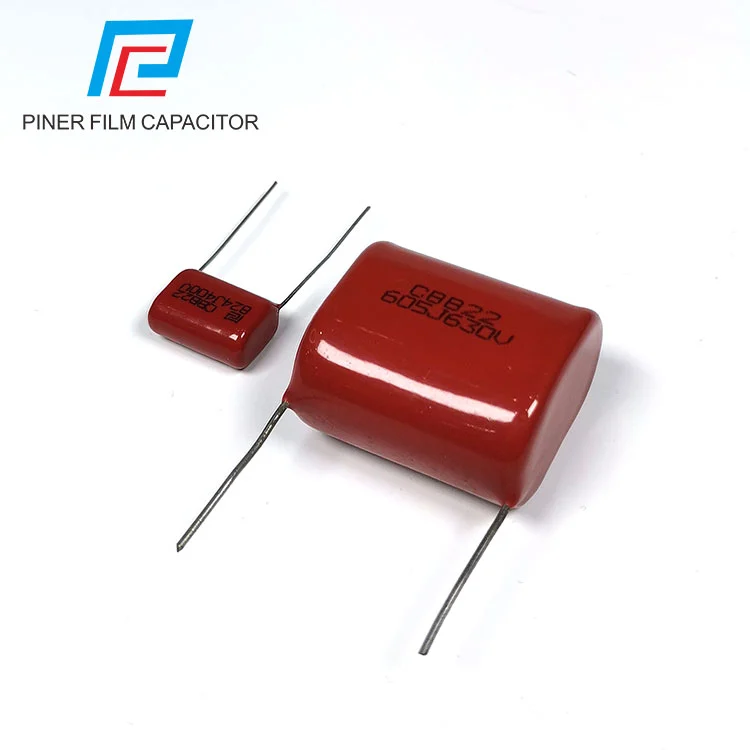

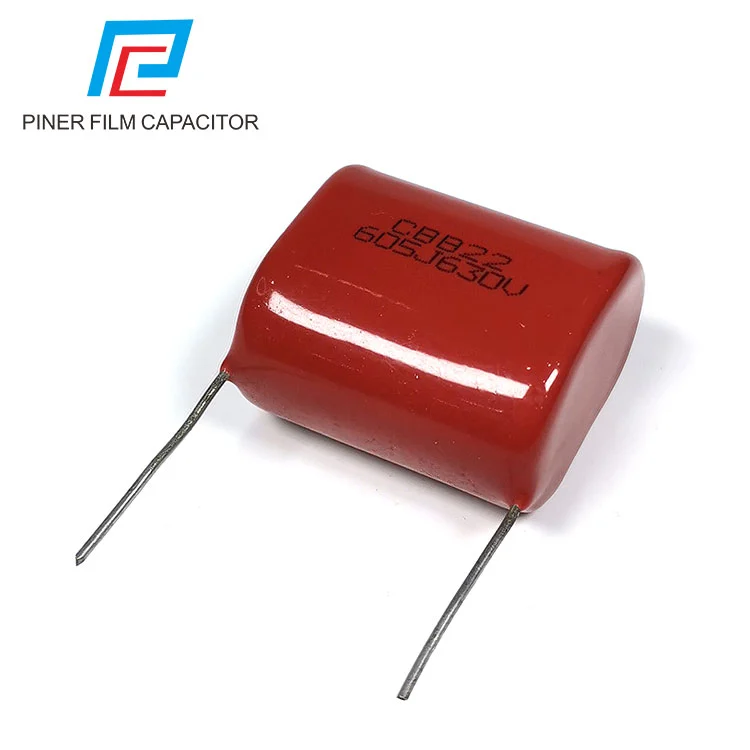

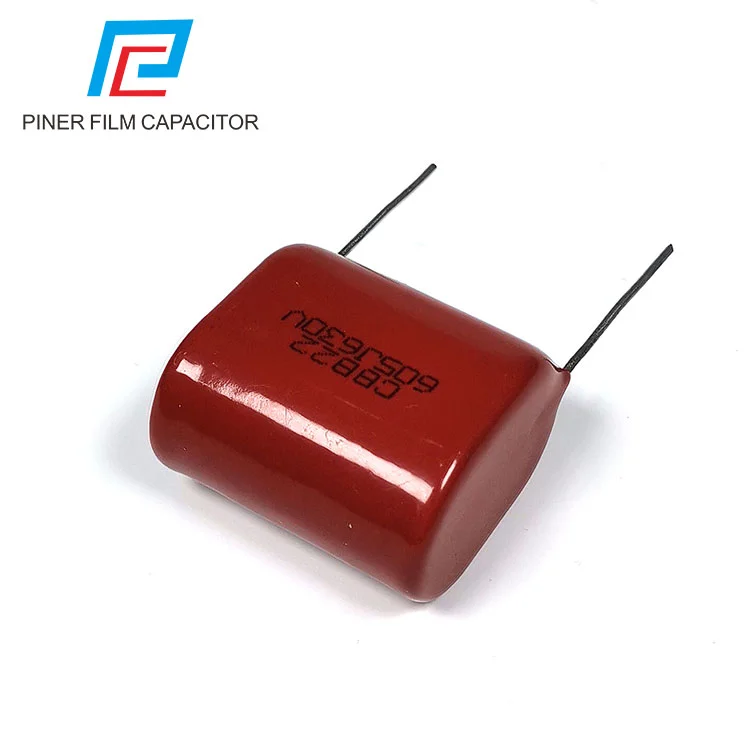

The special film capacitor for vehicle intelligent chargers produced by Piner Manufacturer, with its high-frequency low-loss, large current carrying capacity, strong self-healing ability and excellent stability, has become an indispensable key component in the field of power electronics. Especially in high-frequency and large-current application scenarios, it demonstrates unique advantages and is the ideal choice for modern switching power supplies, frequency converters, electronic ballasts and other equipment.
The product materials have passed environmental protection certification.
The size is flexible and can be customized.
The conversion efficiency can reach about 80%.
Under a current of 3.63A, the temperature rise is ≤ 8℃.
The imported film has an extremely long service life.
The large-capacity capacitor uses copper wire and has a strong ability to handle large currents.
It has strong overload capacity, can withstand impact current, has good insulation performance, high flame retardancy, and makes the product more durable.
Metallized polypropylene film dielectric
Non-inductive winding structure
Flame retardant epoxy resin powder encapsulation
Resistance to high voltage, small tgδ, low temperature rise
| Reference standard | GB10190 IEC60384-16 |
| Climatic category | 40/105/21 |
| Rated voltage | 250VDC ~ 630VDC |
| Capacitance range | 0.01uF ~ 10uF |
| Capacitance tolerance | ±5%(J) ±10%(K) ±20%(M) |
| Between terminals Voltage proof | 1.6Un DC (10s) |
| Insulation resistance (at 20°C) |
Between terminals≥30000M ΩCR ≤0.33uF (100vdc 60s) ≥7500s CR>0.33uF (100vdc 60s) |
| Dissipation factor | DF≤0.0020 (1KHz) |

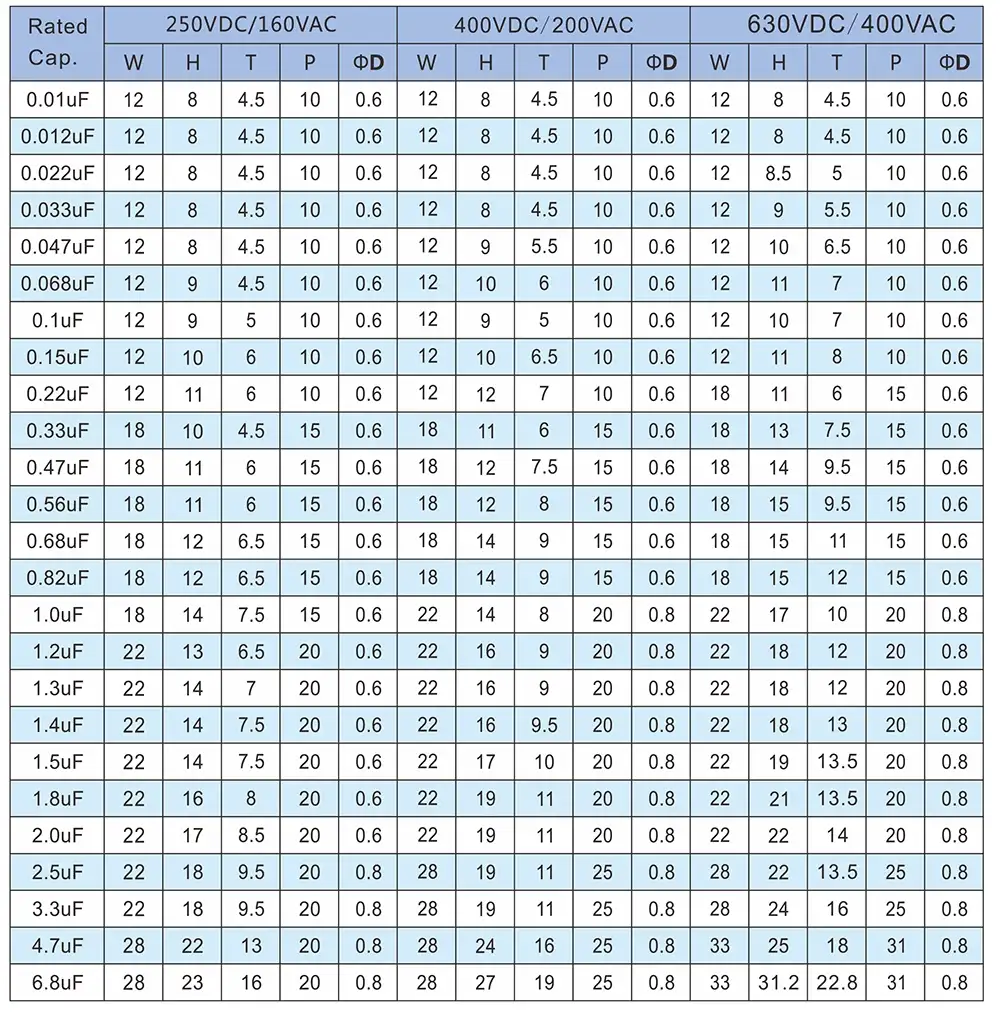

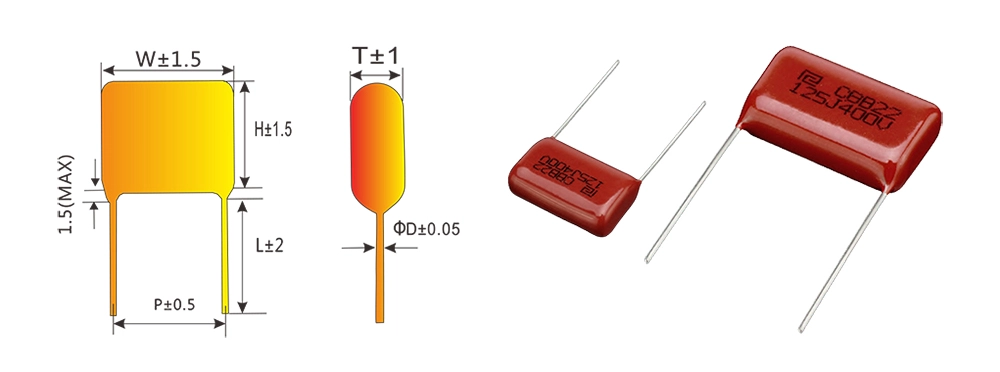

CBB22 Film Capacitor Dimension Unit:mm
Note: The above size is for reference only.Customization according to customers’ requirements is available.

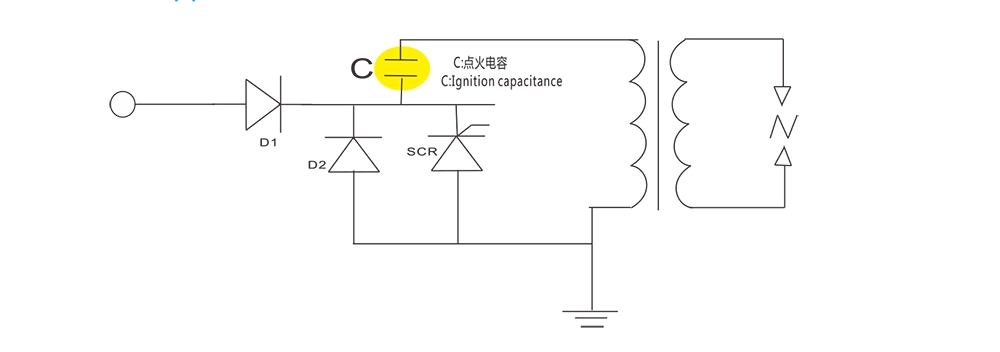

Widely used in High Frequency, DC, AC, Pulse Circuits
S-correction circuits of the display device
The application fields of Special Film Capacitor for Vehicle Intelligent Charger include: new energy and energy storage, automotive electronics and electrification, industrial automation and power supply, information and communication technology, consumer electronics and household appliances; the application locations include: absorption protection circuits (Snubber) for IGBT/MOSFET, resonant cavities of high-frequency resonant circuits (such as LLC topology), X2/Y safety cross-wire connections for AC power input, and start/run terminals beside single-phase motors; the applications under working conditions include: high-frequency high-voltage pulses, high ripple current, and safety requirements.

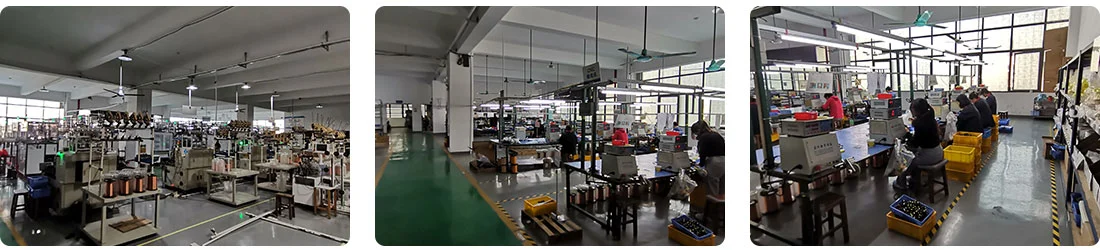

Foshan Piner Electronics Co., Ltd. is a high-tech enterprise integrating development design, sales, and after-sales service. It has a strong R&D center and an experienced technical service team.
Specializing in the production of metalized film capacitors such as CBB21 type, CBB22 type, CL21 type, CBB60 type, CBB61 type, X2 safety standard capacitors, and household induction cookers, among others. Our products are widely used in radio and television products, communication equipment, IT equipment, industrial power supplies, frequency conversion appliances, automotive electronics, energy-saving lighting, and various household appliances. With excellent quality and reasonable prices, they have received high praise from customers and have become one of the important suppliers for enterprises in various fields.
All the products comply with various safety certifications such as CQC, UL, ISO9000, TS16949, as well as quality system certifications such as ISO9001-2015.
The product models are complete, and its stability, reliability, durability and other aspects are at the leading level in the same industry. At the same time, various new products with special specifications can be quickly developed according to the requirements of customers.
Our company has obtained ISO 9001:2015 quality management system certification, and possesses relevant safety standards and system certification qualifications such as CQC, UL, and IATF 16949. Among them, the MKP X2 safety standard capacitor series has received certifications from UL in the United States, CUL in Canada, VDE in Germany, and CQC in China. All products comply with the latest environmental protection requirements of the European Union and meet the standards of RoHS and REACH directives.
Metallized Film Capacitors, Power Electronic Capacitors, IGBT Snubber Capacitors, GTO Buffer Capacitors, DC-LINK Capacitors, Flexible DC Capacitors, Coupling Filter Capacitors, Decoupling Capacitors, AC Filter Capacitors, High Ripple Filter Capacitors, SVG Active Filter Capacitors, High Voltage Pulse Capacitors, High Frequency Resonant Capacitors, Step-down Capacitors, Stopping Capacitors,UPS Inverter Welder Capacitors, Timing Vibration Capacitors, HID Ignition Capacitors,Temperature Compensating Capacitors, Altra-small Precision Capacitors, Safety Capacitors, Correction Capacitors, Inductive Capacitors, Non-inductive Capacitors, Foil Capacitors, Motor Capacitors, High-power Inductive Heating Capacitors, Audio Frequency Divider Capacitors, Electroplating Power Supply Capacitors, Electric Tool Capacitors, Pool Heater Fan Capacitors, Air Conditioner Condenser Fan Capacitors etc.
