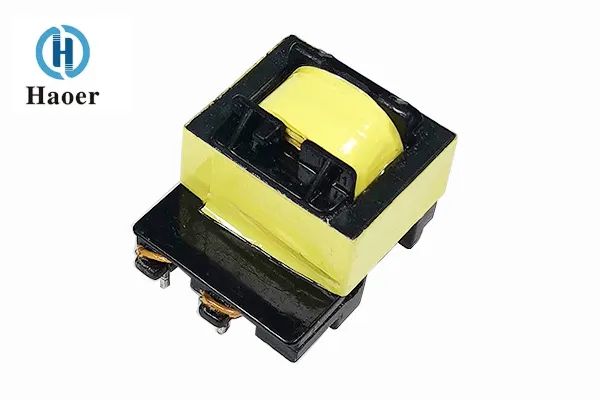

High-frequency transformers and conventional transformers are like sprinters versus marathon runners:
Operating frequency: High-frequency transformers typically operate above 20 kHz, while conventional transformers usually function within the 50 Hz–60 Hz range.
Electromagnetic characteristics: High-frequency transformers use materials such as ferrite to minimize eddy current losses, whereas conventional transformers rely on silicon steel laminations to suppress hysteresis losses.
Size and weight: For the same power rating, high-frequency transformers can be reduced by 60% in volume and 50% in weight.
The respective strengths of the two are akin to the difference between a screwdriver and a wrench:
High-frequency transformers: suitable for applications requiring miniaturization and lightweight design, such as switch-mode power supplies, photovoltaic inverters, and electric vehicle charging stations.
Conventional transformers: used in high-power, stable power supply scenarios like grid transmission, industrial power distribution, and traditional electrical equipment.
Overlap area: some UPS systems employ a hybrid design combining both types of transformers.
A comparison of the technical characteristics from six dimensions:
Efficiency: High-frequency transformers achieve up to 95% efficiency at full load, with even greater advantages under light loads.
Temperature Rise: Conventional transformers offer more uniform heat dissipation, while localized temperature rise in high-frequency transformers requires special attention.
Cost: High-frequency transformers are more economical for low power applications, whereas conventional transformers become more cost-effective at higher power levels.
Maintenance: Conventional transformers have a simple structure and high reliability, while high-frequency transformers require more sophisticated circuit protection.
Noise: High-frequency transformers operate silently, beyond human hearing range, whereas conventional transformers produce a 50Hz humming sound.
Lifespan: Conventional transformers typically last 30 years, while high-frequency transformers have a lifespan of approximately 10–15 years.
