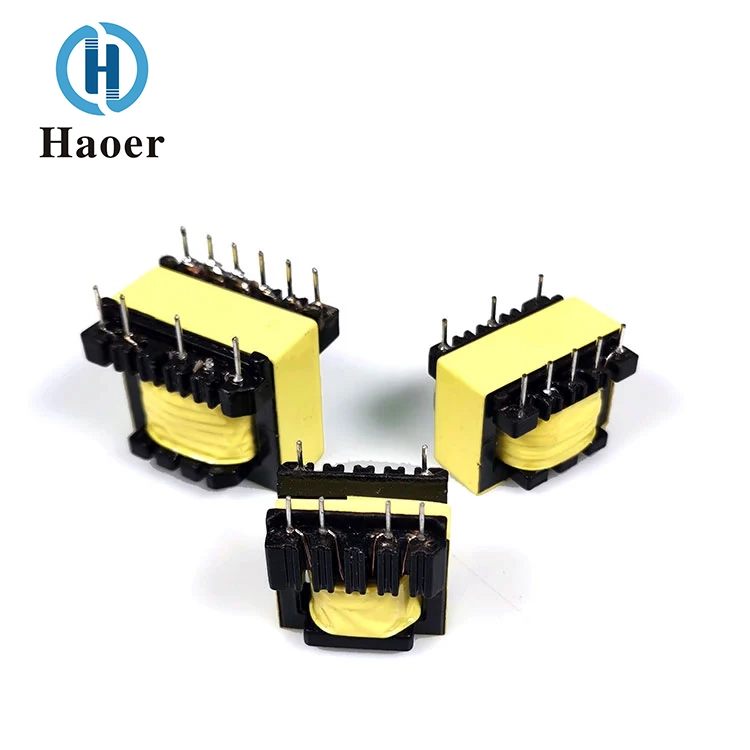

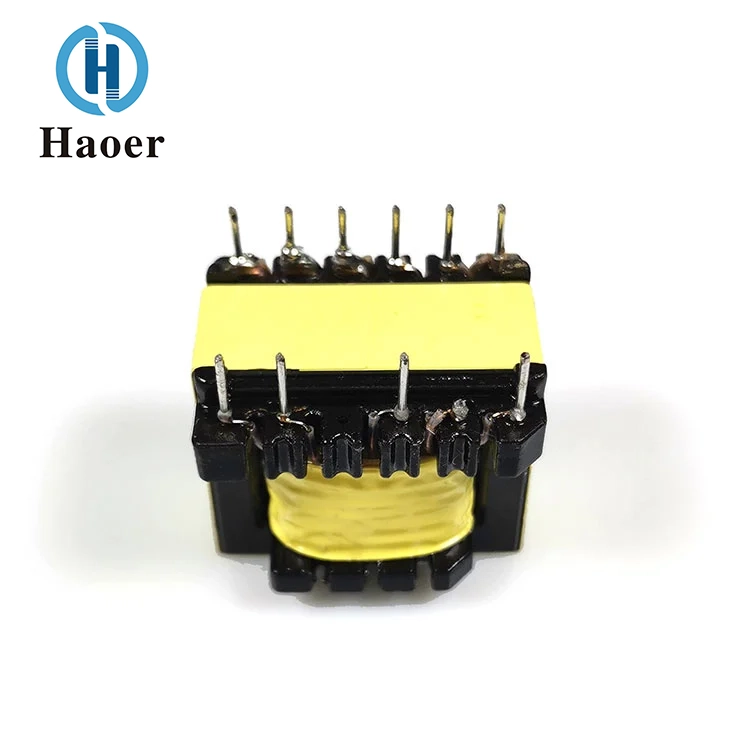

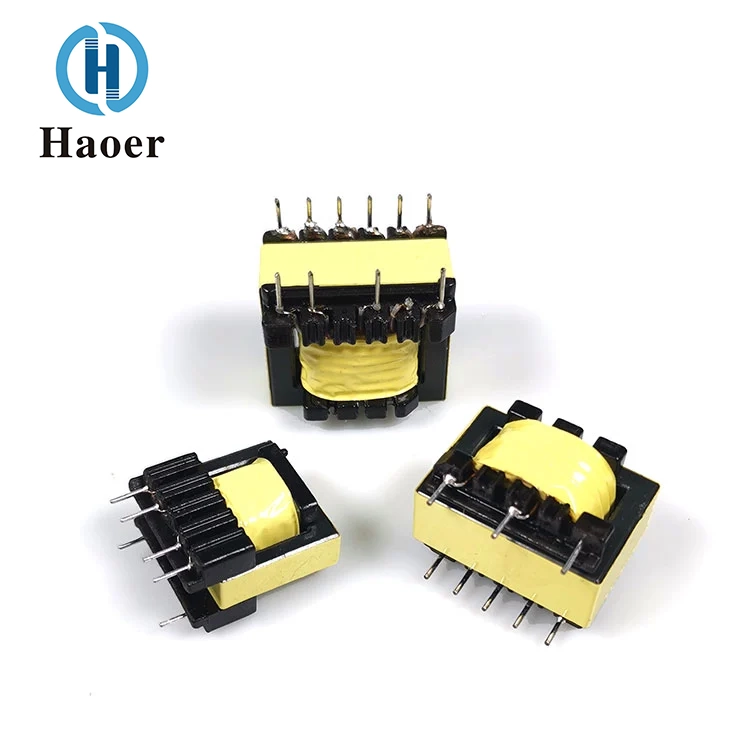

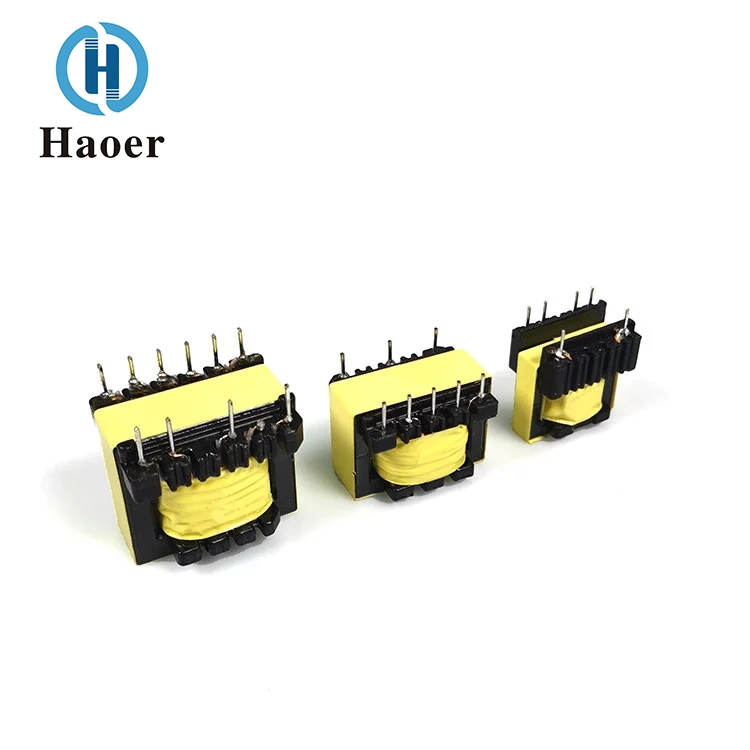

The Gooder EE Control Board High-Frequency Transformer for Small Household Appliances adopts the EE type magnetic core structure and is specifically designed for various control circuits of small household appliances, such as microwave ovens, rice cookers, and induction cookers. The output power can be customized according to customer requirements, and the working frequency ranges from 20kHz to 500kHz. It features high efficiency, low loss, and low temperature rise, enabling stable and reliable voltage conversion and power transmission. The multi-layer winding design effectively reduces leakage inductance and electromagnetic interference, while meeting the requirements of small size and lightweight, making it easy to integrate into compact control boards. It has passed strict electrical performance and safety certification, ensuring safety and durability during long-term operation. It is one of the core components for small household appliances to achieve efficient energy saving and stable operation.
| 1. Operating Frequency: | 20 kHz - 500 kHz |
| 2. Output Power: | 0.5 to 1000 watts |
| 3. Operating Temperature: | -40°C to +125°C |
| 4. Storage Temperature: | -25°C to +85°C |
| 5. Storage Humidity: | 30% - 95% |
The EE Control Board High-Frequency Transformer for Small Household Appliances demonstrates outstanding and broad technical indicators in both electrical performance and environmental adaptability. Its core operating frequency ranges from 20kHz to 500kHz, enabling it to flexibly adapt to various application scenarios from basic switching power supplies to high-end precision electronic devices, while enhancing power conversion efficiency and effectively optimizing power density.
In terms of power output capacity, the product range is complete, with output power covering 0.5W to 1000W, providing stable and reliable power conversion solutions for various devices ranging from miniature consumer electronics to industrial-grade power modules.
The product has an excellent operating temperature range (-40℃ ~ +125℃), ensuring its stable operation even in extremely cold or hot harsh environments, with extremely high reliability. Its storage temperature requirement is -25℃ to +85℃, and the storage humidity environment is 30% to 95%. This ensures that the internal magnetic core and coil structure of the product remain unaffected by temperature and humidity changes during storage and transportation, maintaining consistent performance and safety over the long term.
| PART NO. | TERMINAL PINS | Dimensionsin mm(inches)(mm) | TYPE | |||||
| Serial Number | Number of needles | A | B | C±0.5 | D±0.5 | E±0.5 | F | |
| EE-8.3 | 6 | 8 | 8 | 6 | 4 | 2.5 | 8.3 | V |
| EE-10 | 8 | 11.5 | 10.2 | 8 | 4 | 2.5 | 10.2 | V |
| EE-13 | 10 | 12 | 12.5 | 8.5 | 4 | 2.5 | 13 | V |
| EE-16-1 | 6 | 14.8 | 13.3 | 9 | 4 | 3 | 16 | V |
| EE-16-2 | 10 | 15.4 | 13 | 10.5 | 4 | 3.2 | 17.1 | V |
| EEL-16 | 10 | 28.5 | 16 | 12.3 | 4 | 4.3 | 21.9 | V |
| EE-19-1 | 8 | 17.6 | 16 | 10 | 4 | 5 | 19 | V |
| EE-19-2 | 10 | 17.2 | 16.2 | 13 | 4 | 3.9 | 20 | V |
| EEL-19 | 10 | 31.5 | 16 | 10.5 | 4 | 4 | 21.1 | V |
| EEL-19-1 | 10 | 15.6 | 30 | 24.1 | 4 | 3.5 | 21 | H |
| EE-25-1 | 6 | 20 | 18.2 | 12.5 | 4 | 6.3 | 25.2 | V |
| EE-25-2 | 8 | 21.7 | 17.5 | 12.6 | 4 | 5 | 25.2 | V |
| EE-25-3 | 10 | 22.2 | 25 | 15.4 | 4 | 5 | 26.1 | H |
| EEL-25 | 8 | 35.3 | 17.5 | 12.5 | 4 | 5 | 25.2 | V |
| EE-30 | 10 | 21 | 29.2 | 25.2 | 4 | 5 | 30 | H |
| EE-40 | 14 | 27.6 | 30.5 | 25.8 | 4 | 5 | 40 | H |
| EE-42/15-1 | 12 | 33.8 | 44 | 35.5 | 4 | 5 | 42 | H |
| EE-42/15-2 | 16 | 41.3 | 48 | 37.7 | 4 | 5 | 42 | H |
| EE-42/15-3 | 18 | 48.7 | 32 | 27.5 | 4 | 5 | 45.1 | V |
| EE-42/20-1 | 12 | 45 | 39.8 | 32.5 | 4 | 5 | 42 | V |
| EE-42/20-2 | 16 | 44.2 | 50 | 37.8 | 4 | 5 | 42.2 | H |
| EE-42/20-3 | 18 | 44.1 | 37 | 27.3 | 4 | 5 | 45.3 | V |
| EE-55 | 20 | 50 | 50 | 45.5 | 4 | 5 | 55 | H |
| EE-65 | 16 | 55.2 | 51.8 | 45 | 4 | 5 | 65 | H |
|
Note: "H" HORIZONTAL TYPE (Bedroom Type) "V" VERTICAL TYPE (Vertical Type) |
||||||||
Application Range: They are widely used in small household appliances, control panels, energy-saving lamps, notebook computers, PC power supplies, TVs, LCD monitors, switching power supplies, program-controlled switches, network equipment, DVDs, automotive electronics,
We provide a complete product solution
We will make every effort to provide solutions, repairs, and maintenance for your product. We are favored by many customers because our experience and knowledge are self-evident
* We have 24-hour customer service now
* Provide you with remote technical guidance
* Continuously follow up on your product

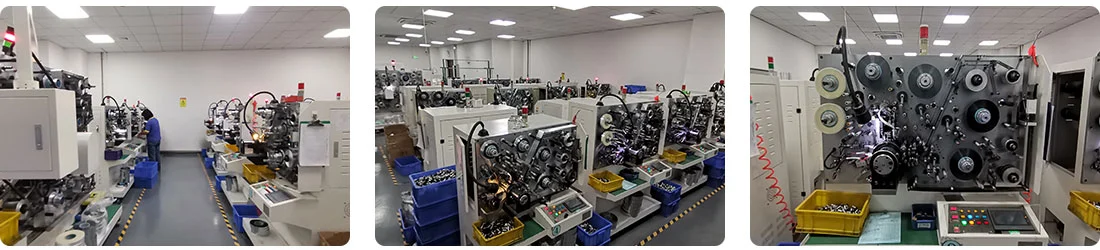

Guangdong Haoer Electronics Co., Ltd. was founded in, is a professional engaged in high-frequency transformer, filtering Devices, inductors and other magnetic components manufacturers, the company's products are widely used in lighting, household appliances, photovoltaic, UPS, automotive electronics, network communication equipment, computer peripheral equipment and various switching power supplies and other fields.
