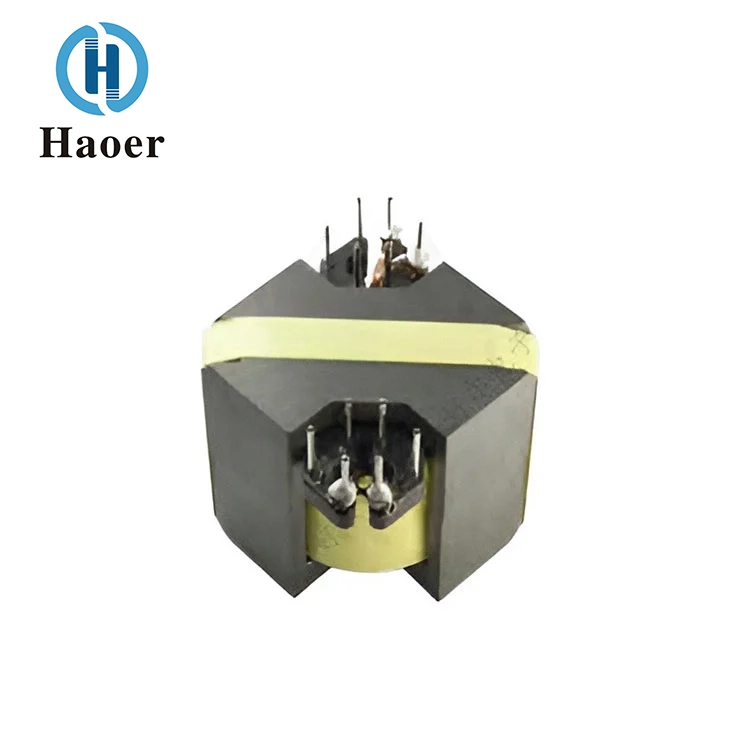

The Programmable Switching Exchange Terminal High-Frequency Transformer produced by Haoer Company has a wide frequency working capability, supporting a working frequency range of 20kHz to 500kHz. The output power covers from 5W to 1000W, which can meet the power requirements of different application scenarios. It remains stable even in harsh environments, with a working temperature range of -40℃ to +125℃. Regarding storage conditions, it is recommended to store it in a temperature range of -25℃ to +85℃ and a humidity range of 30% to 95%, to ensure long-term performance and reliability.
Characteristics: The Programmable Switching Exchange Terminal High-Frequency Transformer features low magnetic leakage, low loss, and small distributed capacitance. It operates over a wide voltage range and maintains high transmission efficiency within a frequency range of 20 kHz to 500 kHz.
PBX Terminal Equipment.
| 1. Operating frequency: | 20 kHz - 500 kHz |
| 2. Output power: | 5 - 1000 W |
| 3. Operating temperature: | -40°C to +125°C |
| 4. Storage temperature: | -25°C to +85°C |
| 5. Storage humidity: | 30% - 95% |
RM4/RM6/RM7/RM8/RM10/RM12/RM14, etc.
Characteristics: Wide working range, high transmission efficiency, stable performance, low temperature rise, low magnetic leakage, small volume, etc. The company can provide products according to customer requirements.
Alongside historical development, human requirements for and utilization of space have continuously evolved: from miniaturization, to high energy consumption, and now to energy-saving and environmental protection. In constant pursuit of perfection, we focus on improving electrical energy conversion efficiency and broadening voltage applicability. Replacing industrial-frequency transformers with high-frequency transformers represents a crucial breakthrough, as they are significantly lighter than traditional products. Consequently, high-frequency transformers hold an absolute advantage for future DC electronic products.
Our company manufactures high-frequency Programmable Switching Exchange Terminal High-Frequency Transformer using premium high-frequency soft ferrite magnetic materials, which feature high permeability, high saturation flux density, and low power loss. Our products can be designed to meet UL, CE, VDE, CQC, and other safety standards according to customer requirements. We offer custom design services and can provide a wide range of product series including EI, EE, EEL, EC, ER, PQ, RM, EFD, EP, EPC, EF, ED, and ETD.
| PART NO. | TERMINAL PINS | Dimensions in mm(inches) | FIG | ||||||||
| A | B | C1 | C2 | D±0.5 | E1 | E2 | E3 | F | |||
| RM-4 | 6 | 7.8 | 13.5 | 1.8 | 3.6 | 4.2 | 7.2 | 10.8 | 12.6 | 1 | |
| RM-5 | 6 | 7.2 | 15.5 | 1.8 | 3.6 | 4.4 | 10.8 | 14.4 | 16 | 1 | |
| RM-6 | 6 | 13.5 | 18.5 | 1.8 | 3.6 | 4.7 | 14.4 | 18 | 20.7 | 1 | |
| RM-6-1 | 8 | 12.8 | 18.5 | 15.2 | 4.2 | 3.8 | 5.08 | 18.5 | 2 | ||
| RM-8 | 12 | 12.1 | 23.5 | 3.6 | 7.2 | 5 | 14.4 | 18 | 21.6 | 24 | 1 |
| RM-8-1 | 12 | 17.5 | 29.8 | 20.3 | 4.4 | 3.8 | 5.08 | 23.4 | 2 | ||
| RM-10 | 12 | 13.4 | 28.5 | 3.6 | 7.2 | 4 | 18 | 21.6 | 25.2 | 28.1 | 1 |
| RM-10-1 | 12 | 19.6 | 39.4 | 2.8 | 4.5 | 3.8 | 5.12 | 23.3 | 2 | ||
| RM-12 | 12 | 17.7 | 38.5 | 3.6 | 10.8 | 6.3 | 21.5 | 28.7 | 35.9 | 38.5 | 1 |
| RM-12-1 | 12 | 23.7 | 45.2 | 33 | 4.5 | 5.08 | 5.1 | 28.4 | 2 | ||
| RM-14 | 12 | 29 | 48.4 | 35.6 | 4.8 | 5.08 | 7.62 | 31.4 | 2 | ||
Little Bear, Delmar, Meishel, Dongling Weiyou, Yaxuel, Lianrui, Jiewei, Yingke, Yu Long, Tuohao
Question: Are you a manufacturing factory or a trading company?
Answer: We are a manufacturing factory.
Question: Do you offer ODM and OEM services?
Answer: Yes, ODM and OEM are both welcome.
Question: What are your main products?
Answer: Our main products include: High-frequency transformer series and inductor series.
Question: What is needed to manufacture transformers or inductors?
Answer: The power supply drawing is best, or please provide us with the technical parameters, such as size, input voltage, output voltage and current, working frequency, withstand voltage, weight, etc. Our professional engineering team will then conduct an analysis.
Q: What payment methods do you accept?
A: We support T/T, Letter of Credit (L/C), PayPal and cross-border platform guarantee transactions.
