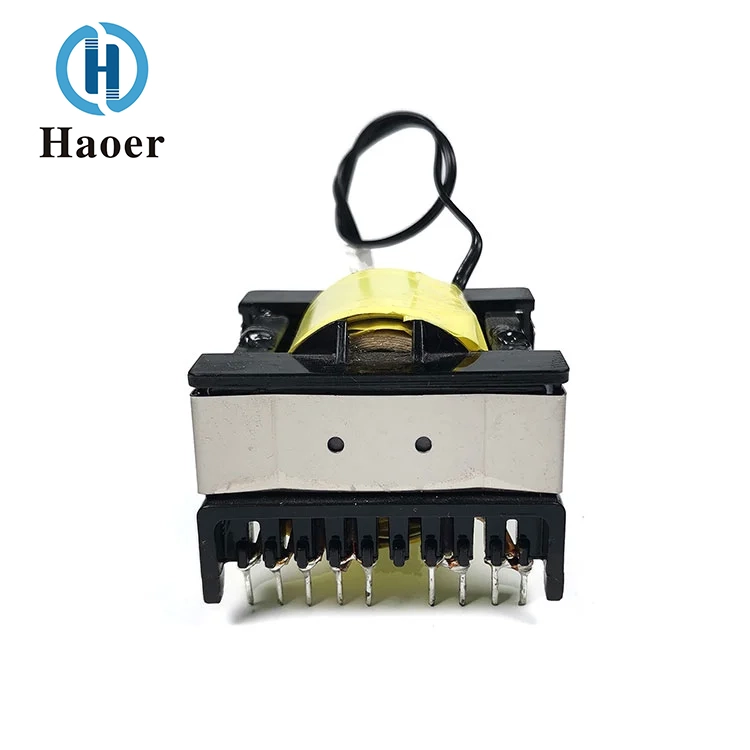

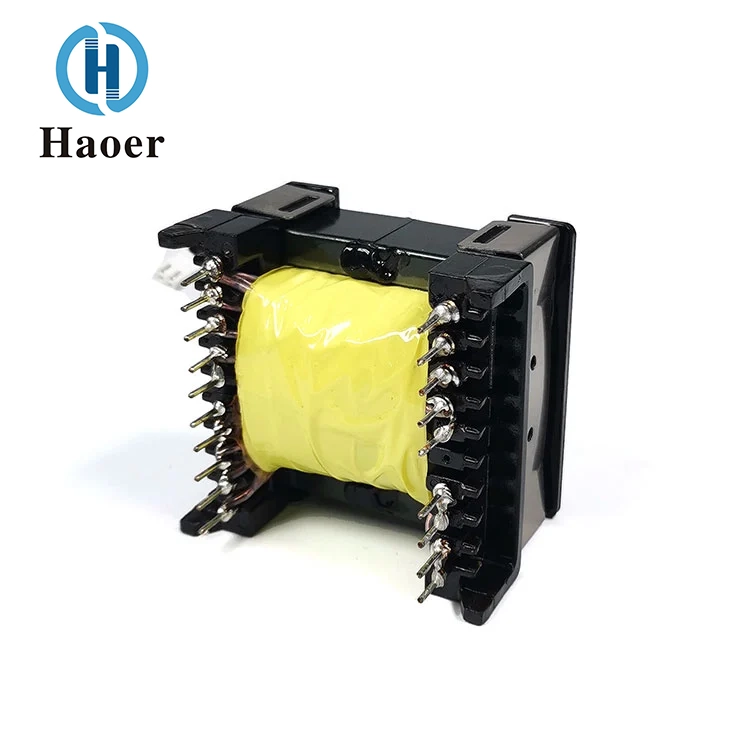

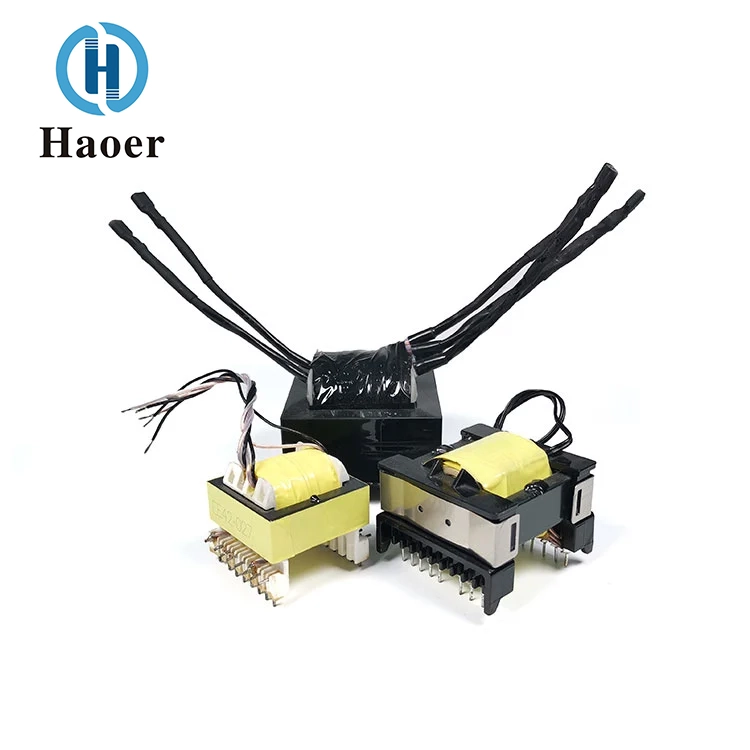

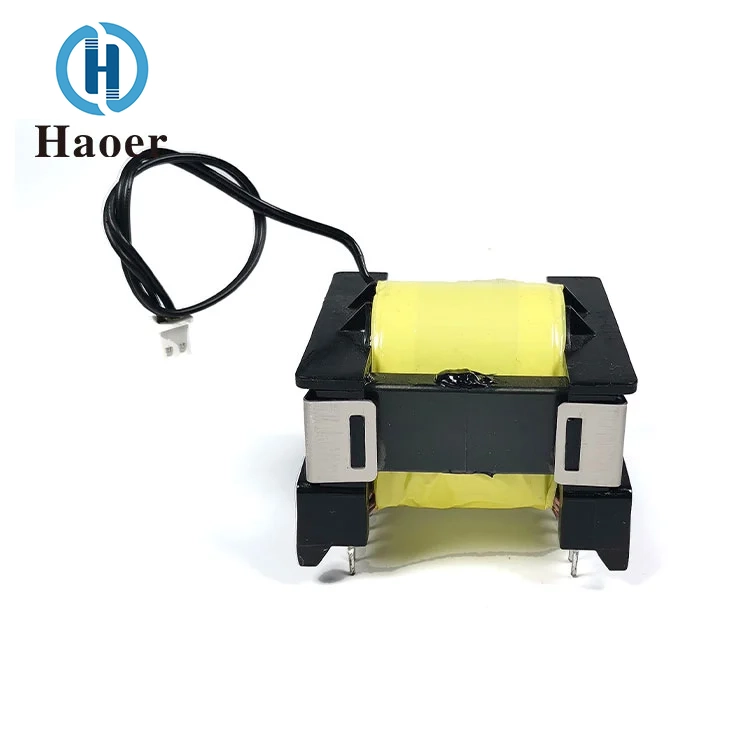

Haoer's China Connect The Wire to The Certified High-frequency Transformer. The primary and secondary insulation strength is high, the anti-interference ability is strong, and it meets the specification certification requirements.
Common specifications: EE jumper wire / EPC jumper wire / EFD jumper wire / EF jumper wire / PQ jumper wire, etc.
The fly-line solution can enhance the design flexibility of high-frequency transformers, especially suitable for series products with restricted frame pin layout and multi-specification compatibility. By strictly adhering to the aforementioned design, process and certification requirements, the fly-line certified high-frequency transformers can achieve efficient energy conversion and electromagnetic compatibility while ensuring the safety and compliance of the equipment. They can be widely applied in fields such as switching power supplies, charging stations, server power supplies, etc., which have high requirements for certification and performance.
Characteristics: Wide working range, high transmission efficiency, stable performance, low temperature rise, low magnetic leakage, small volume, etc. The company can provide products according to customer requirements.
Alongside historical development, human requirements for and utilization of space have continuously evolved: from miniaturization, to high energy consumption, and now to energy-saving and environmental protection. In constant pursuit of perfection, we focus on improving electrical energy conversion efficiency and broadening voltage applicability. Replacing industrial-frequency transformers with high-frequency transformers represents a crucial breakthrough, as they are significantly lighter than traditional products. Consequently, high-frequency transformers hold an absolute advantage for future DC electronic products.
Our company manufactures high-frequency transformers using premium high-frequency soft ferrite magnetic materials, which feature high permeability, high saturation flux density, and low power loss. Our products can be designed to meet UL, CE, VDE, CQC, and other safety standards according to customer requirements. We offer custom design services and can provide a wide range of product series including EI, EE, EEL, EC, ER, PQ, RM, EFD, EP, EPC, EF, ED, and ETD.
| Technical Specifications: | Operating Frequency: |
| 20 kHz - 500 kHz | Output Power: |
| 0.5 to 500 W | Operating Temperature: |
| -40°C to +125°C | Storage Temperature: |
| -25°C to +85°C | Storage Humidity: |
| 30% - 95% |
Connecting the wire to the Connect The Wire to The Certified High-frequency Transformer can significantly enhance the design flexibility of the high-frequency transformer, especially for series products with restricted frame pin layout and multi-specification compatibility. Such flywires over certified high-frequency transformers also possess a broader adaptability to various working conditions. They operate within a high-frequency range of 20kHz to 500kHz, with the output power adjustable from 0.5W to 500W according to application requirements, enabling them to meet the energy conversion needs of different power levels of equipment. In terms of environmental adaptability, the product can operate stably within a harsh working temperature range of -40°C to +125°C. The storage conditions are suitable for a temperature range of -25°C to +85°C and a humidity environment of 30% to 95%. It has excellent environmental tolerance. By strictly following the aforementioned design, process, and certification requirements, the flywires over high-frequency transformers can achieve efficient energy conversion and electromagnetic compatibility while ensuring the safety and compliance of the equipment.
| PART NO. | TERMINAL PINS | Dimensionsin mm(inches) | TYPE | |||||
| A | B | C±0.5 | D±0.5 | E±0.5 | F | |||
| EE-8.3 | 6 | 8 | 8 | 6 | 4 | 2.5 | 8.3 | V |
| EE-10 | 8 | 11.5 | 10.2 | 8 | 4 | 2.5 | 10.2 | V |
| EE-13 | 10 | 12 | 12.5 | 8.5 | 4 | 2.5 | 13 | V |
| EE-16-1 | 6 | 14.8 | 13.3 | 9 | 4 | 3 | 16 | V |
| EE-16-2 | 10 | 15.4 | 13 | 10.5 | 4 | 3.2 | 17.1 | V |
| EEL-16 | 10 | 28.5 | 16 | 12.3 | 4 | 4.3 | 21.9 | V |
| EE-19-1 | 8 | 17.6 | 16 | 10 | 4 | 5 | 19 | V |
| EE-19-2 | 10 | 17.2 | 16.2 | 13 | 4 | 3.9 | 20 | V |
| EEL-19 | 10 | 31.5 | 16 | 10.5 | 4 | 4 | 21.1 | V |
| EEL-19-1 | 10 | 15.6 | 30 | 24.1 | 4 | 3.5 | 21 | H |
| EE-25-1 | 6 | 20 | 18.2 | 12.5 | 4 | 6.3 | 25.2 | V |
| EE-25-2 | 8 | 21.7 | 17.5 | 12.6 | 4 | 5 | 25.2 | V |
| EE-25-3 | 10 | 22.2 | 25 | 15.4 | 4 | 5 | 26.1 | H |
| EEL-25 | 8 | 35.3 | 17.5 | 12.5 | 4 | 5 | 25.2 | V |
| EE-30 | 10 | 21 | 29.2 | 25.2 | 4 | 5 | 30 | H |
| EE-40 | 14 | 27.6 | 30.5 | 25.8 | 4 | 5 | 40 | H |
| EE-42/15-1 | 12 | 33.8 | 44 | 35.5 | 4 | 5 | 42 | H |
| EE-42/15-2 | 16 | 41.3 | 48 | 37.7 | 4 | 5 | 42 | H |
| EE-42/15-3 | 18 | 48.7 | 32 | 27.5 | 4 | 5 | 45.1 | V |
| EE-42/20-1 | 12 | 45 | 39.8 | 32.5 | 4 | 5 | 42 | V |
| EE-42/20-2 | 16 | 44.2 | 50 | 37.8 | 4 | 5 | 42.2 | H |
| EE-42/20-3 | 18 | 44.1 | 37 | 27.3 | 4 | 5 | 45.3 | V |
| EE-55 | 20 | 50 | 50 | 45.5 | 4 | 5 | 55 | H |
| EE-65 | 16 | 55.2 | 51.8 | 45 | 4 | 5 | 65 | H |
|
Note: "H" HORIZONTAL TYPE (Bedroom Type) "V" VERTICAL TYPE (Vertical Type) |
||||||||
Widely used in small household appliance control boards, switching power supplies, DC-DC converters, LED driving power supplies, network equipment, automotive electronics, power adapters, and so on.
We provide a complete Connect The Wire to The Certified High-frequency Transformer solution
We will make every effort to provide solutions, repairs, and maintenance for your product. We are favored by many customers because our experience and knowledge are self-evident
* We have 24-hour customer service now
* Provide you with remote technical guidance
* Continuously follow up on your product

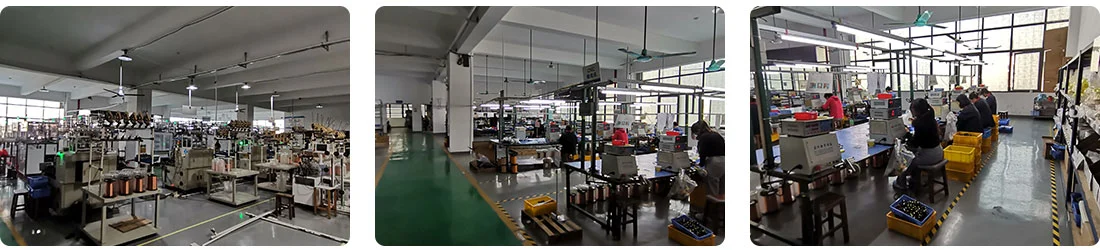

Guangdong Haoer Electronics Co., Ltd. was founded in, is a professional engaged in high-frequency transformer, filtering Devices, inductors and other magnetic components manufacturers, the company's products are widely used in lighting, household appliances, photovoltaic, UPS, automotive electronics, network communication equipment, computer peripheral equipment and various switching power supplies and other fields.
The small packages will be sent by courier, such as DHL, UPS, TNT, FedEx, etc. We can also arrange air or sea transportation according to your requirements.
Question: Are you a manufacturing factory or a trading company?
Answer: We are a manufacturing factory.
Question: How is product quality controlled?
Answer: We have a professional quality control team and advanced testing equipment. All products undergo 100% testing.
Question: Do you offer ODM and OEM services?
Answer: Yes, ODM and OEM are both welcome.
Question: What are your main products?
Answer: Our main products include: High-frequency transformer series and inductor series.
