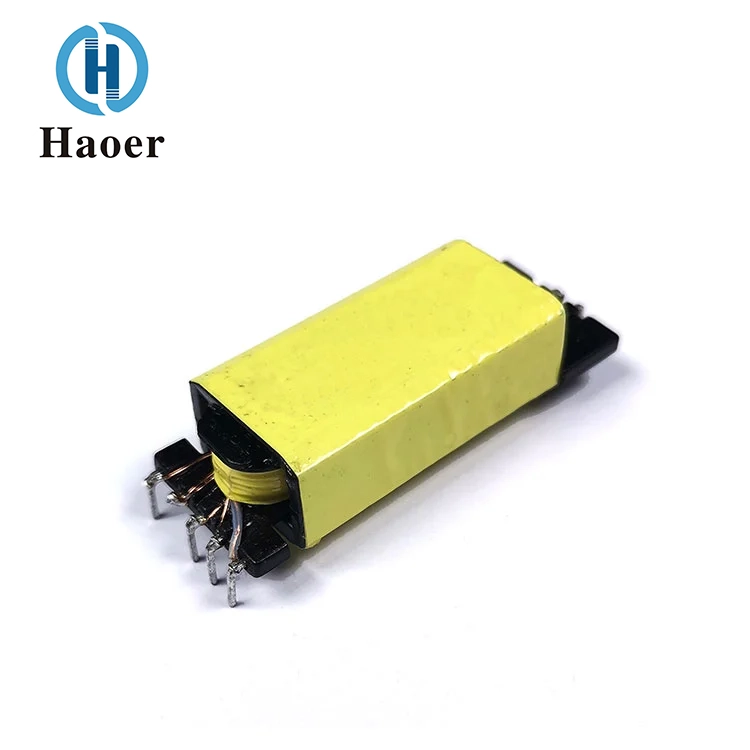

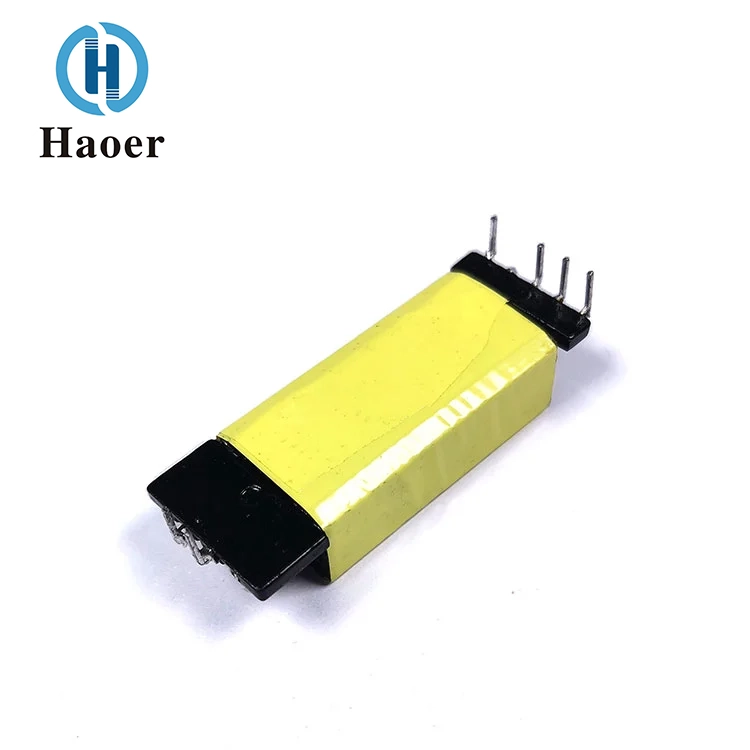

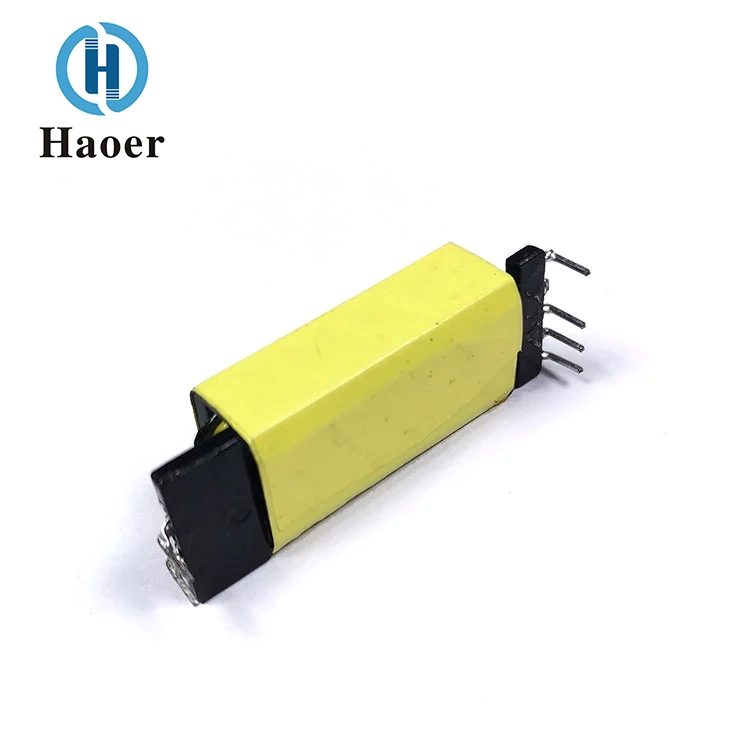

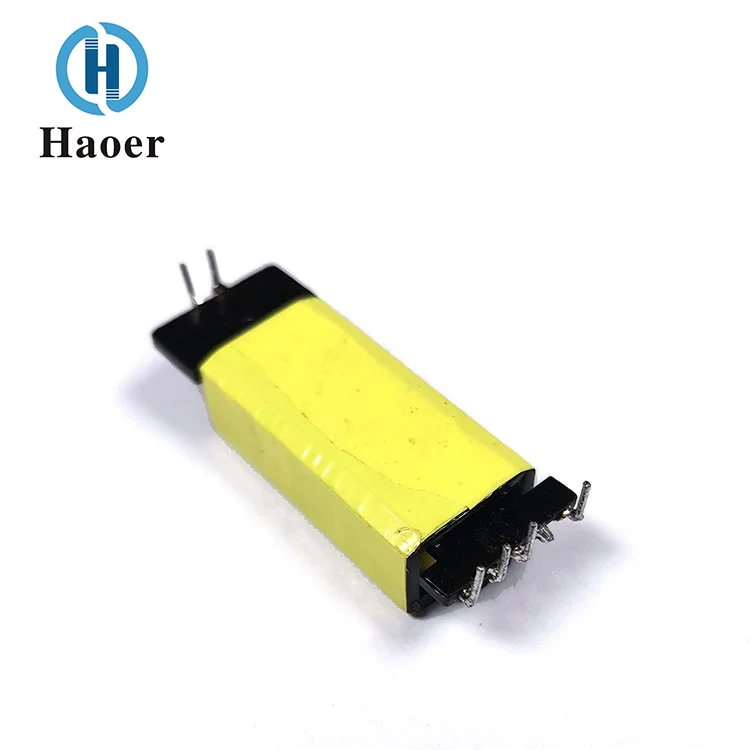

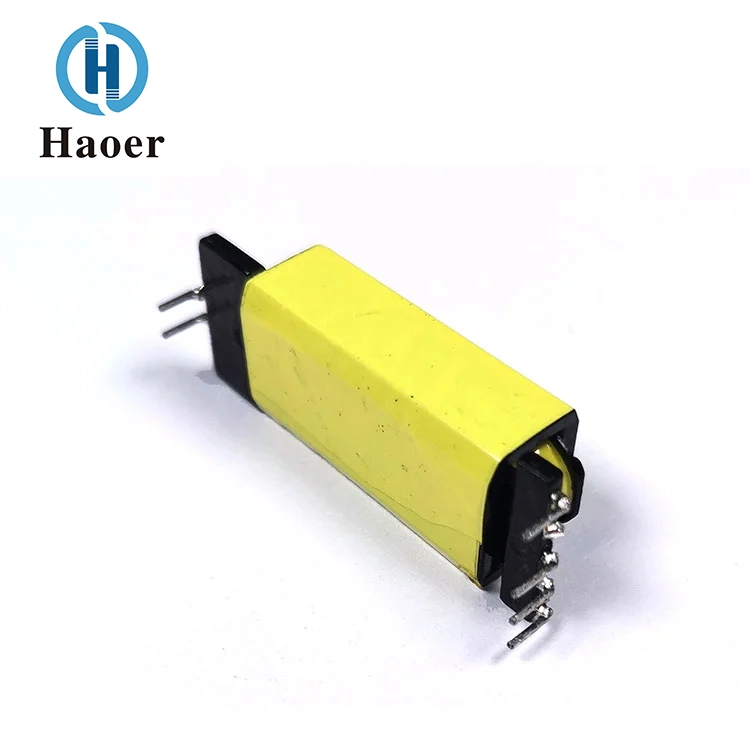

1. The China T10 Built-In Drive Power Supply EDR High-Frequency Transformer produced by Haoer manufacturer. The EDR uses an E-type magnetic core, typically consisting of two "mountain" shaped magnetic cores located above and below the frame. They are matched with the frame through slots. This structure helps to reduce the thickness of the transformer, giving it an ultra-thin appearance, suitable for installation on power boards with strict height limitations.
2. Usually, there are primary windings and secondary windings, which are wound respectively on the winding columns on both sides of the frame. The windings are generally made by interlacing copper foils or using other winding methods suitable for high-frequency transmission to enhance the performance and efficiency of the transformer.
3. The main features of EDR are its small size, easy installation and low temperature rise.
4. EDR is widely used in LED lighting and electronic devices.
| 1. Operating frequency: | 20 kHz - 500 kHz |
| 2. Output power: | 10 to 800 watts |
| 3. Operating temperature: | -40°C to +125°C |
| 4. Storage temperature: | -25°C to +85°C |
| 5. Storage humidity: | 30% - 95% |
The low-profile product structure, with excellent magnetic shielding effect and small size, can achieve a large amount of power.
EDR2009/EDR2609/EDR2809/EDR3909 /EDR4109
Application scope: Mainly used for built-in driving power supplies for LED T5/T8/T10.
| brand | Hao Er |
| type | EDR High Frequency Transformer Series |
| service frequency | 1KHz-500KHz |
| output power | 10 watts to 200 watts |
| working temperature | -25℃~+125℃ |
| storage temperature | - 25℃~ + 85℃ |
| storage humidity | 30% - 95% |
| apply |
In the field of lighting In the field of consumer electronics industrial electronics field armamentarium communication apparatus |
Application Range: T10 Built-In Drive Power Supply EDR High-Frequency Transformer are widely used in small household appliances, control panels, energy-saving lamps, notebook computers, PC power supplies, TVs, LCD monitors, switching power supplies, program-controlled switches, network equipment, DVDs, automotive electronics, etc.
Guangdong Haoer Electronics Co., Ltd. was founded in 2008. We are a professional manufacturer specializing in high-frequency transformers, filtering devices, inductors, and other magnetic components. Our products are widely used in lighting, household appliances, photovoltaics, UPS systems, automotive electronics, network communication equipment, computer peripherals, and various switching power supplies.
After years of development, the company has fully introduced automated production equipment and various high-precision testing instruments. With several production bases in Foshan, Guangdong, and a workforce of over 1, 000 employees, our annual production capacity for transformers, filters, and inductors exceeds 100 million units.
Backed by an experienced and dynamic team, the company has obtained CQC, UL, ISO 9000, and TS 16949 safety and quality system certifications. Adhering to the principles of technological innovation, quality first, service supremacy, and win-win cooperation, Haoer is committed to growing stronger and striving for excellence.
The T10 Built-In Drive Power Supply EDR High-Frequency Transformer's package will be sent by express delivery service, such as DHL, UPS, TNT, FedEx, etc. We can also arrange air or sea transportation according to your requirements.
1. CONSULTING SERVICE
2. COMPANY MODEL
3. THE FACTORY PRICE
4. PROOF OF CONFIRMATION
5. PLACE ORDER AND PAYMENT
6. PRODUCTION DELIVERY
7. FAST DELIVERY
8. RECEIVED HIGHLY PRAISED REVIEWS
Question: Are you a manufacturing factory or a trading company?
Answer: We are a manufacturing factory.
Q: Can we get free samples?
A: We can provide free samples, but the customer is responsible for the shipping costs.
Question: Are the products in compliance with international certification standards?
Answer: Our products have obtained certifications such as CE, RoHS, and UL, and they meet the export standards.
Question: What is the minimum order quantity?
Answer: It depends on the product. Small batch orders can be negotiated.
Question: How do you ensure product quality and after-sales service?
Answer: We offer a 12-month quality guarantee and have an after-sales team to promptly address customer issues.
