Ultrasonic welding machines have revolutionized the way electronic components are assembled, with film capacitors playing a pivotal role in their performance. This article explores the technical advantages, practical applications, and maintenance considerations of ultrasonic welding machine film capacitors. With insights from Guangdong Haoer Electronics Co., Ltd., manufacturers and engineers can optimize production efficiency, ensure product reliability, and address common pain points.
Table of Contents
- Introduction to Ultrasonic Welding Machine Film Capacitors
- The Importance of Film Capacitors in Ultrasonic Welding
- Types of Film Capacitors Used
- Applications Across Industries
- Maintenance and Troubleshooting Tips
- Comparison: Film Capacitor vs Other Capacitors
- Frequently Asked Questions
- Conclusion & Contact

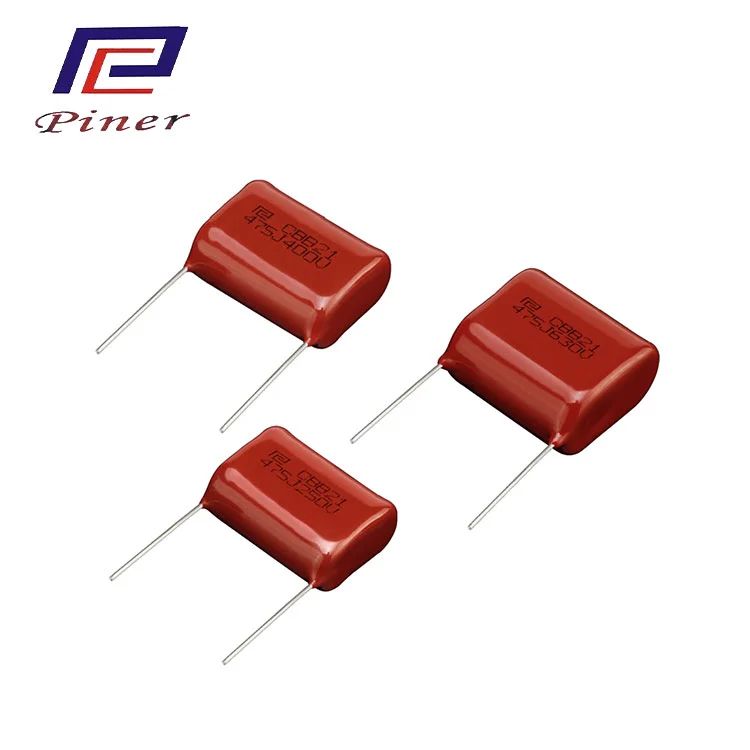

Introduction to Ultrasonic Welding Machine Film Capacitors
Ultrasonic welding machines rely on high-frequency ultrasonic vibrations to join thermoplastic materials or metals without the need for adhesives or soldering. The efficiency and stability of these machines are highly dependent on electronic components, particularly film capacitors. Guangdong Haoer Electronics Co., Ltd. specializes in providing high-quality film capacitors tailored for ultrasonic welding applications.
Film capacitors are preferred due to their high insulation resistance, low loss factor, and excellent thermal stability. They act as energy storage units, smoothing out voltage spikes and ensuring consistent ultrasonic frequency during welding.
The Importance of Film Capacitors in Ultrasonic Welding
Film capacitors are critical to ultrasonic welding machines for several reasons:
- Energy Storage: They store energy to power the piezoelectric transducers that generate ultrasonic vibrations.
- Voltage Stability: They stabilize voltage fluctuations, preventing inconsistent welds and material defects.
- Durability: High-quality film capacitors improve the lifespan of the welding equipment.
- Safety: Properly rated capacitors prevent overvoltage scenarios, ensuring operator safety.
According to Guangdong Haoer Electronics Co., Ltd., integrating the right film capacitor reduces downtime and enhances production throughput by up to 20%.
Types of Film Capacitors Used
Different film capacitors offer unique advantages depending on the application. The main types include:
| Type | Features | Common Applications |
|---|---|---|
| Polyester (PET) | Low cost, stable dielectric, suitable for moderate temperatures | General-purpose ultrasonic welders |
| Polypropylene (PP) | Excellent insulation, low loss, high voltage tolerance | High-frequency ultrasonic welding machines |
| Polytetrafluoroethylene (PTFE) | High thermal resistance, chemical stability | Precision welding for medical or aerospace components |
Guangdong Haoer Electronics Co., Ltd. offers a wide range of these capacitors, ensuring compatibility with different ultrasonic welding models and manufacturing environments.
Applications Across Industries
Ultrasonic welding with high-quality film capacitors has expanded into multiple industries:
- Automotive: Joining interior plastic panels, electronic modules, and wiring harnesses.
- Medical Devices: Assembling filters, tubing, and disposable devices without adhesives.
- Consumer Electronics: Welding components in smartphones, laptops, and household electronics.
- Packaging: Sealing blister packs, tubes, and bags efficiently.
In all these applications, the reliability of the film capacitor directly affects weld quality, production speed, and long-term equipment performance.
Maintenance and Troubleshooting Tips
Proper maintenance ensures that ultrasonic welding machines operate optimally. Here are key guidelines:
- Regularly inspect capacitors for swelling, leakage, or discoloration.
- Use a multimeter to check capacitance and insulation resistance.
- Replace capacitors in accordance with the manufacturer’s recommended cycle.
- Ensure proper environmental conditions (temperature, humidity) to prolong capacitor life.
Guangdong Haoer Electronics Co., Ltd. provides maintenance support and detailed datasheets to help engineers select and replace film capacitors efficiently.
Comparison: Film Capacitor vs Other Capacitors
Understanding why film capacitors outperform other types in ultrasonic welding is essential for informed purchasing decisions:
| Capacitor Type | Advantages | Limitations |
|---|---|---|
| Film Capacitor | Stable, low loss, high voltage tolerance, long lifespan | Higher cost than electrolytic for same capacitance |
| Electrolytic Capacitor | High capacitance at low cost | Shorter lifespan, high leakage, sensitive to temperature |
| Ceramic Capacitor | Small size, high frequency capability | Capacitance varies with voltage/temperature, brittle |
Choosing film capacitors from Guangdong Haoer Electronics Co., Ltd. ensures optimal performance without frequent replacements.
Frequently Asked Questions
Q1: How long do film capacitors last in ultrasonic welding machines?
A1: High-quality film capacitors can last 10–15 years depending on operating conditions. Regular maintenance enhances longevity.
Q2: Can I replace an old capacitor with a different type?
A2: While technically possible, replacing with a different type may compromise performance and safety. Consulting Guangdong Haoer Electronics Co., Ltd. for compatible options is recommended.
Q3: How do I know the correct capacitance rating?
A3: Capacitor datasheets specify voltage and capacitance ratings suitable for specific ultrasonic welding machines. Guangdong Haoer Electronics Co., Ltd. provides detailed guidance for selection.
Q4: Are film capacitors affected by environmental factors?
A4: Yes, excessive heat, humidity, and dust can degrade performance. Proper storage and maintenance extend service life.
Conclusion & Contact
Film capacitors are indispensable in ultrasonic welding machines, offering energy storage, voltage stabilization, and long-term reliability. Guangdong Haoer Electronics Co., Ltd. provides top-tier capacitors that address common manufacturing challenges, reduce downtime, and enhance production efficiency. Whether in automotive, medical, or consumer electronics industries, choosing the right capacitor ensures optimal performance and operational safety.
For high-quality ultrasonic welding machine film capacitors and expert guidance, contact us today and elevate your production efficiency!
