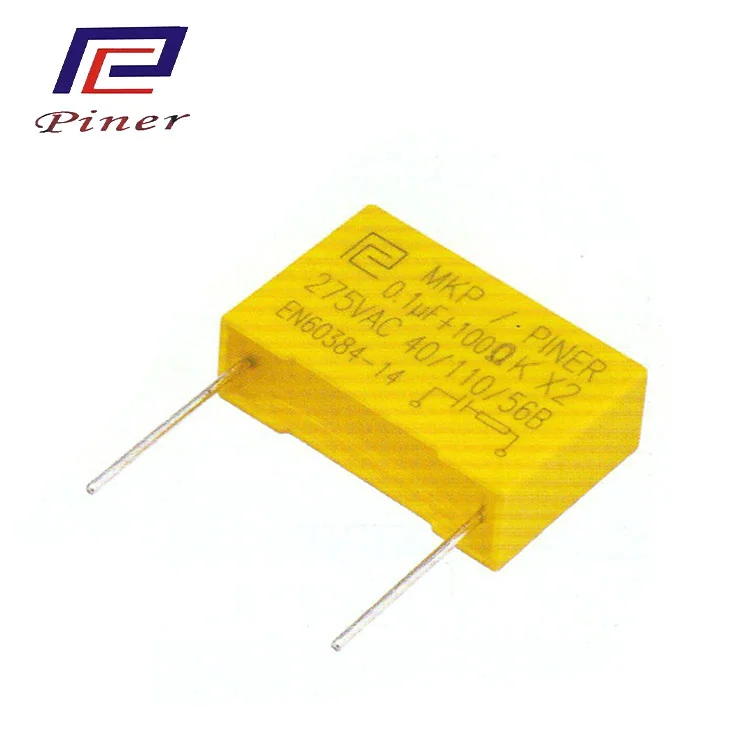

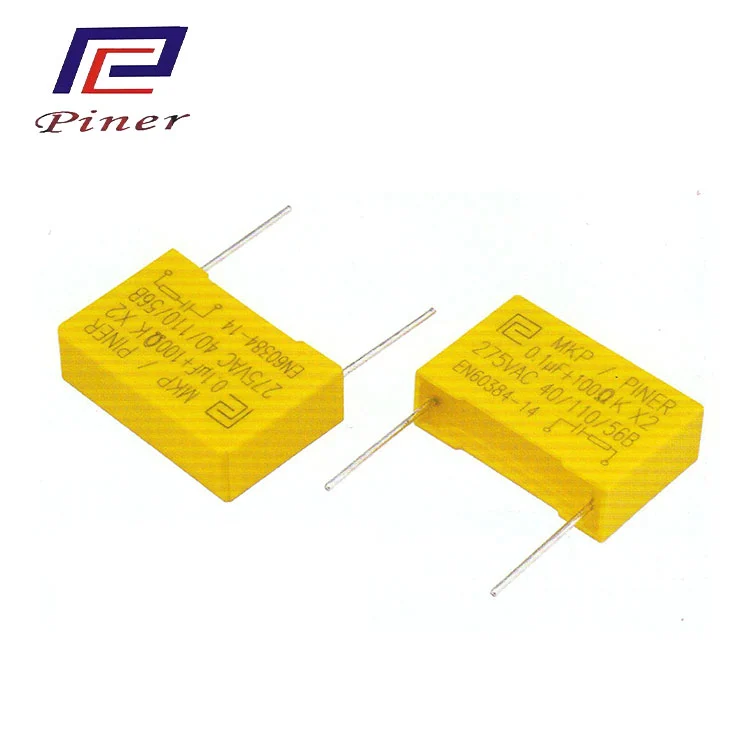

The Arc Suppression Capacitor produced by Piner suppliers refers to a component that integrates an X2 compliance capacitor and a resistor internally or externally to form a standardized, plug-and-play "anti-interference - absorption - protection" composite function module. In essence, it is a compliance capacitor specifically designed for the AC power input end and integrated with a damping resistor.
The primary function of the X2 capacitor: as a differential-mode filter capacitor, it is connected in parallel between the live wire (L) and the neutral wire (N) to filter out high-frequency interference. At the power input end, it frequently suffers from high-energy, high-voltage pulses generated by lightning surges, inductive load switching, and electrostatic discharges.
Although the X2 capacitor is designed to withstand certain pulses (such as 2.5kV), repeated and extremely powerful pulse impacts will shorten the product's lifespan and even cause failure. Additionally, the capacitor will generate a large surge current during the charging process.
The core function of the series resistor:
Damping and current limiting: The resistor can effectively limit the instantaneous charging current of the capacitor when the pulse arrives (I = V/R), and consume part of the pulse energy, thereby significantly reducing the direct impact of the pulse on the capacitor itself.
Protecting the capacitor and enhancing system reliability: By using the X2 capacitor, the lifespan and stability of the system in harsh electromagnetic environments can be significantly improved.
Suppressing resonance: It can prevent the parasitic inductance at the input end and the X2 capacitor from forming unnecessary resonance.
| Reference standard | GB/T14472 IEC60384-14 |
| Climatic category | 40/110/56 B |
| Rated voltage | 275VAC ~ 310VAC |
| Capacitance range | 0.01uF ~ 0.47uF |
| Capacitance tolerance | ±5%(J) ±10%(K) |
| Between terminals Voltage proof | 4.3Un DC (60s) |
| Between terminals and case | 2*Ur+1500VAC (60s) |
| Resustance tolerance | ±10%(K) |
| Insulation resistance(at 20℃) | 30000MΩ(100vdc 60s) |
RC component X2 (quencher) / capacitor Regular specs
Dimension Unit:mm
| Rated Cap. (uF) | Resistance (Ω) | W | H | T | P | ΦD |
| 0.01 | 10–2000 | 18 | 13.5 | 6 | 15 | 0.6 |
| 0.022 | 18 | 13 | 7.5 | 15 | 0.6 | |
| 0.033 | 18 | 14.5 | 8.5 | 15 | 0.6 | |
| 0.047 | 18 | 16 | 10 | 15 | 0.8 | |
| 0.068 | 18 | 16 | 10 | 15 | 0.8 | |
| 0.1 | 26.5 | 17 | 8.5 | 22.5 | 0.8 | |
| 0.15 | 26.5 | 19 | 10 | 22.5 | 0.8 | |
| 0.22 | 26.5 | 19 | 10 | 22.5 | 0.8 | |
| 0.33 | 32 | 20 | 11 | 27.5 | 0.8 | |
| 0.47 | 32 | 22 | 13 | 27.5 | 0.8 |
Note: The above size is for reference only.Customization according to customers’ requirements is available.
Foshan Pin'er Electronics Co., Ltd. is a manufacturer specializing in the production and sales of metallized film capacitors. It mainly produces 5 major series of metallized film capacitors: 1. Double-sided metallized capacitor (MMKP) 2. High-frequency high-voltage capacitor (CBB81) 3. Polypropylene film capacitor (CBB21) 4. Polyester film capacitor (CL21, CL21X) 5. Square shell capacitor (MKP, X2), axial capacitor.
Pinr Electronics specializes in thin film capacitors and industrial capacitors. It has its own factory and mainly produces products such as CBB series, safety standard capacitors, and electromagnetic cooker-specific capacitors.

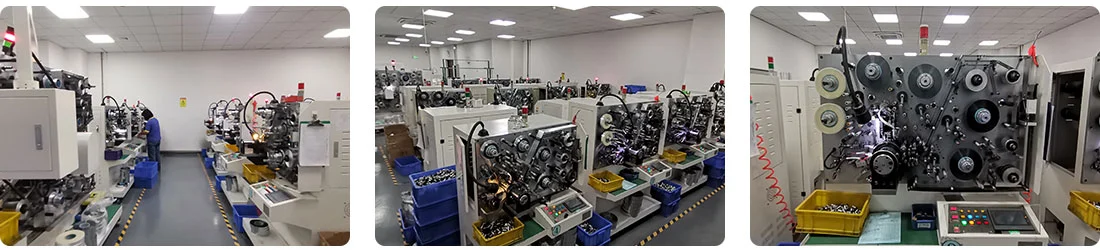

The equipment in possession: winding machine, gold spraying machine, fully automatic welding and assembly machine, capacitor detector, epoxy automatic mixing and pouring machine
The applications of film capacitors include: new energy and energy storage, automotive electronics and electrification, industrial automation and power supply, information and communication technology, consumer electronics and household appliances; the application locations include: absorption protection circuits (Snubber) for IGBT/MOSFET, resonant cavities of high-frequency resonant circuits (such as LLC topology), X2/Y safety cross-wire connections of AC power input, and start/run terminals beside single-phase motors; the applications under working conditions include: high-frequency high-voltage pulses, high ripple current, and safety requirements.
Foshan Pin'er Electronics Co., Ltd. will continue to focus on the research and development of high-frequency magnetic components and capacitors, and will continue to invest in research and development as well as the upgrading of intelligent manufacturing. We look forward to working together with global customers and partners in the wave of power electronics technology, moving forward side by side and jointly promoting the development of green energy and efficient power conversion.
Little Bear, Delmar, Meishel, Dongling Weiyou, Yaxuel, Lianrui, Jiewei, Yingke, Yu Long, Tuohao
Question: Can you put our logo on the product?
Answer: Yes, we can.
Question: Can you provide samples?
Answer: Yes, but the cost will be determined based on the complexity and quantity of the samples.
Question: How is product quality controlled?
Answer: We have a professional quality control team and advanced testing equipment. All products are tested 100%.
Question: How long is the delivery cycle?
Answer: For regular orders, it usually takes 15 to 30 days. The exact time depends on the order quantity and the complexity of the product.
