Photovoltaic Solar Capacitor

Core Advantage

Efficient and stable wave suppression, protecting the core: The Photovoltaic Solar Capacitor supplied by Piner Electronic manufacturer is produced using an inductive winding process. It effectively absorbs the ripple current generated by the photovoltaic system, significantly reducing the fluctuation of the DC bus voltage, protecting the core power components of the inverter and lowering the failure rate.

Wide voltage and high current, fully compatible across all scenarios: Supports DC voltages ranging from 450V to 3000V, capable of withstanding continuous currents of 20A to 200A and instantaneous surges that are twice as high. It fully meets the requirements of household, commercial and industrial, as well as power station-level photovoltaic inverters.

Improve system efficiency and boost power generation: Quick response, reduce bus voltage drop, help increase the overall conversion efficiency of the photovoltaic system by 0.5% - 2%, achieve optimized power generation.

High temperature resistance, long lifespan, maintenance-free: Utilizing fully industrial-grade high-temperature-resistant materials and structural design, it can adapt to outdoor high-temperature environments, has a long service life, and significantly reduces the operation and maintenance costs of power stations.

Safe explosion-proof, reliable flame retardant: With an internal explosion-proof design and an advanced flame-retardant casing, it effectively eliminates the risks of explosion and fire, ensuring the electrical safety within the photovoltaic DC cabinet.

Modular design, supporting high-power systems: The high-power models can adopt a parallel integration structure, with stronger current carrying capacity. It is specially designed for megawatt-level equipment such as centralized inverters and energy storage converters.

Full outdoor protection, strong environmental adaptability: Solid structure, no risk of liquid leakage, featuring moisture-proof, shock-resistant, corrosion-resistant and other properties, capable of easily coping with the complex outdoor environment of photovoltaic power stations.

Stable voltage regulation, adaptable to photovoltaic power generation characteristics: It can quickly respond to voltage fluctuations caused by changes in light intensity, maintain the stability of the DC side voltage, and enhance the reliability of system operation.

Typical application scenarios

Photovoltaic Solar Capacitor is suitable for household/industrial commercial string-type photovoltaic inverters, centralized photovoltaic inverters, photovoltaic combiner boxes, DC distribution cabinets, photovoltaic energy storage converters (PCS), distributed and ground photovoltaic power stations and other systems.

Technical data

Outline drawing

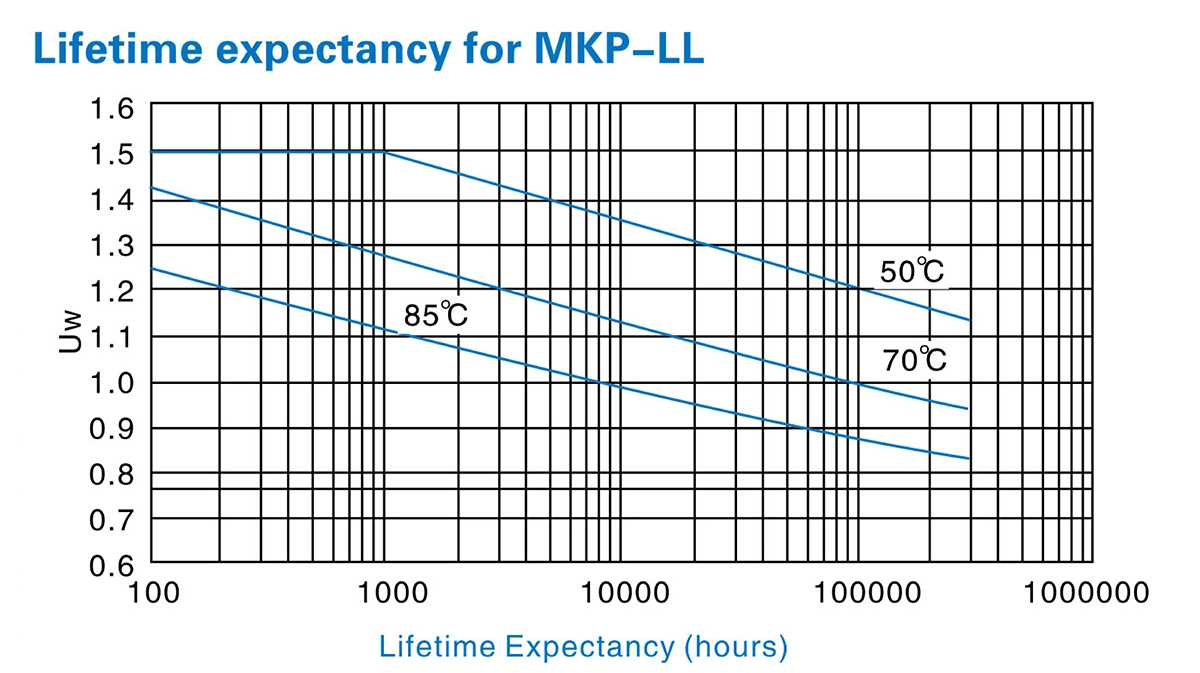

Lifetime expectancy for MKP-LL

Technical data sheet

Company strength

Foshan Pi'er Electronics Co., Ltd. is a national high-tech enterprise that has been dedicated to the research and manufacturing of high-end Photovoltaic Solar Capacitor since its establishment in 2014. The company integrates R&D, design, production, sales, and after-sales service. It is located in the core area of China's manufacturing industry - Foshan, Guangdong Province. It has its own factory buildings and modern production bases. It is always committed to providing high-performance and highly reliable core capacitor solutions for the global power electronics industry.

At the product and technology level, the company has focused on the fields of new energy and industrial applications, specializing in the production of DC-Link capacitors, IGBT buffer absorption capacitors, MKPH high-voltage resonant capacitors, coupling blocking capacitors, and various filter capacitors. Our core product lines include the CBB21 series of ordinary metallized film capacitors, X2 safety standard capacitors, and electromagnetic cooker-specific capacitors, which can meet the needs of different scenarios. With a deep understanding of materials, processes, and applications, we have infused our products with outstanding stability and environmental adaptability.

The company has established a rigorous quality and certification system, and has obtained ISO9001-2015 quality management system certification and TS16949 automotive quality system certification. Core products such as the MKPX2 safety capacitor series have received safety certifications from multiple countries including the United States (UL), Canada (CUL), Germany (VDE), and China (CQC). We strictly implement the EU RoHS and REACH environmental protection directives to ensure the green compliance of our products. Piel Electronics adheres to the principle of "Technology as the foundation, Quality for survival", and through continuous technological innovation and quality management involving all staff, ensures that every capacitor delivered becomes the most reliable cornerstone in the customer's system.

Certificates

CQC, UL, IS09000, TS16949 and other safety certifications and quality system certifications, IS09001-2015 quality management system certification, MKPX2 safety capacitor series has passed the UL IN US, CUL IN Canada, VDE in Germany and CQC certification in China, and the company's products meet the latest environmental protection requirements of the European Union and meet the standards of RoHS and REACH directives.

Our Services

Guangdong Haor Electronics Co., Ltd. and Foshan Piner Electronics Co., Ltd. are not only leading manufacturers of high-frequency transformers and capacitors, but also your reliable partner for complete technical solutions. We firmly believe that high-quality products are the foundation for achieving cooperation, while professional, efficient and reliable full-cycle services are the key to the success of the project and the continuous win-win situation.

Therefore, we have established a full-process service system covering the "pre-sale - in-sale - post-sale" stages:

Professional pre-sales consultation - During the initial stage of the project, our technical team can get involved to provide you with selection support and solution optimization, ensuring that the design is accurate and feasible.

Reliable in-process delivery - As we enter the production and delivery stage, we strictly implement quality control and delivery schedule management to ensure that each batch of products arrives at your hands on time, in good condition, and in the correct quantity.

Comprehensive after-sales support —— Delivery is not the end of the service. We have a dedicated customer service channel (hotline/email) to promptly respond to various technical inquiries and usage support, providing you with lasting peace of mind.

Choosing us means that not only will you receive high-quality electronic components, but you will also have a stable, professional and responsible technical support team behind you. In the rapidly changing field of power electronics, we will assist you in focusing more on core innovations and move forward together.

Express delivery

Small packages will be sent by courier services such as DHL, UPS, TNT, FedEx, etc. We can also arrange air or sea transportation according to your requirements.

FAQ

Q:Are you a manufacturer or a trading company?

A: We are a professional manufacturer with in-house R&D, production lines, and quality control systems. OEM/ODM services are available.

Q: How do you ensure product stability in high-temperature/humidity environments?

A: We use metallized polypropylene film, flame-retardant epoxy potting, and aluminum casing, ensuring stable operation from -40℃ to 105℃.

Q: Do you provide samples? How is shipping handled?

A: Free samples are available for qualified clients, with shipping costs borne by the client. Sample shipping fees can be deducted from future orders

Q: How do I select the proper voltage and capacitance for my DC-Link application?

A: We recommend selecting a voltage rating at least 20% above the system’s maximum DC bus voltage. Capacitance depends on ripple current, switching frequency, and allowed voltage ripple. Our engineering team can assist with simulation-based selection upon receiving your circuit parameters..
