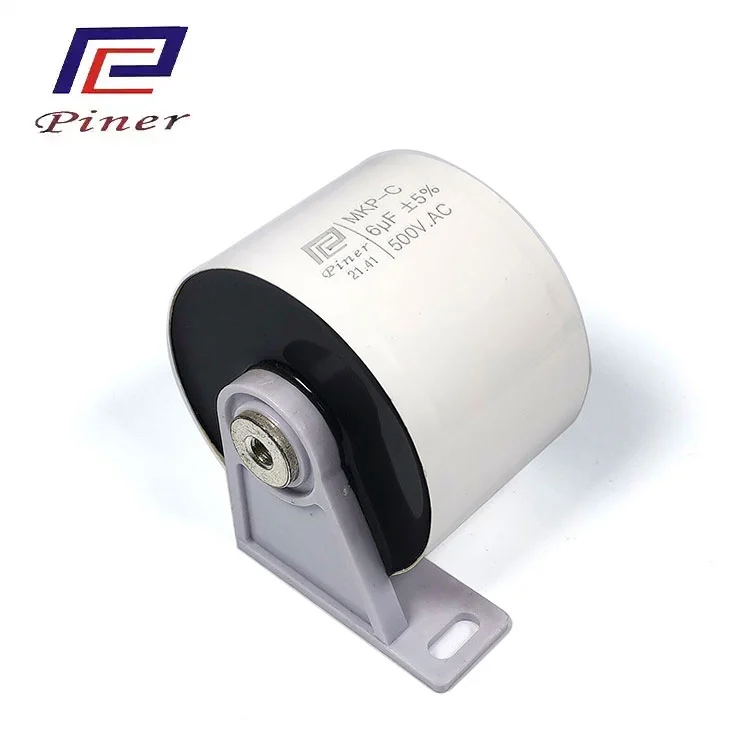

High frequency and low loss, stable and clear signal transmission
Suitable for induction heating equipment operating in the full frequency range of 20-500kHz, adopting a low loss and non inductive design to ensure that high-frequency signal transmission is not attenuated or distorted, avoiding insufficient heating power or unstable temperature caused by signal loss.
Resistant to high voltage and high current, adaptable to strong power impact
Designed for common high voltage and high current working conditions in induction heating, it can withstand instantaneous current impact and does not break down or leak electricity in isolated working mode. It is suitable for various equipment from electromagnetic small modules to large induction heating furnaces.
Accurate isolation and effective protection of core components
By adopting a dedicated DC isolation structure, the DC components in the circuit are completely isolated to prevent DC from entering key components such as induction coils and power tubes, avoiding burning or damage, and significantly reducing equipment failure and maintenance frequency.
High temperature resistance and aging resistance, adapt to continuous high temperature environment
The internal temperature of induction heating equipment is high. All components of this product are made of industrial grade high temperature and anti-aging materials, without problems of medium cracking, electrode shedding or gel softening, which supports the continuous and stable operation of the equipment for a long time.
High insulation and anti-interference, improving heating consistency
Having high insulation resistance characteristics, it can effectively resist high-frequency interference, prevent signal leakage, avoid fluctuations in heating power or uneven heating of workpieces, and ensure uniform and reliable heating effects for melting, quenching and other processes.
Explosion proof and flame-retardant design, more reassuring for industrial use
Built in explosion-proof pressure relief structure, combined with high flame retardant shell, eliminates the risk of explosion or fire caused by overvoltage, overcurrent, and high temperature, suitable for induction heating equipment in enclosed or semi enclosed workshops.
All solid state structure, suitable for complex workshop environments
No liquid filling, no leakage hazard, with moisture-proof, earthquake resistant, and dust-proof performance, suitable for vibration during induction heating equipment operation and dusty workshop environment, non-polar design for convenient circuit installation and layout.
Complete specifications and easy installation, compatible with various types of equipment
Provide multiple voltage and capacity specifications to adapt to induction heating equipment of different powers. Supports three installation methods: solder joints, bolts, and leads, with standardized dimensions, making installation and replacement of new and old equipment simple and efficient.
| Reference | GB/T17702, IEC61071 |
| Capacitance | 1 ~ 20 µF |
| Capacitance Tol. | ±5% (J), ±10% (K) |
| Voltage | 200V.AC ~ 1000V.AC |
| UT-T | 1.5Un / 60s |
| Over Voltage | 1.1Un (8h/24h) |
| 1.15Un (30min/24h) | |
| 1.2Un (5min/24h) | |
| 1.3Un (1min/24h) | |
| tg δ | tg δ ≤ 0.0020 (100Hz) |
| Ri × Cn | ≥ 30,000 s (25°C±5°C, 100V DC, 60s) |
| dv/dt | > 50 V/µs |
| Climatic Category | 40/85/21 |
| Operating Temp. | -40°C ~ +85°C (θ h.s ≤ 85°C) |
| Lead Methods | Insert, copper nut, copper bolt |
| Max. Altitude | < 4000 m |
| Lifetime Expectancy | 30,000 h (θ h.s ≤ 70°C) |
| Encapsulation | Mylar tape/plastic shell, epoxy resin encapsulation |

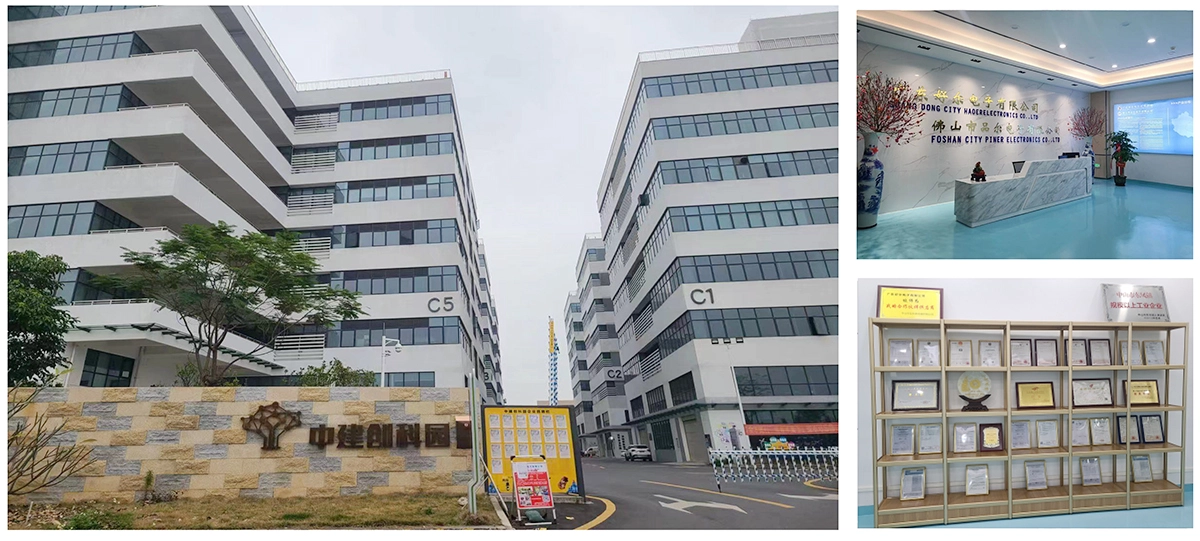

Foshan Piner Electronics Co., Ltd. is a professional new energy film capacitor manufacturing enterprise dedicated to research and development, design, production, sales, and after-sales service. The company's main products are DC Link capacitors; IGBT buffer absorption capacitor; MKPH high-voltage resonance, coupling capacitor, and input/output AC filtering capacitor. Widely used in induction heating equipment UPS、 High frequency switching power supplies, welding machine power supplies, photovoltaic inverters, wind energy converters, high-power inverters, electric vehicles, and are widely used in other new energy industries such as wind/solar power generation and inverter/frequency conversion equipment.
The company has winding machines, gold spraying machines, fully automatic welding and assembly machines, capacitance detectors, epoxy automatic mixing and pouring machines, professional manufacturing equipment and testing instruments. Providing reliable assurance for product quality.
The company has a strong production capacity of over 100 million units per year. The company has experienced employees and a professional and efficient management team, ensuring that every aspect from research and development to production meets high standard requirements. We are committed to growing and strengthening, striving to become a benchmark enterprise in the industry.
The shipping methods include DHL, UPS, TNT, FedEx and other courier services, and you can also choose air or sea freight according to your requirements
Xiaoxiong, Deerma, Meishile, Dongling Weili, Yasile, Lianrui, Jeweisi, Yingke, Yuelong, Tuohao
Q:Are your products compliant with international certifications?
A: Yes, our capacitors comply with RoHS and REACH regulations, and test reports are available. Some series are certified to UL and IEC standards.
Q: What is the minimum order quantity (MOQ)?
A: MOQ for standard products is 50-100pcs, depending on the model. Sample orders are welcome.
Q: How do you ensure product stability in high-temperature/humidity environments?
A: We use metallized polypropylene film, flame-retardant epoxy potting, and aluminum casing, ensuring stable operation from -40℃ to 105℃.
Q: Do you provide samples? How is shipping handled?
A: Free samples are available for qualified clients, with shipping costs borne by the client. Sample shipping fees can be deducted from future orders.
