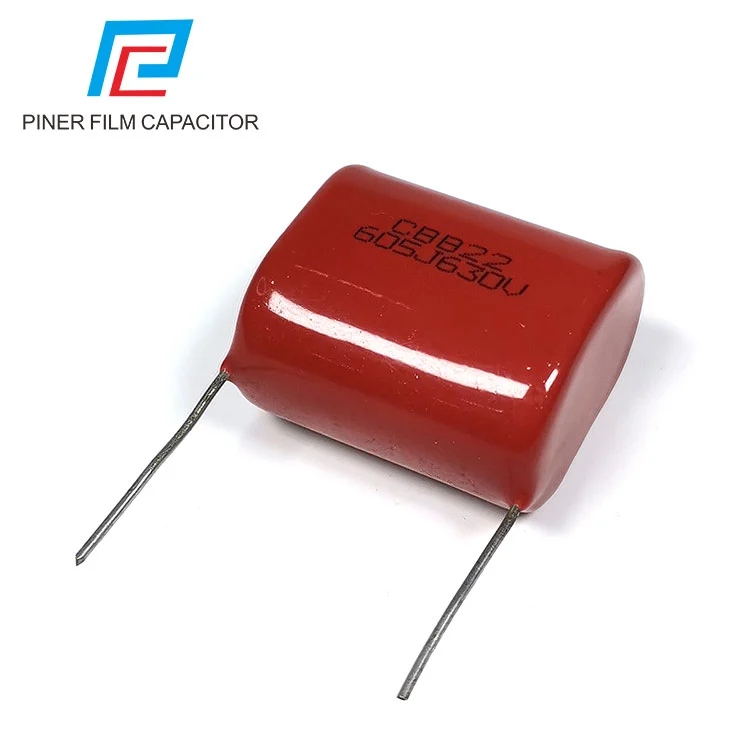

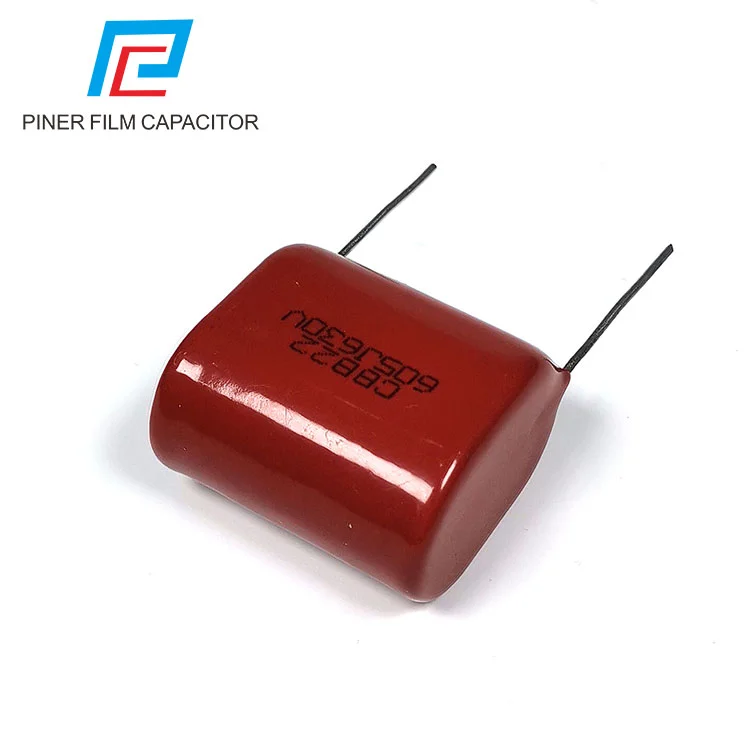

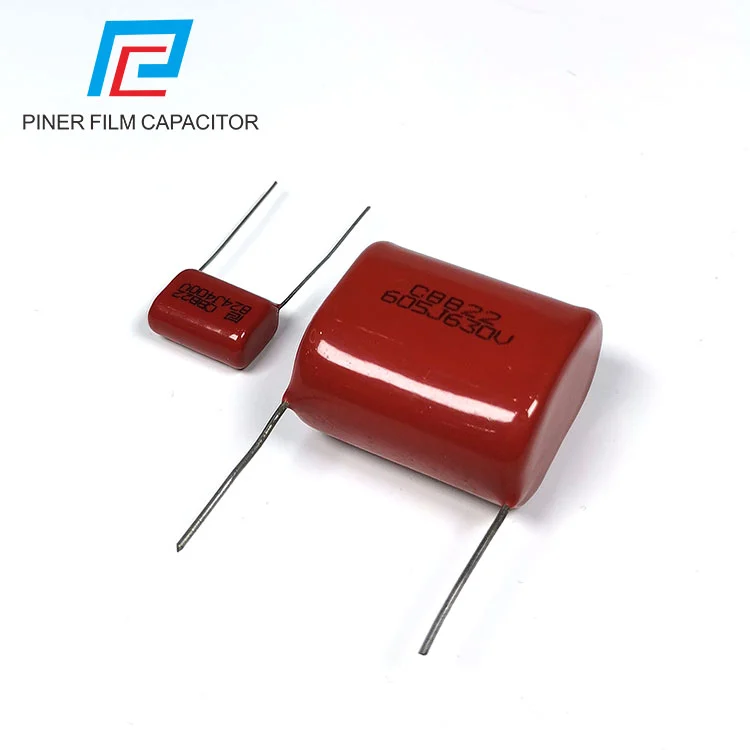

The CBB22 Automotive Ignition HID Capacitor manufactured by Piner is also known as a metallized polypropylene film capacitor. This capacitor is structured with a metallized polypropylene film as the dielectric and electrode, and is made by winding. It is encapsulated in flame-retardant insulating material, presenting an unregulated structure, and is led out by tin-plated copper-clad steel wire. Its rated voltage range is 250V, 400V, and 630V, and the capacitance range is 0.0047 - 3.3μF. It has the advantages of small size, light weight, large capacity, low price, high reliability, excellent electrical performance, low high-frequency loss, good self-healing property, and low internal temperature rise.
CBB22 Film Capacitor:
1.Non-inductive winding of metallized polypropylene film
2.Flame retardant epoxy resin encapsulation,
3.Tinned copper clad steel wire,
4.With strong moisture resistance,
5.Good self-healing,
6.High insulation,
7.Low loss,
8. Low temperature rise and so on.
| Reference standard | GB10190 IEC60384-16 |
| Climatic category | 40/105/21 |
| Rated voltage | 250VDC ~ 630VDC |
| Capacitance range | 0.01uF ~ 10uF |
| Capacitance tolerance | ±5%(J)±10%(K)±20%(M) |
| Between terminals Voltage proof | 1.6Un DC (10s) |
| Insulation resistance (at 20°C) |
Between terminals≥30000MΩCR≤0.33uF (100vdc 60s) ≥7500s CR>0.33uF (100vdc 60s) |
| Dissipation factor | DF≤0.0020 (1KHz) |
CBB22 Film Capacitor Dimension Unit:mm
Note: The above size is for reference only.Customization according to customers’ requirements is available.
Widely used in High Frequency, DC, AC, Pulse Circuits
S-correction circuits of the display device
CBB21 capacitor, also known as CBB22 Automotive Ignition HID Capacitor and CBB21 Metal Film Capacitor, is used in various DC, pulse, AC voltage reduction, and high-frequency current applications. It is particularly suitable for various types of energy-saving lamps and electronic ballasts. Features: metallized polypropylene film, epoxy resin encapsulation, low high-frequency loss, high reliability, good self-healing property, very small internal temperature rise, internal series and winding structure.
CBB22 capacitor, also known as CBB22 metallized polypropylene film capacitor or CBB22 metal film capacitor, is used in DC, pulse, high-frequency, and large current applications. It is applied in electrical appliances that require high frequency, high current, and high stability. Features: metallized polypropylene film, epoxy resin encapsulation, low high-frequency loss, good insulation performance, and good self-healing effect. In comparison, CBB22 has better quality and can be suitable for high current applications.
Using high-quality metal films
CBB22 Automotive Ignition HID Capacitor using high-quality silver-zinc-aluminum edge-thickened metallized films, the effective gold spraying area on the side is increased by 20%, capable of withstanding higher current surges and high temperatures.
Brand direct sales, factory direct sales
Factory direct sales, direct access to original sources, eliminating middle links, saving you every penny.
Longer lifespan, reliable quality
High-quality raw materials, strict quality control
Using high-purity tin-zinc alloy, the gold spraying thickness can reach over 0.35mm. The product has excellent electrical performance and low loss, long lifespan, and safe and reliable product quality.
The after-sales team provides technical support.
A strong pre-sales and after-sales service team gives you greater peace of mind.
Pier not only has a product research and development technical team, but also an after-sales technical service team. It has many engineers proficient in PCB design, who can solve customers' product design and application problems for free.
