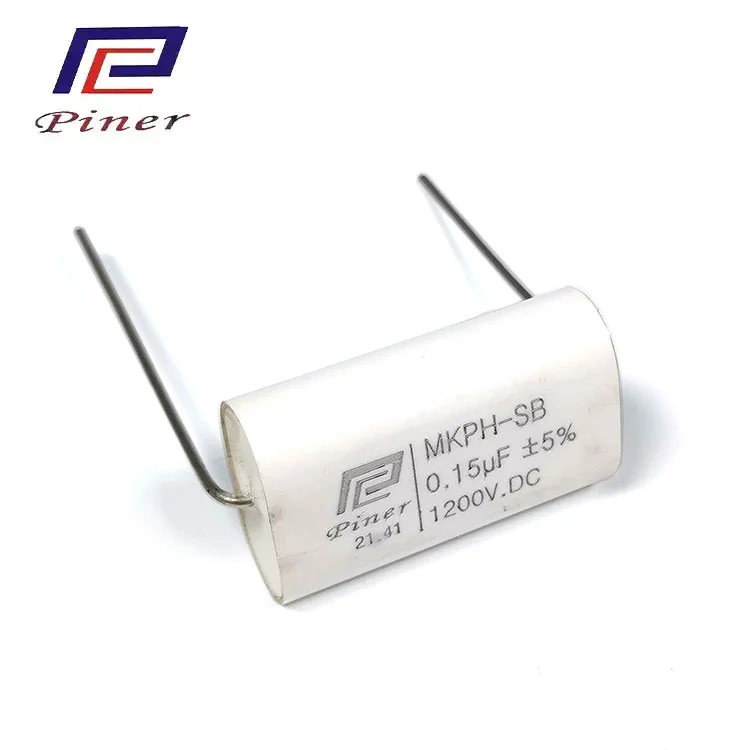

Based on metalized polypropylene film and advanced non inductive winding technology, the aim is to achieve the lowest equivalent series inductance (ESL), ensuring minimal impedance of the absorption path for transient energy, thereby enabling rapid response and absorption of pulse current and voltage spikes generated at the moment of switching action.
The overall use of flame-retardant epoxy resin for vacuum sealing forms a fully sealed structure, completely preventing moisture and dust from entering, providing extremely high environmental adaptability (moisture-proof, dust-proof, chemical gas resistant) and long-term electrical stability.
Having extremely high pulse current tolerance (high di/dt) and excellent frequency characteristics, it can maintain stable capacitance values and low losses over a wide frequency range, making it particularly suitable for dealing with high-frequency and high-power switching transients.
The main function is to clamp and absorb parasitic energy in the power circuit, directly protect semiconductor switching devices such as IGBT and MOSFET, reduce their switching losses and thermal stress, thereby improving the overall reliability of the machine and extending device life.
Provide multiple terminal options such as tinned copper wire or flexible wire axial lead out, with flexible and easy installation methods that can be easily integrated into busbars, PCBs, or modules.
| Reference | GB/T17702, IEC61071 |
| Capacitance | 1 ~ 20 µF |
| Capacitance Tol. | ±5% (J), ±10% (K) |
| Voltage | 200V.AC ~ 1000V.AC |
| UT-T | 1.5Un / 60s |
| Over Voltage | 1.1Un (8h/24h) 1.15Un (30min/24h) 1.2Un (5min/24h) 1.3Un (1min/24h) |
| tg δ | tg δ ≤ 0.0020 (100Hz) |
| Ri × Cn | ≥ 30,000 s (25°C±5°C, 100V DC, 60s) |
| dv/dt | > 50 V/µs |
| Climatic Category | 40/85/21 |
| Operating Temp. | -40°C ~ +85°C (θ h.s ≤ 85°C) |
| Lead Methods | Insert, copper nut, copper bolt |
| Max. Altitude | < 4000 m |
| Lifetime Expectancy | 30,000 h (θ h.s ≤ 70°C) |
| Encapsulation | Mylar tape/plastic shell, epoxy resin encapsulation |
IGBT absorption protection circuit for industrial frequency converters and AC speed control devices
New energy vehicle on-board charger (OBC) and motor driver power circuit
Switching buffer and surge suppression in auxiliary inverters for rail transit
Power unit protection for high-power industrial power supplies (such as electroplating and electrolysis power supplies)
Improve system EMC performance, reduce switch noise and electromagnetic radiation

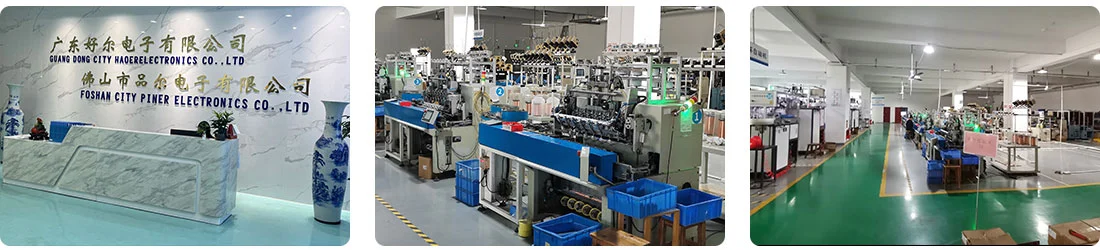

Foshan Piner Electronics Co., Ltd. is a professional capacitor manufacturer. Pin'er Electronics is located in Shunde District, Foshan City, Guangdong Province, with a total factory area of over 10000 square meters and a professional capacitor research and development team. Pin'er Electronics mainly produces capacitors of different types and specifications, such as polypropylene film capacitors, polyester film capacitors, polypropylene film capacitors, metalized polypropylene film series structure capacitors, metalized polypropylene film AC motor capacitors, metalized polyester acrylic film capacitors, metalized composite electrode polypropylene miniaturized film capacitors, metalized composite electrode polypropylene film capacitors, metalized polypropylene film anti-interference capacitors, high-voltage metalized polypropylene film capacitors, power tool specific filters, etc.
We have a global R&D team and manufacturing facilities with high-quality technology, strong production and supply capabilities, and an annual production capacity of over 100 million capacitors.
Our certifications and standards:
• System Certification:ISO9001 Quality Management System, TS16949 (Automotive Industry Standard)
• Product Certification:The MKPX2 series has obtained safety certifications from multiple countries including UL, CUL, VDE, CQC, etc
• Environmental standards:All products comply with the EU RoHS and REACH directives
The shipping methods include DHL, UPS, TNT, FedEx and other courier services, and you can also choose air or sea freight according to your requirements
Xiaoxiong, Deerma, Meishile, Dongling Weili, Yasile, Lianrui, Jeweisi, Yingke, Yuelong, Tuohao
Q:Are you a manufacturer or a trading company?
A: We are a professional manufacturer with in-house R&D, production lines, and quality control systems. OEM/ODM services are available.
Q:Are your products compliant with international certifications?
A: Yes, our capacitors comply with RoHS and REACH regulations, and test reports are available. Some series are certified to UL and IEC standards.
Q: Do you offer technical support and customization?
A: Yes, we provide capacitor selection, parameter customization, and application guidance based on your circuit requirements.
Q: How do you ensure product stability in high-temperature/humidity environments?
A: We use metallized polypropylene film, flame-retardant epoxy potting, and aluminum casing, ensuring stable operation from -40℃ to 105℃.
Q: What is the lead time?
A: Standard lead time is 3-4 weeks. Expedited delivery is available for urgent orders.
