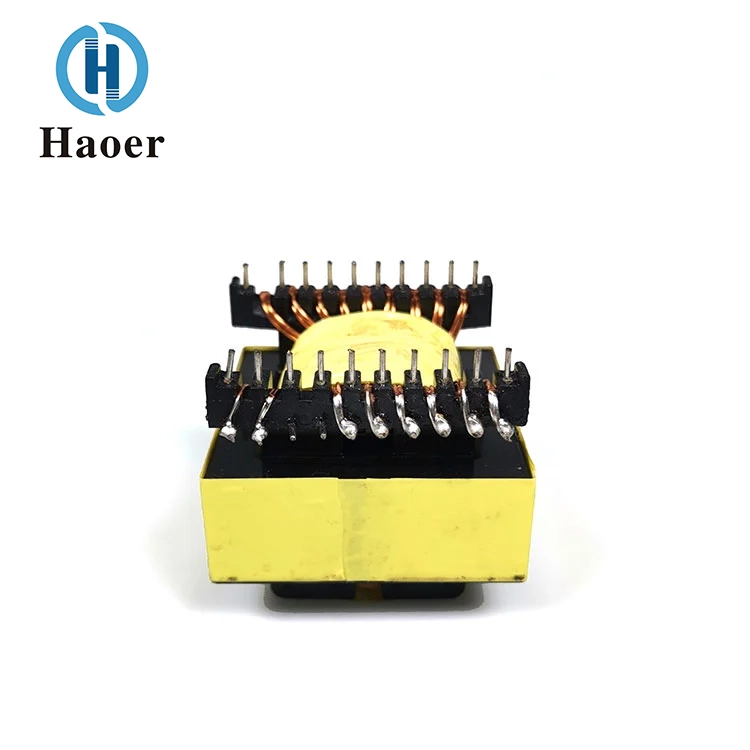

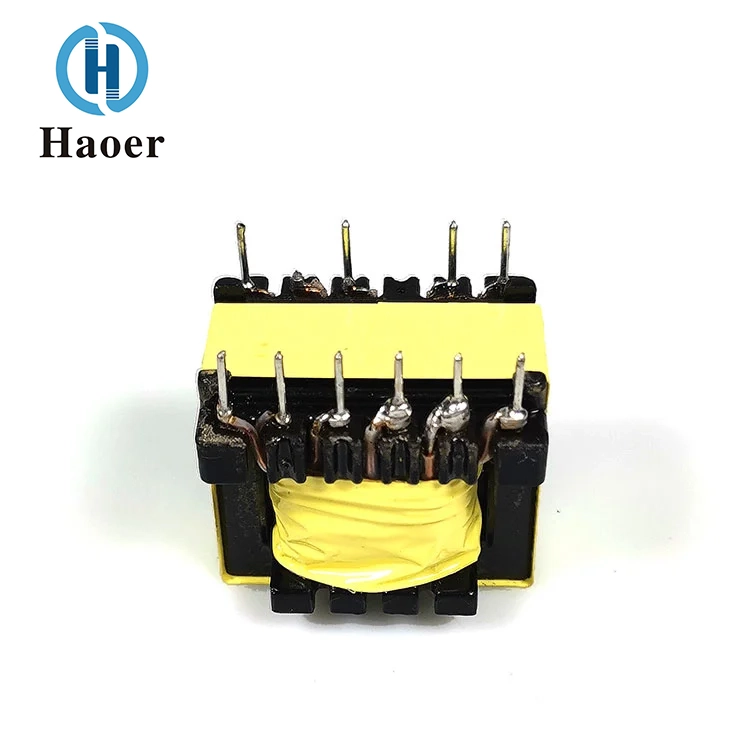

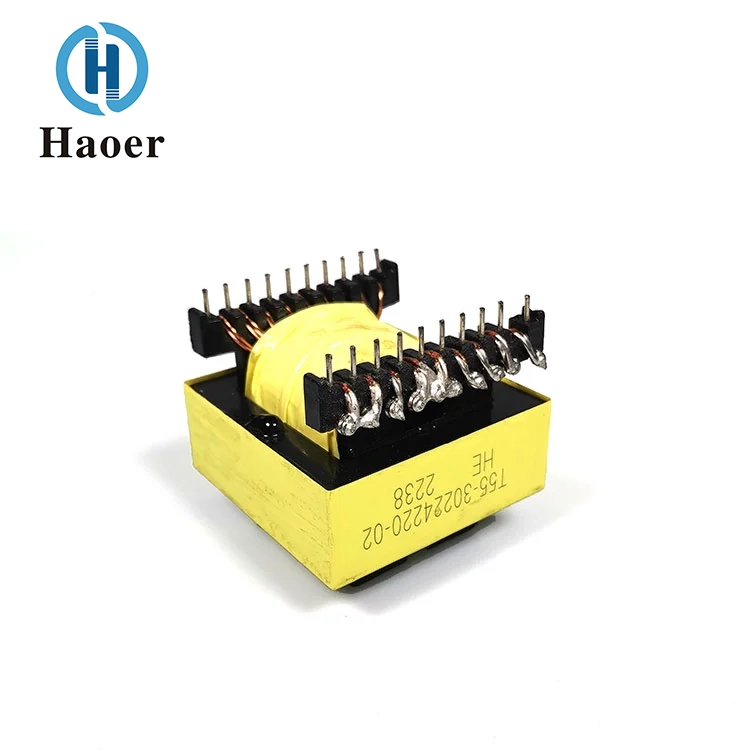

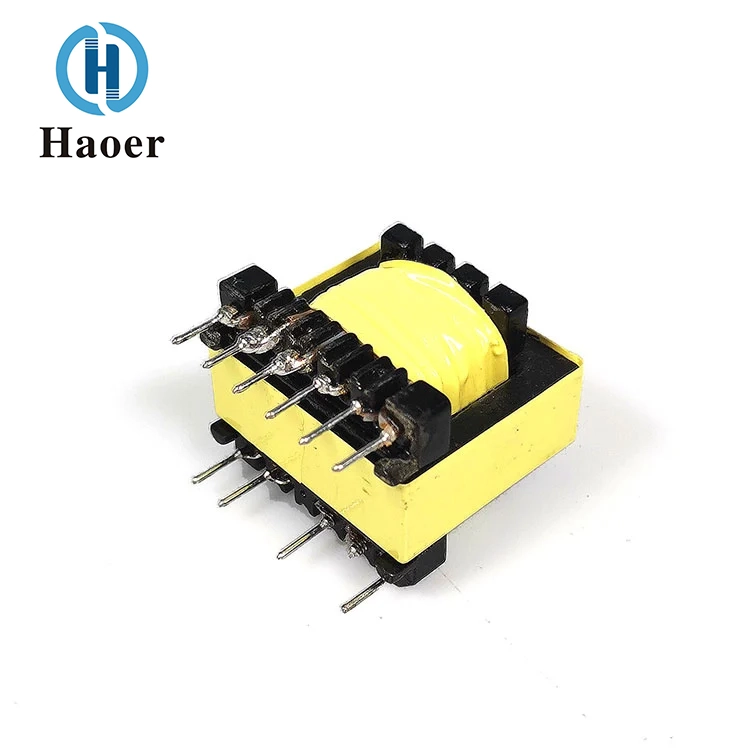

The Power Adapter EE Vertical High-Frequency Transformer supplied by Haoer Factory demonstrates outstanding and broad technical indicators in terms of electrical performance and environmental adaptability. Its core operating frequency ranges from 20kHz to 500kHz, enabling it to flexibly adapt to various application scenarios from basic switching power supplies to high-end precision electronic equipment, while enhancing power conversion efficiency and effectively optimizing power density.
In terms of power output capacity, the product range is complete, with output power covering 0.5W to 1000W, providing stable and reliable power conversion solutions for various devices ranging from miniature consumer electronics to industrial-grade power modules.
The product has an excellent operating temperature range (-40℃ ~ +125℃), ensuring its stable operation even in extremely cold or hot harsh environments, with extremely high reliability. Its storage temperature requirement is -25℃ to +85℃, and the storage humidity environment is 30% to 95%. This ensures that the internal magnetic core and coil structure of the product remain unaffected by temperature and humidity changes during storage and transportation, maintaining consistent performance and safety over the long term.
| PART NO. | TERMINAL PINS | Dimensionsin mm(inches)(mm) | TYPE | |||||
| Serial Number | Number of needles | A | B | C±0.5 | D±0.5 | E±0.5 | F | |
| EE-8.3 | 6 | 8 | 8 | 6 | 4 | 2.5 | 8.3 | V |
| EE-10 | 8 | 11.5 | 10.2 | 8 | 4 | 2.5 | 10.2 | V |
| EE-13 | 10 | 12 | 12.5 | 8.5 | 4 | 2.5 | 13 | V |
| EE-16-1 | 6 | 14.8 | 13.3 | 9 | 4 | 3 | 16 | V |
| EE-16-2 | 10 | 15.4 | 13 | 10.5 | 4 | 3.2 | 17.1 | V |
| EEL-16 | 10 | 28.5 | 16 | 12.3 | 4 | 4.3 | 21.9 | V |
| EE-19-1 | 8 | 17.6 | 16 | 10 | 4 | 5 | 19 | V |
| EE-19-2 | 10 | 17.2 | 16.2 | 13 | 4 | 3.9 | 20 | V |
| EEL-19 | 10 | 31.5 | 16 | 10.5 | 4 | 4 | 21.1 | V |
| EEL-19-1 | 10 | 15.6 | 30 | 24.1 | 4 | 3.5 | 21 | H |
| EE-25-1 | 6 | 20 | 18.2 | 12.5 | 4 | 6.3 | 25.2 | V |
| EE-25-2 | 8 | 21.7 | 17.5 | 12.6 | 4 | 5 | 25.2 | V |
| EE-25-3 | 10 | 22.2 | 25 | 15.4 | 4 | 5 | 26.1 | H |
| EEL-25 | 8 | 35.3 | 17.5 | 12.5 | 4 | 5 | 25.2 | V |
| EE-30 | 10 | 21 | 29.2 | 25.2 | 4 | 5 | 30 | H |
| EE-40 | 14 | 27.6 | 30.5 | 25.8 | 4 | 5 | 40 | H |
| EE-42/15-1 | 12 | 33.8 | 44 | 35.5 | 4 | 5 | 42 | H |
| EE-42/15-2 | 16 | 41.3 | 48 | 37.7 | 4 | 5 | 42 | H |
| EE-42/15-3 | 18 | 48.7 | 32 | 27.5 | 4 | 5 | 45.1 | V |
| EE-42/20-1 | 12 | 45 | 39.8 | 32.5 | 4 | 5 | 42 | V |
| EE-42/20-2 | 16 | 44.2 | 50 | 37.8 | 4 | 5 | 42.2 | H |
| EE-42/20-3 | 18 | 44.1 | 37 | 27.3 | 4 | 5 | 45.3 | V |
| EE-55 | 20 | 50 | 50 | 45.5 | 4 | 5 | 55 | H |
| EE-65 | 16 | 55.2 | 51.8 | 45 | 4 | 5 | 65 | H |
|
Note: "H" HORIZONTAL TYPE (Bedroom Type) "V" VERTICAL TYPE (Vertical Type) |
||||||||
They are widely used in small household appliances, control panels, energy-saving lamps, notebook computers, PC power supplies, TVs, LCD monitors, switching power supplies, program-controlled switches, network equipment, DVDs, automotive electronics, etc.
Guangdong Haoer Electronics Co., Ltd., established in 2008, is a leading manufacturer of magnetic components including high-frequency transformers, filters, and inductors. Our products serve a wide range of industries such as lighting, home appliances, photovoltaics, UPS, automotive electronics, and communication equipment.

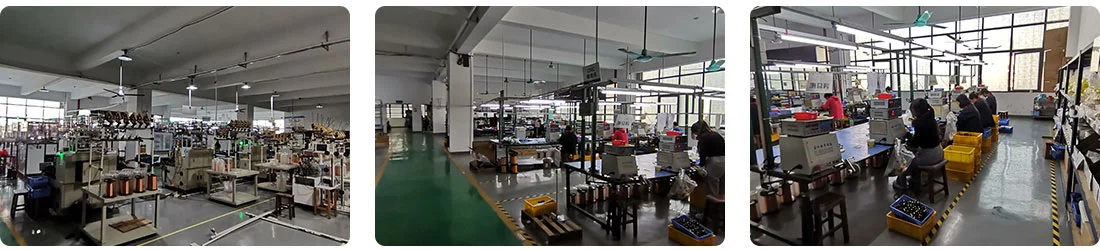

With multiple production bases in Foshan, Guangdong, and a workforce of over 1, 000 employees, we leverage fully automated production lines and advanced testing instruments to achieve an annual output exceeding 100 million units. The company holds CQC, UL, ISO 9000, and TS 16949 certifications, underscoring our commitment to quality and safety.
Driven by a skilled team and guided by innovation, quality excellence, and customer-centric collaboration, Haoer is dedicated to delivering superior value and fostering mutual growth with partners worldwide.
The small packages will be sent by courier, such as DHL, UPS, TNT, FedEx, etc. We can also arrange air or sea transportation according to your requirements.
Question: Are you a manufacturing factory or a trading company?
Answer: We are a manufacturing factory.
Question: Do you offer ODM and OEM services?
Answer: Yes, ODM and OEM are both welcome.
Question: What are your main products?
Answer: Our main products include: High-frequency transformer series and inductor series.
Question: Can you provide samples?
Answer: Yes, but the complexity and quantity of the samples will be taken into account to determine if a fee is required.
