Ultrasonic Welding Machine Film Capacitor

The Ultrasonic Welding Machine Film Capacitor manufactured by Piner's supplier is an industrial high-power customized product for metalized polypropylene (MKP/CBB) film DC capacitors. It is specifically designed for the high-frequency resonance, high-power energy storage, instantaneous large current, mechanical vibration + operating temperature rise core conditions of ultrasonic welding machines. It focuses on optimizing the resonant characteristics at the mainstream ultrasonic working frequencies of 15kHz/20kHz. It is a key resonant energy storage component for the transducer system of the welding machine to achieve the conversion of electrical energy to mechanical energy. Compared to the general high-frequency MKP capacitors, this model has been upgraded in terms of low-loss resonance, large current carrying capacity, resistance to mechanical vibration, and resistance to high-frequency charging and discharging cycles. It perfectly meets the continuous working requirements of various ultrasonic welding machines such as plastic welding, metal spot welding, and non-woven fabric fusion welding, and is a core supporting component for improving the conversion efficiency, welding stability, and overall service life of the welding machine.

1. Precise matching of ultrasonic resonance frequency

Optimized for 15kHz/20kHz welding machine resonance, with extremely low ESR/ESL, loss ≤ 2%, ensuring rapid and stable energy storage and release, and eliminating false welding.

2. High-frequency, high-power, low-loss characteristics

Based on polypropylene film, low loss at ultrasonic frequency, small temperature rise, significantly improving energy efficiency.

3. Exceptionally strong instantaneous large current carrying capacity

Can withstand tens to hundreds of amperes of instantaneous impact (customizable according to specifications), electrode without erosion, meeting the instantaneous energy release requirements of high-power welding.

4. Ultra-high frequency charge-discharge cycle

Can withstand charge-discharge cycles ≥ 10⁷ times, far exceeding the general MKP capacitor, suitable for 24-hour continuous high-frequency operation of the welding machine, matching the lifespan of the entire machine.

5. Temperature resistance and vibration resistance dual advantages

Working temperature -40℃ to +105℃, resistant to cavity temperature rise; vibration resistance grade ≥ 15g, no core body loosening, suitable for the high-frequency vibration environment of the welding machine.

6. High voltage and capacity ultra-stability

Capacity drift in the entire temperature range ≤ ±1%, no voltage attenuation, ensuring stable resonance frequency; rated voltage 400V to 1200V DC can be customized.

7. Excellent adaptability to industrial environments

Metal enclosure fully sealed, moisture-proof and oil-proof; insulation resistance ≥ 10¹²Ω, extremely small leakage current, suitable for long-term use in industrial sites such as workshops.

8. Non-polarity design, flexible installation

Non-polarity, suitable for AC/DC scenarios; output terminals and installation methods can be customized to flexibly match the internal layout of different welding machines.

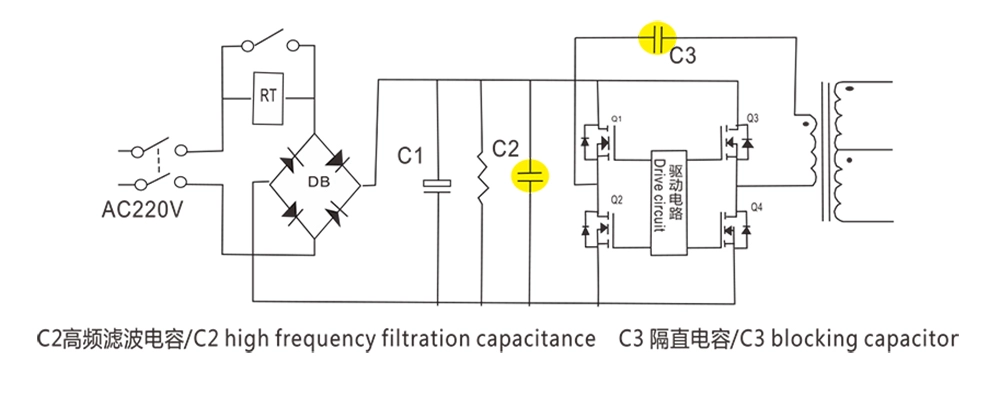

Typical circuit application

Regular specs

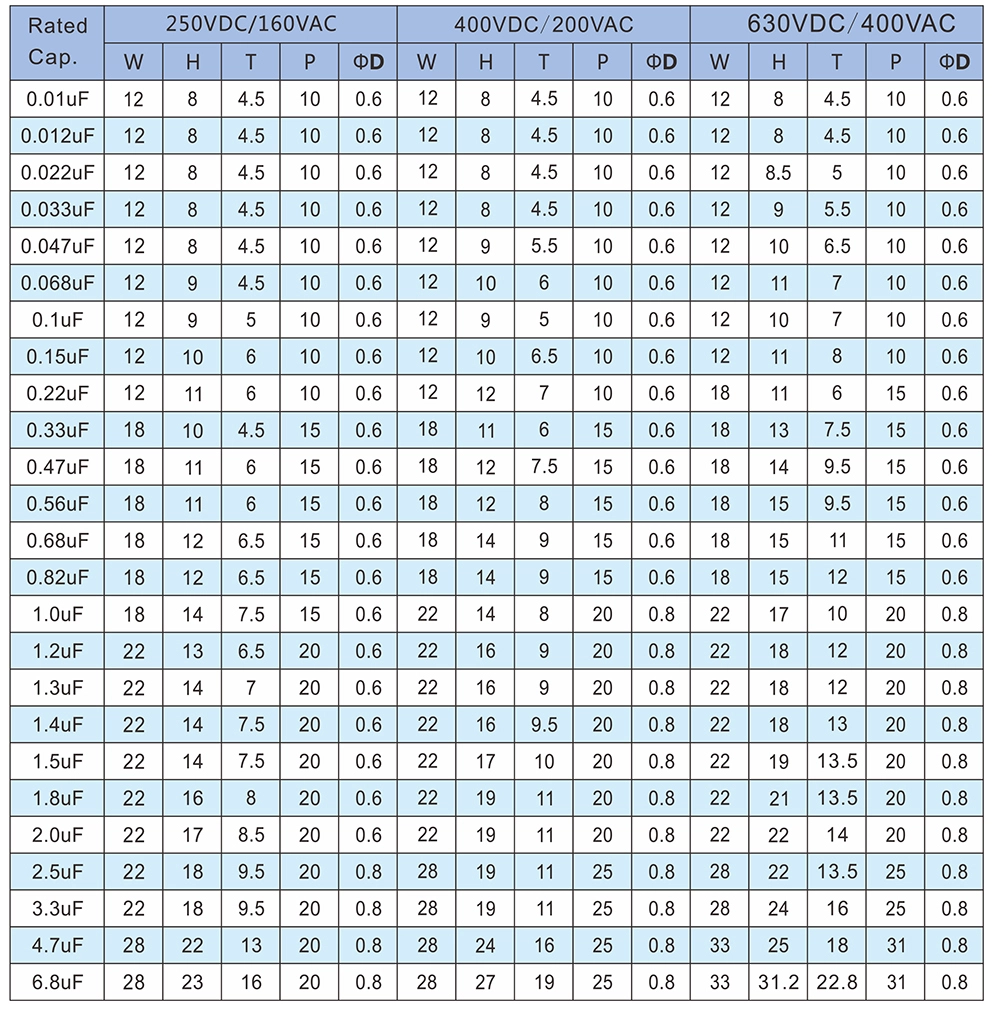

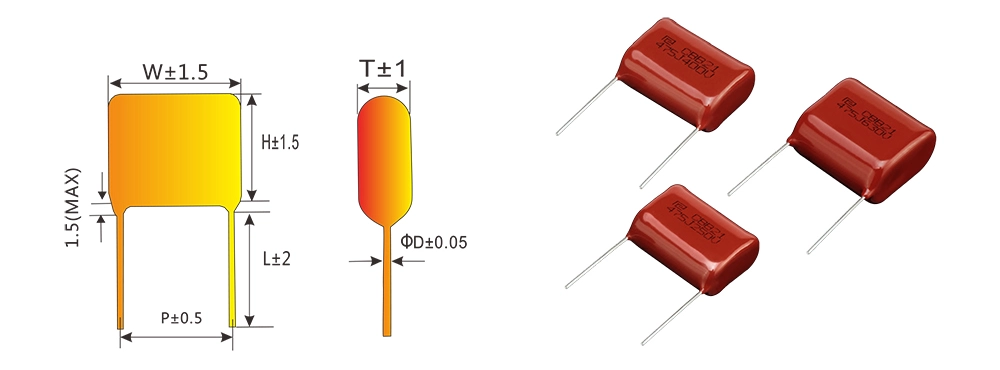

Welder-specific film capacitor Dimension Unit:mm

Note: The above size is for reference only.Customization according to customers’ requirements is available.
