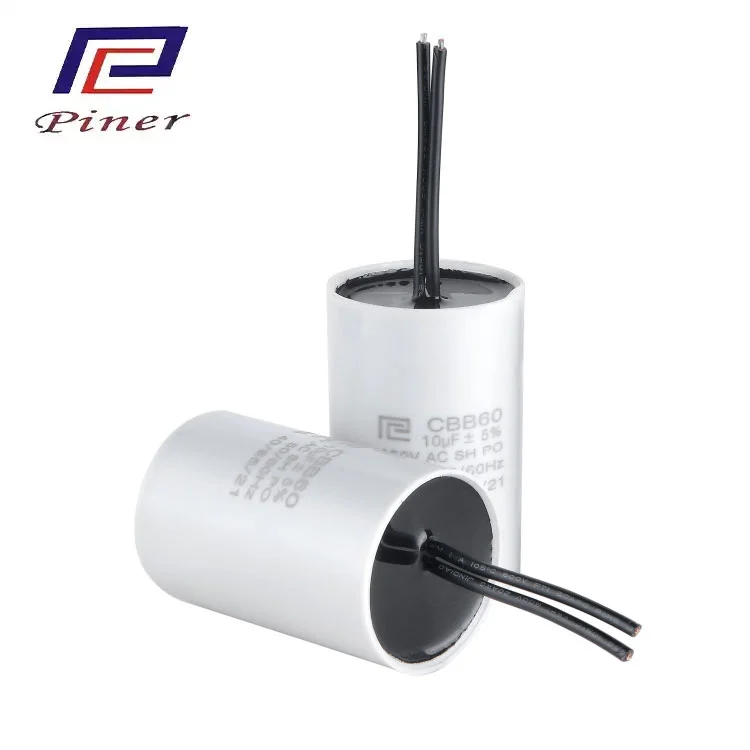

Dual security protection:Flame retardant shell+built-in safety device, eliminating electrical fire hazards from the source, especially suitable for fire safety sensitive areas such as kitchens, computer rooms, and public places
Excellent electrical performance:Low loss, high insulation resistance, strong resistance to surge current, suitable for frequent motor start stop conditions, reducing energy consumption
Lightweight design:Compared to the aluminum shell version, the weight is reduced by 30%~50%, the installation is more convenient, and the overall weight of the equipment is reduced
Non-polar design:Adapt to AC circuits without considering positive and negative poles, easy to install, and reduce the risk of wiring errors
Long life maintenance free:All solid structure without liquid evaporation, avoiding leakage problems, with a service life far exceeding that of electrolytic capacitors, reducing maintenance costs
Strong environmental adaptability:Flame retardant materials are resistant to chemical corrosion, have good weather resistance, and are suitable for harsh environments such as humidity, dust, and vibration
| Reference standard | GB/T3667.1, UL810, IEC60252-1 |
| Climatic category | 25/70/21、25/85/21、40/70/21、40/85/21 |
| Rated voltage | 150VAC ~ 600VAC (50/60HZ) |
| Capacitance range | 1µF ~ 100µF |
| Capacitance tolerance | ±5%(J), ±10%(K) |
| Testing voltage | |
| between terminals | 2UN (VAC)/60s (CQC, VDE, TUV) 1.5UN (VAC)/60s (UL) |
| between terminals and case | 2UN+1000 (VAC)/60s (≥2000VAC) |
| Dissipation factor | ≤0.0020(100HZ) |
| Class of safety protection | CQC, VDE, TUV: S0, S3 |
Dimension Unit: mm
1. High end household appliances:Intelligent washing machines, variable frequency air conditioners, range hoods, embedded refrigerator compressors, etc., meet home appliance safety standards
2. Industrial equipment:Water pumps, air compressors, lawn mowers, generators, pressure washers, industrial fans, etc., suitable for continuous high-intensity working environments
3. Public facilities:Places with mandatory requirements for fire safety, such as HVAC systems, elevator door machines, escalators, fire pumps, etc
4. Power tool:Handheld cutting machines, drills, grinders, etc. are used to prevent the risk of fire caused by overheating during use
5. New energy equipment:Small photovoltaic water pumps, wind turbine supporting motors, etc. provide safety guarantees for outdoor installation environments
Foshan Piner Electronics Co., Ltd. was founded in 2014 and is a professional manufacturing enterprise specializing in the fields of thin film capacitors and industrial capacitors in China. It integrates research and development, production, and sales. With solid technological accumulation and large-scale production capacity, we provide high-performance capacitor products and supporting solutions to global customers.
The company has a self built production base with a total area of over 10000 square meters, a staff size of over 1000 people, and a strong production capacity of over 100 million capacitors per year, achieving efficient production with scale and intelligence. The core products cover CBB series capacitors, safety capacitors, induction cooker specific capacitors and other categories, widely used in various fields such as new energy, rail transportation, power transmission, ship propulsion, automotive electronics, household appliances, LED lighting, electronic circuits and power supplies, providing supporting components and raw materials for many well-known enterprises around the world.
Our products are exported to major global markets such as the European Union, the United States, Mexico, Brazil, Australia, India, South Korea, Japan, and Southeast Asia. With stable quality and efficient service, we have established a wide range of customer trust. In terms of quality control, the company has established a strict system, and its main products have successively passed authoritative quality system and safety certification such as CQC, UL, ISO9000, TS16949, and ISO9001-2015. Among them, the MKPX2 safety capacitor series has obtained multiple certifications from UL in the United States, CUL in Canada, VDE in Germany, and CQC in China. All products in the entire series comply with the EU RoHS and REACH environmental directives, meeting the compliance requirements of the global market.
Piner Electronics always takes technology as the core and quality as the foundation, committed to becoming a leading global provider of capacitor solutions and continuously creating value for customers.
We offer express delivery methods including DHL, UPS, TNT, FedEx, and also support on-demand air or sea freight options.
Question:Do you provide ODM and OEM services?
Answer: Yes, we support ODM and OEM, and can customize products according to customer needs.
Question:What are your main products?
Answer: We mainly produce high-frequency transformer series, inductor series, capacitors and other electronic components
Question:What payment methods do you accept?
Answer: We support T/T, letter of credit (L/C), PayPal, and cross-border platform guarantee transactions.
Question:Are you a manufacturing factory or a trading company?
Answer: We are a manufacturer with our own factory and provide one-stop supply chain services.
Question:How to ensure product quality and after-sales service?
Answer: We provide a 12-month quality assurance and have an after-sales team to promptly address customer issues.
