All the performance of CBB65 capacitor is designed around the core requirements of single-phase motor starting and continuous operation, abandoning the unnecessary performance redundancy of general CBB capacitor, focusing on the four core aspects of starting torque enhancement, operating efficiency optimization, safety and explosion prevention, and long-term stability. It is a specialized adaptation for single-phase motors
Strong starting power and efficient operation: helps the motor start quickly and improves operating efficiency by 10% -20%, saving more electricity.
Withstand current surge: able to withstand frequent high current surges, durable and reliable.
Good insulation and moisture resistance stability: Even in humid environments, it can maintain good insulation and is suitable for outdoor use.
Temperature resistant, explosion-proof, safe and durable: wide working temperature range, built-in explosion-proof device, safer to use.
Long lifespan, maintenance free: with self-healing function, the lifespan can reach tens of thousands of hours, matched with the motor.
Durable and anti-interference, easy to install: fully sealed structure suitable for harsh environments, non-polar design, easy to install.
Stable capacity and high accuracy: Small capacity changes across the entire temperature range ensure smooth and low-noise operation of the motor.
- Metallised polypropylene (MPP) film capacitor;
- Vacuum impregnated oil;
- Aluminum can;
- 250# fast-assembly terminal;
- S2 class mechanical anti-rapture structure;
- Fast heat-dissipation, anti-corrosion and safe;
Application: AC motor start or motor running / Energy storage / AC Filter.
| Reference standard | GB/T3667.1, UL810, IEC60252-1 |
| Climatic category | 25/70/21, 25/85/21, 40/70/21, 40/85/21 |
| Rated voltage | 150VAC ~ 600VAC (50/60HZ) |
| Capacitance range | 2µF ~ 100µF |
| Capacitance tolerance | ±5%(J), ±10%(K) |
| Testing voltage | |
| between terminals | 2*UN (VAC)/60s(CQC, VDE, TUV) 1.5*UN (VAC)/60s (UL) |
| between terminals and case | 2*UN+1000 (VAC)/60s (≥2000VAC) |
| Dissipation factor | ≤0.0020(100HZ) |
| Class of safety protection | CQC, VDE, TUV:S2 |
Dimension Unit: mm
| Rated Cap. | 250/300VAC | 400/450VAC | ||||
| Cylindrical | Oval | Cylindrical | Oval | |||
| ΦD | H | W*T*H | ΦD | H | W*T*H | |
| 10μF | 40 | 55 | 51.5*31.5*65 | 40 | 65 | 51.5*31.5*65 |
| 15μF | 40 | 55 | 51.5*31.5*65 | - | - | - |
| 20μF | 40 | 65 | 51.5*31.5*75 | 40 | 75 | 51.5*31.5*75 |
| 25μF | 40 | 65 | 51.5*31.5*75 | 45 | 85 | 51.5*31.5*85 |
| 30μF | - | - | - | 45 | 95 | 71.5*45*75 |
| 32μF | 40 | 75 | 71.5*45*65 | - | - | - |
| 35μF | - | - | - | 50 | 95 | 71.5*45*85 |
| 40μF | 45 | 75 | 71.5*45*75 | - | - | - |
| 50μF | 45 | 85 | 71.5*45*85 | 50 | 115 | 71.5*45*100 |
| 60μF | 45 | 95 | 71.5*45*100 | - | - | - |
Note: The above size is for reference only.Customization according to customers’ requirements is available.

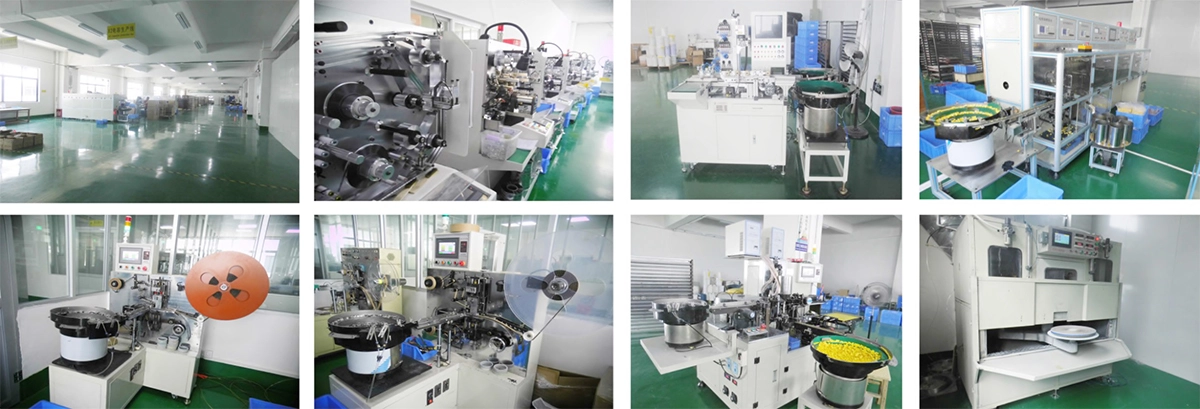

Foshan Piner Electronics Co., Ltd. is a large-scale professional thin-film capacitor manufacturing enterprise that integrates research and development, production, sales, and after-sales service, covering an area of 10000 square meters
