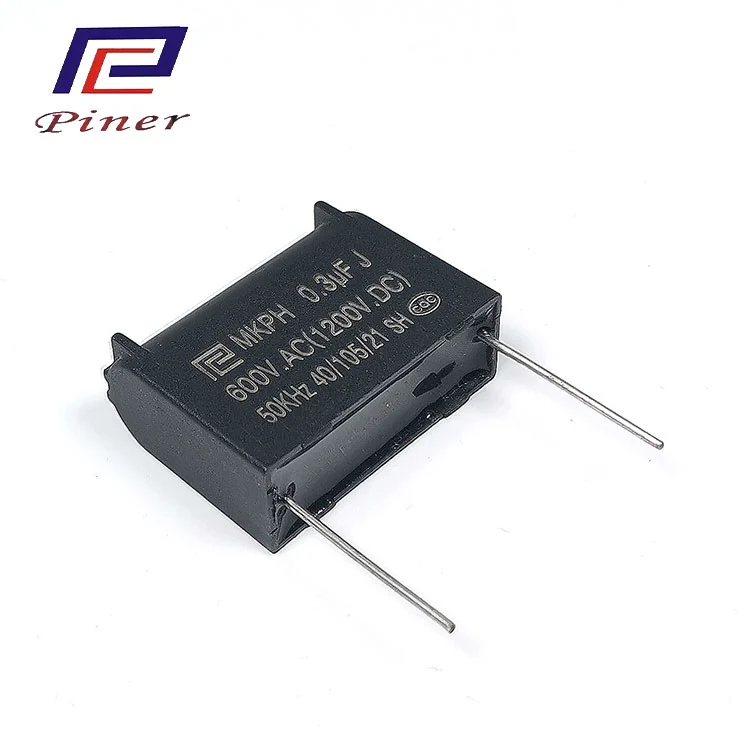

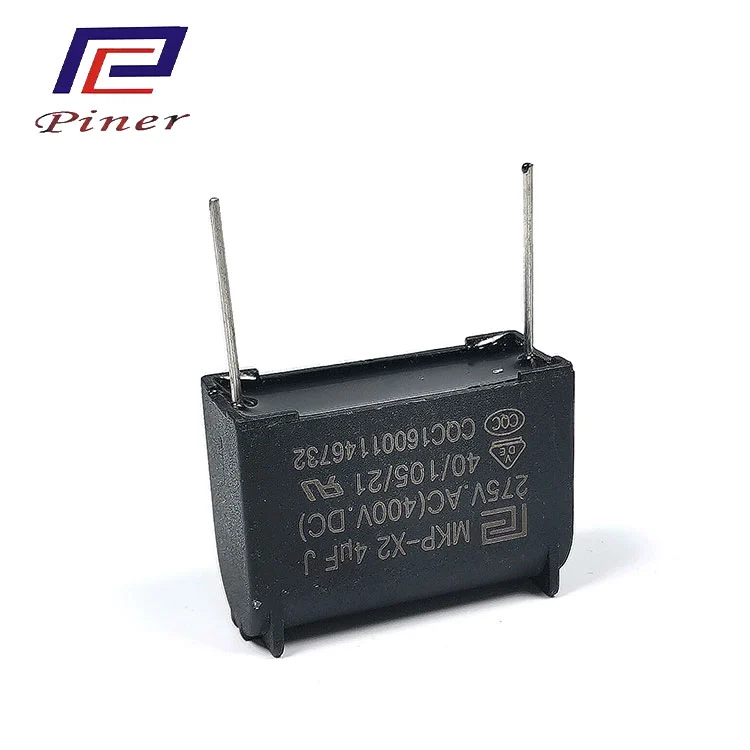

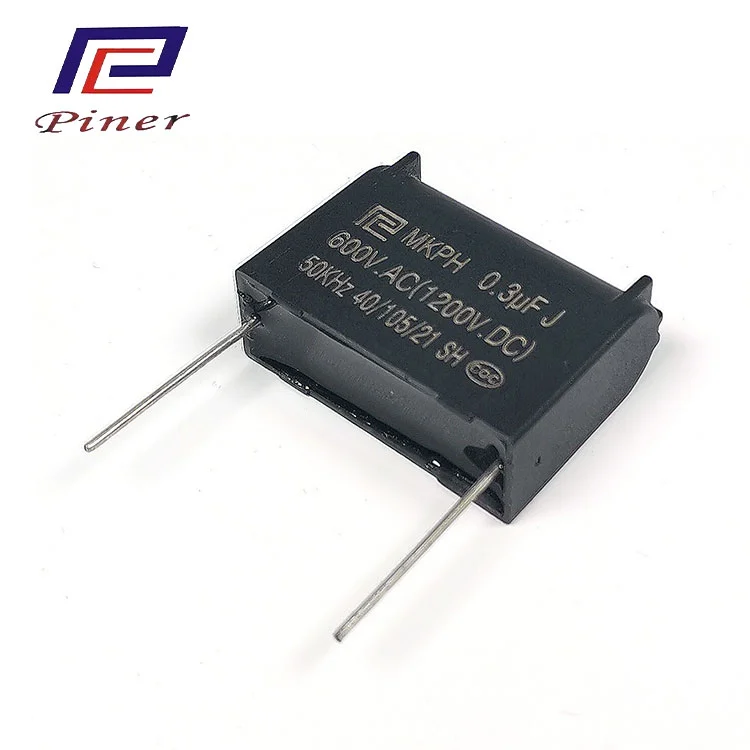

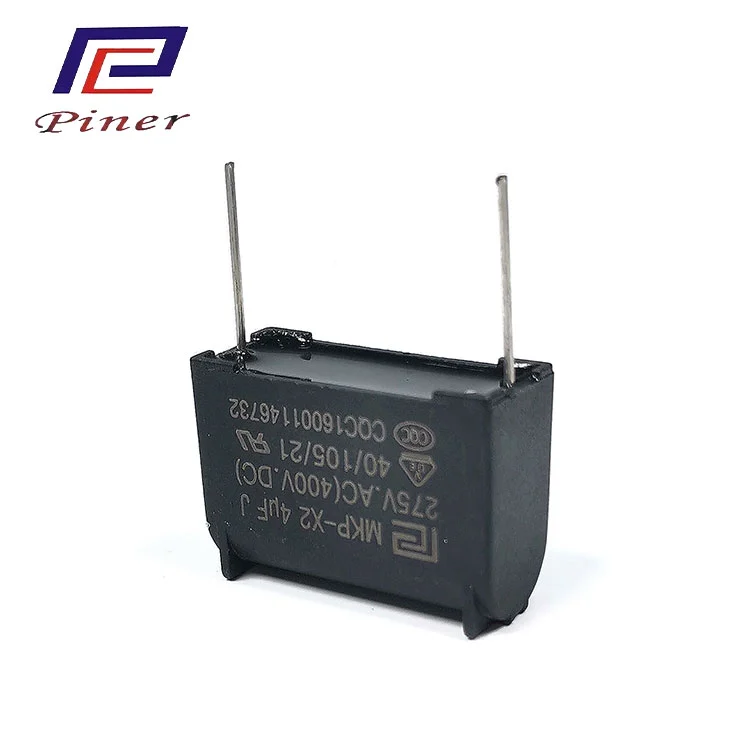

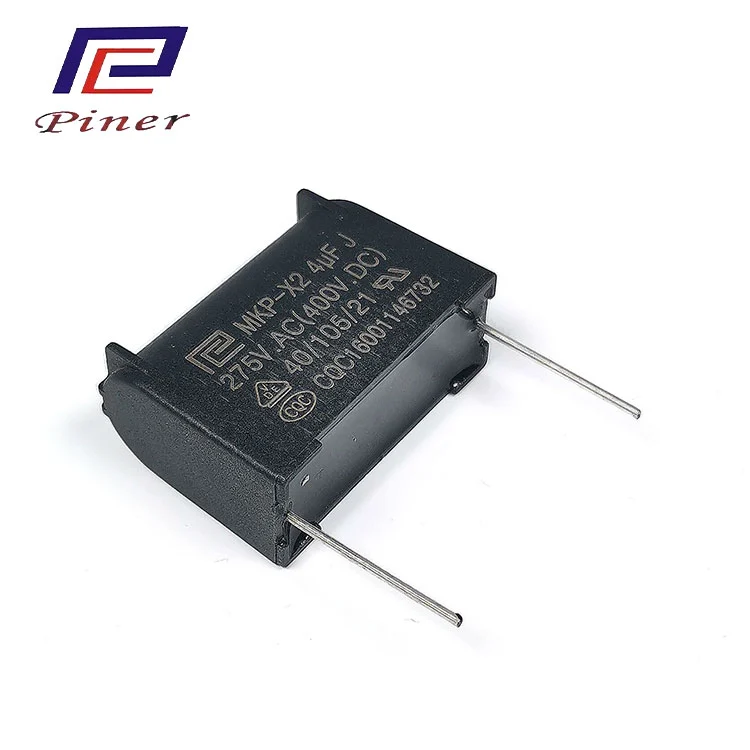

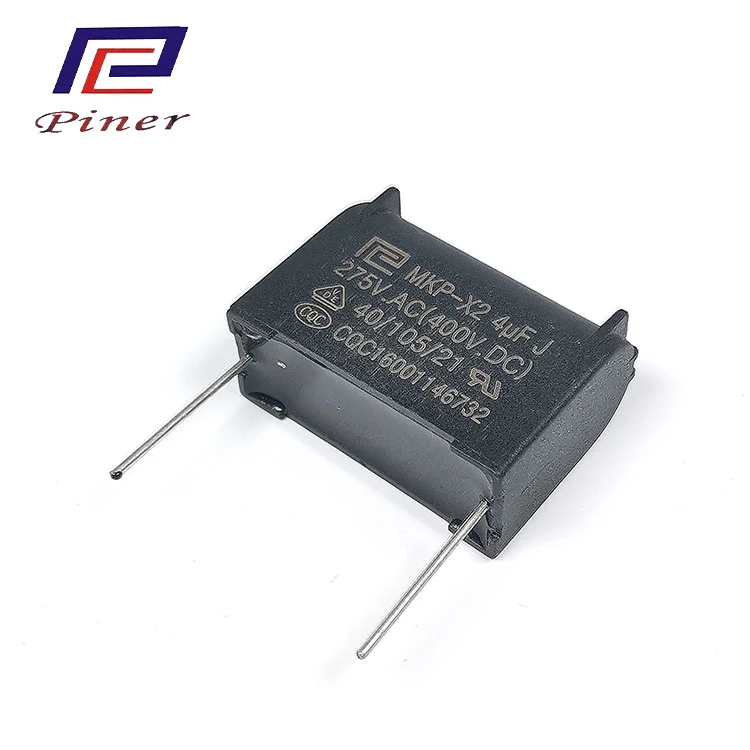

· The Horizontal MKPH-X2 Horizontal Induction Cooker Capacitor supplied by the Piner factory features high frequency and low power consumption, with stable resonant performance: The non-inductive winding design completely eliminates high-frequency inductive reactance, and the low-loss medium ensures high energy conversion efficiency at 20-30kHz, with no frequency deviation and uniform heating power of the electromagnetic stove, and no heating interruption.
· High voltage and large current tolerance, suitable for full power range: DC 1200V/1600V high voltage, 10-30A ripple current carrying capacity, perfectly suitable for 1800W household to 3500W commercial electromagnetic stoves.
· High temperature resistance and anti-aging, strong environmental adaptability: High-temperature epoxy resin encapsulation + 105℃ temperature-resistant plastic housing, suitable for the harsh environment inside the electromagnetic stove, such as high temperature, dust, and vibration, with no capacity attenuation or housing deformation during long-term operation.
· Explosion-proof safety, worry-free use: Built-in explosion-proof concave pressure release structure, automatically releases pressure at high temperatures, preventing housing explosion, and eliminating the risk of fire and explosion caused by capacitor failure of the electromagnetic stove from the source.
· Efficient self-healing, low failure rate: Thickened metallized electrodes have efficient self-healing characteristics, local breakdown at high frequency can quickly isolate the fault point, avoiding complete capacitor failure, significantly reducing the maintenance rate of the electromagnetic stove.
· Horizontal structure, stable and reliable installation: Low installation height, suitable for ultra-thin electromagnetic stoves, stable center of gravity, resistant to vibration, large and uniform heat dissipation area, and convenient for later maintenance and replacement.
· X2 safety certification, safe and reliable: Compliant with IEC 60384-14 standards, with the characteristic of preventing self-ignition after failure, improving the overall safety level of the electromagnetic stove, and meeting the market entry requirements of both domestic and foreign markets.
· Standardized foot spacing, highly adaptable: Common foot spacings P=22mm/27mm/31mm, suitable for the majority of electromagnetic stove circuit board designs, no need to modify the PCB layout to directly replace.
| Smooth filtration capacitance | |
| Reference standard | GB/T14472 IEC60384-14 |
| Climatic category | 40/105/21 |
| Rated voltage | 400VDC(275VAC) |
| Capacitance range | 3uF ~ 15uF |
| Capacitance tolerance | ±5%(J),±10%(K) |
| Between terminals Voltage proof | 1.8Un DC(60s) |
| Insulation resistance (at 20℃) | ≥5000s CR>0.33uF (100vdc 60s) |
| Withstand current ability | dv/dt≥30v/us |
| Dissipation factor | DF≤0.0010(1KHz) |
| Resonant capacitance | |
| Reference standard | GB/T17702 IEC61071 |
| Climatic category | 40/105/21 |
| Rated voltage | 1000VDC\1200VDC |
| Capacitance range | 0.01uF ~ 1uF |
| Capacitance tolerance | ±5%(J),±10%(K) |
| Between terminals Voltage proof | 1.8Un DC(10s) |
| Insulation resistance (at 20℃) | ≥30000s(100vdc 60s) |
| Withstand current ability | dv/dt≥500v/us |
| Dissipation factor | DF≤0.0010(10KHz) |

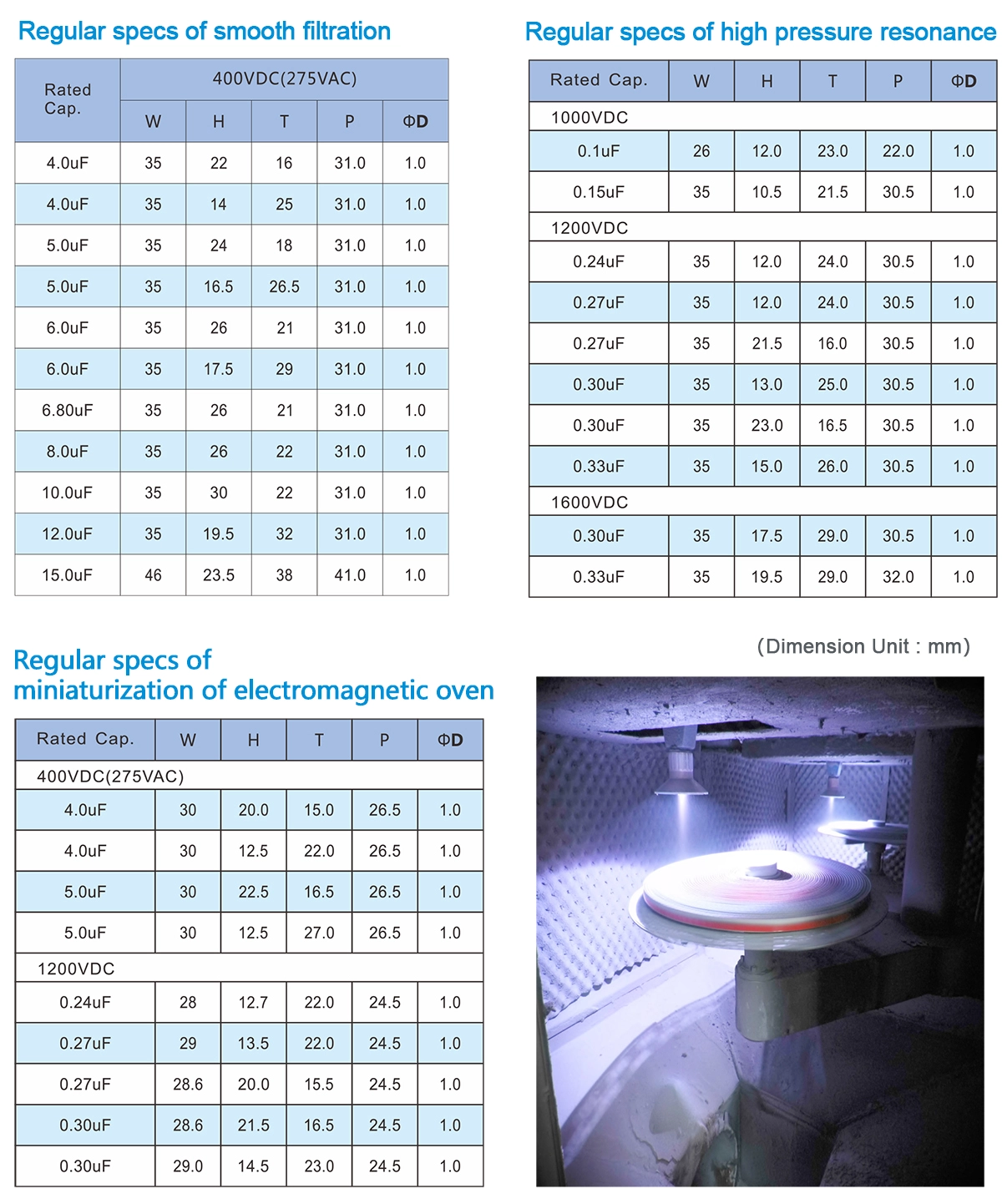

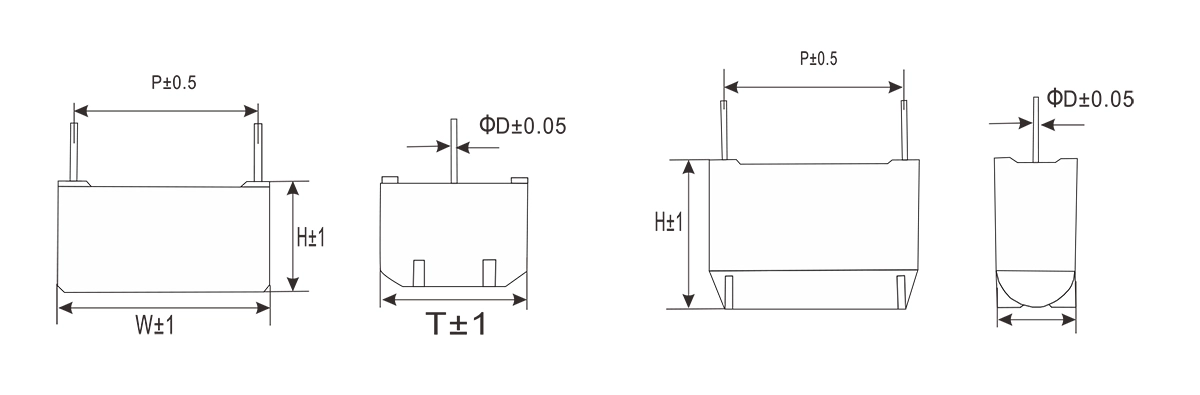

Dimension Unit: mm

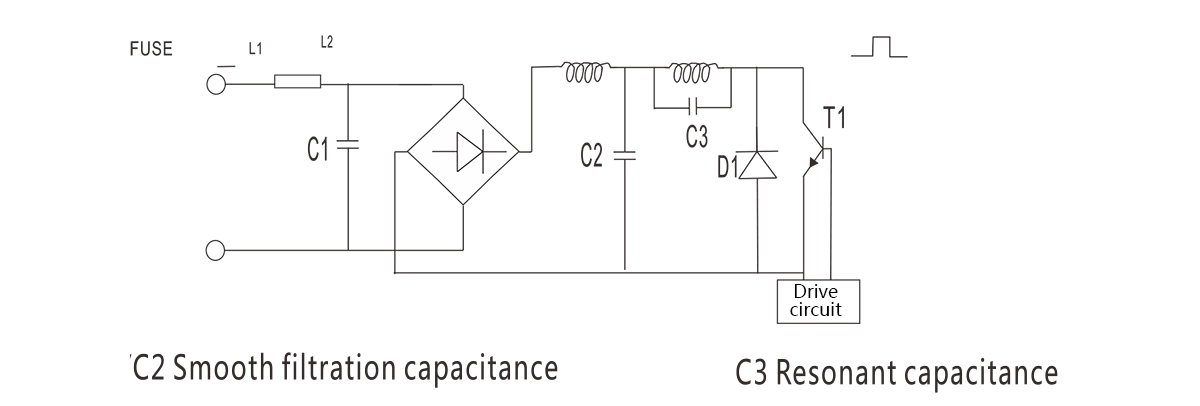

Designed specifically for the high-frequency resonant circuit of induction cookers, it is a core standard component for both household and commercial induction cookers.
• Household induction cookers: Ultra-thin induction cookers ranging from 1800W to 2500W, countertop induction cookers, embedded induction cookers
• Commercial induction cookers: High-power commercial induction stoves ranging from 3000W to 3500W, cafeteria heating stoves
• Induction heating accessory equipment: Large induction heating pots, induction soup stoves, industrial induction heating equipment
• Industrial small-sized induction heating equipment: Laboratory induction heating instruments, small-sized workpiece induction heating equipment
The total area of the factory exceeds 10, 000 square meters, and the number of employees has exceeded 1, 000. With complete technical processes and full-process statistical control, we provide solid quality assurance;
The professional technical development team follows throughout the process, assisting in solving selection and application issues, and providing reliable technical support;
There is also an efficient after-sales guarantee, responding quickly and solving any product problems you encounter.
From production to after-sales, we provide full escort, allowing you to feel at ease and worry-free.
