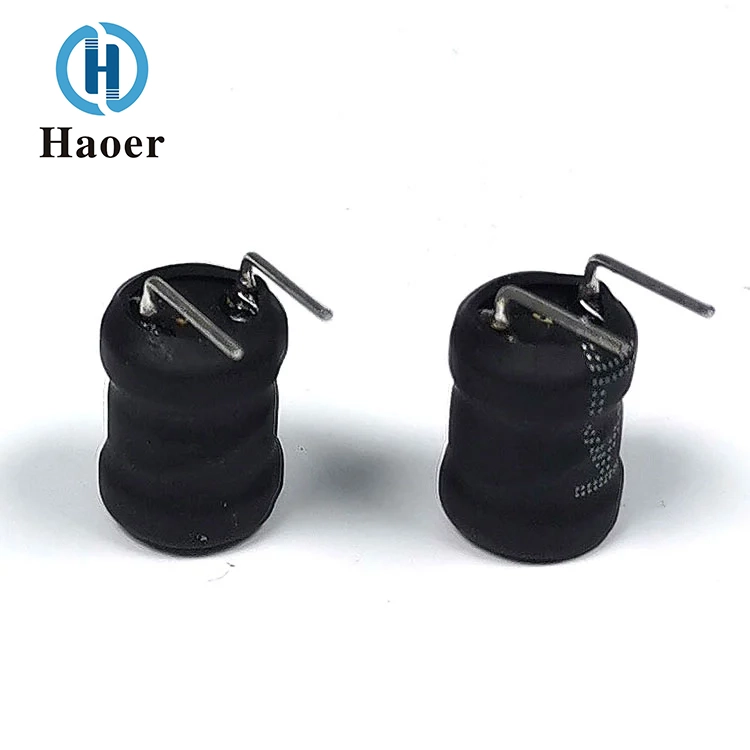

The China Two-leg vertical L-shaped inductor of Haoer is compact and space-saving:
The vertical design positions the components perpendicular to the PCB board, occupying a small horizontal area, which is conducive to high-density layout.
Excellent high-frequency performance:
Small distributed capacitance, high self-resonant frequency, suitable for high-frequency filtering and signal processing applications.
Strong carrying capacity:
The open magnetic circuit design provides good heat dissipation, can withstand larger currents, and has better anti-saturation capability than some closed magnetic circuit inductors.
Easy installation and reliable:
The straight-through pins facilitate manual or automatic insertion, the soldering is firm, and the mechanical stability is good.
Economical cost:
The structure is simple, the materials are common, and it has significant cost advantages during large-scale production.
Environmentally friendly and compliant:
Compliant with environmental regulations such as RoHS and REACH, the lead-free design meets the requirements of modern electronic manufacturing.
Compared with surface-mount inductors, the Two-leg vertical L-shaped inductor has stronger current-carrying capacity, better heat dissipation performance and higher mechanical strength; compared with ring inductors, its structure is simpler and the cost is lower.
| Brand | HAOER |
| Type | I-shaped inductor series |
| Operating frequency | 40khz—5MK |
| Output power | 9.5W (Different models vary) |
| Operating temperature | -25℃~ +85℃ |
| Storage temperature | -40℃~ +125℃ |
| Storage humidity | 30%-95% |
| Application |
filter circuit tank circuit Transformer circuit EMI suppression |
Power Management: Switching power supply, DC-DC converter, energy storage, filtering, current stabilization, voltage stabilization in uninterruptible power supply (UPS)
EMC/EMI Suppression: As a differential inductor, Two-leg Vertical L-shaped Inductor suppress high-frequency noise interference on power lines
Consumer Electronics: Energy-saving lamps, electronic ballasts, radios, televisions, air conditioners and other household appliances
Communication Equipment: Signal matching and filtering in modems, routers, set-top boxes
Industrial Control: Signal processing and power stability in PLCs, frequency converters, sensor circuits
Automotive Electronics: Some models meeting AEC-Q200 standards are used in vehicle power systems
Guangdong Haor Electronics Co., Ltd. is a high-tech enterprise specializing in the research and manufacturing of magnetic components such as transformers, filters, and inductor coils. The company has established multiple modern production bases in places like Foshan, Guangdong Province and Tingxian, Guangxi Province, with a total area exceeding 10, 000 square meters and an employee team of over 1, 000 people. It possesses a strong manufacturing capacity capable of producing over 100 million units annually.
We have an experienced R&D and production team, as well as an efficient and professional management system, ensuring that every step from product design to mass production complies with strict quality standards. The company has always adhered to the core values of "technological innovation, quality first, service supremacy, and win-win cooperation", continuously deepening its focus on the magnetic component field, and is committed to becoming a leading benchmark enterprise in the industry.
Gooder Electronics will continue to focus on the research of high-frequency magnetic components and capacitor technology, increase investment in research and development, and promote the upgrading of intelligent manufacturing. We look forward to working together with global customers and partners to jointly promote the development of green energy and efficient power conversion technologies, and contribute to the progress of the power electronics industry.
By choosing Er Electronics, you will have a reliable, professional and trustworthy partner for magnetic components. Let us help you innovate your system and jointly create outstanding value.
1.Winding
2.Assembly Automation.
3.Comprehensive Test
4.Product Storage
It will be sent by express delivery. Our cooperating express delivery companies include: DHL, UPS, TNT, FedEx, etc.
It can also be transported by air or sea according to your requirements.
1. What is the delivery time for an order?
The delivery time usually depends on the order quantity and our production schedule. Generally, it takes 7 working days after receiving the deposit.
2. Do you accept sample orders?
Yes, we accept sample orders. The sample cost and shipping cost need to be borne by the customer.
3. Can you customize capacitors according to our requirements?
Yes, we can customize the capacitors in terms of capacitance, packaging, pin arrangement, etc., according to your specific requirements.
