I-shaped inductor series:

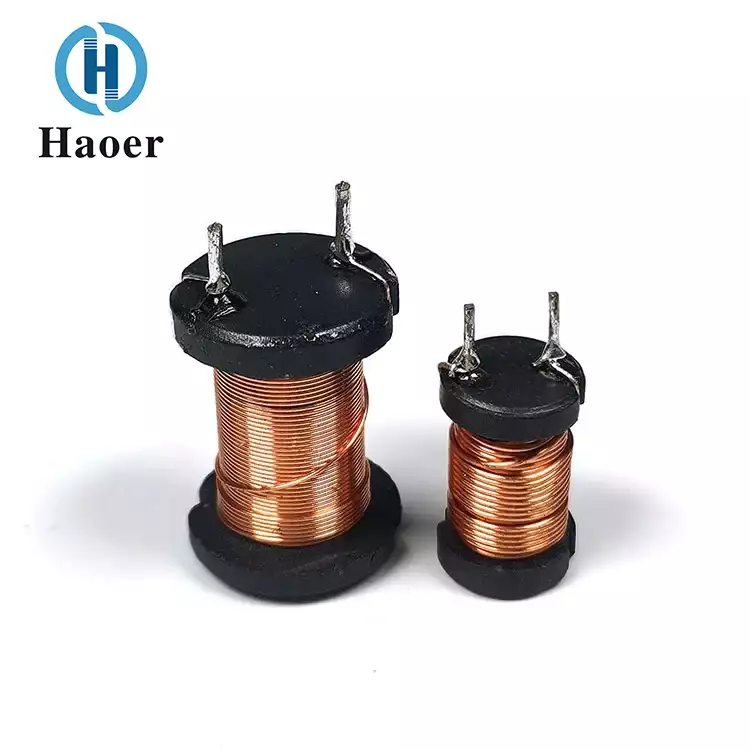

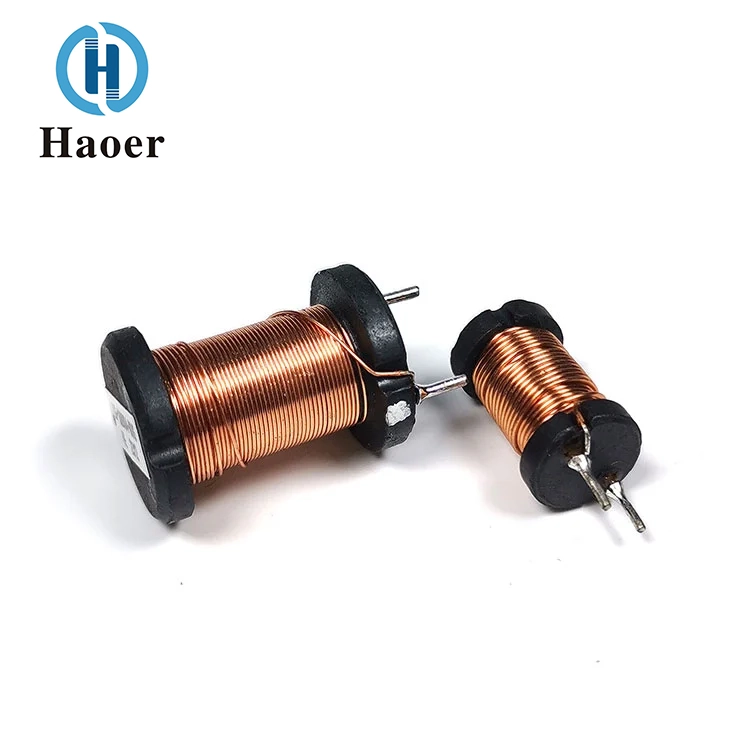

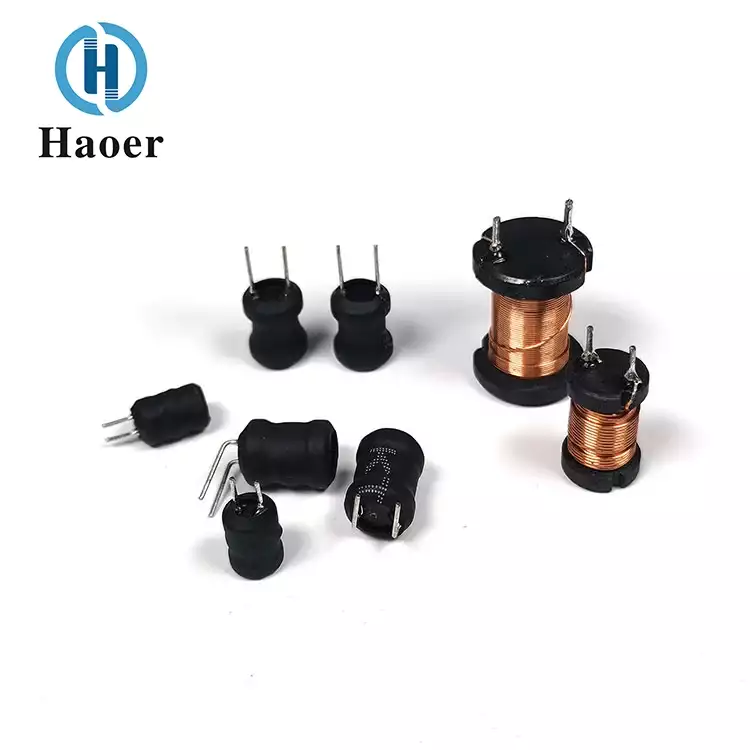

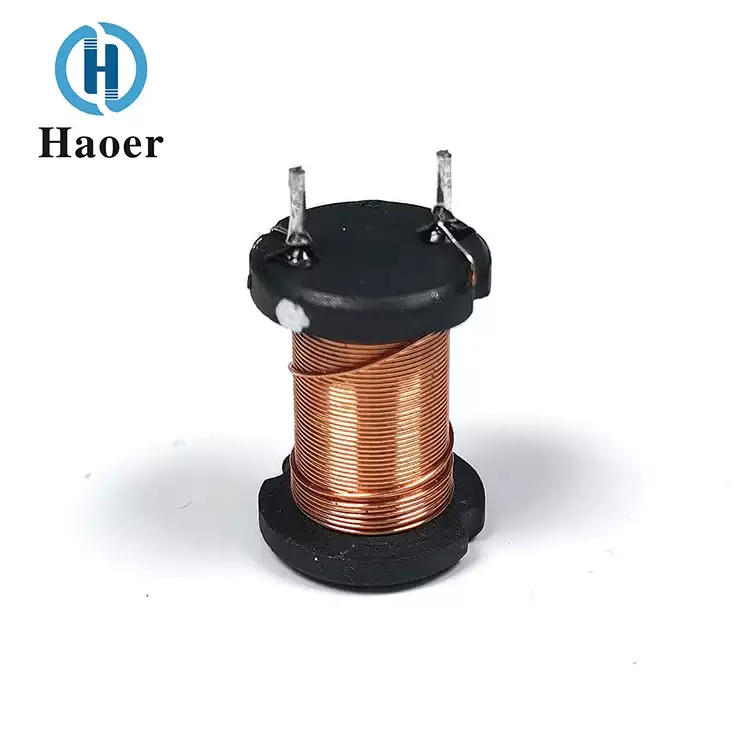

1. The Choke coil 2DR plug-in L-shaped inductor manufactured by Haoer Electronics, I-shaped inductors are usually composed of an I-shaped magnetic core and a coil wound around the magnetic core. Magnetic cores are generally made of magnetic materials such as ferrite, which have high magnetic permeability and can enhance the magnetic field and improve the performance of inductors. Coils are usually made by winding enameled wire, and the number of turns, wire diameter, and other parameters of the coil may vary according to different application requirements.
2. When a current passes through the coil of an I-shaped inductor, a magnetic field is generated around it, and the magnitude of the magnetic field is proportional to the magnitude of the current. According to Faraday's law of electromagnetic induction, a changing magnetic field will generate an induced electromotive force in the coil, hindering the change of current. Therefore, the I-shaped inductor has the characteristic of obstructing current changes, presenting a small resistance to DC current and a large inductance to AC current. The magnitude of its inductance is proportional to the frequency and inductance of the AC signal.
3. I-shaped inductors are used in filtering circuits, energy storage circuits, transformer circuits, and EMI suppression.
| Brand | HAOER |
| Type | I-shaped inductor series |
| Operating frequency | 40khz—5MK |
| Output power | 9.5W (Different models vary) |
| Operating temperature | -25℃~ +85℃ |
| Storage temperature | -40℃~ +125℃ |
| Storage humidity | 30%-95% |
| Application |
filter circuit tank circuit Transformer circuit EMI suppression |
Established in 2008, Guangdong Haoer Electronics Co., Ltd. is a premier manufacturer specializing in magnetic components, such as high-frequency transformers, filters, and inductors. Our solutions cater to a diverse array of industries including lighting, home appliances, photovoltaics, UPS systems, automotive electronics, and communication equipment.
Headquartered with multiple production bases in Foshan, Guangdong, and supported by a team of over 1, 000 dedicated employees, we operate state-of-the-art fully automated production lines and utilize advanced testing instruments. This robust infrastructure enables us to maintain an annual production capacity of more than 100 million units.
Our commitment to quality and safety is validated by prestigious certifications including CQC, UL, ISO 9000, and TS 16949. Powered by a skilled workforce and guided by the core principles of innovation, quality excellence, and customer-centric collaboration, Haoer is devoted to creating superior value and achieving mutual growth with partners across the globe.
The choke coil 2DR plug-in I-shaped inductor is a dual-ended plug-in type choke element centered around an "I" shape magnetic core. The "2DR" is the series model identifier. It mainly features EMI (electromagnetic interference) suppression and current control functions. With its plug-in installation characteristics and optimized magnetic circuit design, it becomes a key component for anti-interference in power circuits and signal lines.
I-beam core:
Choke Coil 2DR Plug-in L-shaped Inductor is made of high magnetic permeability nickel-zinc or manganese-zinc ferrite material. The "I" shape can concentrate the magnetic field and reduce magnetic leakage. The central column provides stable support for the winding, and the flange plates at both ends enhance the structural stability.
Choke winding:
The oxygen-free copper wire is tightly wound around the central column of the core. The wire diameter and number of turns are precisely matched according to the choke requirements to ensure the high impedance characteristic against specific frequency AC interference.
Connector pins:
Two vertical lead-out tin-plated metal pins are fixed at both ends of the core, suitable for through-hole welding on PCB boards. They have high mechanical strength and excellent conductivity, and are less likely to cause short circuits or open circuits.
Insulation protection layer:
It is covered with UL-certified heat shrink tubing or epoxy resin encapsulation, providing insulation, moisture-proof and mechanical protection functions, and preventing the winding from being damaged.
The choke coil 2DR plug-in I-shaped inductor, through the balanced design of structure and performance, demonstrates high reliability and high cost-effectiveness in anti-interference and stable current scenarios. It is one of the core components in electronic devices that ensure circuit stability.
