In high-power electronic systems, the Large Switching Power Supply Assembly Inductor plays a decisive role in efficiency, stability, and long-term reliability. From industrial automation and renewable energy systems to telecommunications and electric vehicles, large assembly inductors ensure smooth energy conversion and minimize ripple and electromagnetic interference.
This in-depth guide explores how large switching power supply inductors work, their structural characteristics, selection criteria, materials, performance parameters, and industry applications. We will also discuss why choosing a professional manufacturer like Haoer ensures optimal performance and durability.

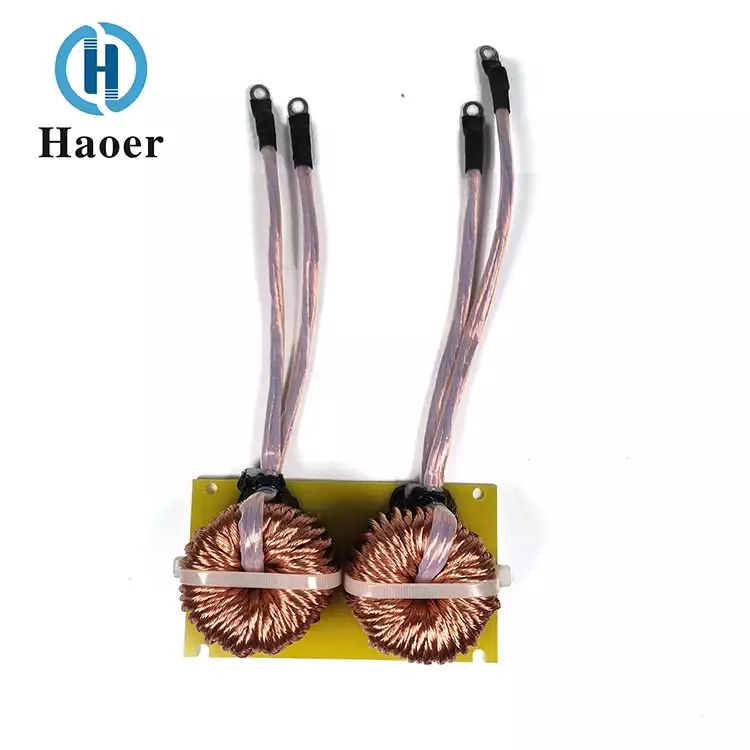

A Large Switching Power Supply Assembly Inductor is a high-current magnetic component designed for switching mode power supplies (SMPS). It stores energy in its magnetic field when current flows through it and releases that energy when required, stabilizing voltage and smoothing current ripple.
Unlike small surface-mount inductors, large assembly inductors are built for:
In high-power systems, switching frequencies can reach tens or hundreds of kilohertz. Without proper inductive filtering, systems would experience:
Large assembly inductors ensure:
This makes them indispensable in industrial power modules and high-load converter systems.
A large switching power supply assembly inductor typically consists of:
When current flows through the coil:
Energy Stored: E = ½ L I²
Where:
During switching transitions, the inductor releases stored energy to maintain stable output voltage.
| Parameter | Description | Impact on Performance |
|---|---|---|
| Inductance (µH/mH) | Energy storage capacity | Determines ripple suppression ability |
| Rated Current | Maximum operating current | Prevents core saturation |
| DCR | DC resistance | Lower DCR improves efficiency |
| Saturation Current | Current at which inductance drops significantly | Critical for high-load systems |
| Operating Temperature | Thermal endurance range | Determines lifespan |
Proper parameter selection ensures long-term reliability and optimal system performance.
Choosing the correct core material directly impacts system efficiency and electromagnetic compatibility.
Large switching power supply inductors are widely used in:
In each of these industries, stable current control is critical to operational reliability.
| Feature | Standard Inductor | Large Assembly Inductor |
|---|---|---|
| Current Handling | Low to Medium | High |
| Thermal Dissipation | Limited | Enhanced |
| Mechanical Strength | Standard PCB mount | Reinforced structure |
| Industrial Suitability | Consumer electronics | Industrial/Heavy-duty systems |
Selecting a reliable supplier is just as important as choosing the right specifications. A professional manufacturer like Haoer provides:
With extensive experience in switching power supply magnetic components, Haoer ensures every large assembly inductor meets industrial-grade standards.
Saturation occurs when the magnetic core reaches its maximum flux density. Exceeding rated current reduces inductance and may cause overheating.
By selecting low DCR copper windings, high-quality core materials, and proper thermal management design.
Yes. Professional manufacturers like Haoer offer fully customized inductance, size, and current specifications.
When properly designed and operated within specifications, industrial inductors can operate reliably for over 10 years.
A Large Switching Power Supply Assembly Inductor is not just a passive component — it is the backbone of high-power switching systems. From ripple control and efficiency enhancement to thermal stability and EMI reduction, its role is fundamental in modern industrial electronics.
Choosing the right specifications and working with a trusted manufacturer like Haoer ensures superior performance, reliability, and long-term value.
If you are looking for high-performance, custom-designed large switching power supply assembly inductors tailored to your application, contact us today for expert consultation and competitive solutions.
