As global solar energy adoption continues to accelerate, the performance and reliability of photovoltaic (PV) systems depend heavily on high-quality electronic components. Among them, the Photovoltaic Solar Capacitor plays a decisive role in stabilizing voltage, filtering ripple current, improving inverter efficiency, and extending system lifespan.
This comprehensive guide explores what a photovoltaic solar capacitor is, how it works, its structure, materials, technical parameters, application scenarios, selection criteria, and why professional manufacturers like Piner are essential partners in renewable energy projects.

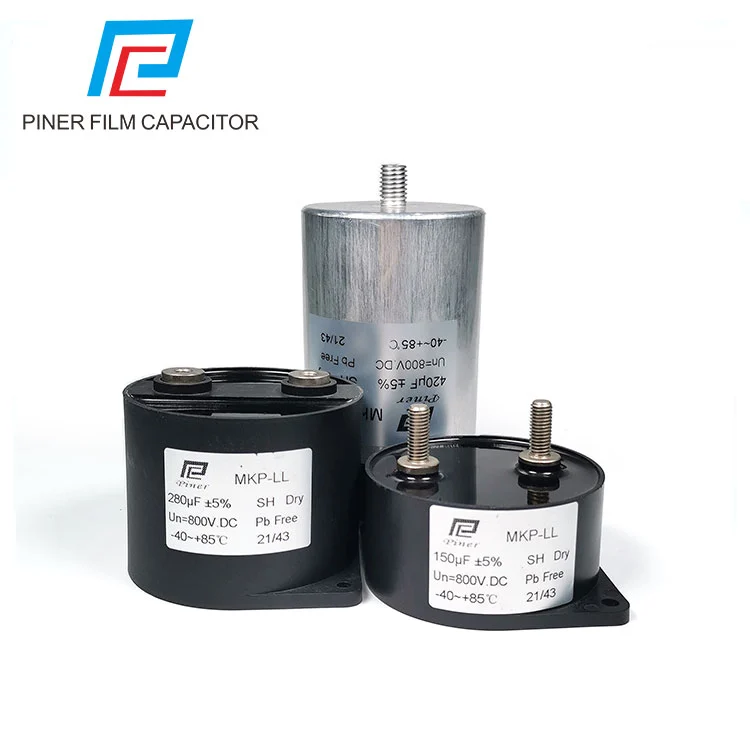

A Photovoltaic Solar Capacitor is a high-performance capacitor specifically engineered for solar power generation systems. It is primarily used in photovoltaic inverters, combiner boxes, and DC distribution units to stabilize voltage, filter ripple currents, and ensure efficient power conversion.
Unlike general-purpose capacitors, photovoltaic capacitors are designed to withstand:
Solar panels generate DC electricity that must be converted into AC via inverters. During this conversion process, voltage fluctuations and ripple currents are inevitable. Photovoltaic solar capacitors serve as energy buffers and filters.
Without high-quality capacitors, solar inverters may suffer from overheating, efficiency loss, or premature failure.
| Component | Function |
|---|---|
| Metallized Polypropylene Film | Dielectric material with self-healing capability |
| Aluminum Housing | Heat dissipation and mechanical protection |
| Internal Electrodes | Conductive layers for charge storage |
| Terminal Connectors | Electrical connection to inverter circuit |
When connected across a DC bus, the capacitor stores energy during voltage peaks and releases it during dips. This continuous charge-discharge cycle smooths voltage fluctuations and filters switching ripple.
| Parameter | Typical Range |
|---|---|
| Rated Voltage | 600V – 2000V DC |
| Capacitance | 10µF – 3000µF |
| Operating Temperature | -40°C to +105°C |
| Ripple Current | High ripple resistance |
| Lifespan | Up to 100,000 hours |
With the rise of distributed solar systems and smart grid integration, capacitor reliability has become increasingly important.
Working with experienced manufacturers like Piner ensures proper technical support and customized solutions.
Photovoltaic solar capacitors should comply with international safety and quality standards such as:
Certification ensures operational safety and regulatory acceptance in global markets.
Piner specializes in high-reliability photovoltaic solar capacitors designed for modern renewable energy applications. With advanced manufacturing facilities, strict quality control, and engineering expertise, Piner delivers:
PV capacitors are designed for high voltage, high ripple, and long service life under harsh environmental conditions.
High-quality film capacitors can last over 100,000 hours under rated conditions.
Yes. A degraded capacitor increases ripple, reduces efficiency, and may damage inverter components.
Yes, due to their self-healing properties, low ESR, and extended lifespan.
The Photovoltaic Solar Capacitor is a foundational component in modern solar power systems. It directly influences inverter efficiency, system stability, and long-term reliability. Choosing high-quality capacitors and working with experienced manufacturers like Piner ensures optimal system performance and investment protection.
If you are looking for reliable photovoltaic capacitor solutions for your next solar project, contact us today to receive professional guidance, technical support, and competitive quotations.
