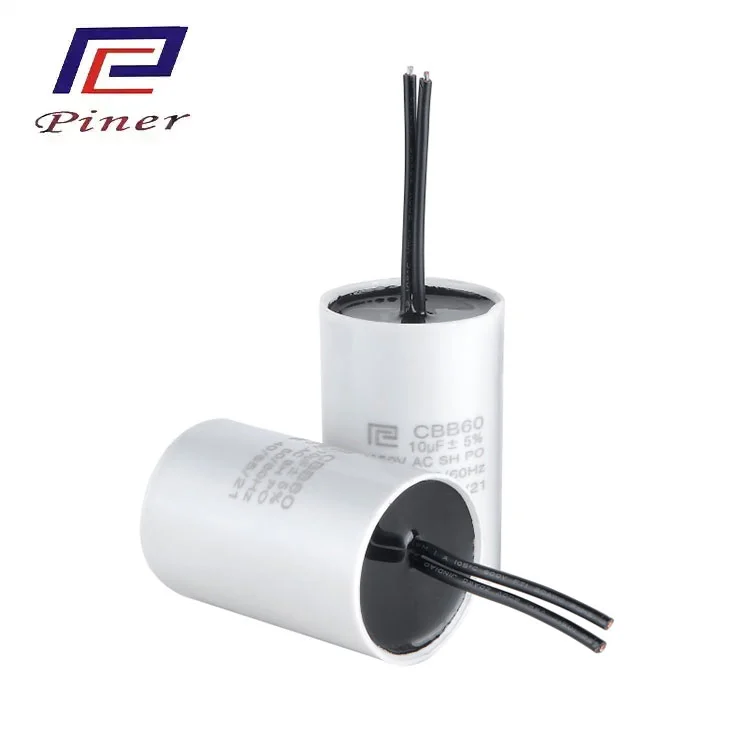

High safety level: Explosion proof design is the primary advantage, complying with various electrical safety standards (such as UL, IEC, GB).
High voltage and current resistance: designed specifically for AC motors, with rated voltages typically 250VAC, 450VAC, 500VAC, etc., capable of withstanding large starting and operating currents.
Long lifespan and high reliability: Polypropylene material is stable, and its self-healing properties extend its service life. Under rated conditions, the lifespan can reach tens of thousands of hours.
Good temperature characteristics: wide operating temperature range (usually -40 ℃~+85 ℃ or higher), small capacity variation with temperature.
Small loss tangent value: high operating efficiency, low self heating.
| Reference standard | GB/T3667.1, UL810, IEC60252-1 |
| Climatic category | 25/70/21, 25/85/21, 40/70/21, 40/85/21 |
| Rated voltage | 150VAC ~ 600VAC (50/60HZ) |
| Capacitance range | 2µF ~ 100µF |
| Capacitance tolerance | ±5%(J), ±10%(K) |
| Testing voltage | |
| between terminals | 2*UN (VAC)/60s(CQC, VDE, TUV) 1.5*UN (VAC)/60s (UL) |
| between terminals and case | 2*UN+1000 (VAC)/60s (≥2000VAC) |
| Dissipation factor | ≤0.0020(100HZ) |
| Class of safety protection | CQC, VDE, TUV:S2 |
Dimension Unit: mm
| Rated Cap. | 250/300VAC | 400/450VAC | ||||
| Cylindrical | Oval | Cylindrical | Oval | |||
| ΦD | H | W*T*H | ΦD | H | W*T*H | |
| 10μF | 40 | 55 | 51.5*31.5*65 | 40 | 65 | 51.5*31.5*65 |
| 15μF | 40 | 55 | 51.5*31.5*65 | - | - | - |
| 20μF | 40 | 65 | 51.5*31.5*75 | 40 | 75 | 51.5*31.5*75 |
| 25μF | 40 | 65 | 51.5*31.5*75 | 45 | 85 | 51.5*31.5*85 |
| 30μF | - | - | - | 45 | 95 | 71.5*45*75 |
| 32μF | 40 | 75 | 71.5*45*65 | - | - | - |
| 35μF | - | - | - | 50 | 95 | 71.5*45*85 |
| 40μF | 45 | 75 | 71.5*45*75 | - | - | - |
| 50μF | 45 | 85 | 71.5*45*85 | 50 | 115 | 71.5*45*100 |
| 60μF | 45 | 95 | 71.5*45*100 | - | - | - |
Note: The above size is for reference only.Customization according to customers’ requirements is available.
Household/commercial air conditioning: Operating capacitance of outdoor unit Compressor (most common application).
Refrigerator/Freezer Compressor.
Washing machine motor.
Industrial equipment motors such as water pumps, fans, and air compressors.
agricultural machinery
