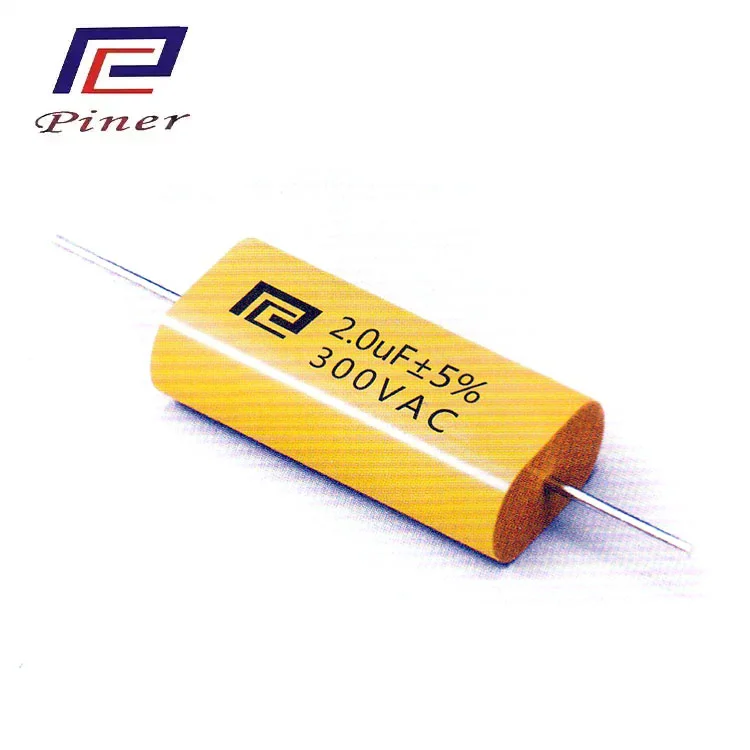

Structure
Medium: Polypropylene film.
Electrode: Metal vacuum evaporation layer.
Encapsulation: wrapped with PET tape and sealed with flame-retardant epoxy resin at both ends. Complies with UL94 V-0.
Shape: cylindrical or elliptical cylindrical.
Pin: Tin plated copper-clad steel wire (CP wire) or tin plated copper wire or PVC electronic wire (UL94 V-0).
Typical applications: filtering and pulse high current situations. For example, power amplifiers, welding machines, etc., can be used in all occasions of CBB21.
Feature
Small size, good self-healing properties;
Low high-frequency loss and low temperature rise;
High impact strength; Has good voltage resistance under high-frequency AC conditions.
| Reference standard | GB10190、IEC60384-16 |
| Climatic category | 40/85/21 |
| Rated voltage | 250VDC~ 630VDC |
| Capacitance range | 1uF ~ 40uF |
| Capacitance tolerance | ±5%(J) ±10%(K) |
| Between terminals Voltage proof | 1.6UR (VDC) /10s |
| Insulation resistance (at 20°C) | Between terminals: ≥30000MΩ CR≤0.33uF (100vdc 60s) ≥7500s CR>0.33uF (100vdc 60s) |
| Between terminals and case:≥100000MΩ (100vdc 60s) | |
| Withstand current ability | dv/dt≥30v/us |
| Dissipation factor | DF≤0.002 (1KHz) |
Dimension Unit: mm
| Rated Cap. | 250/275 VDC | 400 VDC | 600 VDC | |||||||||
| L | W | H | ΦD | L | W | H | ΦD | L | W | H | ΦD | |
| 1.0μF | 25 | 5 | 12 | 0.8 | 25 | 8 | 14 | 0.8 | 25 | 11.5 | 19 | 0.8 |
| 1.2μF | 25 | 6.5 | 13 | 0.8 | 25 | 9 | 15 | 0.8 | 25 | 13.5 | 19 | 0.8 |
| 1.5μF | 25 | 7.5 | 14 | 0.8 | 25 | 10 | 16.5 | 0.8 | 25 | 14.5 | 22 | 0.8 |
| 2.0μF | 25 | 9 | 15.5 | 0.8 | 25 | 12 | 18.5 | 0.8 | 25 | 14 | 22 | 0.8 |
| 2.2μF | 26 | 9.5 | 15.5 | 0.8 | 25 | 13.4 | 19 | 0.8 | 31 | 16 | 22.5 | 0.8 |
| 2.5μF | 26 | 10 | 16.5 | 0.8 | 25 | 14 | 20 | 0.8 | 31 | 17 | 23.5 | 0.8 |
| 3.3μF | 26 | 12 | 18 | 0.8 | 31 | 13 | 19.5 | 0.8 | 31 | 20 | 26.5 | 0.8 |
| 3.5μF | 26 | 12.5 | 18.5 | 0.8 | 31 | 13.5 | 20 | 0.8 | 36 | 18.5 | 24 | 0.8 |
| 4.0μF | 26 | 13.5 | 19.5 | 0.8 | 31 | 15 | 21 | 0.8 | 36 | 19.5 | 26 | 0.8 |
| 4.7μF | 26 | 14.5 | 21 | 0.8 | 31 | 16 | 22.5 | 0.8 | 36 | 21.5 | 28 | 0.8 |
| 5.6μF | 31 | 14 | 20 | 0.8 | 31 | 18 | 24 | 0.8 | 36 | 24 | 30 | 0.8 |
| 6.8μF | 31 | 15.5 | 21.5 | 0.8 | 31 | 20 | 26.5 | 0.8 | 46 | 22 | 28 | 0.8 |
| 8.2μF | 31 | 17 | 23.5 | 0.8 | 36 | 19.5 | 26 | 0.8 | 46 | 24.5 | 30 | 0.8 |
| 10.0μF | 31 | 19.5 | 25.5 | 1 | 36 | 22 | 28.5 | 1 | 46 | 26.5 | 33 | 1 |
Note: The above size is for reference only.Customization according to customers’ requirements is available.
Foshan Piner Electronics Co., Ltd. was founded in 2014 and is an integrated high-tech enterprise specializing in the research and development, design, manufacturing, sales, and service of thin film capacitors. After years of development, the company has established a leading market position in the same industry in Guangdong Province, and its product production and sales continue to rank among the top.
The company has independently built modern factories with an area of 10000 square meters and a staff size of over a thousand, including more than 200 engineering and technical personnel. It has also established a professional enterprise engineering technology research and development center. With solid technical accumulation and continuous innovation capability, the company has obtained multiple capacitor related patents, providing a solid guarantee for product quality and technological upgrades.
In the field of household appliances, the company specializes in the MKP-X2 and MKPH series of specialized capacitors for induction cookers. With stable and reliable quality and high-quality service, it has won wide recognition and a good reputation in the household IH industry.
In terms of commercial and industrial applications, the company provides a full range of products including DC link capacitors, IGBT absorption protection capacitors, MKPH high-voltage resonance and coupling capacitors, input and output filtering capacitors, etc. These products are widely used in commercial induction cookers, induction heating equipment, uninterruptible power supplies (UPS), low-power inverters, high-frequency switching power supplies, welding and electroplating power supplies, high-power frequency converters, electric vehicles and other fields, and play an important role in new energy industries such as wind and solar power generation, inverter and frequency conversion equipment.
In addition, in the field of consumer electronics, the company produces CBB61 and CBB60 series AC motor capacitors, as well as safety capacitors, frequency division capacitors, ignition filter capacitors, filters and other products, which are widely used in many industries such as range hoods, microwave ovens, washing machines, office equipment, etc., providing customers with diversified capacitor solutions.
With a comprehensive product line, strong technical strength, and dedicated service spirit, Pin'er Electronics continues to provide high-performance and high reliability thin-film capacitor products to global customers.
The shipping methods include DHL, UPS, TNT, FedEx and other courier services, and you can also choose air or sea freight according to your requirements
Question:Are you a manufacturing factory or a trading company?
Answer:We are a manufacturing factory.
Question:How to ensure product quality and after-sales service?
Answer: We provide a 12-month quality assurance and have an after-sales team to promptly address customer issues.
Question: Do you provide ODM and OEM services?
Answer: Yes, welcome ODM and OEM.
