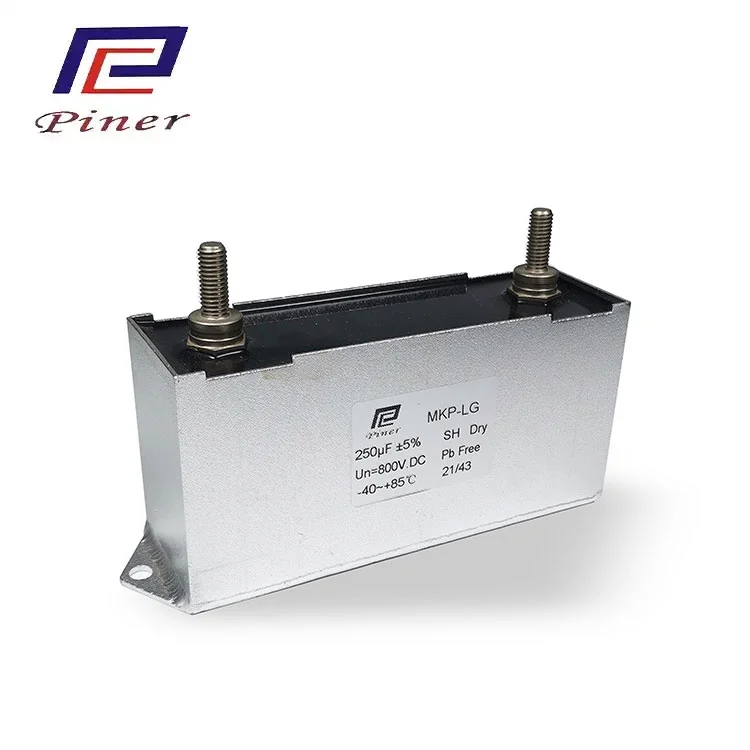

Excellent electrical performance
It has extremely low equivalent series resistance (ESR) and parasitic inductance (ESL), which can effectively suppress high-frequency ripple current, reduce losses and heat generation, support high switching frequency operation, and improve the overall conversion efficiency of the machine.
Powerful voltage resistance and overcurrent capability
Using high-quality media such as metalized polypropylene film, combined with an enhanced electrode structure, it can withstand high DC voltage and high-frequency large ripple current, adapting to frequent power fluctuations and instantaneous impacts in inverter systems.
Good temperature stability
Within a wide temperature range of -40 ℃ to+105 ℃, the capacitance value changes little and the loss angle is stable. It is suitable for outdoor photovoltaic, vehicle inverters and other scenarios with large temperature differences and complex heat dissipation conditions.
High reliability and long service life
Through the use of seamless winding technology, flame-retardant epoxy encapsulation, and fully sealed metal shell design, it has excellent anti vibration, moisture-proof, and partial discharge resistance capabilities, with a typical lifespan of over 100000 hours, significantly reducing system maintenance requirements.
Compact structure and flexible installation
It can be designed as a cylindrical, flat, or modular structure according to the system layout, supporting various terminal forms such as screws, solder joints, and plugs, making it easy to achieve high power density integration in limited space.
| Reference | GB/T17702, IEC61071 |
| Capacitance | 550~10000 μF |
| Capacitance Tol. | ±5% (J), ±10% (K) |
| Voltage | 400V.DC~5000V.DC |
| UT-T | 1.5Un/60S |
| Over Voltage | 1.1Un (30% of on-load-dur) |
| 1.15Un (30min/day) | |
| 1.2Un (5min/day) | |
| 1.3Un (1min/day) | |
| tg δ 0 | ≤0.0020 100Hz |
| RiXCn | ≥5000S (25℃±5℃ 100V.DC 60S) |
| Climatic Category | 40/85/21 |
| Operating Temp. | -40℃~85℃ |
| Max.Altitude | <4000m |
| Lifetime Expectancy | 100000h |
| Encapsulation | Metal casing, encapsulated with epoxy resin |
| Flame retardation | UL94V-0 |
Inverter power supply capacitors are widely used in the following key fields and equipment:
1. New energy generation systems: photovoltaic inverters (string/centralized), wind power converters, energy storage converters (PCS)
2. Industrial transmission and frequency conversion equipment: frequency converters (low/medium voltage), servo drives, elevator/crane electrical control systems
3. Power supply equipment: UPS/EPS uninterruptible power supply, high-frequency switching power supply, welding machine power supply (inverter), communication power module
4. Electrification of Transportation: On Board Chargers (OBC) for Electric Vehicles, Auxiliary Inverters for Rail Transit, Variable Frequency Power Sources for Ships/Aviation
5. Special power supplies and industrial equipment: induction heating power supply, laser power supply, electroplating/electrolysis power supply, medical equipment power supply

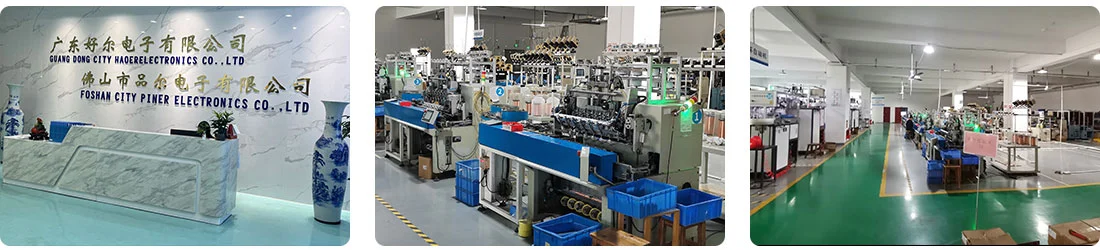

Guangdong Piner Electronics Co., Ltd. was founded in 2014. After years of steady development, it has become a professional manufacturer of metalized film capacitors and industrial new energy capacitors with strong large-scale manufacturing capabilities. The company has multiple production bases in Foshan, Guangdong and Teng County, Guangxi, with a total area of over 10000 square meters and a team of over a thousand employees. It has a strong production capacity of over 100 million units per year and can efficiently respond to the large-scale delivery needs of global customers.
Our independently produced industrial capacitors include DC Link capacitors (circular aluminum shell/metal square shell), filters, AC filter capacitors, IGBT buffer absorption capacitors, MKPH high-voltage resonant capacitors, and a full range of products. Automated production lines, lean production management, and experienced operational teams ensure that every link from raw materials to finished products is under control, achieving a perfect balance between quality, cost, and delivery time.
Our company is based on the industrial advantages of the Pearl River Delta region, and we are committed to transforming our scale advantages into supply chain advantages for our customers. Strong production capacity not only means stable supply guarantee, but also brings us stronger cost control ability and the ability to quickly respond to market changes. Pin'er Electronics adheres to the principle of "win-win cooperation" and looks forward to becoming a trusted core supplier and strategic partner for well-known domestic and foreign enterprises in the fields of new energy, industrial power supply, home appliances, and automotive electronics through a production model that combines scale, standardization, and flexibility.
The small package will be sent by express delivery, such as DHL, UPS, TNT, FedEx, etc. We can also air or sea freight according to your requirements
Q:Are you a manufacturer or a trading company?
A: We are a professional manufacturer with in-house R&D, production lines, and quality control systems. OEM/ODM services are available.
Q: How do you ensure product stability in high-temperature/humidity environments?
A: We use metallized polypropylene film, flame-retardant epoxy potting, and aluminum casing, ensuring stable operation from -40℃ to 105℃.
Q: Do you offer technical support and customization?
A: Yes, we provide capacitor selection, parameter customization, and application guidance based on your circuit requirements.
