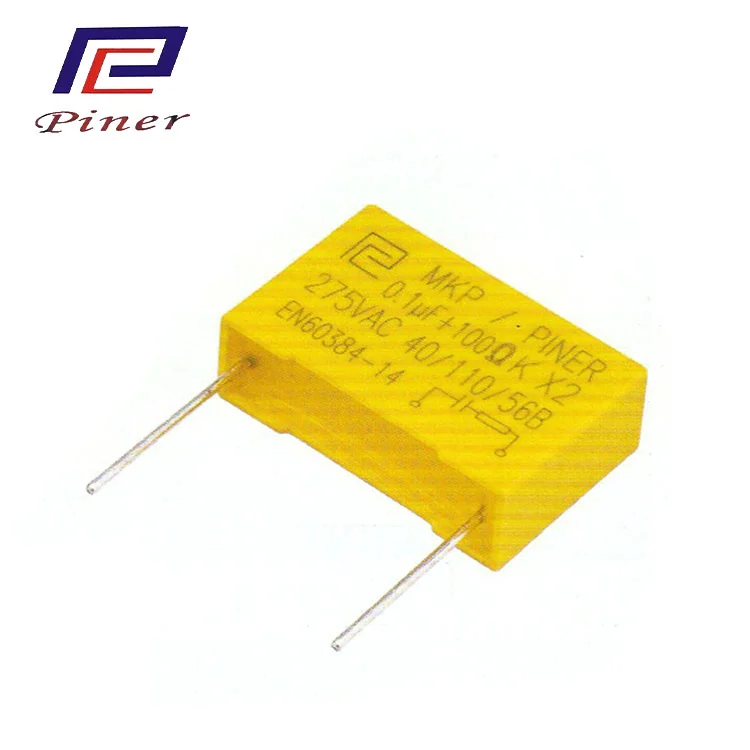

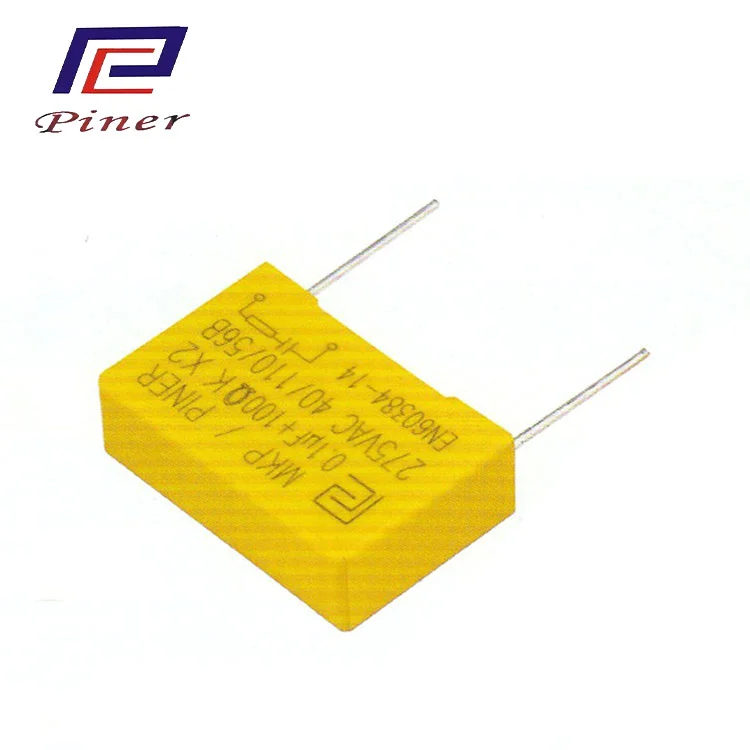

RC Component X2 Capacitor

Features

Integrated Design: The RC Component X2 Capacitor produced by Piner Manufacturer replaces discrete X2 capacitors and resistors, reducing PCB space occupation by over 30%, reducing the number of solder joints, and lowering the circuit failure rate and assembly cost;

Collaborative Filtering Protection: The capacitor diverts high-frequency common-mode interference, and the resistor limits power-on surges and damps LC resonances, solving the problem of filter failure caused by mismatched component parameters;

High Safety Compliance: Compliant with IEC 60384-14 safety standards, UL94 V-0 flame-retardant packaging, the capacitor unit has self-healing characteristics, failure presents as an open circuit, without explosion, fire, or leakage risks;

High Frequency Performance Stability: Inductive winding + integrated integration, without external lines' parasitic inductance/capacitance, attenuating high-frequency interference by ≥20dB at 150kHz~30MHz, meeting EN 55032 EMC certification;

Strong Environmental Adaptability: Wide temperature operation, resistant to humidity and heat, resistant to vibration, the encapsulation structure isolates dust and moisture, suitable for various indoor and outdoor equipment, with a long lifespan of ≥10, 000 hours;

Installation Convenient: Non-polar design, standardized pin spacing, direct insertion and welding, no need to consider positive and negative poles and component matching, reducing design and assembly difficulty.

The RC component X2 capacitor is an integrated, highly reliable and safe differential-mode EMI filtering device. By integrating the X2 safety capacitor with precisely matched current-limiting resistors, it not only retains the safety and flame-retardant, self-healing protection characteristics of the pure X2 capacitor, but also solves issues such as surge impact and LC resonance through the synergy of the resistors. At the same time, it significantly simplifies PCB design, reduces space occupation, and improves assembly efficiency.

Product specifications

RC component X2 (quencher) / capacitor Regular specs

Dimension Unit:mm

Note: The above size is for reference only.Customization according to customers’ requirements is available.

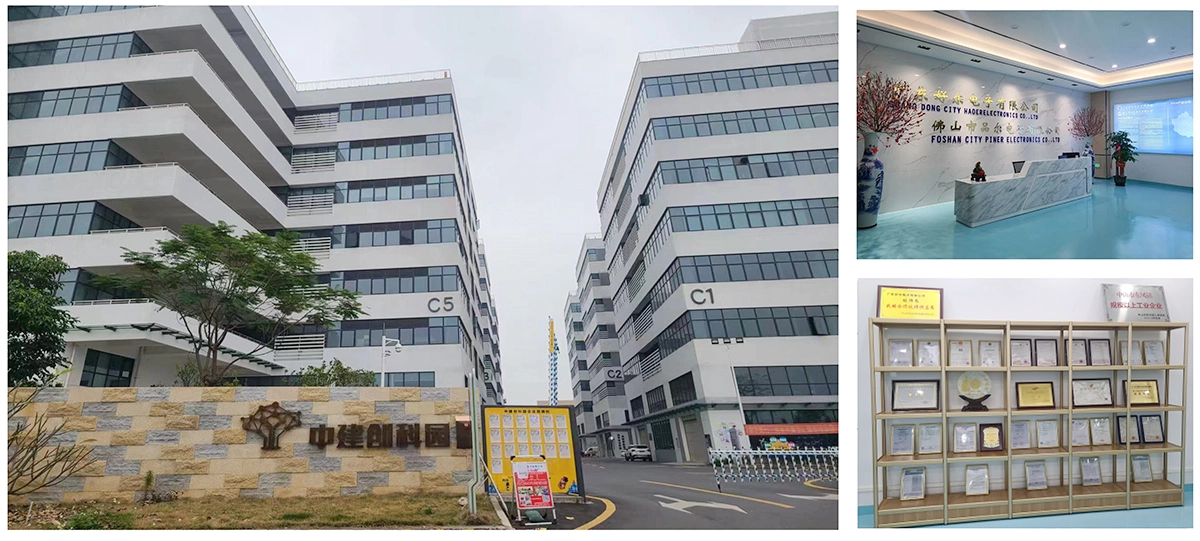

Factory Strength

Guangdong Haoli Electronics Co., Ltd. has multiple production bases in places such as Foshan, Guangdong Province and Tingxian, Guangxi Province. The total factory area exceeds 10, 000 square meters, and the number of employees has exceeded 1, 000. The company has an annual production capacity of over 100 million transformers, filters, and inductors. The company has experienced employees and a professional and efficient management team, ensuring that every link from research and development to production meets high standards. Haoli Electronics always adheres to the principles of "technological innovation, quality priority, service first, and win-win cooperation", continuously deepening its focus on the magnetic component field, striving to grow and become a benchmark enterprise in the industry.

The equipment we possess: Automatic common-mode inductor (magnetic ring) winding machine, single-axis automatic winding (with sleeve) machine, automatic winding machine, post-processing automated integrated machine, laser marking machine

The "inductor coil" is applied in the following industries: new energy and energy storage, automotive electronics and electrification, industrial automation and power supply, information and communication technology, consumer electronics and household appliances; its application locations include: the energy storage and output filtering positions of DC-DC circuits, the common-mode/differential-mode choke coil positions at the power input end, the transmitting and receiving coils of wireless charging devices, and the matching network and bias circuit of RF power amplifiers; its application under working conditions includes: high current, strong magnetic field, and high temperature.
