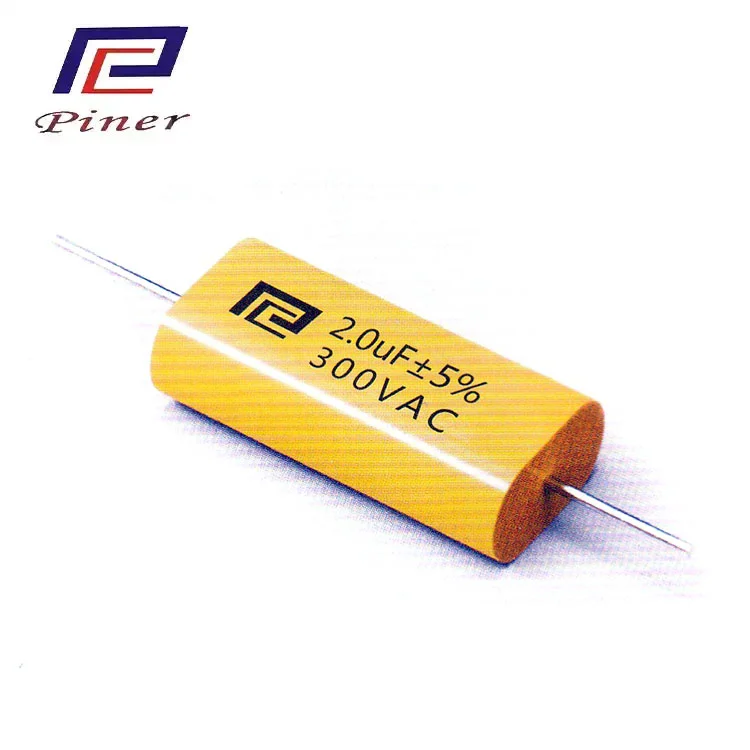

● Metallized polypropylene film dielectric
● Non-inductive winding structure
● Myla tape with flame retardant epoxy resin at both ends
● Axial tin copper wire leads
● Resistance to high voltage, small tgδ, low temperature rise
● Temperature compensating circuit
● Timing oscillation circuit
● Audio frequency division circuit
| Reference standard | GB10190、IEC60384-16 |
| Climatic category | 40/85/21 |
| Rated voltage | 250VDC~ 630VDC |
| Capacitance range | 1uF ~ 40uF |
| Capacitance tolerance | ±5%(J) ±10%(K) |
| Between terminals Voltage proof | 1.6UR (VDC) /10s |
| Insulation resistance (at 20°C) | Between terminals: ≥30000MΩ CR≤0.33uF (100vdc 60s) ≥7500s CR>0.33uF (100vdc 60s) |
| Between terminals and case:≥100000MΩ (100vdc 60s) | |
| Withstand current ability | dv/dt≥30v/us |
| Dissipation factor | DF≤0.002 (1KHz) |
Dimension Unit: mm
| Rated Cap. | 250/275 VDC | 400 VDC | 600 VDC | |||||||||
| L | W | H | ΦD | L | W | H | ΦD | L | W | H | ΦD | |
| 1.0μF | 25 | 5 | 12 | 0.8 | 25 | 8 | 14 | 0.8 | 25 | 11.5 | 19 | 0.8 |
| 1.2μF | 25 | 6.5 | 13 | 0.8 | 25 | 9 | 15 | 0.8 | 25 | 13.5 | 19 | 0.8 |
| 1.5μF | 25 | 7.5 | 14 | 0.8 | 25 | 10 | 16.5 | 0.8 | 25 | 14.5 | 22 | 0.8 |
| 2.0μF | 25 | 9 | 15.5 | 0.8 | 25 | 12 | 18.5 | 0.8 | 25 | 14 | 22 | 0.8 |
| 2.2μF | 26 | 9.5 | 15.5 | 0.8 | 25 | 13.4 | 19 | 0.8 | 31 | 16 | 22.5 | 0.8 |
| 2.5μF | 26 | 10 | 16.5 | 0.8 | 25 | 14 | 20 | 0.8 | 31 | 17 | 23.5 | 0.8 |
| 3.3μF | 26 | 12 | 18 | 0.8 | 31 | 13 | 19.5 | 0.8 | 31 | 20 | 26.5 | 0.8 |
| 3.5μF | 26 | 12.5 | 18.5 | 0.8 | 31 | 13.5 | 20 | 0.8 | 36 | 18.5 | 24 | 0.8 |
| 4.0μF | 26 | 13.5 | 19.5 | 0.8 | 31 | 15 | 21 | 0.8 | 36 | 19.5 | 26 | 0.8 |
| 4.7μF | 26 | 14.5 | 21 | 0.8 | 31 | 16 | 22.5 | 0.8 | 36 | 21.5 | 28 | 0.8 |
| 5.6μF | 31 | 14 | 20 | 0.8 | 31 | 18 | 24 | 0.8 | 36 | 24 | 30 | 0.8 |
| 6.8μF | 31 | 15.5 | 21.5 | 0.8 | 31 | 20 | 26.5 | 0.8 | 46 | 22 | 28 | 0.8 |
| 8.2μF | 31 | 17 | 23.5 | 0.8 | 36 | 19.5 | 26 | 0.8 | 46 | 24.5 | 30 | 0.8 |
| 10.0μF | 31 | 19.5 | 25.5 | 1 | 36 | 22 | 28.5 | 1 | 46 | 26.5 | 33 | 1 |
Note: The above size is for reference only.Customization according to customers’ requirements is available.
