| 1. Working frequency: | 20 kHz - 500 kHz |
| 3. Working temperature: | -40°C to +125°C |
| 4. Storage temperature: | -25°C to +85°C |
| 5. Storage humidity: | 30% - 95% |

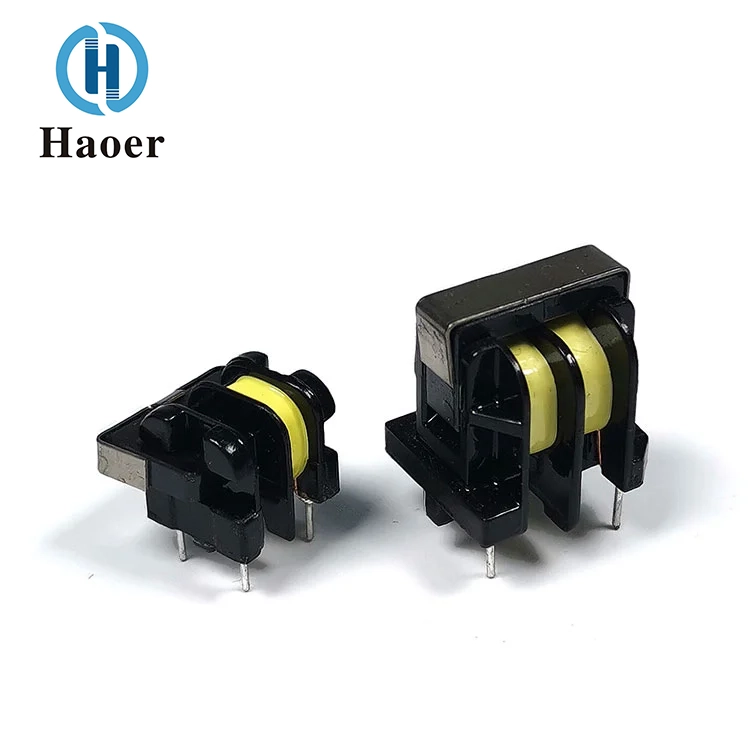

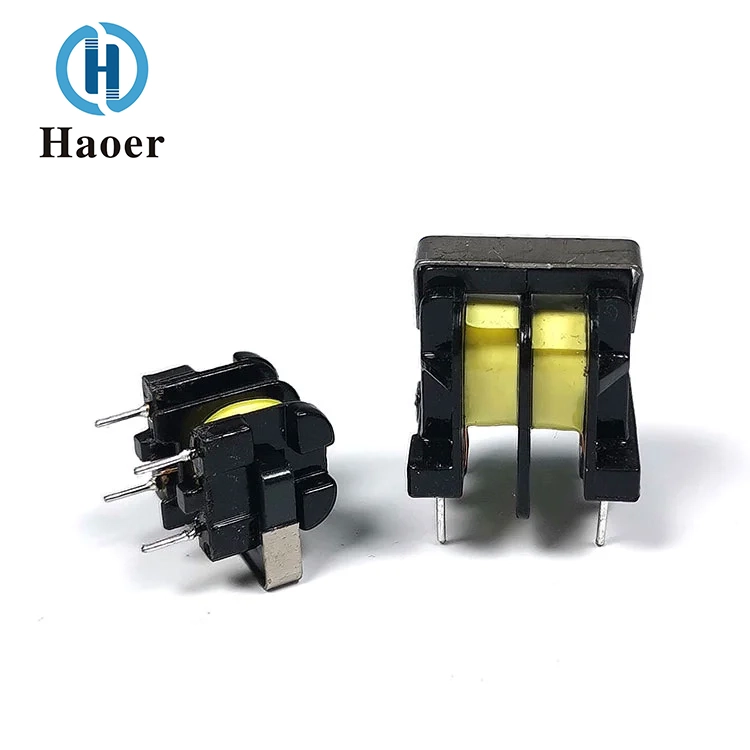

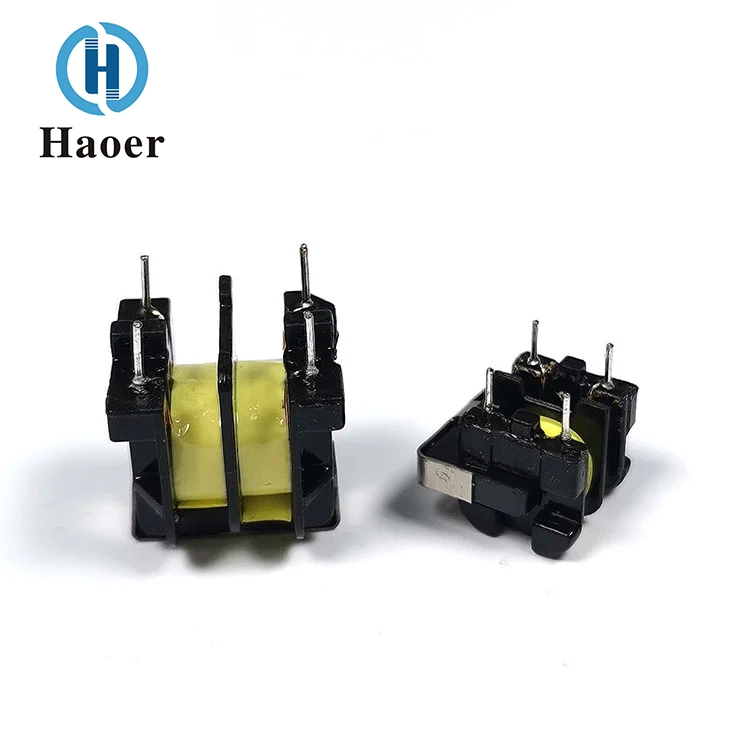

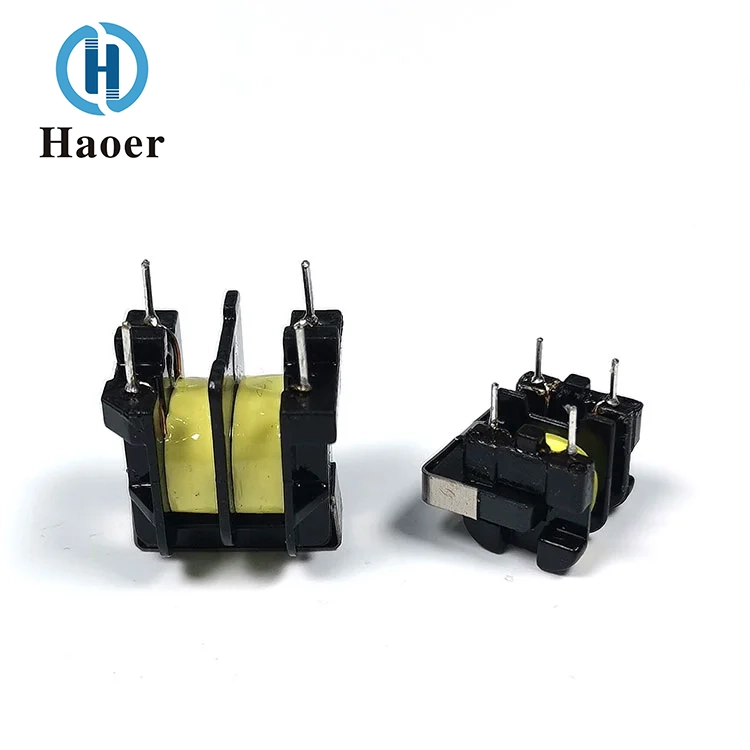

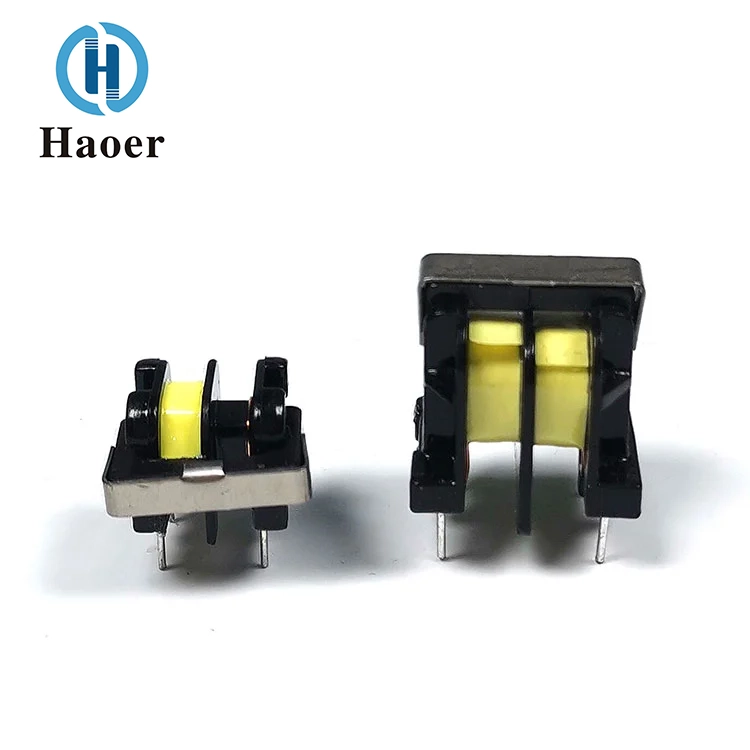

UU9.8 / UU10.5 / UU15.7 / UU16
The EMI Filter UU Filter supplied by Haoer manufacturer achieve dual suppression of common-mode and differential-mode interference through impedance matching and magnetic field cancellation mechanism:
Common-mode interference suppression: When the common-mode interference current flows through the symmetrical double-winding, a magnetic field of the same direction is generated inside the UU-shaped magnetic core. The superposition of these magnetic fields results in a high impedance of the magnetic core, significantly attenuating the interference signal.
Common-mode interference suppression: When the common-mode interference current flows through the windings, a reverse magnetic field is generated. Part of this magnetic field cancels out in the closed magnetic circuit, and the remaining magnetic field forms a common-mode inductance, which can further suppress common-mode noise.
Normal signal conduction: There is a current flowing through the circuit for direct current or low-frequency signals. The core has an extremely low impedance, resulting in almost no signal loss, ensuring the normal operation of the equipment.
Dual filtering, efficient anti-interference: EMI Filter UU Filter simultaneously suppresses both common-mode and differential-mode interference, without the need for additional filtering components, simplifying the EMC circuit design and enhancing the filtering efficiency.
· Wide frequency band adaptation, flexible scenarios: By selecting different material cores, it can cover a wide frequency range of 50Hz - 100MHz, suitable for interference suppression requirements of various devices such as switching power supplies, frequency converters, and household appliances.
· Low magnetic leakage, good electromagnetic compatibility: The closed magnetic circuit design significantly reduces magnetic field radiation, causing minimal interference to sensitive components (such as MCUs, sensors), and no additional shielding measures are required.
· Compact size, convenient layout: The symmetrical structure of the UU-shaped magnetic core enables miniaturization of components, and the plug-in / surface-mount dual versions can adapt to different PCB layout schemes, saving installation space.
· High reliability, strong environmental tolerance: The working temperature range of EMI Filter UU Filter is wide (-40℃~+125℃), resistant to vibration and corrosion, compliant with RoHS and REACH environmental standards, suitable for industrial and consumer applications.
· Cost-effective, high: The ferrite material has a wide source and mature production process, and has significant cost advantages when applied on a large scale, outperforming ring filters with the same performance.
Guangdong Haoer Electronics Co., Ltd., established in 2008, is a leading manufacturer specializing in magnetic components such as high-frequency transformers, filters, and inductors. The company's products are widely applied across diverse industries, including lighting, home appliances, photovoltaic systems, uninterruptible power supplies (UPS), automotive electronics, and telecommunications equipment.

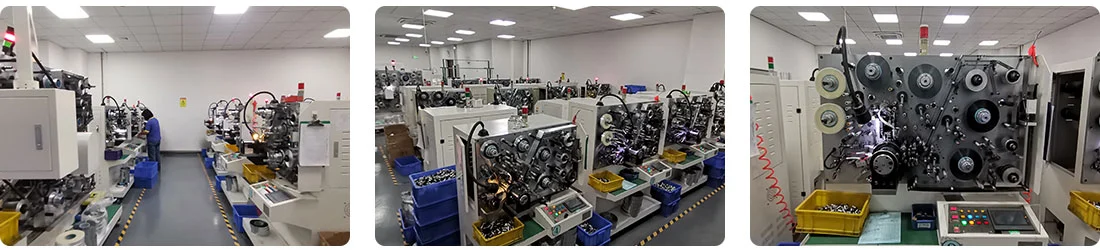

With multiple manufacturing facilities located in Foshan, Guangdong Province, and a workforce exceeding 1, 000 employees, the company utilizes fully automated production lines and advanced testing equipment to achieve an annual output of over 100 million units. It has obtained key international certifications, including CQC, UL, ISO 9001, and IATF 16949, demonstrating its strong commitment to quality assurance, product safety, and compliance with industry standards.
