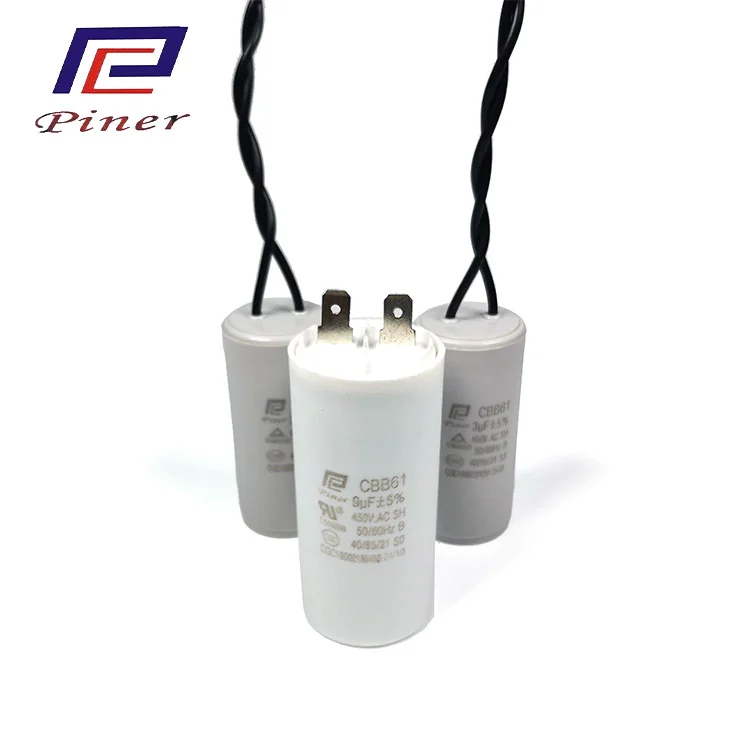

Precise speed control, silent and energy-efficient: The Fan Speed Regulator Capacitor provided by Piner Manufacturer can smoothly adjust the wind speed in 2 to 4 steps, replacing the traditional inductor speed controller and reducing energy consumption by over 40%. It has no electromagnetic noise and eliminates the buzzing sound after fan speed adjustment.
Multi-core independent, high reliability: A single-core failure only affects the corresponding gear, while the other gears continue to work normally, avoiding complete fan shutdown due to capacitor issues. It is more convenient for home use.
Condition adaptation, stable performance: Resistant to impact current, capable of frequent start and stop, perfectly matching the daily startup, speed adjustment, and shutdown cycle of fans, without performance degradation.
Flame-retardant safety, suitable for home use: UL94 V-0 level flame-retardant housing + built-in safety devices, eliminating electrical fire and explosion risks from the source, suitable for home scenarios such as living rooms, bedrooms, and kitchens.
Compact and easy installation, strong adaptability: Modular integrated design, one unit replaces multiple single-core capacitors, suitable for the speed control switches and internal structures of various fans such as ceiling fans, floor fans, and table fans.
Long life and maintenance-free: Fully sealed and moisture-proof, corrosion-resistant, without leakage or aging problems, with a lifespan 2 to 3 times that of traditional inductor speed controllers, reducing replacement costs.
| Reference standard | GB/T3667.1、UL810、IEC60252-1 |
| Climatic category | -40℃ ~ +105℃ |
| Rated voltage | 100VAC ~ 600VAC (50/60HZ) |
| Capacitance range | 0.1μF ~ 80μF |
| Capacitance tolerance | ± 5%(J)、±10%(K) |
| Testing voltage | |
| between terminals |
2*UN (VAC)/60s(CQC、VDE、TUV) 1.5*UN (VAC)/60s(UL) |
| between terminals and case | 2*UN +1000 (VAC)/60s (≥2000VAC) |
| Dissipation factor | ≤ 0.0020(100HZ) |
| Class of safety protection | CQC、VDE、TUV:S0、S3 |

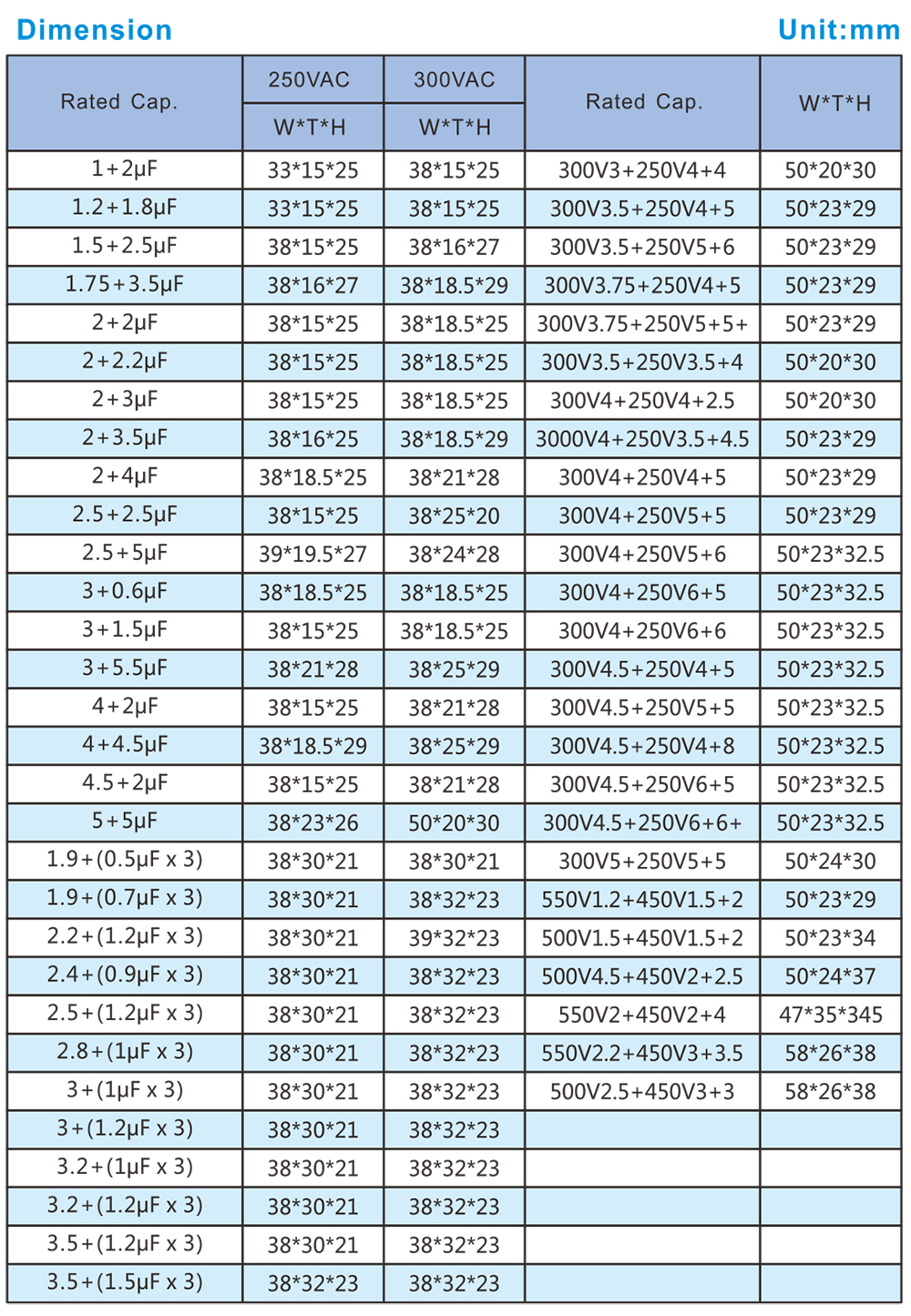

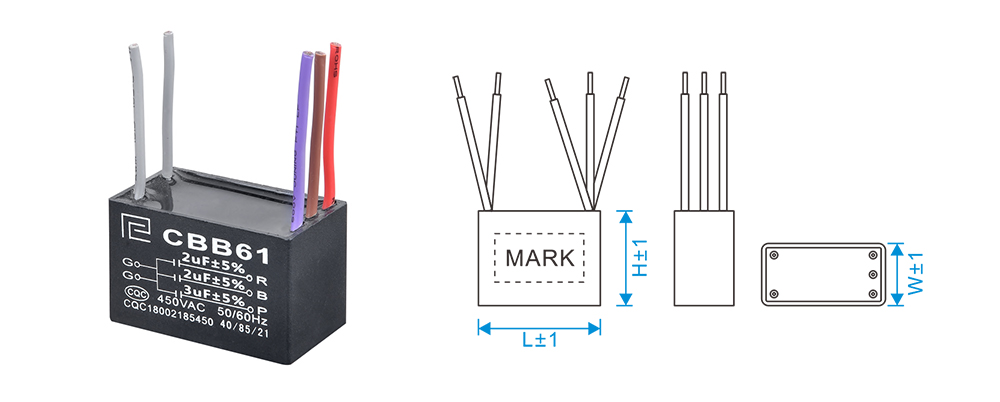

Dimension Unit: mm
Focusing on the core requirements for single-phase AC fan motor speed control, it is a dedicated component for household and commercial fans. Typical applications include:
Basic household fans: ceiling fans, floor fans, table fans, wall fans, circulating fans, clamp fans
Kitchen / bathroom fans: range hood fans, kitchen ventilation fans, bathroom exhaust fans
Fan for supporting equipment: indoor and outdoor fans for air conditioners, small fans for fresh air systems, fans for air purifiers
