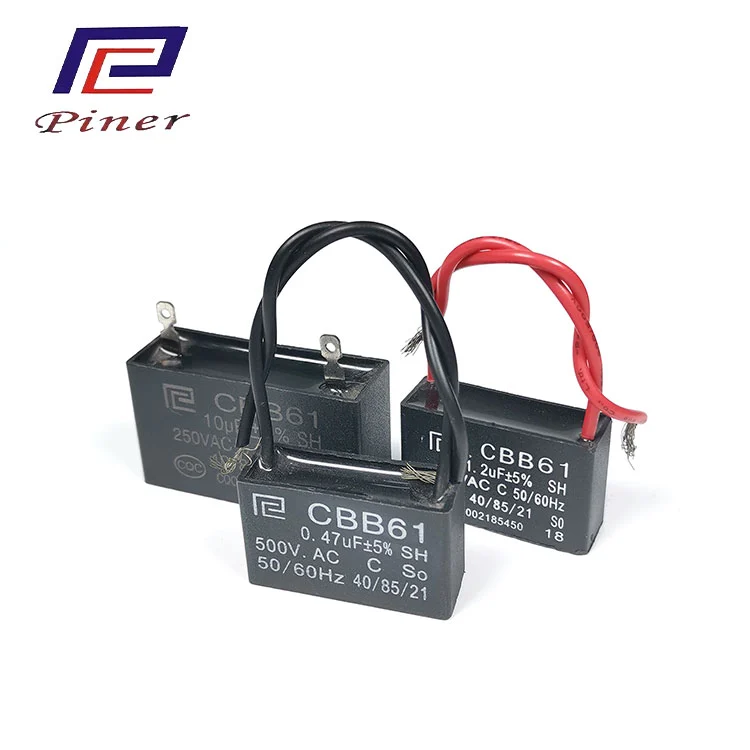

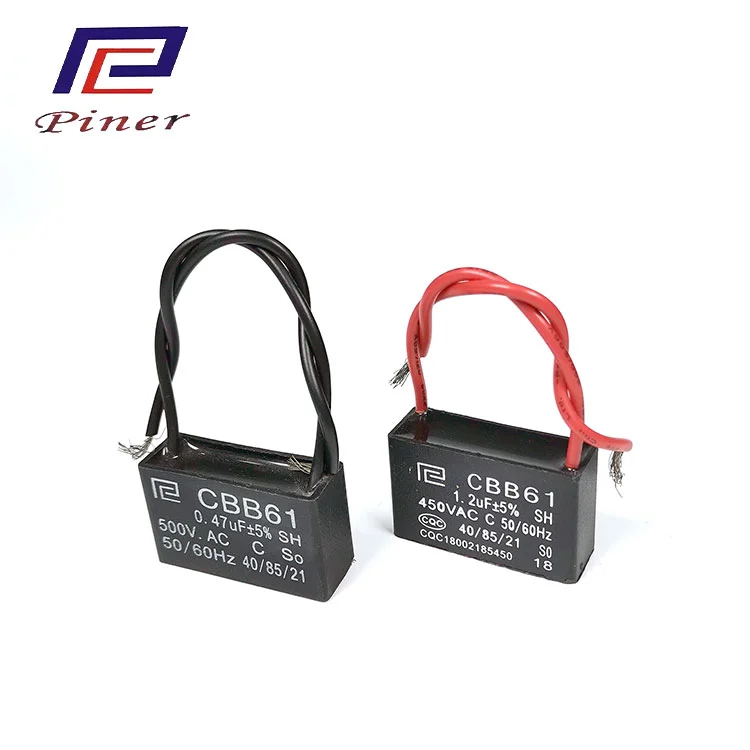

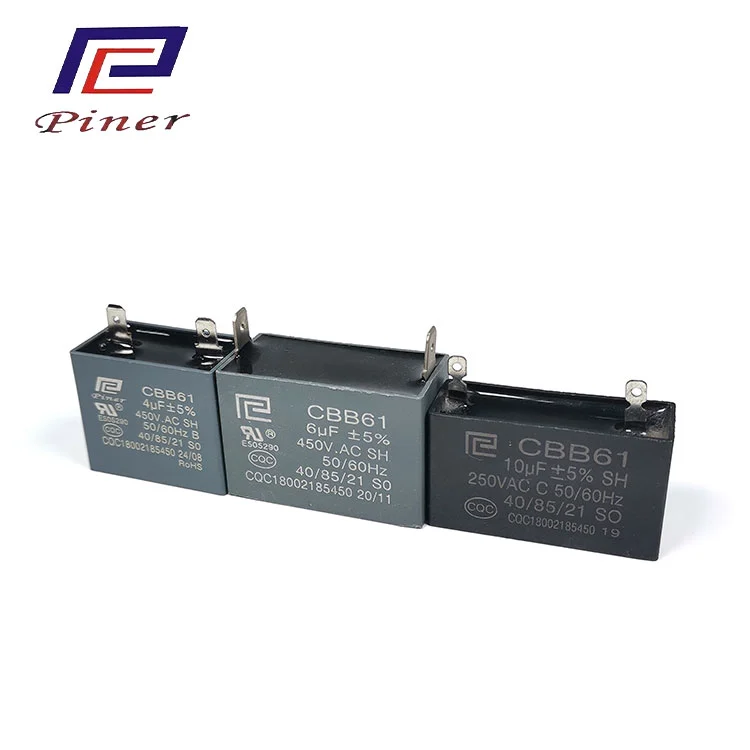

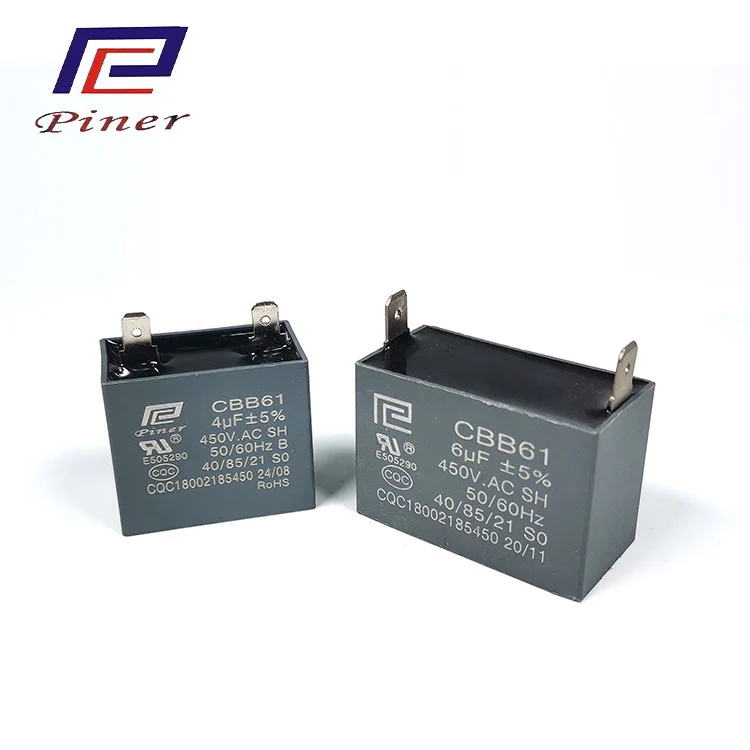

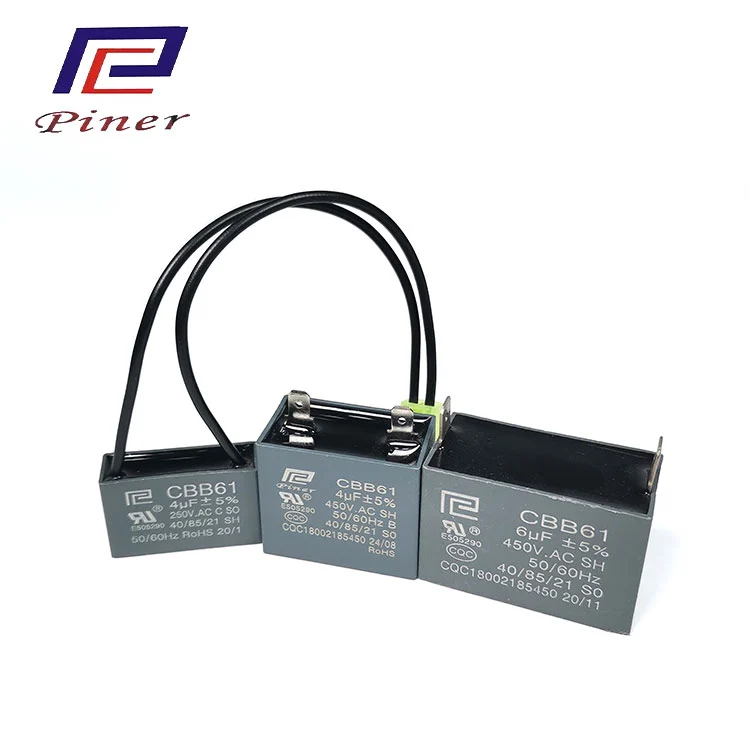

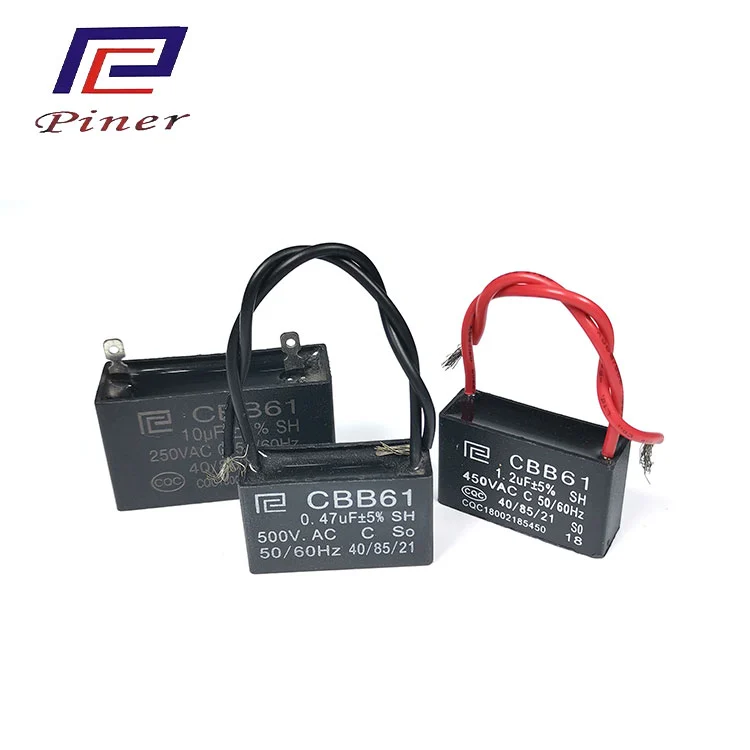

Resistant to strong impact current and with stable startup performance: The CBB61 Motor Starting Capacitor supplied by Piner Factory features thick electrodes and a high-strength dielectric layer design, which can withstand the instantaneous large current shock during motor startup, ensuring precise phase difference of the secondary winding, stable starting torque, and avoiding difficulties in motor startup and jamming issues.
· Excellent self-healing characteristics, suitable for frequent start-stop: The zinc-aluminum composite metal electrode has efficient self-healing capabilities. Local breakdown during the startup transient can be quickly isolated, and the capacitor performance remains undiminished. It is suitable for frequent start-stop conditions of household and industrial motors.
· Multiple safety protections, worry-free use: UL94 V-0 flame-retardant housing + built-in safety devices, which prevent short circuits, fires, and explosions at the source, and comply with fire safety standards for residential and commercial electrical installations.
· Full power compatibility, strong versatility: Covers a full capacity range of 0.1μF to 100μF, suitable for small, medium, and large power single-phase AC motors. One unit matches the corresponding power motor, eliminating the need for additional debugging.

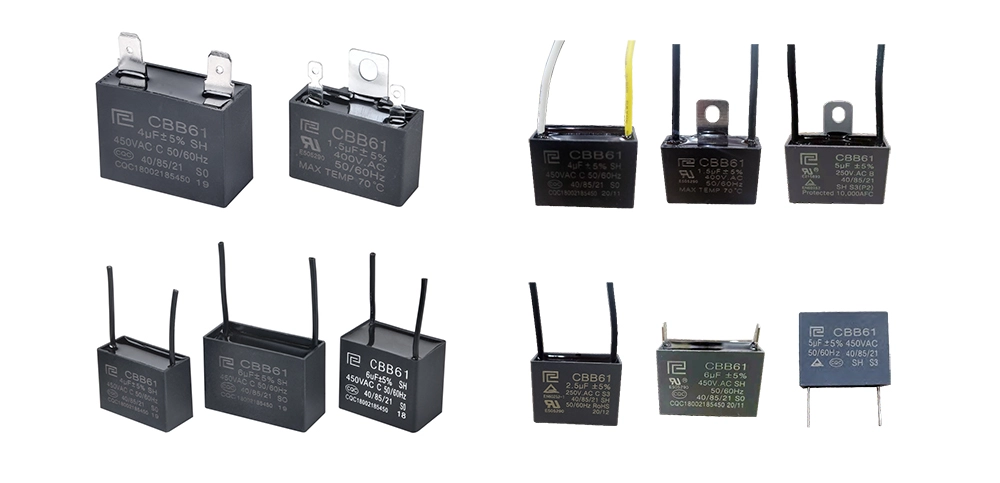

· Flexible installation, wide adaptability: Multiple lead-out methods + packaging forms, suitable for the installation space and interface design of different devices such as fans, washing machines, and water pumps. The wiring is firm, and the installation efficiency is high.
· Long lifespan and maintenance-free: Fully sealed epoxy resin encapsulation, moisture-proof, corrosion-resistant, shock-resistant, without liquid evaporation or aging leakage problems. The service life matches that of the motor body, reducing replacement and maintenance costs.
| Reference standard | GB/T3667.1、UL810、IEC60252-1 |
| Climatic category | 40/105/21 |
| Rated voltage | 100VAC ~ 600VAC (50/60HZ) |
| Capacitance range | 0.1μF ~ 80μF |
| Capacitance tolerance | ± 5%(J)、±10%(K) |
| Testing voltage | |
| between terminals |
2*UN (VAC)/60s(CQC、VDE、TUV) 1.5*UN (VAC)/60s(UL) |
| between terminals and case | 2*UN +1000 (VAC)/60s (≥2000VAC) |
| Dissipation factor | ≤ 0.0020(100HZ) |
| Class of safety protection | S0(P0)、S3(P2) |

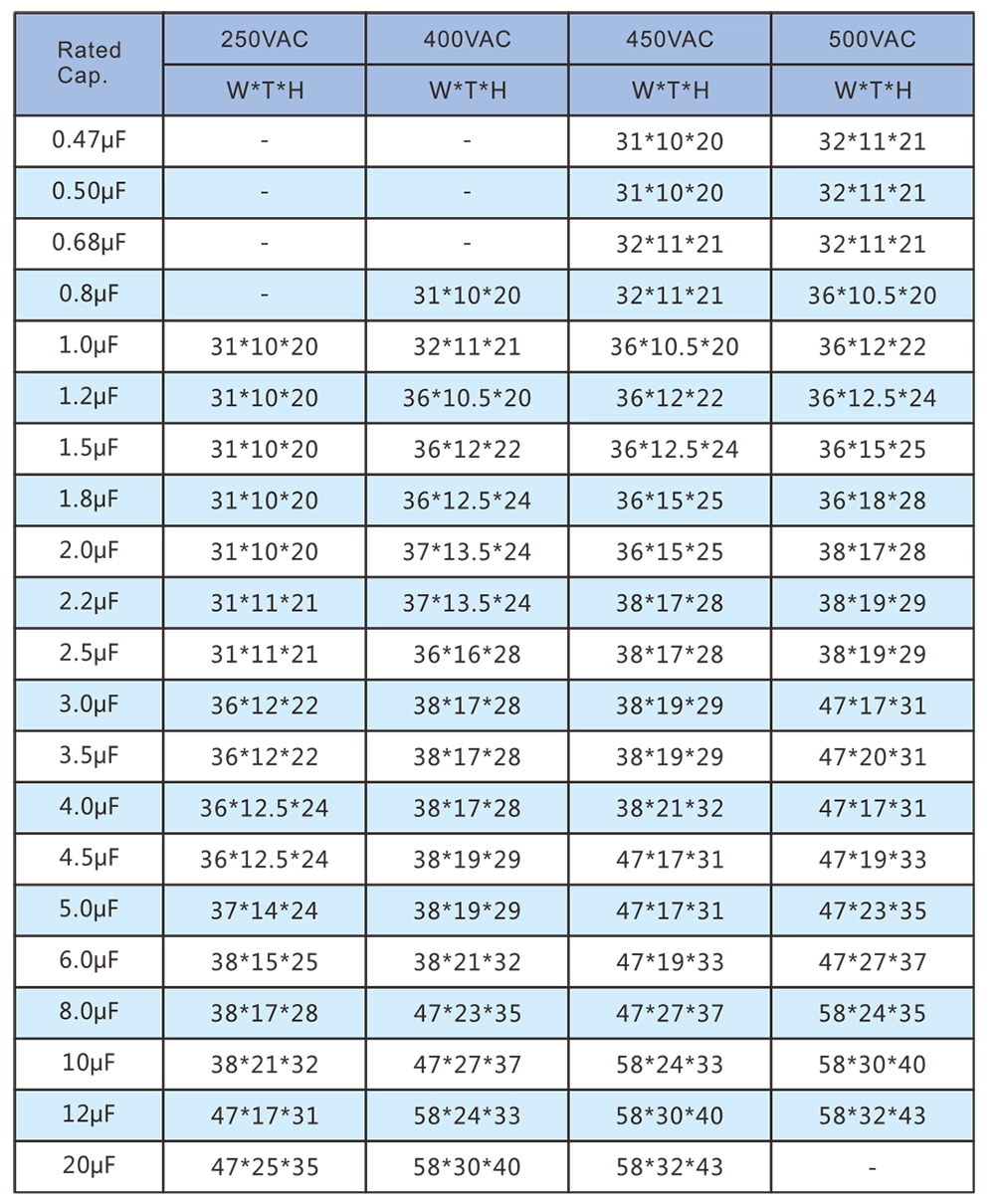

Dimension Unit: mm
The Motor Starting Capacitor is specifically designed for the starting requirements of various small-power single-phase AC motors. In some devices, it can also serve as a running capacitor. It is a core component for small-power household and small commercial motors. Typical applications include:
Household fans: ceiling fans, floor fans, table fans, wall fans, circulating fans, clamp fans
Kitchen / bathroom fans: range hood fans, kitchen ventilation fans, bathroom exhaust fans
Fan components for small household appliances: air purifiers, humidifiers, blenders, built-in fans of blenders and mixers
Small ventilation equipment: corridor ventilation fans, micro fans for new air systems, small industrial exhaust fans
Other small-power motors: miniature water pumps, small power tools, advertising machine cooling fans

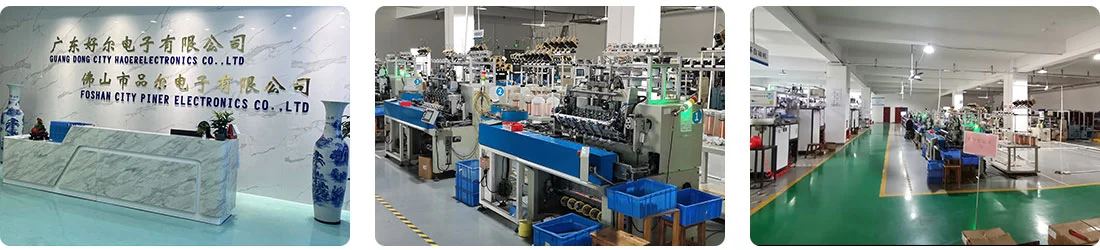

Since its establishment in 2014, Foshan Pin'er Electronics Co., Ltd. has been dedicated to the research and manufacturing of new energy film capacitors, and is committed to providing global customers with high-reliability and high-performance capacitor solutions. The company adheres to the quality policy of "efficiency, high quality, people-oriented, and continuous improvement", supported by advanced production and testing systems. Pin'er Electronics specializes in film capacitors and industrial capacitors, with its own factory, mainly producing CBB series, safety standards capacitors, and electromagnetic cooker-specific capacitors, etc.
The metallized film capacitors produced by Piner, with their high stability, low loss, long lifespan and excellent frequency characteristics, are widely used in photovoltaic inverters, wind power converters, energy storage systems, frequency converters, servo drives, UPS power supplies, welding machines, industrial power supplies, smart home appliances, lighting drives, power adapters, vehicle charging stations, battery management systems, as well as communication equipment, medical instruments, security systems, and other critical applications where the reliability of capacitors is extremely demanding.
As a core supplier in the fields of metallized film capacitors and industrial new energy capacitors, we always follow the customer's needs and actively expand the global market. We have established a wide and extensive sales network and achieved remarkable results in several key areas.
