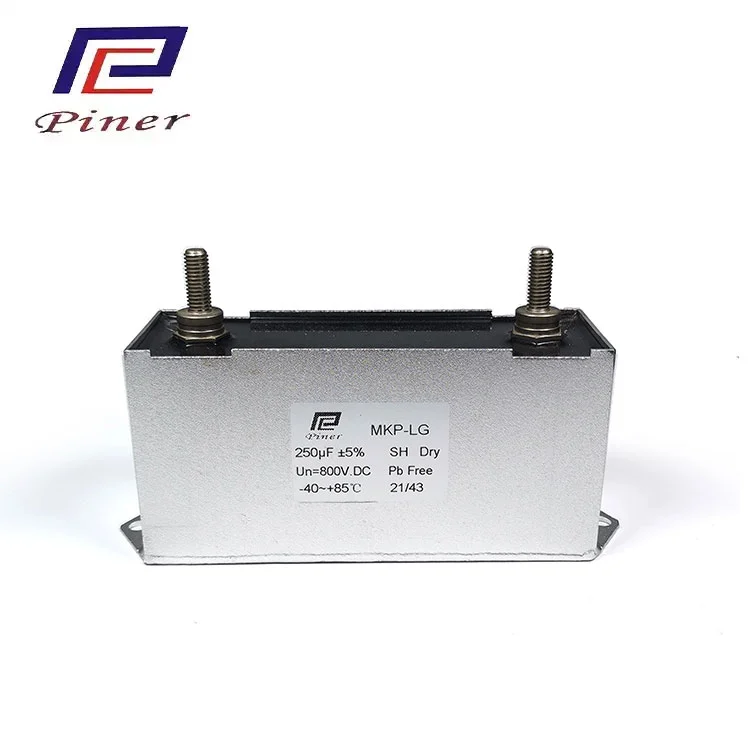

1. Low sensitivity, high flow resistance, strong adaptability to working conditions:Low inductance structure design, able to efficiently adapt to the high-frequency working rhythm of equipment, while carrying large ripple current, withstanding instantaneous current impact, and easily cope with the complex power consumption conditions of power electronic equipment
2. Low consumption and high efficiency, stable voltage and ripple suppression:High quality polypropylene film medium, low electrical loss, can quickly absorb circuit ripple current, effectively suppress voltage fluctuations, stabilize circuit output, and protect core power devices inside the equipment
3. High temperature resistance and aging resistance, long life and maintenance free:All components are made of industrial grade temperature resistant materials, which are resistant to high temperature and aging, without problems such as medium cracking and electrode falling off, and can still work stably for a long time under high temperature conditions inside the equipment, reducing maintenance costs
4. Explosion proof and flame retardant, with adequate safety protection in place:Built in explosion-proof pressure relief structure, combined with UL94 V-0 flame retardant packaging, eliminates the risk of explosion and fire caused by capacitor overvoltage and overcurrent from the source, making it safer and more reliable to use
5. Multi specification and easy installation, suitable for a wide range of scenarios:Covering multiple voltage and capacity specifications, supporting various installation methods such as direct insertion and bolt fixation, with standardized dimensions that can directly match the installation layout of various power electronic devices, making replacement and assembly convenient
6. All solid structure, strong environmental adaptability:No liquid, no leakage hazard, non-polar design suitable for AC/DC circuits, and also has moisture-proof, anti vibration, and anti slight chemical corrosion characteristics, suitable for different indoor and outdoor use environments of equipment
| Reference | GB/T17702, IEC61071 |
| Capacitance | 550~10000 μF |
| Capacitance Tol. | ±5% (J), ±10% (K) |
| Voltage | 400V.DC~5000V.DC |
| UT-T | 1.5Un/60S |
| Over Voltage | 1.1Un (30% of on-load-dur) |
| 1.15Un (30min/day) | |
| 1.2Un (5min/day) | |
| 1.3Un (1min/day) | |
| tg δ 0 | ≤0.0020 100Hz |
| RiXCn | ≥5000S (25℃±5℃ 100V.DC 60S) |
| Climatic Category | 40/85/21 |
| Operating Temp. | -40℃~85℃ |
| Max.Altitude | <4000m |
| Lifetime Expectancy | 100000h |
| Encapsulation | Metal casing, encapsulated with epoxy resin |
| Flame retardation | UL94V-0 |
Suitable for filtering, voltage stabilization, and energy buffering circuits of various power electronic devices, typical applications:
Industrial transmission: frequency converter, servo drive, stepper motor controller
New energy equipment: photovoltaic inverters, small energy storage converters
Power supply equipment: high-frequency switching power supply, UPS/EPS power supply, welding machine power supply
Industrial control equipment: PLC control cabinet, DC speed regulator, power compensation device
Foshan Piner Electronics Co., Ltd. is a professional manufacturer of electronic components that integrates research and development, production, and sales. It specializes in the production of DC Link capacitors, IGBT buffer absorption capacitors, high-voltage resonant capacitors, and single-phase/three-phase AC filtering capacitors. It has become an indispensable core component in new energy generation, industrial automation, transportation electrification, and high-end power equipment.
Our capacitors are widely used for DC support and buffering protection in photovoltaic inverters and wind energy converters, significantly improving energy conversion efficiency and system lifespan; Provide efficient harmonic filtering and energy coupling solutions in high-power frequency converters, welding machine power supplies, and induction heating equipment to ensure stable operation of the equipment; At the same time, in the fields of UPS, communication power supply, electric vehicle drive system, and electroplating power supply, our products have also won wide trust from customers with excellent performance and reliability. We are not only component suppliers, but also deep cultivators of industry applications.

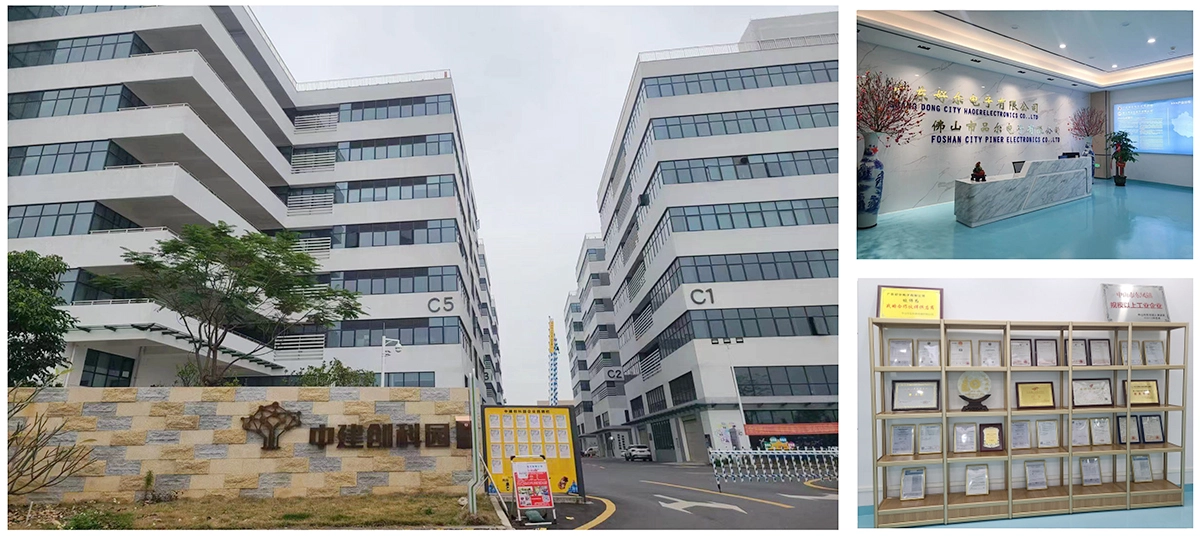

The company is located in Foshan, Guangdong, with a production base covering a total area of over 10000 square meters. It has established a complete industrial chain from material screening, precision winding, to fully automated testing. We adhere to the concept of "customer-centric, service-oriented development" and have an experienced team of application engineers who can provide full process services from selection guidance, customized design to on-site technical support for specific industry needs, ensuring that our solutions achieve optimal matching with customers' end products and create value together.
CQC, UL, IS09000, TS16949 and other safety certification and quality system certification, IS09001-2015 quality management system certification, MKPX2 safety capacitor series has passed UL certification in the United States, CUL certification in Canada, VDE certification in Germany and CQC certification in China. The company's products comply with the latest environmental requirements of the European Union and meet RoHS and REACH directive standards
The small package will be sent by express delivery, such as DHL, UPS, TNT, FedEx, etc. We can also air or sea freight according to your requirements
Q:Are you a manufacturer or a trading company?
A: We are a professional manufacturer with in-house R&D, production lines, and quality control systems. OEM/ODM services are available.
Q: How do you ensure product stability in high-temperature/humidity environments?
A: We use metallized polypropylene film, flame-retardant epoxy potting, and aluminum casing, ensuring stable operation from -40℃ to 105℃.
Q: Do you provide samples? How is shipping handled?
A: Free samples are available for qualified clients, with shipping costs borne by the client. Sample shipping fees can be deducted from future orders
Q: What is the lead time?
A: Standard lead time is 3-4 weeks. Expedited delivery is available for urgent orders.
Q: What payment terms do you accept?
A: We accept T/T, L/C, and flexible terms based on mutual agreement.
