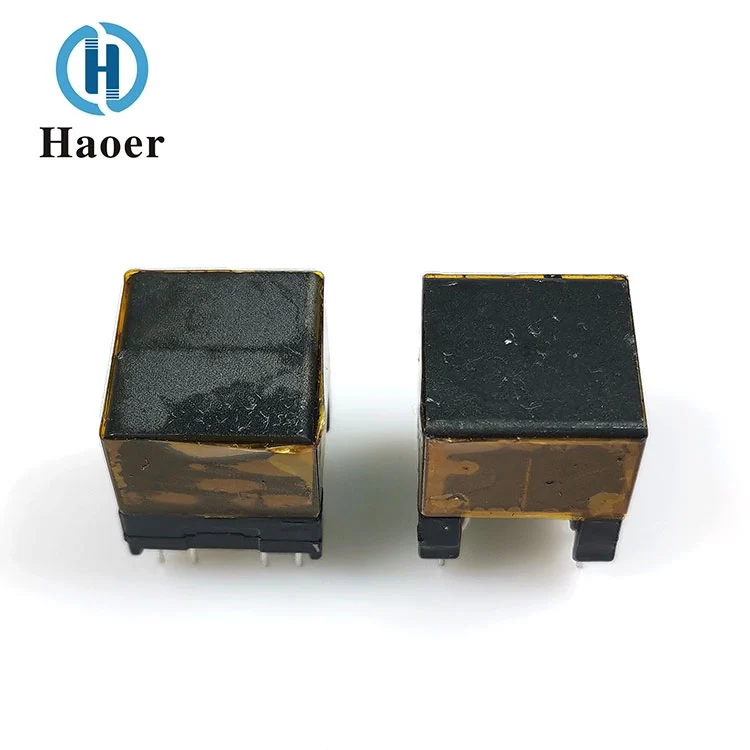

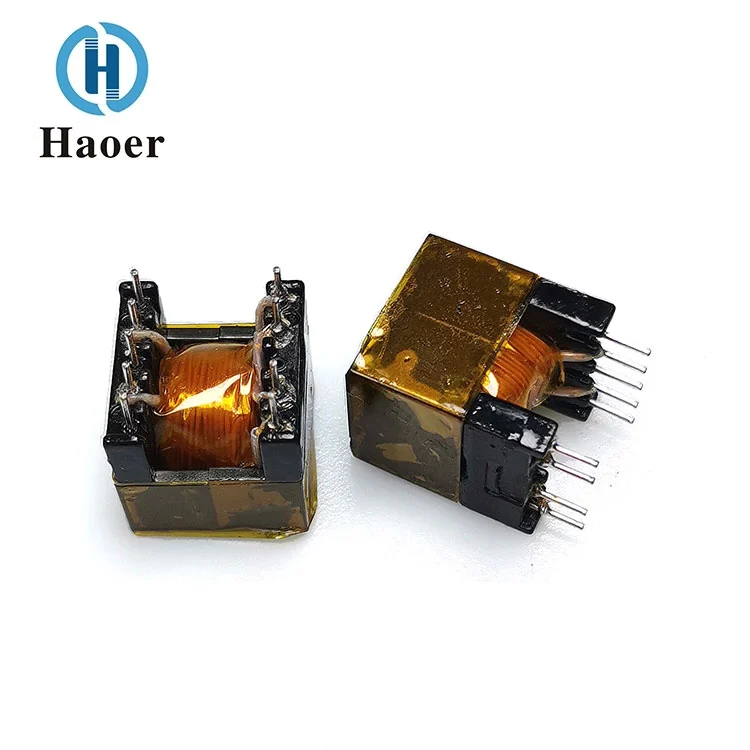

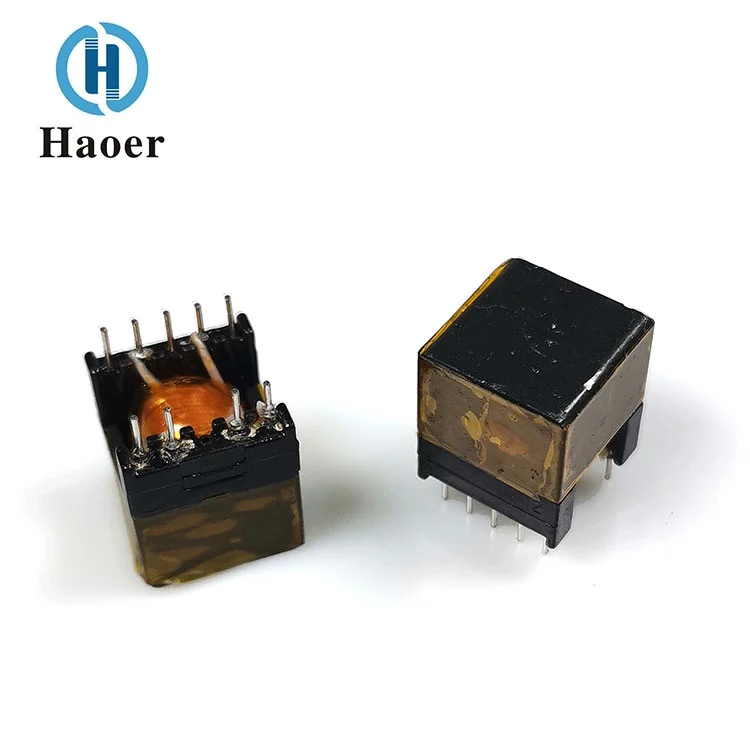

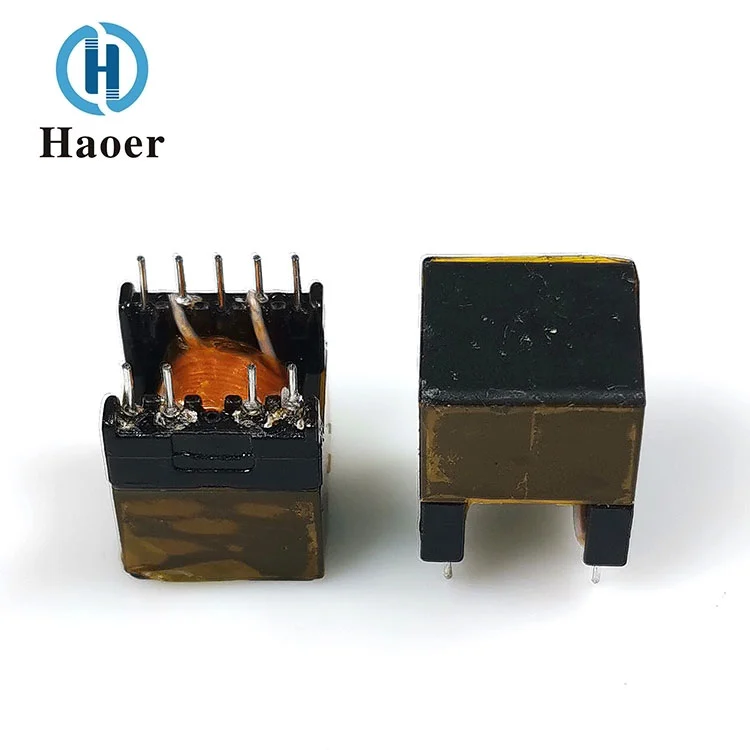

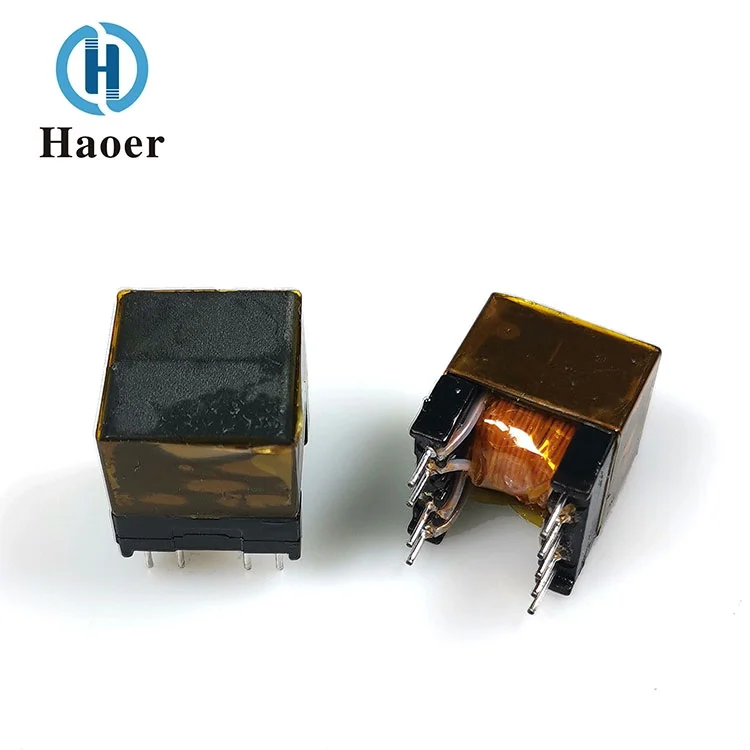

Network Communication Equipment High-Frequency Transformer

The Network Communication Equipment High-Frequency Transformer supplied by Haoer Factory is also used for the driving and coupling of antennas, playing a role in amplifying and transmitting signals, thereby improving communication quality and efficiency. In modern communication networks, high-frequency transformers are also widely applied in fields such as optical fiber communication and satellite communication to ensure stable signal transmission.

Feature

High-frequency transformers aim for miniaturization and lightweight design to adapt to the characteristics of small volume and light load of electronic devices. The magnetic cores use high-frequency magnetic materials such as ferrite and Teflon, which can achieve efficient transmission at high frequencies, reduce magnetic energy dissipation, and thereby improve the efficiency and stability of power transmission. This design of high-frequency transformers not only reduces costs but also facilitates integration into various electronic devices, promoting the intelligence and miniaturization of electronic products.

Feature

Small in size, excellent magnetic shielding, low price and high reliability.

Specification:

EP7/EP10/EP13/EP17, etc.

Application scope

It is commonly used in DC-DC converters, drive transformers, and common-mode inductors of switching power supplies.

Technical Specifications

Performance:

1. Operating Frequency: 20 kHz - 500 kHz

2. Output Power: 1 to 25 watts

3. Operating Temperature: -40°C to +125°C

4. Storage Temperature: -25°C to +85°C

5. Storage Humidity: 30% - 95%

Parameter Table

Certificate
