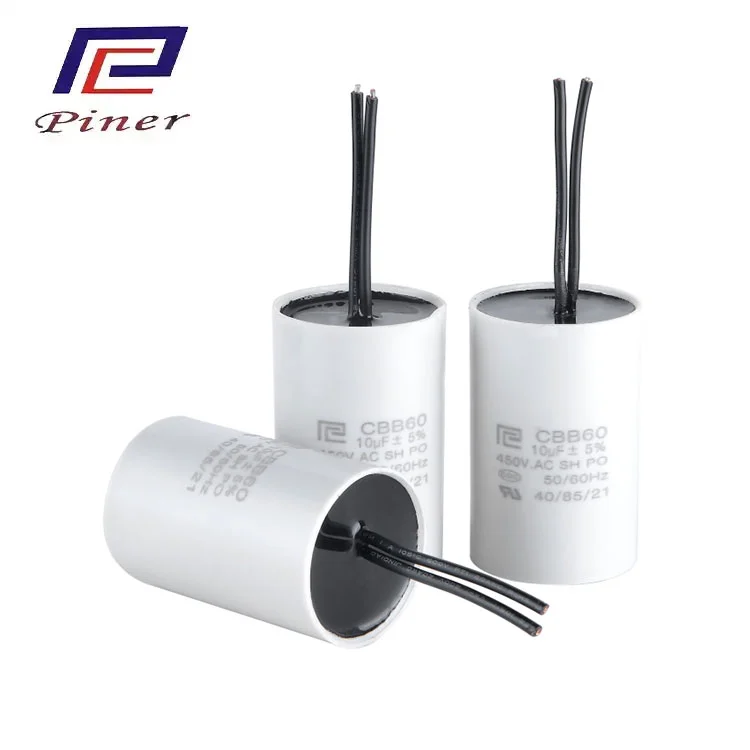

- Metallized polypropylene (MPP) film capacitor;
- Dry structure;
- Flame retardant plastic or aluminum can;
- Epoxy filling;
- S3 or S0 class;
- Long life;
- Better price/performance ratio;
Application: AC motor start or motor running for water pump, washing machine, paper smashing machine etc.
| Reference standard | GB/T3667.1, UL810, IEC60252-1 |
| Climatic category | 25/70/21、25/85/21、40/70/21、40/85/21 |
| Rated voltage | 150VAC ~ 600VAC (50/60HZ) |
| Capacitance range | 1µF ~ 100µF |
| Capacitance tolerance | ±5%(J), ±10%(K) |
| Testing voltage | |
| between terminals | 2UN (VAC)/60s (CQC, VDE, TUV) 1.5UN (VAC)/60s (UL) |
| between terminals and case | 2UN+1000 (VAC)/60s (≥2000VAC) |
| Dissipation factor | ≤0.0020(100HZ) |
| Class of safety protection | CQC, VDE, TUV: S0, S3 |
Dimension Unit: mm
* For ordinary household appliances (rice cookers, televisions, chargers), using standard X2 (S3 level) capacitors is sufficient.
* For industrial frequency converters, server power supplies, and medical equipment, it is recommended to choose SO grade or X2 capacitors clearly labeled as "high reliability" or "enhanced".
Using High-Quality Metal Film
Adopting high-quality silver zinc aluminum edge thickened metallization film, the effective gold spraying area on the side is increased by 20%, which can withstand high surge and high temperature.
Brand Direct Sales, Factory Direct Sales
Factory direct sales, first-hand source of goods, eliminating intermediate links, saving you every penny.
Longer Lifespan, Quality Assured
High quality raw materials, strict quality control
Using high-purity tin zinc alloy, the gold spraying thickness can reach over 0. 35mm. The product has excellent electrical performance, low loss, long service life, and reliable product quality and safety.
The After-Sales Team Provides Technical Support
A strong pre-sales and after-sales service team provides peace of mind
Piner not only has a product development technology team, but also an after-sales technical service team, with multiple engineers proficient in PCB design, providing customers with free solutions to product design and application problems.
We offer express delivery methods including DHL, UPS, TNT, FedEx, and also support on-demand air or sea freight options.
Guangdong Haoer Electronics Co., Ltd. and Foshan Piner Electronics Co., Ltd. are not only manufacturers of high-frequency transformers and capacitors, but also reliable partners for comprehensive technical solutions. We deeply understand that excellent products are only half the battle for success. Professional, efficient, and reliable services are the cornerstone for ensuring project success and achieving win-win cooperation.
To this end, we have established a comprehensive service system that runs through the entire chain of pre-sales, sales, and after-sales.
1.Accurate pre-sales support: At the beginning of product selection, our expert team works shoulder to shoulder with you to ensure that the solution is accurate and efficient from the beginning.
2.Reliable in sales execution: When the project enters the implementation phase, we ensure timely, quality, and quantity delivery of products through rigorous process management.
3.Worry free after-sales service: Product delivery is not the end, but the beginning of our long-term service commitment. We have a one-stop customer service hotline/email for quick response to your inquiries
Choosing Guangdong Haoer Electronics Co., Ltd. or Foshan Piner Electronics Co., Ltd. will provide you with a stable, professional, and responsible support, allowing you to focus more on core innovation in the challenging field of power electronics.
Question:Are you a manufacturing factory or a trading company?
Answer: We are a manufacturer with our own factory and provide one-stop supply chain services.
Question:How to ensure product quality and after-sales service?
Answer: We provide a 12-month quality assurance and have an after-sales team to promptly address customer issues.
Question:Can you provide customized products?
Answer: Yes. We support adjusting product specifications according to your needs logo、 Packaging, etc. Please provide specific design or requirements, we will evaluate feasibility and provide a solution.
Question: Can you stick our logo on the product?
Answer: Yes, we can.
Question:Can you provide samples? How to calculate the sample cost?
Answer:Samples can be provided. Regular product samples are free, but customers need to bear the shipping cost. Customized samples are charged a cost fee, and the sample fee can be refunded after placing a bulk order.
