Safe and Explosion proof: Adopting flame-retardant plastic shell and explosion-proof structure, internal directional pressure relief is used in case of failure to eliminate the risk of explosion and ensure safe use at close range.
Motor specific: Accurately matched with low-power (≤ 1kW) single-phase motors, providing stable phase-shifting current to ensure efficient, smooth, and low-noise operation of the motor.
Efficient and energy-saving: Polypropylene film medium brings extremely low losses, reduces self heating, and improves the overall energy efficiency of the motor.
Stable and durable: epoxy resin vacuum impregnation process, moisture-proof and shockproof; Metallized film has self-healing function, long service life, and maintenance free.
Strong environmental adaptability: wide working temperature range (-40 ℃~+85 ℃), able to adapt to high and low temperature environments; The fully sealed structure is resistant to moisture and oil stains.
Easy installation: Designed with no polarity for communication, providing multiple standard interfaces such as hard pins and soft leads, making installation flexible and convenient.
Environmental compliance: The shell and materials comply with flame retardant (UL94 V-0) and environmental protection (RoHS) standards, meeting market access requirements.
Typical Applications:

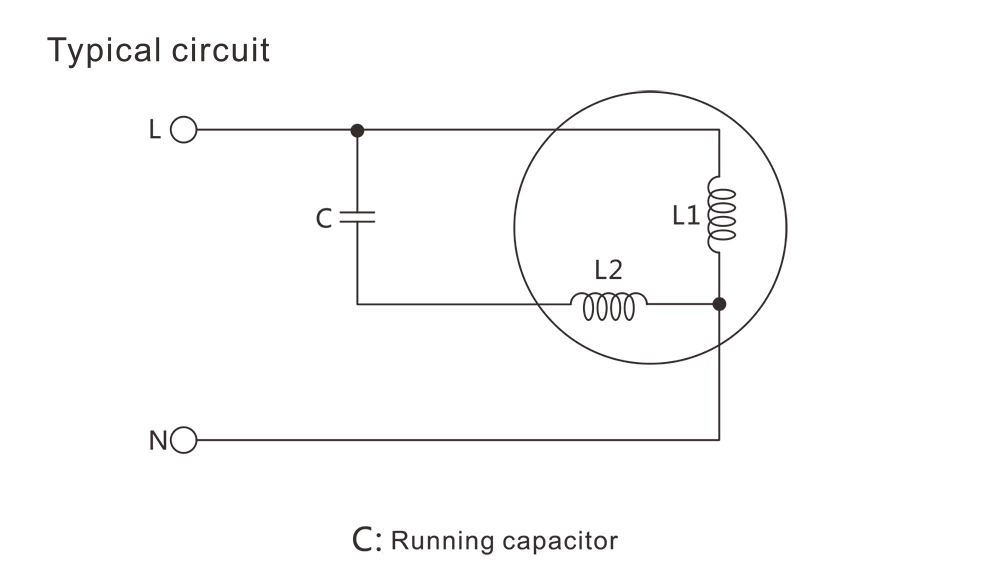

Suitable for starting and operating circuits of various low-power single-phase motors such as range hoods, indoor air conditioning fans, exhaust fans, bathroom heaters, household water pumps, etc
| Reference standard | GB/T3667、UL810、IEC60252 |
| Climatic category | 27/70/21、25/85/21、40/70/21、40/85/21 |
| Rated voltage | 250VAC、450VAC (50/60HZ) |
| Capacitance range | 1μF ~ 8μF |
| Capacitance tolerance | ±5%(J)、±10%(K)、+10/-5% (U) |
| Testing voltage | |
| between terminals | 2UN(VAC)/60s |
| between terminals and case | 2UN+1000(VAC)/60s(≥ 2000VAC) |
| Insulation resistance (20°C) | |
| between terminals and case | ≥ 2000MΩ（500VDC，60s） |
| Dissipation factor | ≤ 0.0020(100Hz) |
| Class of safety protection | S3(P2) |

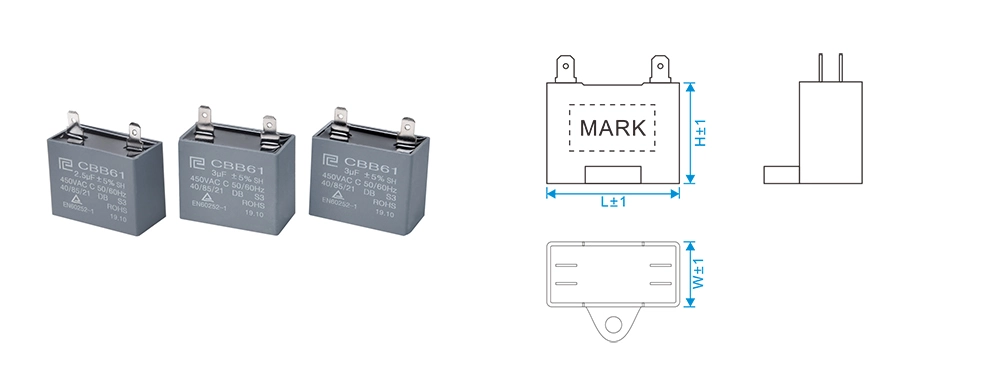

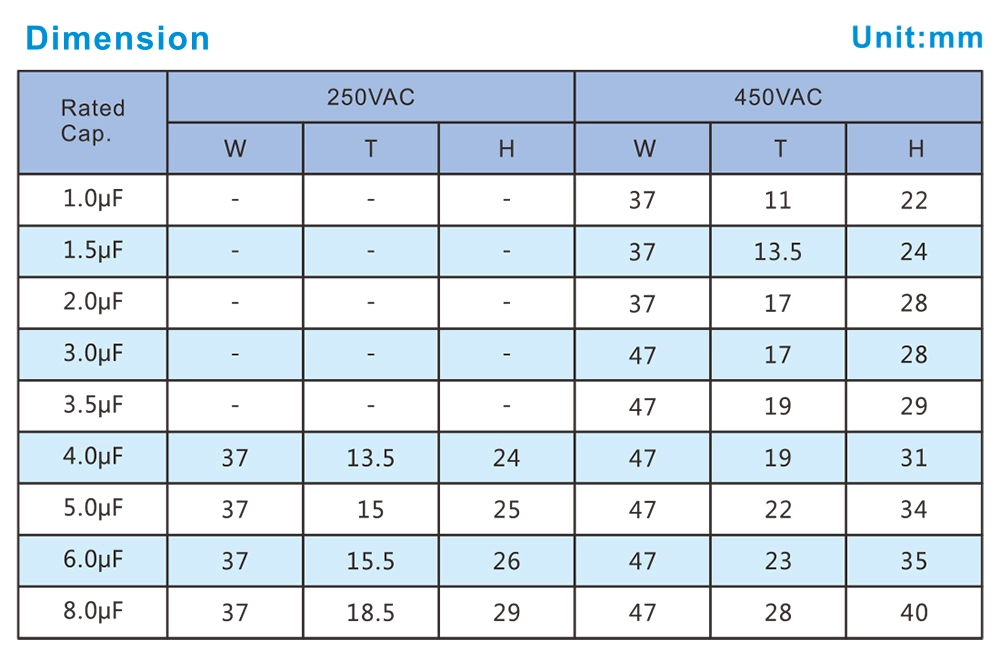

Dimension Unit: mm

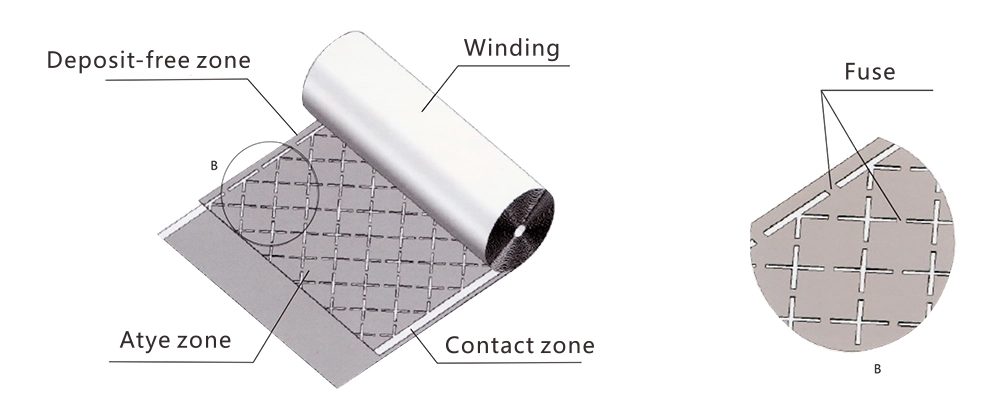

The metallization electrode adopting micro fuse mesh structure(pictured), and in the capacitance operation is at fault, through the micro fuse disconnect, which cut off power supply, prevent fault expand to self protection safely purposes.
Foshan Piner Electronics Co., Ltd. (established in 2014) is a professional manufacturer of thin film/industrial capacitors, with a self built factory of 10000 square meters, a staff scale of over 1000, and an annual output of over 100 million capacitors.
Our core products include CBB series, safety capacitors, and induction cooker specific capacitors, which are widely used in various fields such as new energy, rail transit, and automotive electronics. We supply to globally renowned enterprises and export our products to global markets such as Europe, America, Japan, South Korea, and Southeast Asia.
The entire series of products have passed authoritative certifications such as UL, VDE, CQC, ISO9001, TS16949, etc., and comply with RoHS/REACH environmental standards. With dual guarantees of quality and compliance, we are your trusted partner.
Piner after-sales service | professional escort, fulfilling our trust
✅ A professional engineering team is stationed to provide free technical support, troubleshooting, and design guidance
✅ Quick response, efficient follow-up, one-on-one exclusive service throughout the process, without delaying production
✅ Quality assurance, full process guarantee for non-human quality issues, effectively safeguarding customer rights and interests
Piner, we sell high-quality capacitors and strive for lifelong protection. Your satisfaction is our constant pursuit!
We offer express delivery methods including DHL, UPS, TNT, FedEx, and also support on-demand air or sea freight options.
