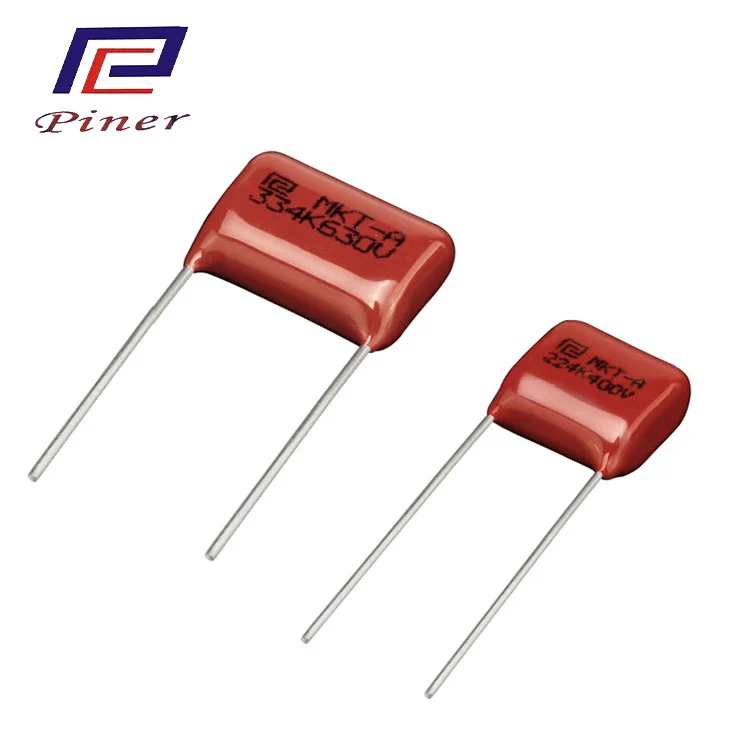

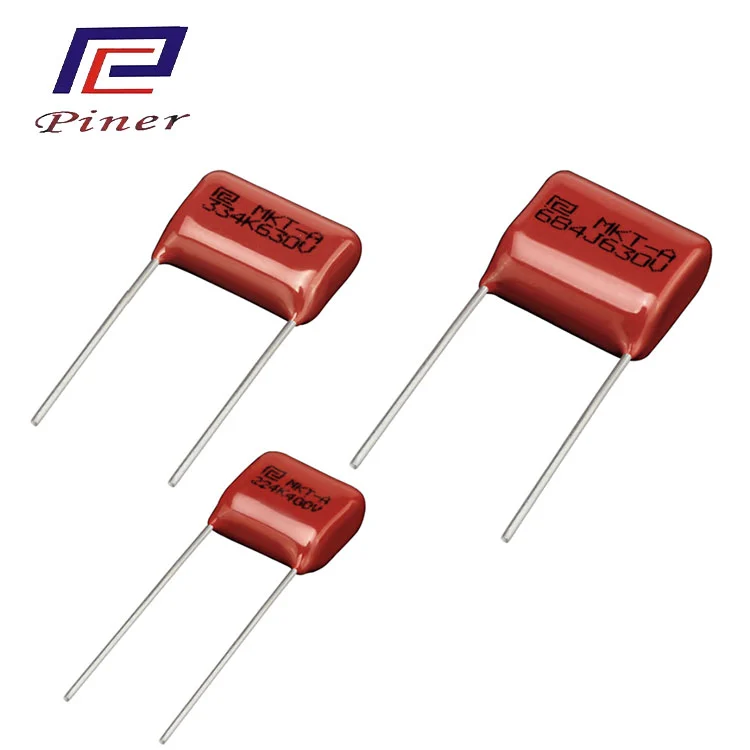

Ignition Circuit Capacitor

The Ignition Circuit Capacitor produced by Piner Manufacturer is a specialized model for ignition systems using metallized polyester (PET) film capacitors. It has been customized for the instantaneous high-voltage pulses, high-frequency charging and discharging, and high-temperature vibration core conditions of various high-voltage electronic ignition circuits. It focuses on the characteristics of high-voltage pulse resistance, rapid charging and discharging, and high-temperature vibration resistance. It is a key component for achieving energy storage - instantaneous energy release in the ignition system. It perfectly meets the special requirements of ignition circuits in internal combustion engines, fuel equipment, etc. Compared to the general-purpose MKT capacitor, it achieves a qualitative improvement in pulse resistance, cycle service life, and adaptability to harsh working conditions. It is widely used in automobiles, motorcycles, fuel-powered equipment, and industrial/military ignition devices.

Exceptionally strong high-voltage pulse resistance:

Designed specifically for the instantaneous high-voltage pulse during ignition, it can withstand high-frequency pulse impacts several times the rated voltage without breakdown or corona discharge. The pulse response is fast, perfectly meeting the "instantaneous high-voltage energy release" requirements of the ignition circuit;

· Efficient and rapid charging and discharging capability:

The core has extremely low resistance, and the non-inductive structure design reduces charging and discharging losses, enabling rapid energy storage - instantaneous energy release, ensuring sufficient ignition spark energy, and solving problems such as weak ignition and flameout;

· Stable operation within a 120℃ temperature range:

Rated operating temperature is -40℃ to +120℃. It can adapt to high-temperature working conditions such as engine compartments and fuel stove cavities. Under high temperatures, the insulation resistance and capacity do not significantly decrease, and under low temperatures, there is no performance freezing. It meets the complex high-temperature environments of outdoor and vehicle use;

· Ultra-high frequency charging and discharging cycle:

The number of charging and discharging cycles is ≥ 10⁶ times, far exceeding that of general MKT capacitors. It can meet the usage requirements of long-term high-frequency ignition of fuel equipment, and the service life matches the ignition system as a whole;

· Reliable self-healing under high temperature:

The thickened high-density metallized electrodes optimize the self-healing triggering mechanism. Under 120℃ high temperature and high-voltage pulse dual conditions, local breakdown can still be completed instantly, avoiding capacitor failure and causing the ignition system to collapse;

· Excellent vibration and shock resistance:

The core body is tightly fixed, and the pins are reinforced and welded. It can withstand high-frequency vibrations of vehicle/mobile fuel equipment (in line with vehicle vibration standards), without core body loosening or pin breakage, and is suitable for mobile/fixed ignition equipment;

· Resistance to harsh environmental conditions:

Fully sealed epoxy packaging, moisture-proof, oil-proof, dust-proof, can work long-term in oil stains, oil fumes of fuel equipment, and dust conditions of industrial equipment, and the insulation performance does not decrease;

· Non-polar design, flexible installation:

No need to distinguish positive and negative poles. It can directly adapt to the pulse DC scenarios of the ignition circuit. The pin spacing is standardized, suitable for the PCB insertion / wiring installation of various ignition modules and igniters, and no additional adjustment of the circuit is required.

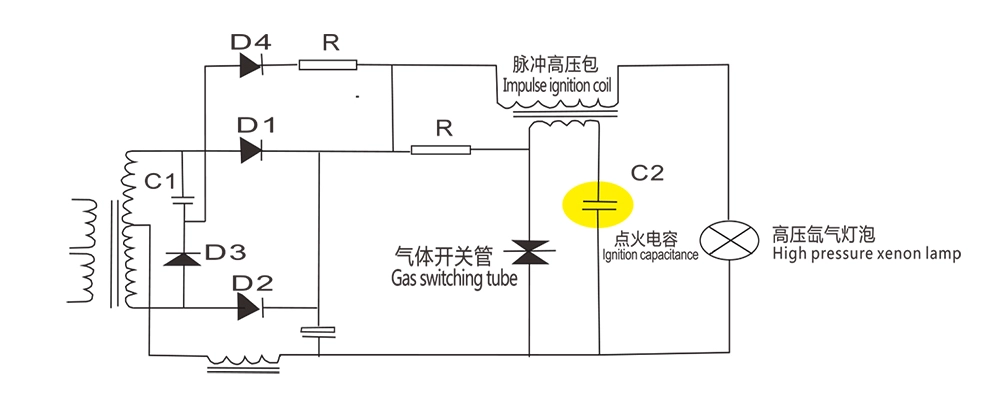

Typical circuit application

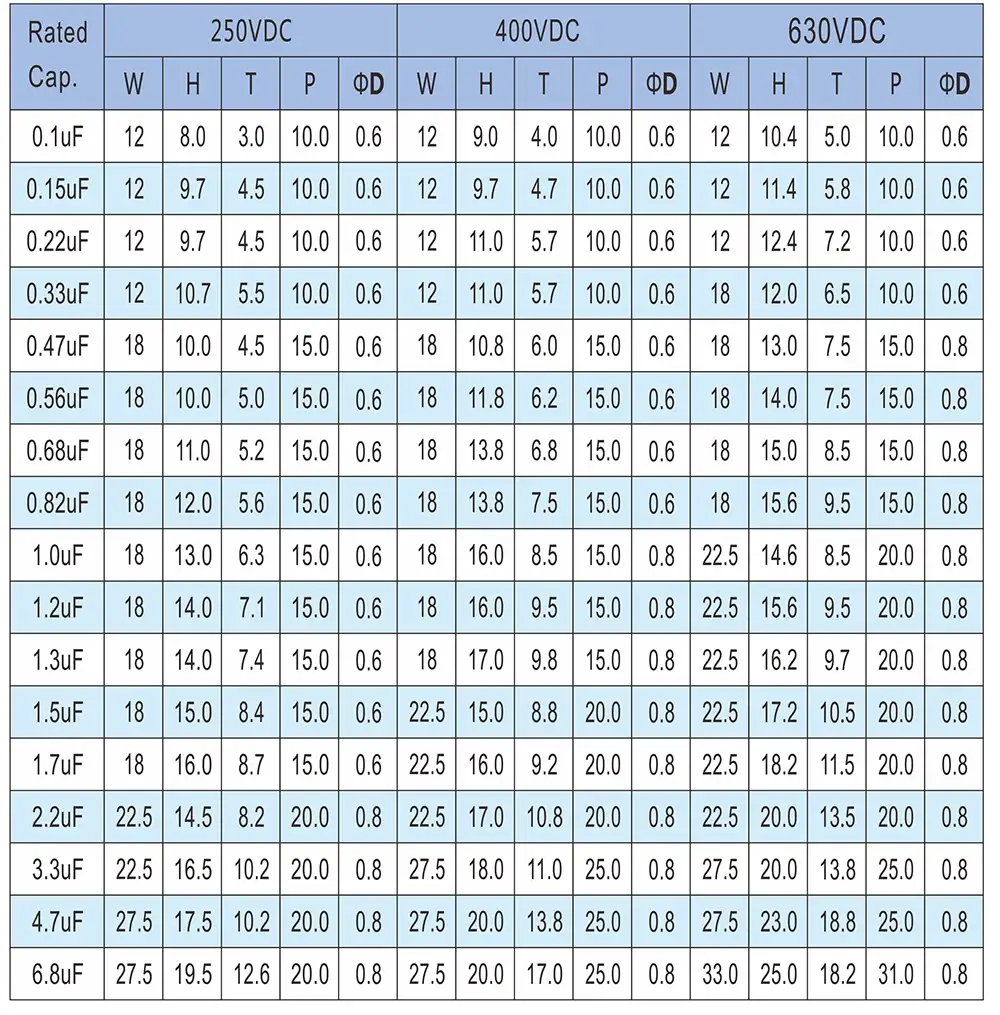

MKT Regular specs

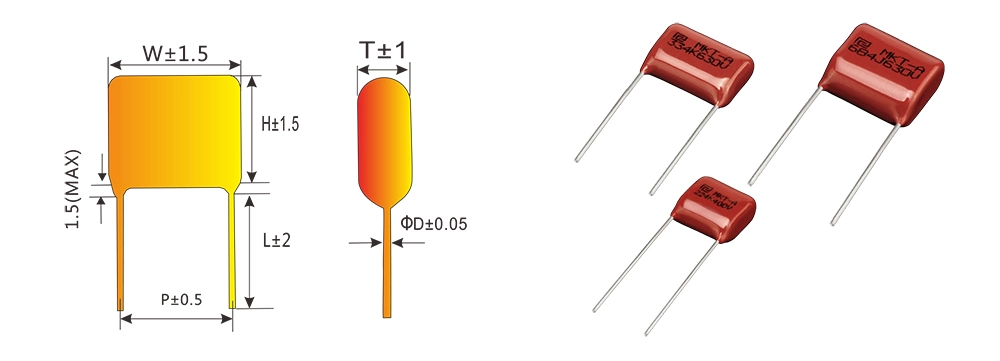

MKT Film Capacitor Dimension Unit:mm

Note: The above size is for reference only. Customization according to customers’ requirements is available.

Application fields

The Ignition Circuit Capacitor is a dedicated core component for all high-voltage electronic ignition systems. It is widely used in fuel-powered equipment that requires "high-voltage pulse ignition and instantaneous energy storage release", as well as civilian ignition devices and industrial ignition equipment. Typical applications are as follows:

1. Vehicle fuel-powered equipment: Electronic igniters (CDI), ignition modules, high-voltage packs auxiliary circuits for automobiles, motorcycles, and tricycles, responsible for storing and instantly releasing energy for ignition, improving ignition efficiency;

2. General fuel-powered machinery: Ignition circuits for small fuel-powered machinery such as gasoline generators, diesel engines, chainsaws, lawn mowers, sprayers, etc., suitable for complex working conditions in outdoor mobile, high-temperature, and vibration environments;

3. Civilian fuel stoves / heating equipment: High-voltage electronic ignition devices for gas stoves, liquefied gas stoves, fuel heaters, barbecue grills, etc., solving the compatibility issues for high-temperature and oil-stained working conditions of stove cavities;

4. Industrial ignition equipment: Electronic ignition systems for industrial boilers, incinerators, fuel furnaces, and paint baking rooms, suitable for industrial sites with high temperatures, dust, and frequent ignition requirements;

5. Ship / construction machinery ignition systems: Ignition modules for ship diesel engines, excavators, loaders, etc., adapted to harsh working conditions such as high humidity on ships and vibration from construction machinery;

6. Other high-voltage ignition devices: Special high-voltage pulse ignition equipment for fireworks ignition devices, outdoor ignition devices, etc., providing stable energy storage and release support.

Factory Strength

Foshan Pin'er Electronics Co., Ltd. is a domestic professional manufacturer of film capacitors. It focuses on the research, production and sales of metallized polypropylene film capacitors. The company adheres to the concept of "technology-driven, quality-first", and has established a full-process self-controlled system from materials to finished products, providing high-reliability capacitor products for the fields of new energy, industrial control, and consumer electronics.

To ensure quality and efficiency, Pir Electronics has equipped itself with industry-leading fully automated production and testing equipment, including:

High-speed winding machine: Achieves precise winding of films, ensuring product consistency;

Vacuum electroplating machine: Enhances electrode conductivity and surge resistance capability;

Fully automatic welding assembly machine: Achieves visual positioning and laser welding, enhancing production efficiency;

Intelligent Capacitor Tester: Conducts comprehensive parameter testing and data traceability for the product;

Epoxy mixing and pouring machine: Achieves bubble-free packaging, enhancing the moisture-proof and insulation properties of the products.

Through advanced equipment and strict quality control, Piel Electronics achieves full production traceability, ensuring that each product has stable performance, is reliable and durable.
