1. High frequency with low power consumption, stable resonant performance: The non-inductive winding design of the Induction Cooker Capacitor manufactured by Piner Factory completely eliminates high-frequency inductive reactance, and the low-loss medium ensures high energy conversion efficiency at 20-30kHz operating conditions, with no frequency deviation in resonance, and uniform heating power without heating interruptions in the electromagnetic stove.
2. High voltage tolerance and large current capacity, suitable for full power range: DC 1200V/1600V high voltage, 10-30A large ripple current carrying capacity, perfectly compatible with 1800W household to 3500W commercial electromagnetic stoves, capable of withstanding instantaneous power surges.
3. High temperature resistance and anti-aging, strong environmental adaptability: High-temperature epoxy resin encapsulation + 105℃ temperature-resistant plastic housing, suitable for the harsh environment inside the electromagnetic stove, such as high temperature, dust, and vibration, with no capacity attenuation or housing deformation during long-term operation.
4. Explosion-proof safety, worry-free use: Built-in industry-specific explosion-proof concave pressure release structure, automatically releases pressure in case of overpressure/overcurrent/high temperature, preventing shell explosion, and eliminating the risk of fire or explosion caused by capacitor failure in the electromagnetic stove from the source.
5. Efficient self-healing, low failure rate: Thickened zinc-aluminum composite electrodes have efficient self-healing characteristics, allowing for rapid isolation of fault points during local breakdown at high frequencies, avoiding complete capacitor failure, and significantly reducing the maintenance rate of the electromagnetic stove.
6. Standardized design, strong installation compatibility: Plug-in/welding pad sizes are industry-standard, perfectly compatible with various electromagnetic stove circuit board layouts, securely welded, without additional installation and debugging requirements, and compatible with the entire production line of the machine.

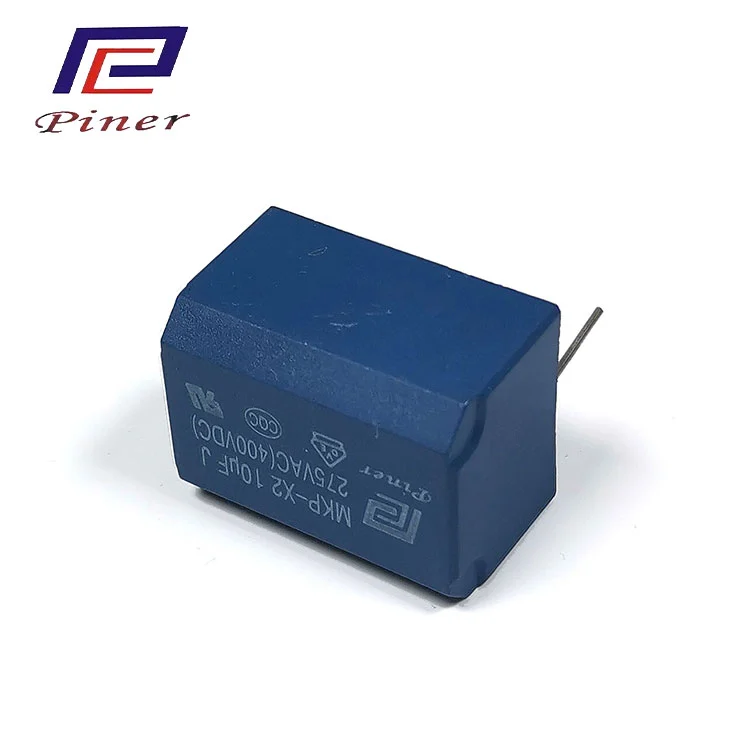

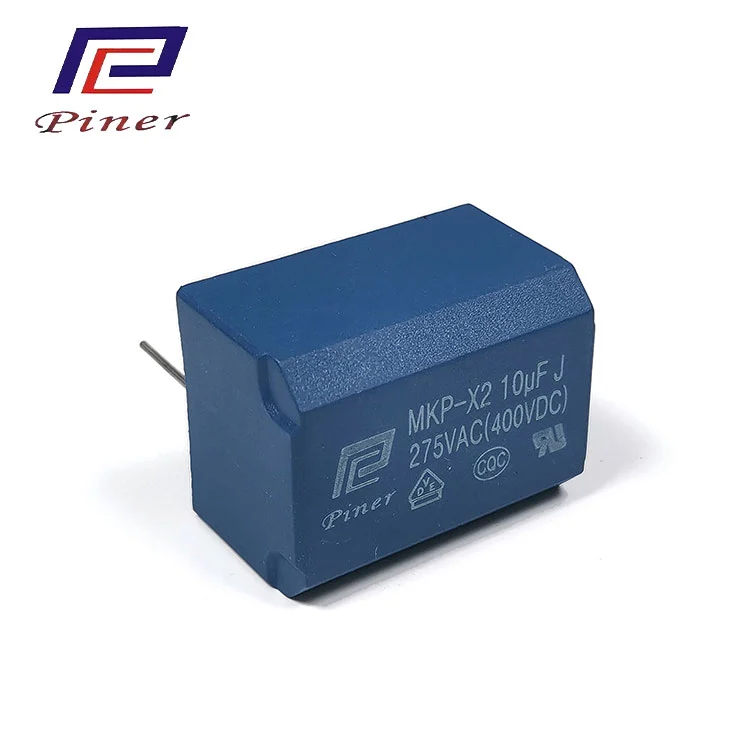

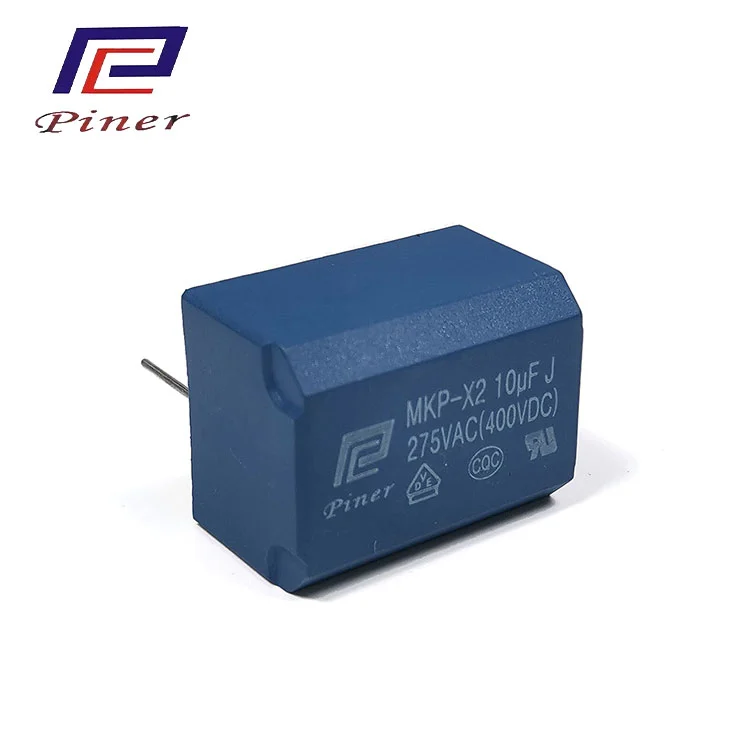

| Smooth filtration capacitance | |
| Reference standard | GB/T14472 IEC60384-14 |
| Climatic category | 40/105/21 |
| Rated voltage | 400VDC(275VAC) |
| Capacitance range | 3uF ~ 15uF |
| Capacitance tolerance | ±5%(J),±10%(K) |
| Between terminals Voltage proof | 1.8Un DC(60s) |
| Insulation resistance (at 20℃) | ≥5000s CR>0.33uF (100vdc 60s) |
| Withstand current ability | dv/dt≥30v/us |
| Dissipation factor | DF≤0.0010(1KHz) |

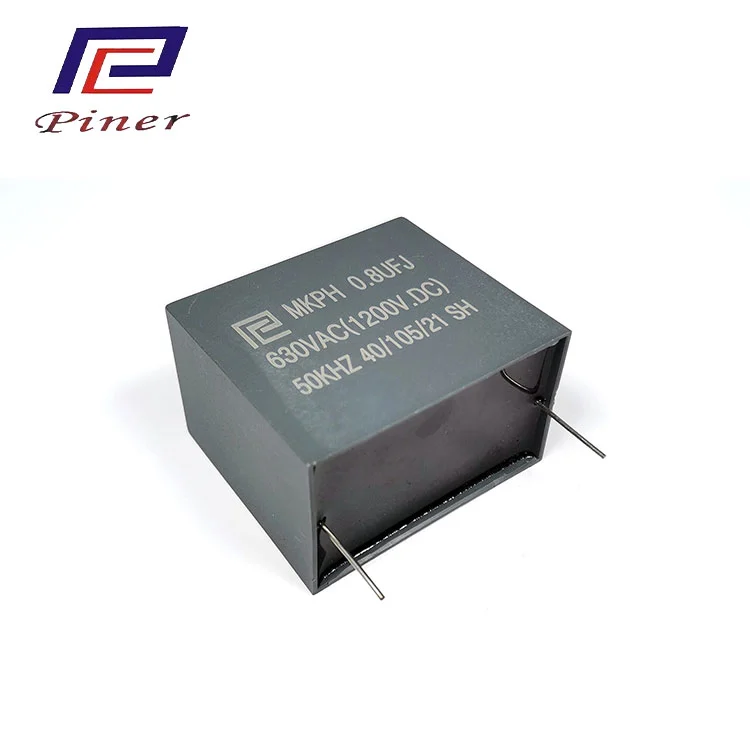

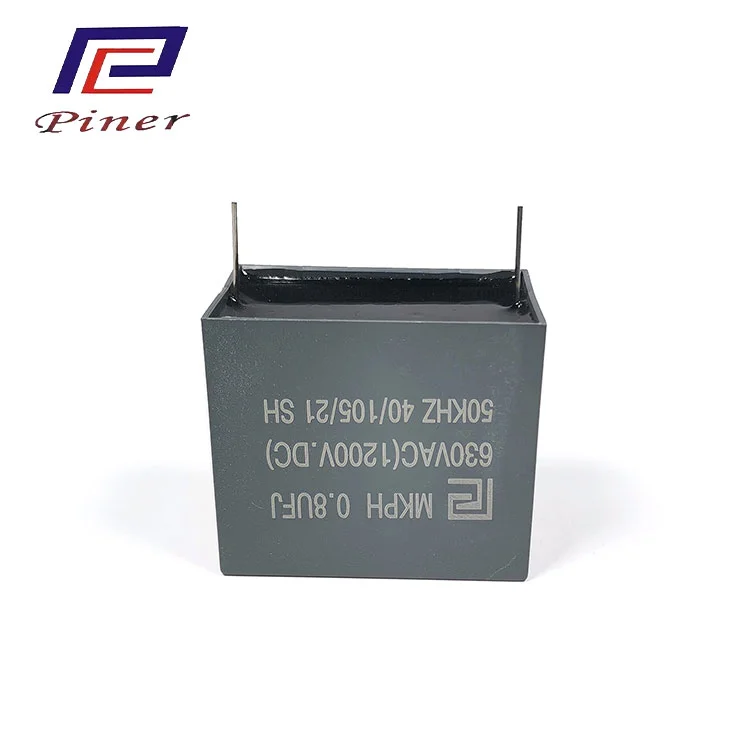

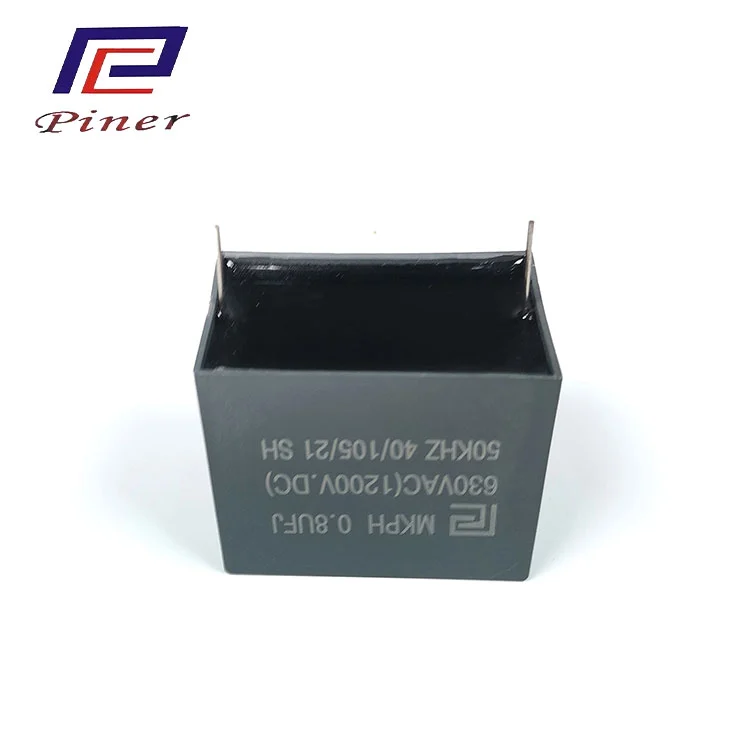

| Resonant capacitance | |
| Reference standard | GB/T17702 IEC61071 |
| Climatic category | 40/105/21 |
| Rated voltage | 1000VDC\1200VDC |
| Capacitance range | 0.01uF ~ 1uF |
| Capacitance tolerance | ±5%(J),±10%(K) |
| Between terminals Voltage proof | 1.8Un DC(10s) |
| Insulation resistance (at 20℃) | ≥30000s(100vdc 60s) |
| Withstand current ability | dv/dt≥500v/us |
| Dissipation factor | DF≤0.0010(10KHz) |
The Induction Cooker Capacitor is specifically designed for the high-frequency resonant circuit of induction cookers. It is a core standard component for both household and commercial induction cookers.
* Household induction cookers: 1800W, 2100W, 2500W desktop / embedded induction cookers, induction cooktops
* Commercial induction cookers: 3000W, 3500W high-power commercial induction stoves, kitchen / back kitchen heating furnaces
* Induction heating accessory equipment: small induction heating pots, induction tea cookers, miniature induction heating modules
* Industrial small-scale induction heating equipment: laboratory induction heating instruments, small-scale workpiece induction heating equipment
Foshan Pin'er Electronics Co., Ltd. was established in 2014. It is a large-scale professional film capacitor manufacturing enterprise that integrates R&D, design, production, sales and after-sales service. The production and sales volume of its products has consistently ranked at the forefront among its peers in Guangdong Province over the years.
The company is highly capable and has built a 10, 000-square-meter high-standard factory of its own. Currently, it has over 1, 000 employees, among whom there are 200 engineering technicians. It also has an exclusive enterprise engineering technology research and development center. With profound technical expertise and strong R&D capabilities, it holds multiple patents in the capacitor field, laying a solid foundation for product innovation and quality stability.
The company's product matrix is well-structured, precisely covering the three core areas of household use, commercial industry, and consumer electronics. The details are as follows:
Household products: Our main products include MKP-X2 and MKPH series dedicated capacitors for household electric stoves. With high-quality product quality and considerate after-sales service, we have established an excellent market reputation in the household induction heating industry.
2. Commercial and industrial products: The core products include DC-link capacitors, IGBT absorption protection capacitors, MKPH high-voltage resonant capacitors, coupling capacitors, and input/output filter capacitors. The products have a wide range of applications and can be adapted for commercial electric stoves, induction heating equipment, UPS, small power inverters, high-frequency switching power supplies, welding machine power supplies, electroplating power supplies, high-power frequency inverters, electric vehicles, etc. At the same time, they are also widely used in the new energy fields such as wind energy/solar energy power generation and conversion/frequency conversion equipment.
3. Consumer electronic products: Mainly include CBB61 and CBB60 series AC motor capacitors, as well as safety standard capacitors, frequency division capacitors, ignition filtering capacitors, filters and other related product series. They are widely used in various consumer electronics and household appliances such as range hoods, microwave ovens, washing machines, and office equipment.
