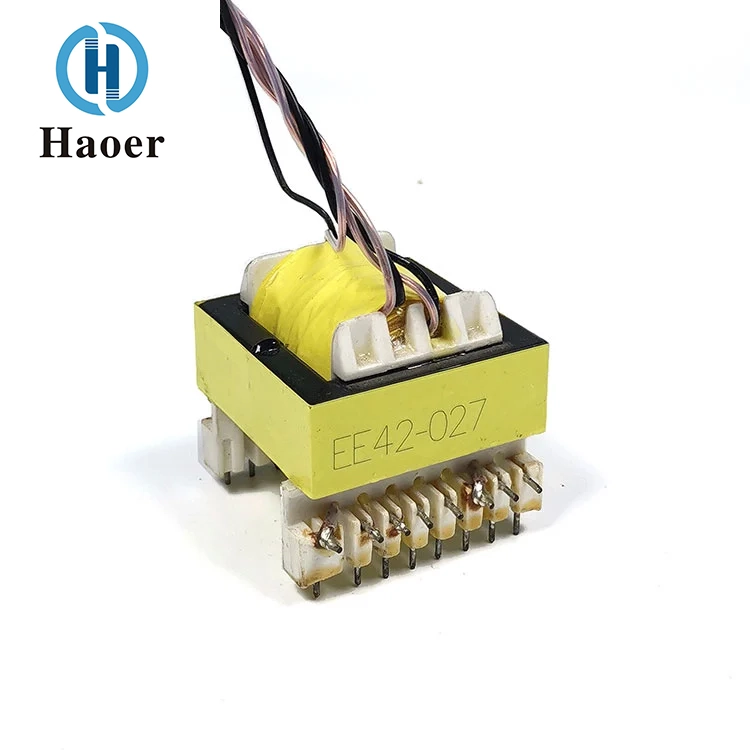

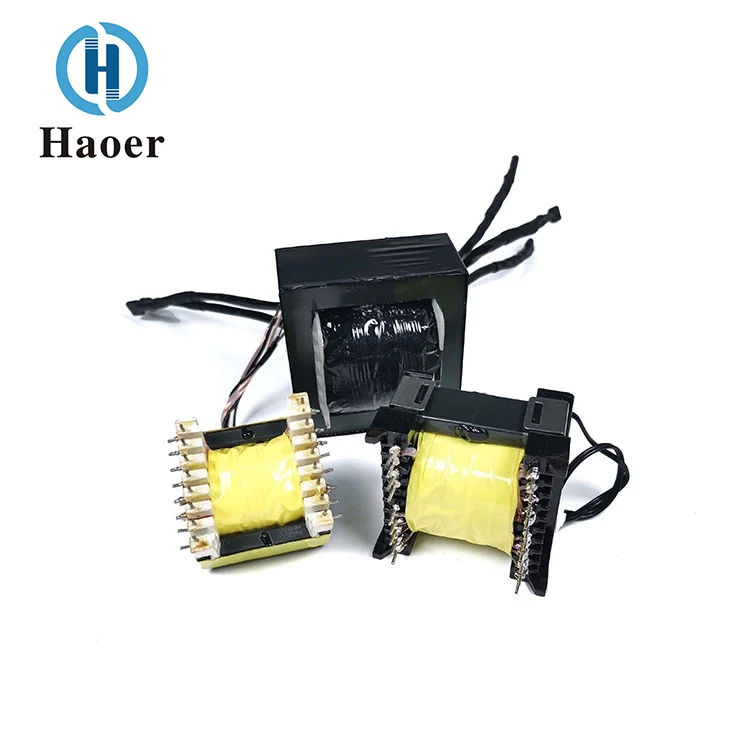

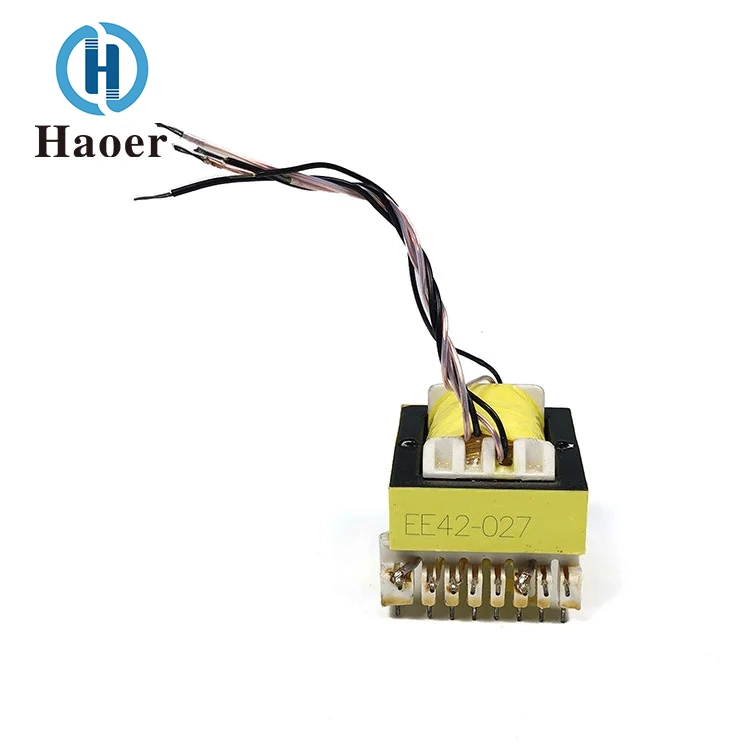

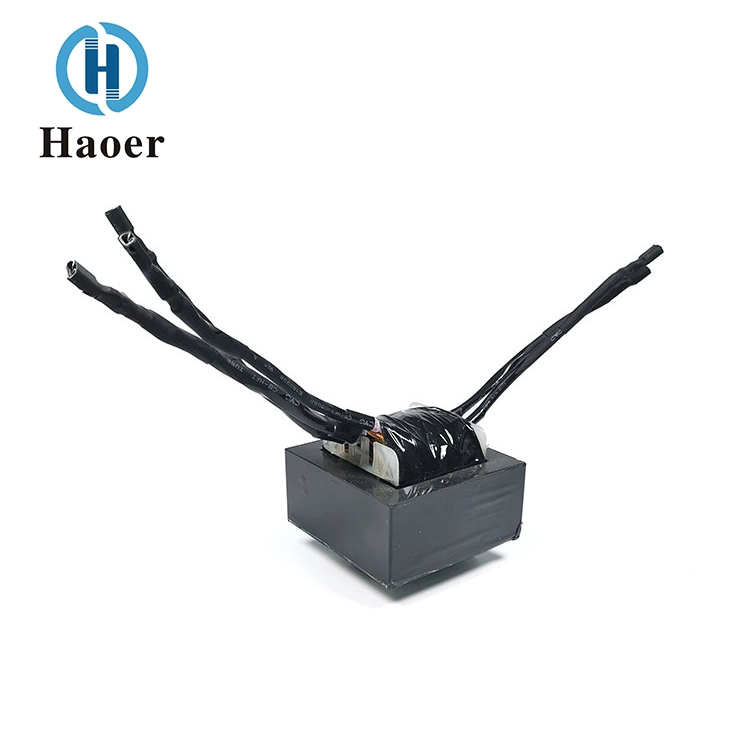

The China LED driver power supply flyline high-frequency transformer produced by Haoe is a high-frequency transformer specifically designed for LED lighting drives. Its core feature lies in the use of a special "flyline" process. Here, "flyline" is not a temporary modification but an integral part of the product's original design. It refers to the use of independent insulated wires to solder and connect specific pins on the transformer frame to complete the complex winding layout.
This design is mainly aimed at enabling flexible multi-output realization or meeting the safety requirements of high-voltage insulation within the compact space of the LED driving power supply. The flyline effectively solves the problem of insufficient internal winding space, and by using high-specification insulated wires, it ensures that the primary and secondary circuits can withstand a safety isolation voltage of up to several thousand volts, meeting strict certifications such as UL and CE.
Therefore, it is a high-frequency core component that has been certified and ensures performance, safety and space efficiency through the use of jumper wires as a key process.
It has high initial and secondary pressure resistance, strong anti-interference ability, and meets the requirements of specification certification, but it is not convenient for production operations.
Specification: EE jumper wire / EPC jumper wire / EFD jumper wire / EF jumper wire / PQ jumper wire, etc.
It is widely used in small household appliance control boards, switching power supplies, DC-DC converters, LED driving power supplies, network equipment, automotive electronics, power adapters, etc.
| Operating Frequency | 20 kHz - 500 kHz |
| Output Power | 0.5 to 500 watts |
| Operating Temperature | -40°C to +125°C |
| Storage Temperature | -25°C to +85°C |
| Storage Humidity | 30% - 95% |
Our LED driver power supply flyline high-frequency transformer boasts excellent environmental adaptability and can operate stably within the harsh working temperature range of -40℃ to +125℃. It is also suitable for storage environments with a humidity range of -25℃ to +85℃ and 30% to 95%. It can handle various complex outdoor and indoor conditions. The product strictly complies with safety standards. The flyline is equipped with high-grade insulation sleeves to ensure insulation reliability, effectively suppress EMI interference, and ensure the safety, compliance, and stable output of the LED driver power supply. This provides a core guarantee for the efficient and long-lasting operation of LED lamps.
| PART NO. | TERMINAL PINS | Dimensionsin mm(inches) | TYPE | |||||
| A | B | C±0.5 | D±0.5 | E±0.5 | F | |||
| EE-8.3 | 6 | 8 | 8 | 6 | 4 | 2.5 | 8.3 | V |
| EE-10 | 8 | 11.5 | 10.2 | 8 | 4 | 2.5 | 10.2 | V |
| EE-13 | 10 | 12 | 12.5 | 8.5 | 4 | 2.5 | 13 | V |
| EE-16-1 | 6 | 14.8 | 13.3 | 9 | 4 | 3 | 16 | V |
| EE-16-2 | 10 | 15.4 | 13 | 10.5 | 4 | 3.2 | 17.1 | V |
| EEL-16 | 10 | 28.5 | 16 | 12.3 | 4 | 4.3 | 21.9 | V |
| EE-19-1 | 8 | 17.6 | 16 | 10 | 4 | 5 | 19 | V |
| EE-19-2 | 10 | 17.2 | 16.2 | 13 | 4 | 3.9 | 20 | V |
| EEL-19 | 10 | 31.5 | 16 | 10.5 | 4 | 4 | 21.1 | V |
| EEL-19-1 | 10 | 15.6 | 30 | 24.1 | 4 | 3.5 | 21 | H |
| EE-25-1 | 6 | 20 | 18.2 | 12.5 | 4 | 6.3 | 25.2 | V |
| EE-25-2 | 8 | 21.7 | 17.5 | 12.6 | 4 | 5 | 25.2 | V |
| EE-25-3 | 10 | 22.2 | 25 | 15.4 | 4 | 5 | 26.1 | H |
| EEL-25 | 8 | 35.3 | 17.5 | 12.5 | 4 | 5 | 25.2 | V |
| EE-30 | 10 | 21 | 29.2 | 25.2 | 4 | 5 | 30 | H |
| EE-40 | 14 | 27.6 | 30.5 | 25.8 | 4 | 5 | 40 | H |
| EE-42/15-1 | 12 | 33.8 | 44 | 35.5 | 4 | 5 | 42 | H |
| EE-42/15-2 | 16 | 41.3 | 48 | 37.7 | 4 | 5 | 42 | H |
| EE-42/15-3 | 18 | 48.7 | 32 | 27.5 | 4 | 5 | 45.1 | V |
| EE-42/20-1 | 12 | 45 | 39.8 | 32.5 | 4 | 5 | 42 | V |
| EE-42/20-2 | 16 | 44.2 | 50 | 37.8 | 4 | 5 | 42.2 | H |
| EE-42/20-3 | 18 | 44.1 | 37 | 27.3 | 4 | 5 | 45.3 | V |
| EE-55 | 20 | 50 | 50 | 45.5 | 4 | 5 | 55 | H |
| EE-65 | 16 | 55.2 | 51.8 | 45 | 4 | 5 | 65 | H |
|
Note: "H" HORIZONTAL TYPE (Bedroom Type) "V" VERTICAL TYPE (Vertical Type) |
||||||||
With a strong industrial presence since 2008, Guangdong Haoer Electronics Co., Ltd. stands as a specialized producer of precision magnetic components. Our core products—high-frequency transformers, filters, and inductors—are integral to advanced applications in lighting, home appliances, photovoltaics, UPS, automotive systems, and network communications.

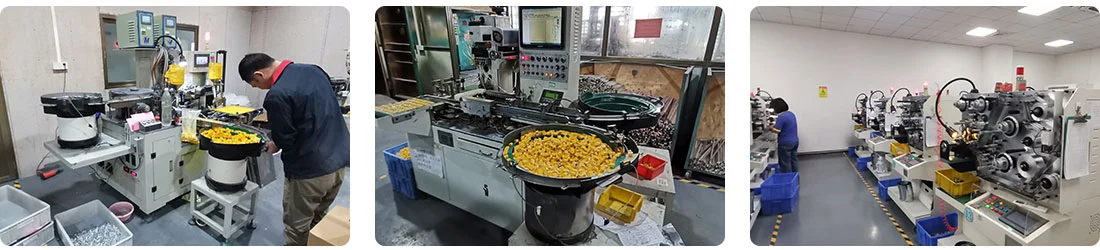

The company’s growth is marked by significant production capabilities: several manufacturing sites in Foshan, a workforce exceeding 1, 000, and an annual production volume of over 100 million units. Our investment in automation and precision testing, coupled with certifications such as CQC, UL, ISO 9000, and TS 16949, reflects our dedication to excellence.
Guided by the principles of innovation, quality leadership, and collaborative success, Haoer continues to strengthen its expertise and contribute to the evolving needs of the global electronics industry.
We offer comprehensive professional service support throughout the entire process. All products enjoy a standard warranty period. In the event of non-human quality issues within the warranty scope, free repair or replacement services are available. A professional technical team is equipped to provide technical consultation services such as installation and commissioning guidance, fault diagnosis, etc., with prompt and efficient responses. At the same time, a complete after-sales file is established to continuously monitor the product usage status. For bulk purchasing customers, customized after-sales solutions can be provided to ensure comprehensive protection of customer rights and stable product operation!
The small packages will be sent by courier, such as DHL, UPS, TNT, FedEx, etc. We can also arrange air or sea transportation according to your requirements.
Question: Are you a manufacturing factory or a trading company?
Answer: We are a manufacturer with our own factory, and we also provide one-stop supply chain services.
Question: Do you offer ODM and OEM services?
Answer: Yes, ODM and OEM are both welcome.
Question: What are your main products?
Answer: We mainly produce high-frequency transformers series, inductors series, electronic modules and other electronic components.
Question: Can you provide samples?
Answer: Yes, but the complexity and quantity of the samples will determine whether a fee is required.
Question: How long does it take for the order to be delivered?
Answer: This depends on the complexity and quantity of the product. It usually takes 2 to 4 weeks.
