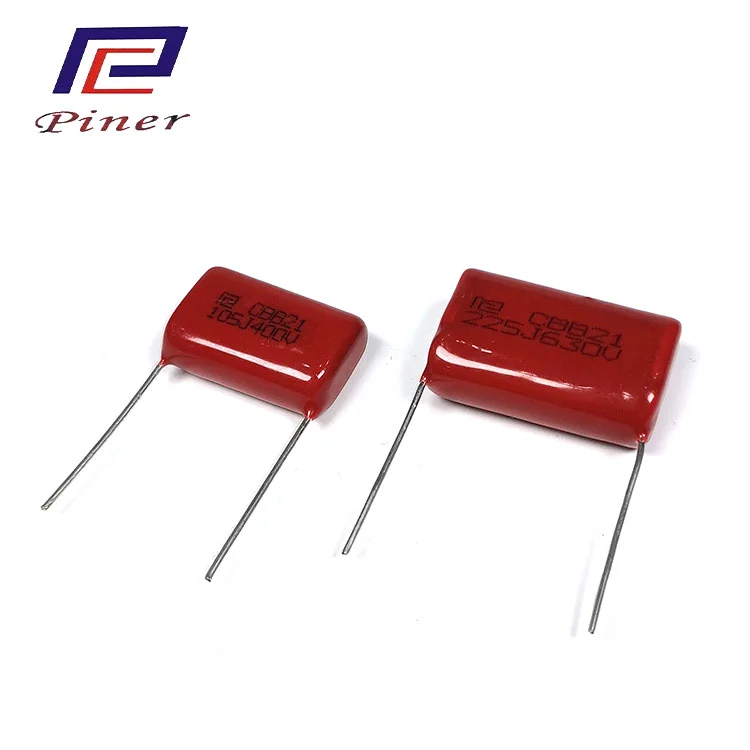

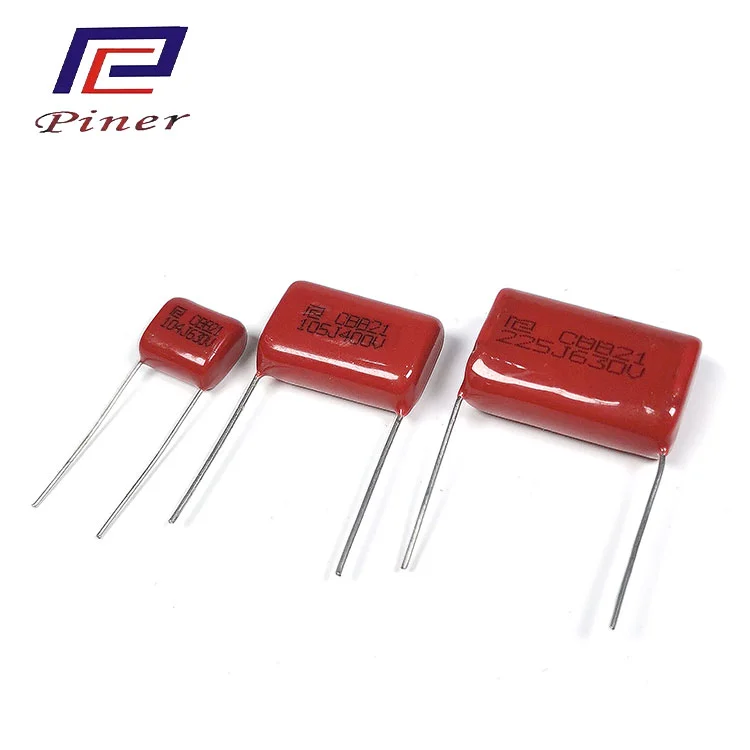

1. The LED High Insulation Safety Metalized Polypropylene Film Capacitor supplied by Piner manufacturer is composed of metalized polypropylene film and has an un type structure.
2. It has low high-frequency loss and low internal temperature rise.
3. The capacity variation is small and it has a negative temperature coefficient.
4. It is encapsulated with epoxy resin.
5. The insulation resistance varies according to different capacities and there are specific requirements.
6. The strength test of the lead-out terminals and the bending test are qualified.
7. The soldering heat resistance test is qualified.
8. The solderability test is qualified.
9. The vibration test, dry heat test, cold test, rapid temperature change test, steady-state humid heat test and durability test all meet the requirements.
| Reference standard | GB10190、IEC60384-16 |
| Climatic category | 40/105/21 |
| Rated voltage | 250VDC ~ 630VDC |
| Capacitance range | 0.01uF ~ 10uF |
| Capacitance tolerance | ±5%(J) ±10%(K) ±20%(M) |
| Between terminals Voltage proof | 1.6Un DC (10s) |
| Insulation resistance (at 20°C) |
Between terminals≥30000M ΩCR ≤0.33uF (100vdc 60s) ≥7500s CR>0.33uF (100vdc 60s) |
| Dissipation factor | DF≤0.0020 (1KHz) |
CBB21 Film Capacitor Dimension Unit:mm
Note: The above size is for reference only. Customization according to customers’ requirements is available.
Both CBB22 and CBB21 are metallized polypropylene film capacitors. They share certain structural similarities. The main difference lies in the emphasis on design and process, which leads to different application tendencies.
Traditionally, CBB22 has been more focused on applications in direct current circuits, such as power filtering, bypass and energy storage, etc. Its design is often optimized for stability and low loss under direct current voltage conditions. While CBB21 takes into account both materials and processes for AC characteristics earlier, so it is more commonly found in AC circuits, such as coupling, phase shifting, AC filtering, etc.
In recent years, with the advancements in polypropylene film materials, metallization processes and packaging technologies, the CBB22 material has also made significant progress. The two are basically indistinguishable now.
Foshan Piner Electronics Co., Ltd. is a professional manufacturer specializing in the research, development, production, and after-sales service of film capacitors. The company operates a modern production facility spanning over 3, 000 square meters and focuses on the manufacturing of metallized film capacitors—including CBB21, CBB22, CL21, CBB60, CBB61, and X2 safety capacitors—as well as capacitors tailored for domestic electromagnetic ovens.
Its product portfolio serves a broad range of industries, including information technology, lighting systems, welding equipment, automotive ignition systems, and pulse-triggering applications. To maintain technological leadership, the company has introduced advanced fully automated production lines from both domestic and international suppliers. Key raw materials—including polypropylene and polyester films—are sourced exclusively from globally recognized manufacturers such as Toray (Japan), SKC (South Korea), PHD (Germany), Quanzhou Jiadeli (China), Zhejiang Nanyang Technology (China), and Foshan Plastic Film Material Co., Ltd. (China).
The company is certified to ISO 9001:2015 for quality management. Its MKP X2 safety capacitor series has obtained international safety certifications, including UL (USA), cUL (Canada), VDE (Germany), and China Compulsory Certification (CCC). All products comply with the latest environmental regulations of the European Union and fully conform to RoHS and REACH directives.
Guided by the core principles of integrity, customer centrality, market orientation, and quality foundation, Foshan Piner Electronics is committed to sustainable growth through excellence in service and continuous improvement.
We offer courier delivery services including DHL, UPS, TNT and FedEx. Additionally, we also support the option of choosing air or sea transportation as per your needs.
Little Bear, Delmar, Meishel, Dongling Weiyou, Yaxuel, Lianrui, Jiewei, Yingke, Yu Long, Tuohao
Question: What are your main products?
Answer: Our main products include: High-frequency transformer series, inductor series
Question: Can you put our logo on the product?
Answer: Yes, we can.
Question: How long does it take for the order to be delivered?
Answer: This depends on the complexity and quantity of the product. It usually takes 2 to 4 weeks.
Question: What are your main products?
Answer: We mainly produce high-frequency transformers series, inductors series, capacitors and other electronic components.
