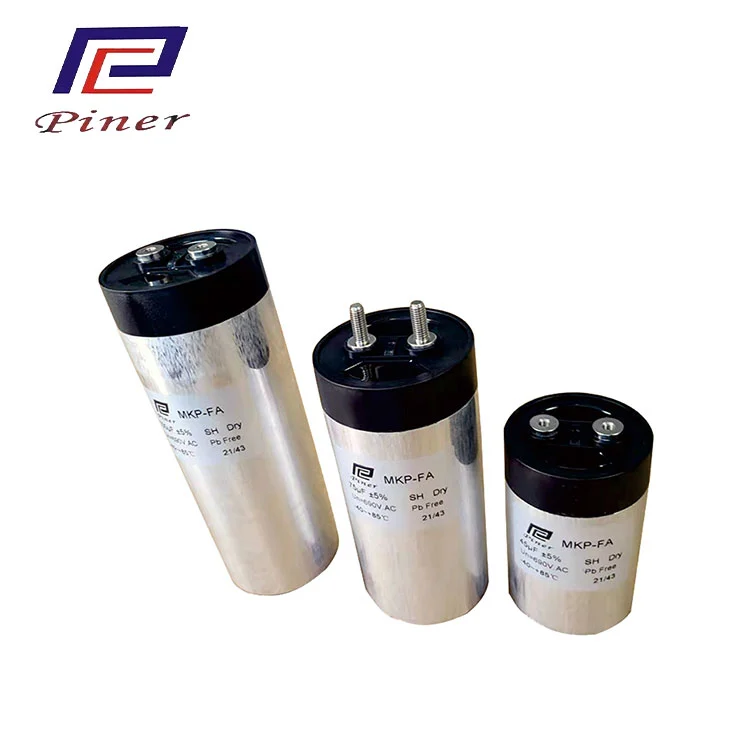

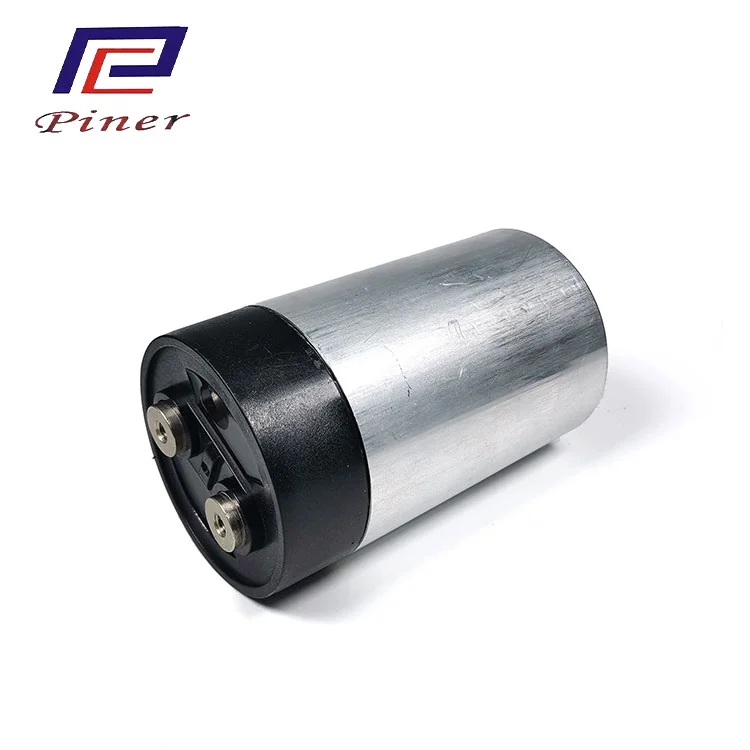

MKP-F Safety Film Capacitor

The MKP-F Safety Film Capacitor produced by Piner Manufacturer achieves a balance between performance and safety. It retains all the core advantages of the conventional MKP capacitors while endowing them with active explosion-proof protection features through the safety film process. At the same time, it optimizes stability to meet the high reliability requirements of industrial applications. The specific features are as follows:

1. Exclusive active explosion-proof protection for safety film: In cases of overvoltage, overcurrent, and overheating, the faulty area is quickly disconnected through the micro-grooves of the safety film, effectively preventing bulging, fire, and explosion, meeting the mandatory protection requirements for high safety-level circuits, and suitable for harsh scenarios such as unmanned operation, enclosed spaces, and high-power integration;

2. Ultra-strong current and pulse resistance: Supports continuous current ranging from 20A to 120A, peak current from 100A to 500A, with resistance to high-frequency pulse impact. The electrodes do not suffer from erosion and the core body does not break down, suitable for the instantaneous large current requirements of high-power circuits;

3. Dual protection of self-healing and safety: Retains the micro-breakdown self-healing characteristic of the conventional MKP capacitor, small faults are repaired through self-healing; major faults are actively disconnected through the safety film, the dual protection significantly enhances reliability and avoids safety accidents caused by single self-healing failure;

4. High stability across the entire temperature range: Rated operating temperature ranges from 40℃ to +105℃, insulation resistance and withstand voltage performance remain unchanged; no performance freezing at low temperatures, no significant increase in loss at high temperatures, suitable for complex alternating temperature conditions;

5. Excellent high-voltage and anti-corona resistance: Rated voltage covers 100V to 1500V DC, customizable for higher voltage specifications; the edge of the electrode is strengthened treatment, effectively resisting corona discharge under high-frequency and high-voltage conditions, avoiding dielectric aging and extending the lifespan of the capacitor;

6. Industrial-grade environmental adaptability: Flame-retardant sealed packaging design, moisture-proof, dust-proof, resistant to industrial oil stains, resistant to vibration, capable of long-term stable operation in workshops, outdoors, and enclosed equipment, with extremely low leakage current and high usage safety;

7. Non-polarity design, flexible installation: No need to distinguish between positive and negative poles, suitable for various types of circuits such as DC, AC, and high-frequency pulses; supports two lead-out methods of copper wire / copper bar, radial / axial installation options, standardized pin spacing, suitable for various PCB board insertion and equipment integration, flexible layout.

MKP-F Safety-film film capacitor Regular specs

Dimension Unit: mm

Note: The above size is for reference only.Customization according to customers’ requirements is available.
