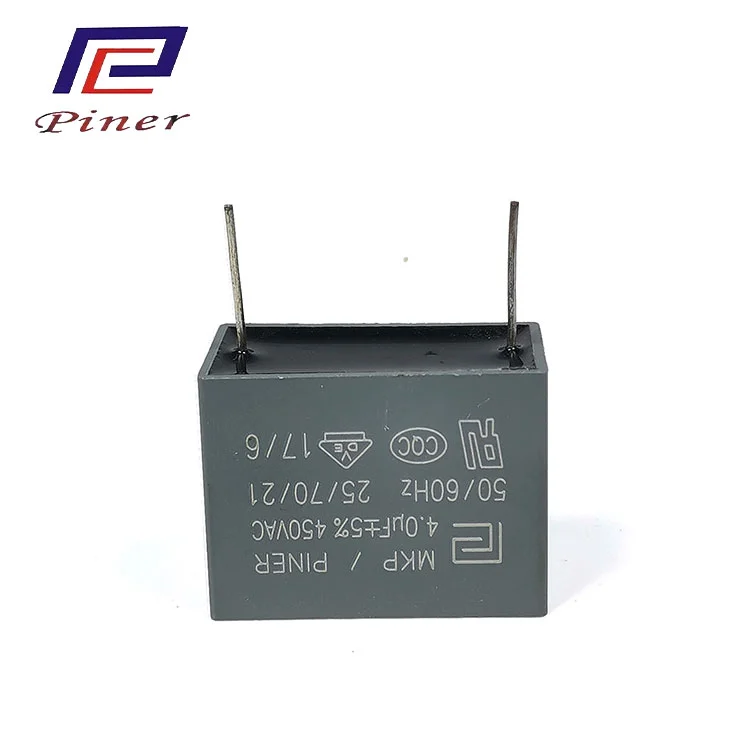

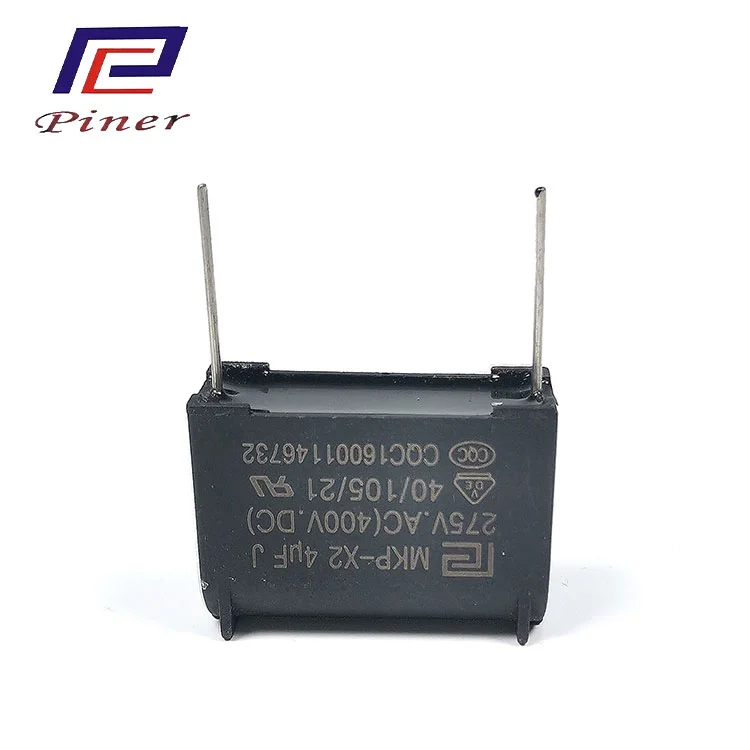

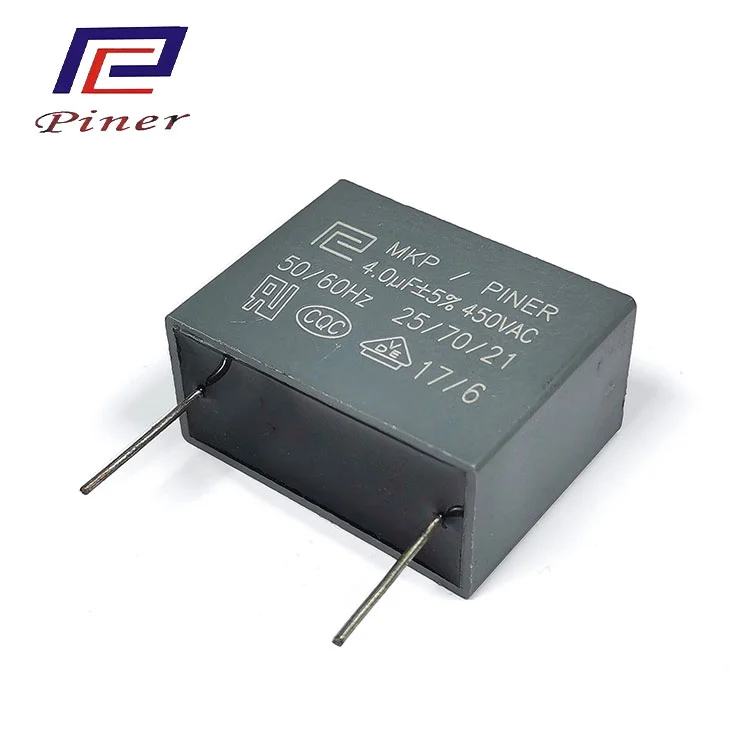

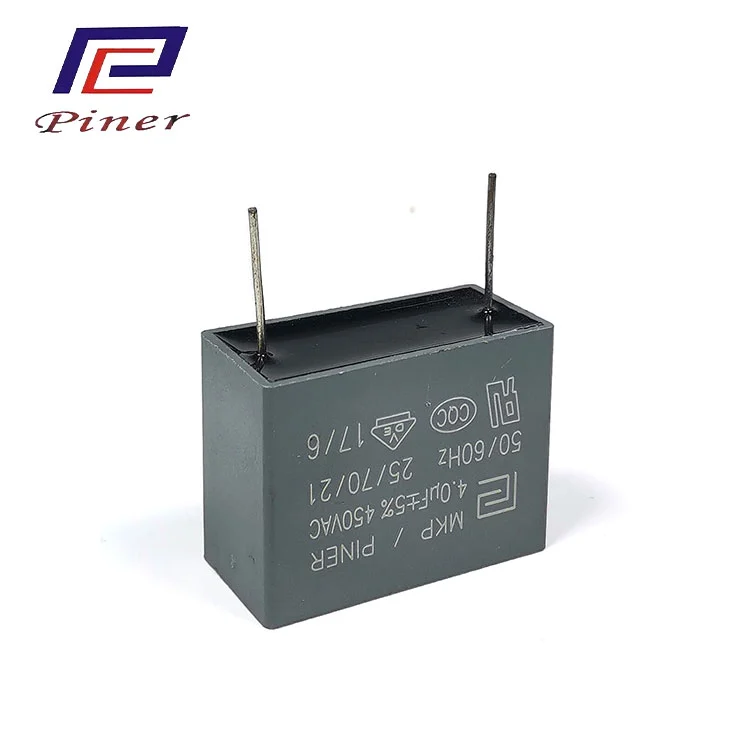

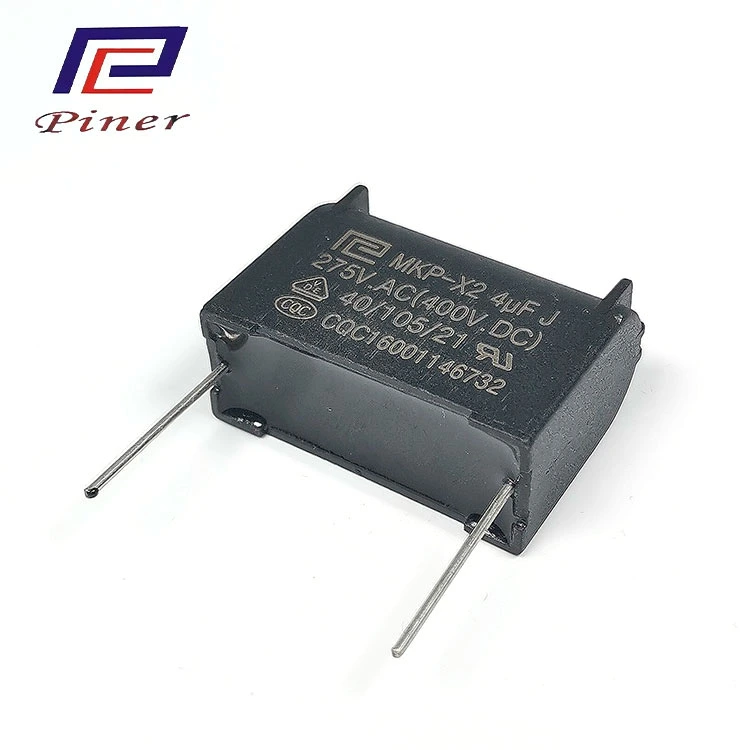

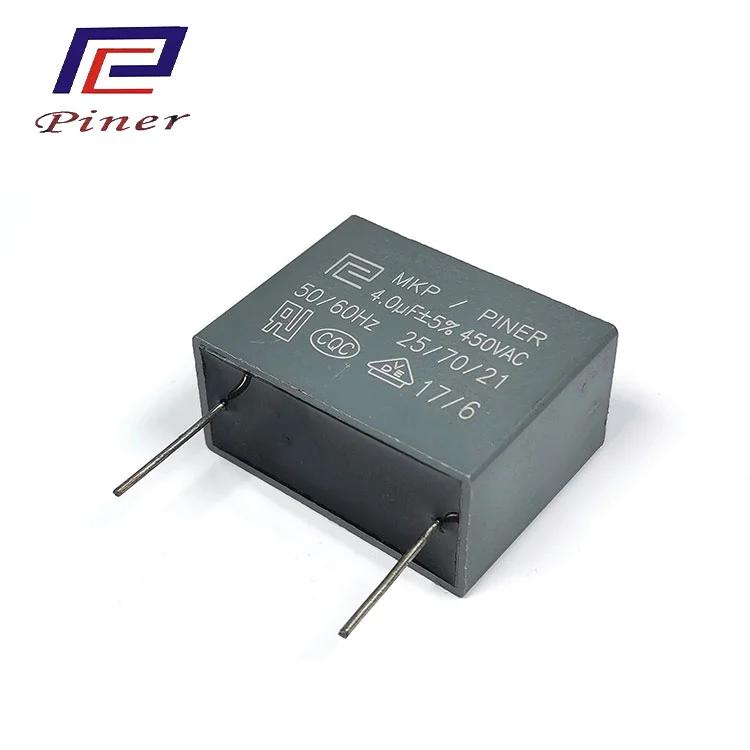

1. High frequency with low power consumption, stable resonant performance: The non-inductive winding design of Piner's China Vertical MKPH-X2 Induction Cooker Capacitor completely eliminates high-frequency inductive reactance, and the low-loss medium ensures high energy conversion efficiency under 20-30kHz conditions, with no frequency deviation and uniform electromagnetic stove heating power without heating interruptions.
2. High voltage tolerance and large current capacity, suitable for full power range: DC 1200V/1600V high voltage, 10-30A large ripple current carrying capacity, perfectly compatible with 1800W household to 3500W commercial electromagnetic stoves, capable of withstanding instantaneous power surges.
3. High temperature resistance and anti-aging, strong environmental adaptability: High-temperature epoxy resin encapsulation + 105℃ temperature-resistant plastic housing, suitable for the harsh environment inside the electromagnetic stove, such as high temperature, dust, and vibration, with no capacity attenuation or housing deformation during long-term operation.
4. Explosion-proof safety, worry-free use: Built-in industry-specific explosion-proof concave pressure release structure, automatically releases pressure in case of overpressure / overcurrent / high temperature, preventing housing explosion, and eliminating the risk of fire or explosion caused by capacitor failure in the electromagnetic stove from the source.
5. Efficient self-healing, low failure rate: Thickened zinc-aluminum composite electrodes have efficient self-healing characteristics, allowing for rapid isolation of fault points under high-frequency local breakdown, avoiding complete capacitor failure, and significantly reducing the maintenance rate of the electromagnetic stove.
6. Vertical structure, convenient installation and maintenance: Occupies less PCB area, suitable for automated production lines, high heat dissipation efficiency, facilitates later maintenance and replacement, and reduces overall costs.
7. X2 safety certification, safe and reliable: Compliant with IEC 60384-14 standards, with characteristics of preventing self-ignition after failure, enhancing the overall safety level of the electromagnetic stove, and meeting market entry requirements in both domestic and international markets.
| Smooth filtration capacitance | |
| Reference standard | GB/T14472 IEC60384-14 |
| Climatic category | 40/105/21 |
| Rated voltage | 400VDC(275VAC) |
| Capacitance range | 3uF ~ 15uF |
| Capacitance tolerance | ±5%(J),±10%(K) |
| Between terminals Voltage proof | 1.8Un DC(60s) |
| Insulation resistance (at 20℃) | ≥5000s CR>0.33uF (100vdc 60s) |
| Withstand current ability | dv/dt≥30v/us |
| Dissipation factor | DF≤0.0010(1KHz) |
| Resonant capacitance | |
| Reference standard | GB/T17702 IEC61071 |
| Climatic category | 40/105/21 |
| Rated voltage | 1000VDC\1200VDC |
| Capacitance range | 0.01uF ~ 1uF |
| Capacitance tolerance | ±5%(J),±10%(K) |
| Between terminals Voltage proof | 1.8Un DC(10s) |
| Insulation resistance (at 20℃) | ≥30000s(100vdc 60s) |
| Withstand current ability | dv/dt≥500v/us |
| Dissipation factor | DF≤0.0010(10KHz) |
Dimension Unit: mm
Foshan Pin'er Electronics Co., Ltd. is a domestic professional manufacturer of film capacitors. It focuses on the research, production and sales of metallized polypropylene film capacitors. The company adheres to the concept of "technology-driven and quality-first", and has established a full-process self-controlled system from materials to finished products, providing high-reliability capacitor products for the fields of new energy, industrial control, and consumer electronics.

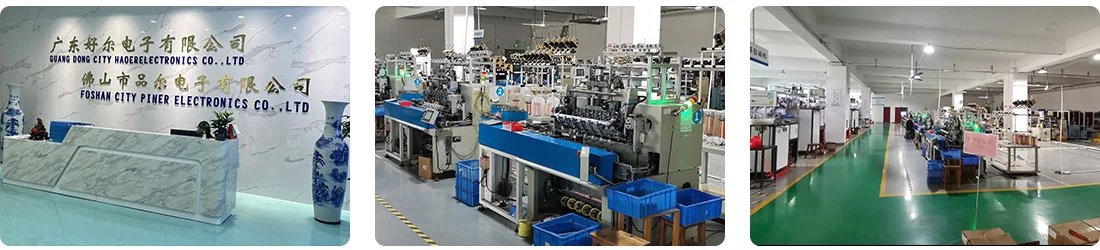

To ensure quality and efficiency, Pir Electronics has equipped itself with industry-leading fully automated production and testing equipment, including:
High-speed winding machine: Achieves precise winding of films, ensuring product consistency;
Vacuum electroplating machine: Enhances the conductivity of the electrode and its surge resistance capability;
Fully automatic welding assembly machine: Achieves visual positioning and laser welding, enhancing production efficiency;
Intelligent Capacitor Tester: Conducts comprehensive parameter testing and data traceability for the product;
Epoxy mixing and pouring machine: Achieves bubble-free packaging, enhancing the moisture-proof and insulation properties of the products.
Through advanced equipment and strict quality control, Piel Electronics achieves full production traceability, ensuring that each product is stable in performance, reliable and durable.
The package will be sent through major courier companies (such as DHL, UPS, TNT, FedEx, etc.), and you can also choose air or sea transportation according to your needs.
Question: Are you a manufacturing factory or a trading company?
Answer: We are a manufacturer with our own factory, and we also provide one-stop supply chain services.
Question: Do you offer ODM and OEM services?
Answer: Yes, we support ODM and OEM. We can customize products according to customer needs.
Question: What are your main products?
Answer: We mainly produce high-frequency transformers series, inductors series, capacitors and other electronic components.
Q: What payment methods do you accept?
A: We support T/T, Letter of Credit (L/C), PayPal and cross-border platform guarantee transactions.
Question: Can customized products be provided?
Answer: Yes. We are capable of adjusting product specifications, logos, packaging, etc. according to your requirements. Please provide specific designs or requests, and we will assess the feasibility and offer a solution.
