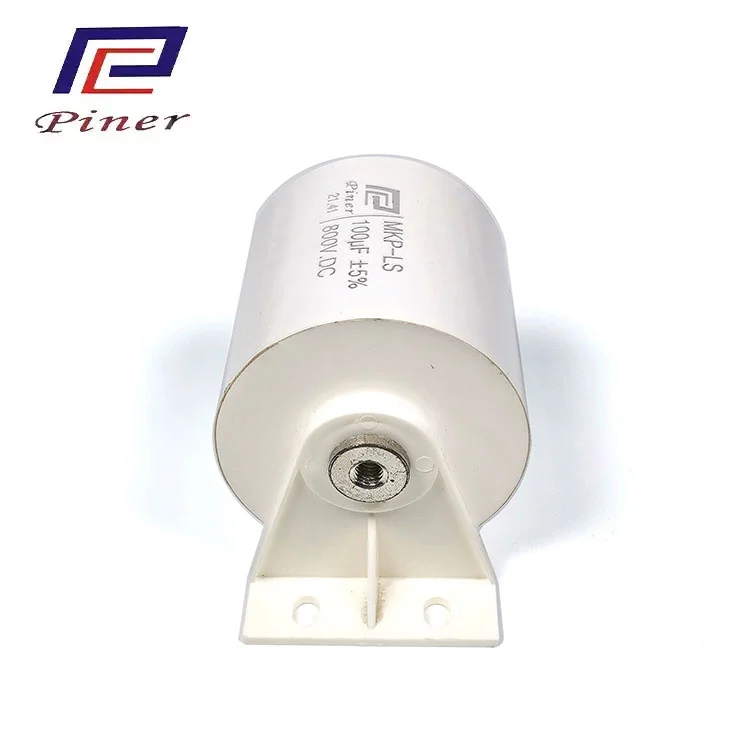

Low sensitivity and current resistance, resistant to high welding current impact
LS low inductance structure is suitable for high-frequency inverter working conditions of welding machines, which can carry large ripple currents during welding, withstand instantaneous current surges during welding, ensure smooth output of welding current, effectively reduce arc breakage and splashing problems, and improve welding quality.
Low consumption voltage regulation, absorption peak protection core device
High quality polypropylene film medium, low electrical loss, can quickly absorb circuit ripple, suppress voltage spikes, protect IGBT/MOS tubes inside the welding machine, reduce core power device failures, and lower welding machine maintenance rates.
High temperature resistance and aging resistance, long service life under workshop conditions
The whole parts are made of industrial grade high-temperature resistant materials, which can withstand the internal high temperature of the welding machine during welding. They are resistant to aging and do not decay. There are no problems such as media falling off and potting glue softening. The workshop is free of maintenance for long-term continuous use, saving maintenance costs.
Explosion proof and flame retardant, safer for use in industrial workshops
Built in explosion-proof pressure relief structure, combined with UL94 V-0 flame retardant packaging, eliminates the risk of capacitor explosion and fire caused by overvoltage and overcurrent from the source, adapts to the electrical environment of industrial workshops, and provides more reliable use.
All solid structure, strong adaptability to complex workshop environments
No liquid filling, no leakage hazard, with moisture-proof, anti vibration, and anti workshop dust characteristics. The non-polar design perfectly adapts to the AC/DC circuit of the welding machine, and can work stably in various industrial workshop conditions.
Standardized design, ultra convenient installation and replacement
Multiple voltage/capacity specifications are compatible with different welding machines, supporting two methods of welding plate/bolt fixation. The standardized size fits the compact installation space inside the welding machine, making it worry free and efficient for both new machine assembly and old machine maintenance and replacement.
Suitable for various commonly used welding machines and welding supporting equipment in industrial workshops, typical applications:
Manual arc welding machine, argon arc welding machine, gas shielded welding machine, plasma cutting machine, high-frequency inverter welding machine, spot welding machine, collision welding machine
| Reference | GB/T17702, IEC61071 |
| Capacitance | 5~250 μF |
| Capacitance Tol. | ±5% (J), ±10%(K) |
| Voltage | 400V.DC~1600V.DC |
| UT-T | 1.5Un/60s |
| Over Voltage | 1.1Un (30% of on-load-dur.) 1.15Un (30min/day) 1.2Un (5min/day) 1.3Un (1min/day) |
| tg δ | tg δ ≤ 0.0010 100Hz |
| RiXCn | ≥5000s (25℃±5℃ 100V.DC 60s) |
| dv/dt | >50V/μs |
| Climatic Category | 40/85/21 |
| Operating Temp. | -40℃~85℃ (θ h.s≤85℃) |
| Torque of terminals | M6: 3.5N.m, M8: 6N.m |
| Max.Altitude | <4000m |
| Lifetime Expectancy | 100000h (θ h.s≤70℃) |
| Encapsulation | Mylar tape or plastic shell, encapsulated with epoxy resin |
| Flame retardation | UL94V-0 |
Foshan Piner Electronics Co., Ltd. has years of experience in the research and development, manufacturing, sales, and service of metallized film capacitors, and has accumulated a solid technical foundation; We have cultivated and nurtured a professional R&D team with innovative capabilities and rapid response, as well as a well-trained and highly stable team of frontline technical workers. Based on the design concept of "safety, reliability, and excellent performance", we can provide customers with film capacitors with various media such as polyester, polypropylene, and polyphenylene sulfide. We can also provide personalized customized products according to customers' different requirements to meet their special needs.
We have innovatively developed a series of AC/DC metalized film capacitors that can be widely used in wind energy, solar energy, new energy vehicles, inverter power supplies, high-power switching power supplies, ultra-high voltage power supplies, high-voltage frequency converters, and high-voltage transmission and transformation industries. These capacitors include DC filtering capacitors for the above system bus power supply, AC filtering capacitors for the output terminal, DC Link capacitors for various new energy vehicles, IGBT and IGCT buffer absorption capacitors, resonant capacitors, DC blocking capacitors for the output circuit, energy storage capacitors, and ultra-high voltage metalized film capacitors up to tens of thousands of volts. The product performance and key technologies are given priority in the same industry. High quality power electronics and automotive electric drive power film capacitors have become the strategic goal of the company's sustainable development.
The shipping methods include DHL, UPS, TNT, FedEx and other courier services, and you can also choose air or sea freight according to your requirements
Xiaoxiong, Deerma, Meishile, Dongling Weili, Yasile, Lianrui, Jeweisi, Yingke, Yuelong, Tuohao
Q:Are your products compliant with international certifications?
A: Yes, our capacitors comply with RoHS and REACH regulations, and test reports are available. Some series are certified to UL and IEC standards.
Q: What is the minimum order quantity (MOQ)?
A: MOQ for standard products is 50-100pcs, depending on the model. Sample orders are welcome.
Q: What is the lead time?
A: Standard lead time is 3-4 weeks. Expedited delivery is available for urgent orders.
Q: What payment terms do you accept?
A: We accept T/T, L/C, and flexible terms based on mutual agreement.
Q: Do you offer technical support and customization?
A: Yes, we provide capacitor selection, parameter customization, and application guidance based on your circuit requirements.
Q: How do you ensure product stability in high-temperature/humidity environments?
A: We use metallized polypropylene film, flame-retardant epoxy potting, and aluminum casing, ensuring stable operation from -40℃ to 105℃.
