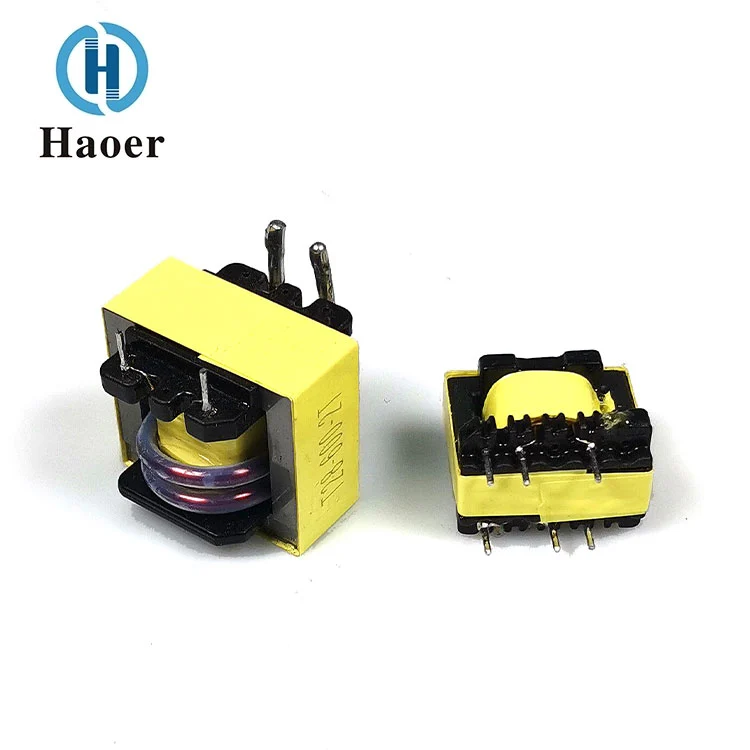

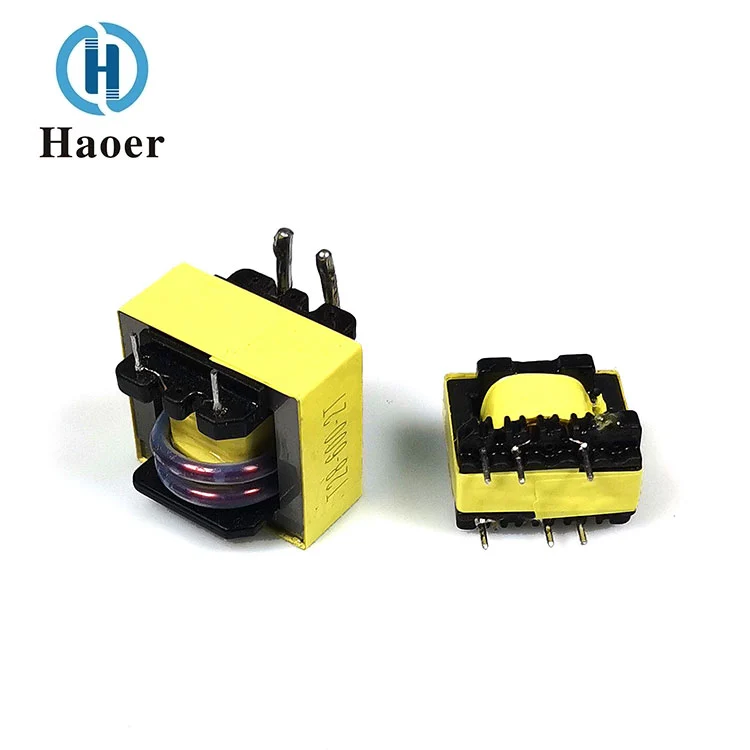

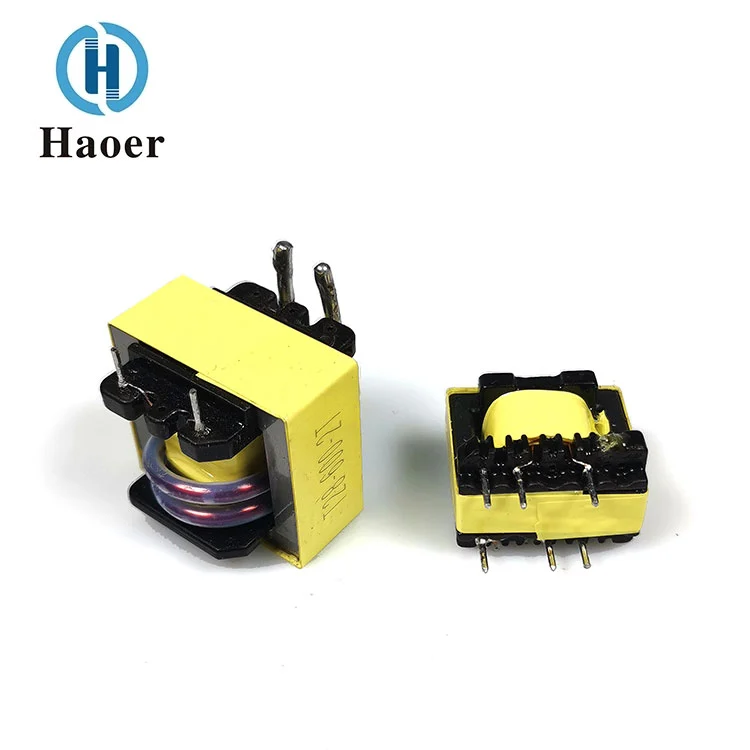

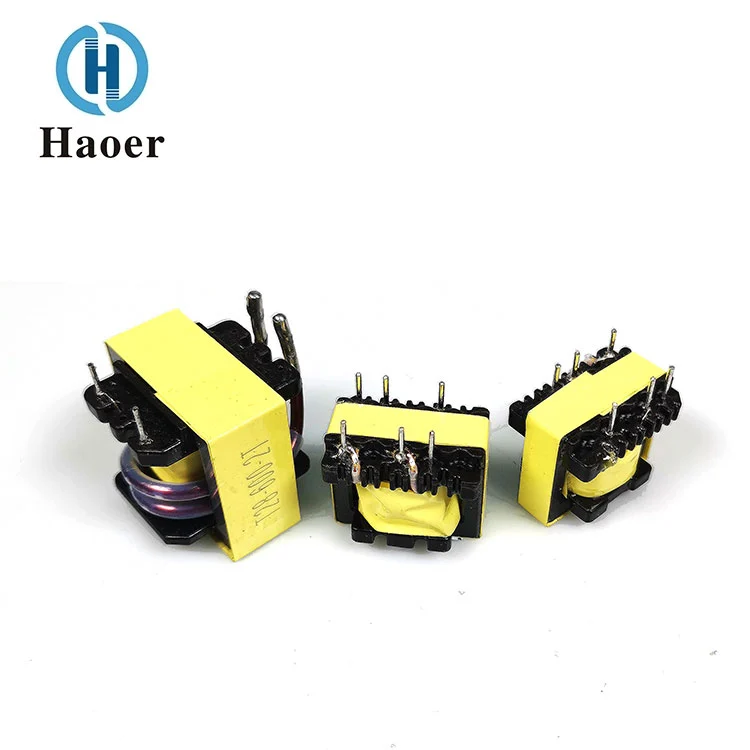

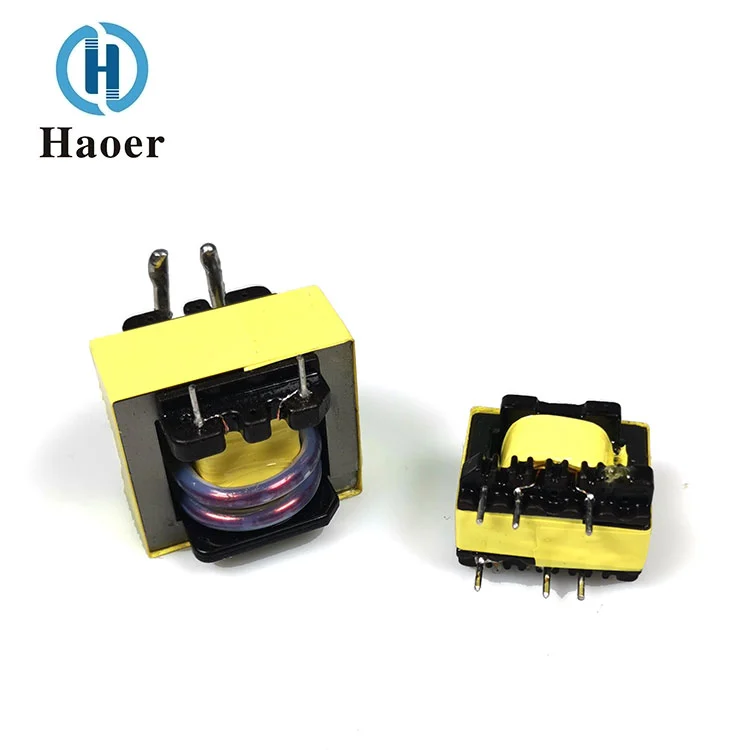

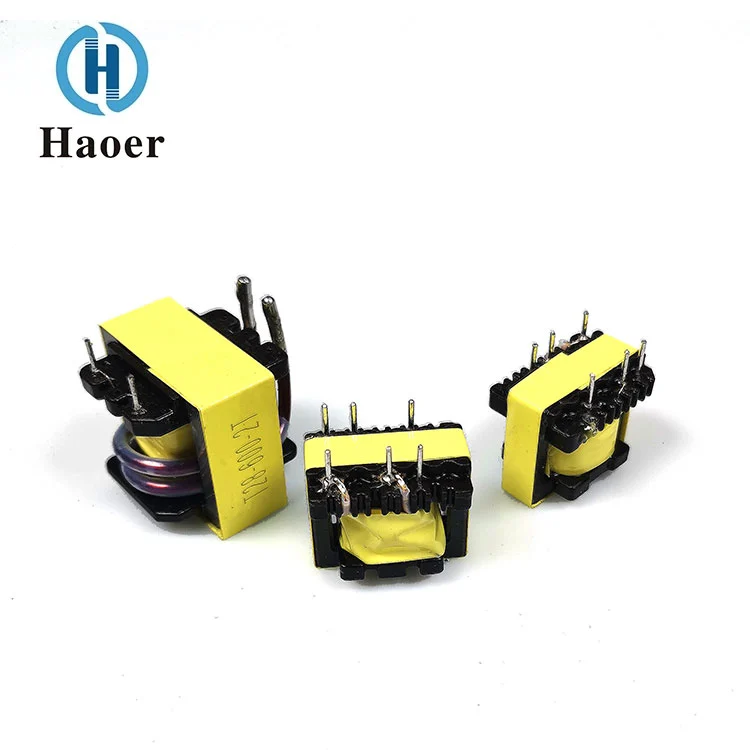

The EEI Electric Mosquito Repeller High-Frequency Transformer supplied by Haoer manufacturer has the characteristics of high working frequency range, high transmission efficiency, low magnetic loss, stable performance, low temperature rise, small size and low price.
1. Operating frequency: 20 kHz - 500 kHz
2. Output power: 0. 5 to 1000 watts
3. Operating temperature: -40°C to +125°C
4. Storage temperature: -25°C to +85°C
5. Storage humidity: 30% - 95%
The EEI Electric Mosquito Repeller High-Frequency Transformer boasts outstanding and wide-ranging electrical performance as well as reliable environmental adaptability. Its operating frequency covers a broad range from 20kHz to 500kHz, which not only meets conventional medium-frequency applications but also fully meets the design requirements of high-frequency switching power supplies. The output power range is extremely wide, ranging from 0.5W for low power to 1000W for high power, and it can support stable operation even in extreme environments. The operating temperature range is -40°C to +125°C, ensuring reliability in harsh industrial or outdoor scenarios. It can be safely stored within a temperature range of -25°C to 85°C and a humidity range of 30% to 95%.
| PART NO. | TERMINAL PINS | Dimensionsin mm(inches) | TYPE | |||||
| A | B | C±0.5 | D±0.5 | E±0.5 | F | |||
| EE-8.3 | 6 | 8 | 8 | 6 | 4 | 2.5 | 8.3 | V |
| EE-10 | 8 | 11.5 | 10.2 | 8 | 4 | 2.5 | 10.2 | V |
| EE-13 | 10 | 12 | 12.5 | 8.5 | 4 | 2.5 | 13 | V |
| EE-16-1 | 6 | 14.8 | 13.3 | 9 | 4 | 3 | 16 | V |
| EE-16-2 | 10 | 15.4 | 13 | 10.5 | 4 | 3.2 | 17.1 | V |
| EEL-16 | 10 | 28.5 | 16 | 12.3 | 4 | 4.3 | 21.9 | V |
| EE-19-1 | 8 | 17.6 | 16 | 10 | 4 | 5 | 19 | V |
| EE-19-2 | 10 | 17.2 | 16.2 | 13 | 4 | 3.9 | 20 | V |
| EEL-19 | 10 | 31.5 | 16 | 10.5 | 4 | 4 | 21.1 | V |
| EEL-19-1 | 10 | 15.6 | 30 | 24.1 | 4 | 3.5 | 21 | H |
| EE-25-1 | 6 | 20 | 18.2 | 12.5 | 4 | 6.3 | 25.2 | V |
| EE-25-2 | 8 | 21.7 | 17.5 | 12.6 | 4 | 5 | 25.2 | V |
| EE-25-3 | 10 | 22.2 | 25 | 15.4 | 4 | 5 | 26.1 | H |
| EEL-25 | 8 | 35.3 | 17.5 | 12.5 | 4 | 5 | 25.2 | V |
| EE-30 | 10 | 21 | 29.2 | 25.2 | 4 | 5 | 30 | H |
| EE-40 | 14 | 27.6 | 30.5 | 25.8 | 4 | 5 | 40 | H |
| EE-42/15-1 | 12 | 33.8 | 44 | 35.5 | 4 | 5 | 42 | H |
| EE-42/15-2 | 16 | 41.3 | 48 | 37.7 | 4 | 5 | 42 | H |
| EE-42/15-3 | 18 | 48.7 | 32 | 27.5 | 4 | 5 | 45.1 | V |
| EE-42/20-1 | 12 | 45 | 39.8 | 32.5 | 4 | 5 | 42 | V |
| EE-42/20-2 | 16 | 44.2 | 50 | 37.8 | 4 | 5 | 42.2 | H |
| EE-42/20-3 | 18 | 44.1 | 37 | 27.3 | 4 | 5 | 45.3 | V |
| EE-55 | 20 | 50 | 50 | 45.5 | 4 | 5 | 55 | H |
| EE-65 | 16 | 55.2 | 51.8 | 45 | 4 | 5 | 65 | H |
| Note: "H" HORIZONTAL TYPE (Bedroom Type) "V"VERTICAL TYPE (Vertical Type) | ||||||||
They are widely used in small household appliances, control panels, energy-saving lamps, notebook computers, PC power supplies, TVs, LCD monitors, switching power supplies, program-controlled switches, network equipment, DVDs, automotive electronics, etc.

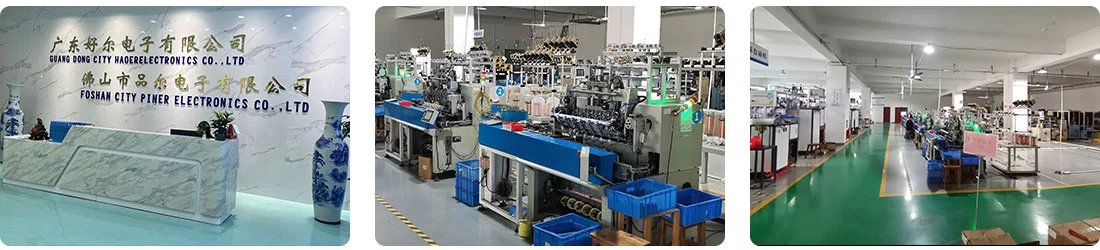

Guangdong Haor Electronics Co., Ltd. has multiple production bases in places like Foshan, Guangdong Province and Tingxian, Guangxi Province. The total factory area exceeds 10,000 square meters, and the number of employees has exceeded 1,000. The company has an annual production capacity of over 100 million transformers, filters, and inductors. The company has experienced employees and a professional and efficient management team, ensuring that every step from research and development to production meets high standards. Haor Electronics always adheres to the principles of "technological innovation, quality priority, service first, and win-win cooperation", continuously deepening its focus on the magnetic component field, striving to grow and become a benchmark enterprise in the industry.
